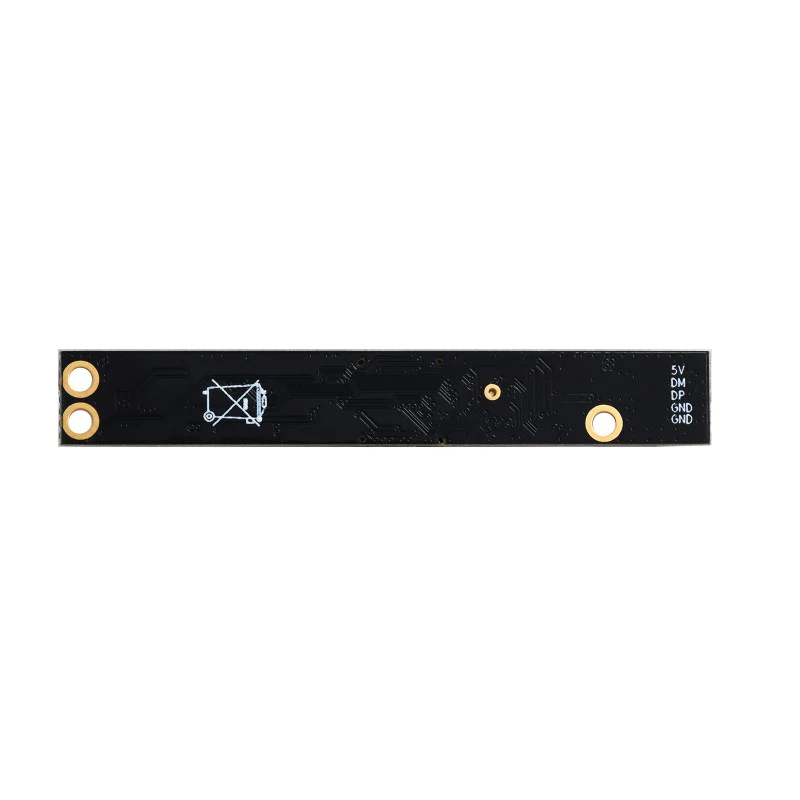

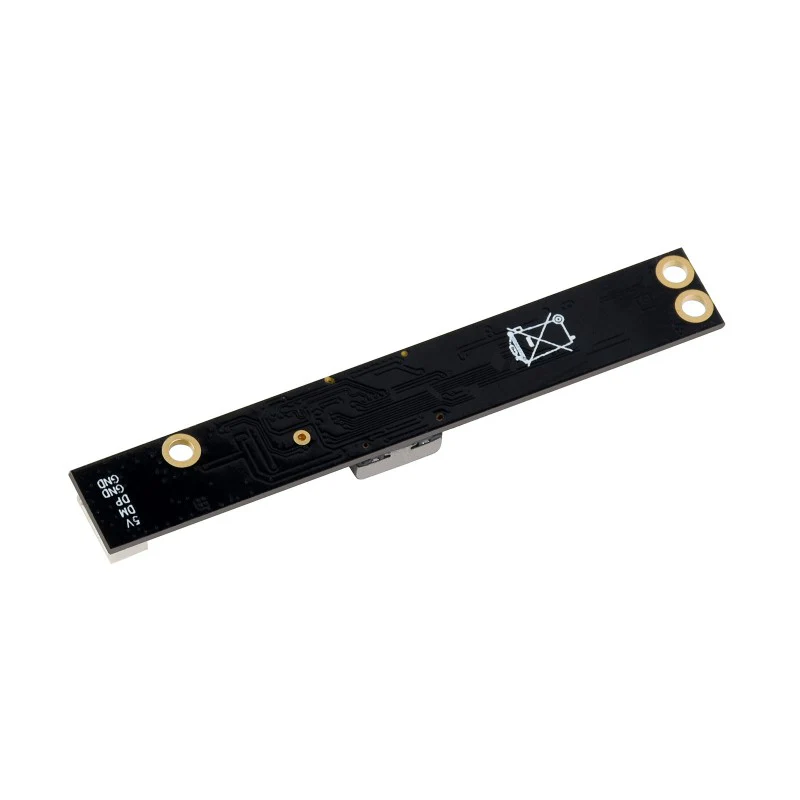

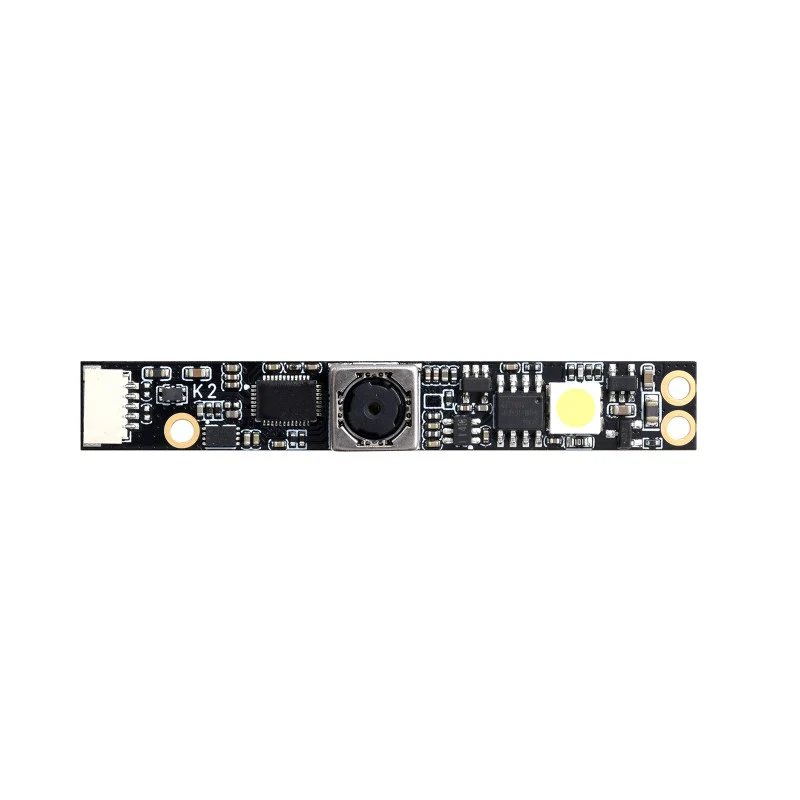

OV5640 5MP USB Camera with Fixed Focus / Auto Focus
OV5640 5MP USB Camera with FF/AF & 1080P Video Recording
The OV5640 (color) image sensor is a low voltage, high-performance, 1/4-inch 5 megapixel CMOS image sensor that provides the full functionality of a single chip 5 megapixel (2592×1944) camera using OmniBSI™ technology in a small footprint package. It provides full-frame, sub-sampled, windowed or arbitrarily scaled 8-bit/10-bit images in various formats via the control of the Serial Camera Control Bus (SCCB) interface.
Specifications
| PIXELS | 5MP | |
|---|---|---|
| SENSOR | OV5640 | |
| INTERFACE | USB 2.0 | |
| CAMERA | Sensor size | 1/4 inch |
| Aperture (F) | 2.8 | |
| Focal length (EFL) | 3.29 mm | |
| Field of view (FOV) | 68° | |
| Distortion | < 1% | |
| Focusing | (B): AF Auto-Focus (C): FF Fixed-Focus |
|
| IMAGE | Format support | MJPG, YUV422 |
| Static image resolution | 2592 × 1944 | |
| Video recording | 15 FPS 2592 × 1944 30 FPS 1920 × 1080 30 FPS 1280 × 720 |
|
| OPERATING VOLTAGE | 5V ± 5% | |
| CAMERA SIZE | 8.5 × 8.5 mm | |
| MODULE SIZE | 9 × 62 mm | |
| NOTE | Select OV5640 5MP USB Camera (AF) for Auto-focus, Select OV5640 5MP USB Camera (FF) for Fixed-focus, Except for the focus mechanism, the two cameras are exactly the same. |
|
Connection With USB Cable
Dimensions
