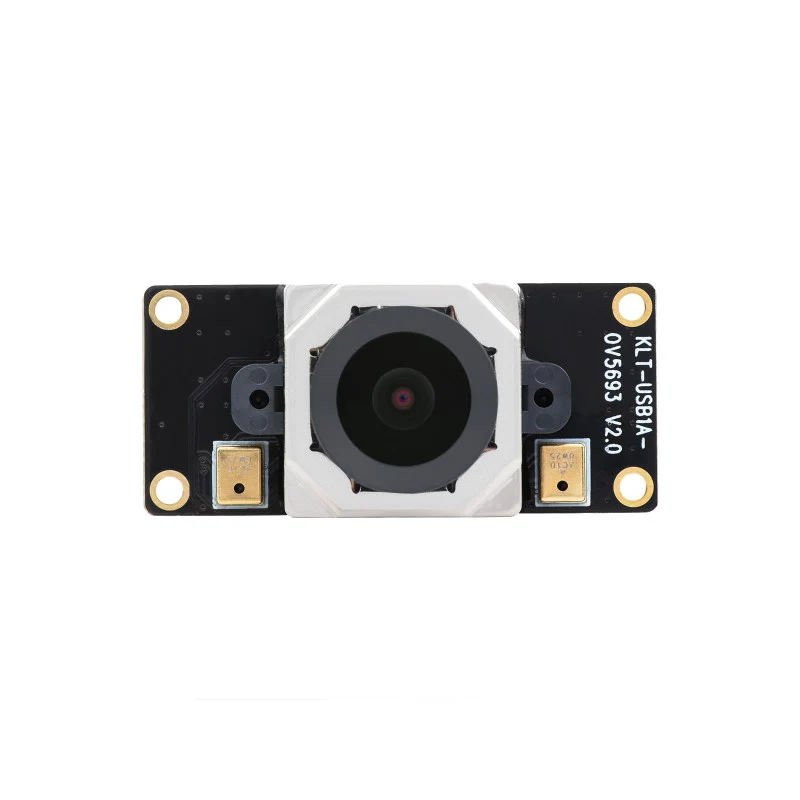

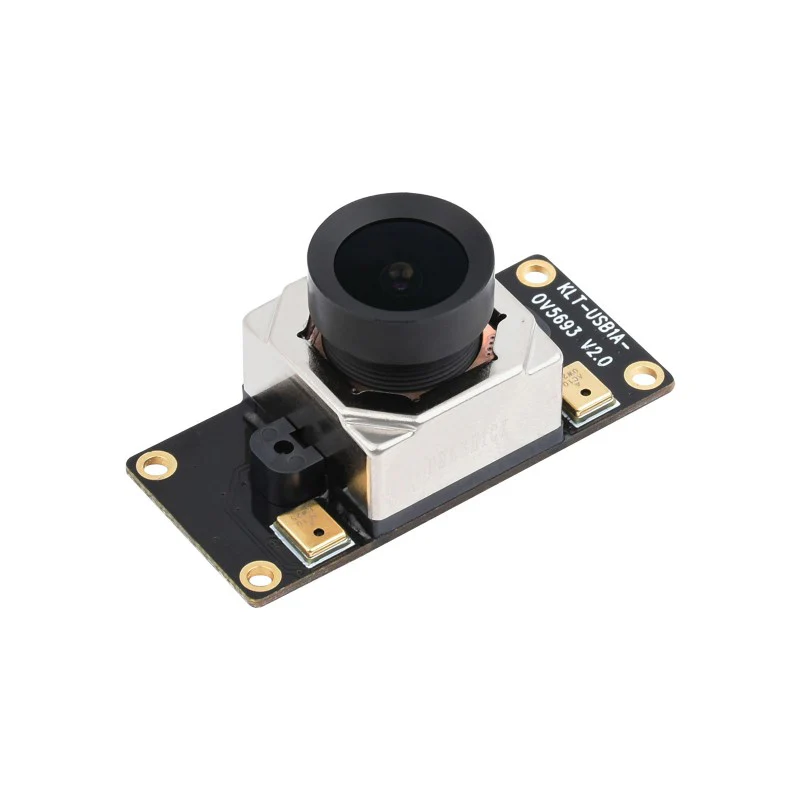

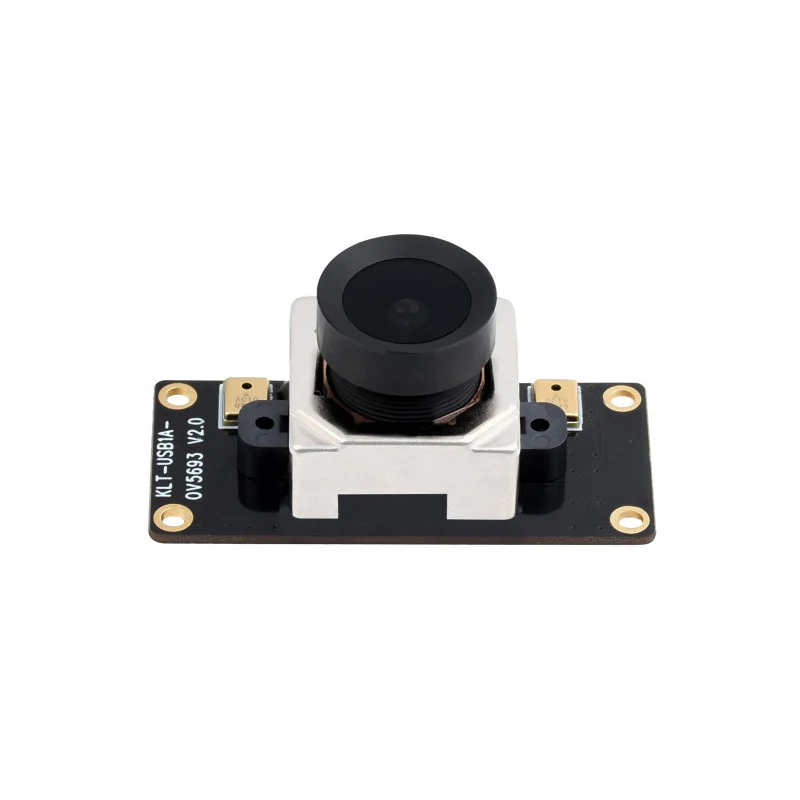

OV5693 5MP USB Camera, Fixed-focus, Auto Focusing, M12 Camera Module
5MP M12 CAMERA MODULE
OV5693 Sensor, USB2.0 Port, Auto Focusing
Specifications
| PIXELS | 5MP | |
|---|---|---|
| SENSOR | OV5693 | |
| INTERFACE | USB 2.0 | |
| CAMERA | Sensor size | 1/4 inch |
| Aperture (F) | 2.1 | |
| Focal length (EFL) | 2.5 mm | |
| Field of view (FOV) | 135°(D) 95°(H) 70°(V) | |
| Focusing | Auto focusing | |
| IMAGE | Format support | MJPG, YVY2 |
| Static image resolution | 2592 × 1944 | |
| Video recording | MJPG: 2592 × 1944 15FPS 1920 × 1080 15FPS 1280 × 720 15FPS 640 × 480 15FPS |
|
| YUY2: 2592 × 1944 3FPS 1920 × 1080 5FPS 1280 × 720 10FPS 640 × 480 15FPS |
||
| OPERATING VOLTAGE | 5V ± 5% | |
| OPERATING CURRENT | 500mA | |
| CAMERA SIZE | 18.00 × 18.00 × 19.69 mm | |
| MODULE SIZE | 18.00 × 40.00 mm | |
Connecting With USB Cable
Outline Dimensions
Wiki: www.waveshare.com/wiki/OV5693_5MP_USB_Camera_(A)
$12.22
Original: $40.74
-70%OV5693 5MP USB Camera, Fixed-focus, Auto Focusing, M12 Camera Module—
$40.74
$12.22
Description
5MP M12 CAMERA MODULE
OV5693 Sensor, USB2.0 Port, Auto Focusing
Specifications
| PIXELS | 5MP | |
|---|---|---|
| SENSOR | OV5693 | |
| INTERFACE | USB 2.0 | |
| CAMERA | Sensor size | 1/4 inch |
| Aperture (F) | 2.1 | |
| Focal length (EFL) | 2.5 mm | |
| Field of view (FOV) | 135°(D) 95°(H) 70°(V) | |
| Focusing | Auto focusing | |
| IMAGE | Format support | MJPG, YVY2 |
| Static image resolution | 2592 × 1944 | |
| Video recording | MJPG: 2592 × 1944 15FPS 1920 × 1080 15FPS 1280 × 720 15FPS 640 × 480 15FPS |
|
| YUY2: 2592 × 1944 3FPS 1920 × 1080 5FPS 1280 × 720 10FPS 640 × 480 15FPS |
||
| OPERATING VOLTAGE | 5V ± 5% | |
| OPERATING CURRENT | 500mA | |
| CAMERA SIZE | 18.00 × 18.00 × 19.69 mm | |
| MODULE SIZE | 18.00 × 40.00 mm | |
Connecting With USB Cable
Outline Dimensions
Wiki: www.waveshare.com/wiki/OV5693_5MP_USB_Camera_(A)
