Metal Case for ROCK 5C

Metal Case for ROCK 5C

Specialized for Radxa ROCK 5C

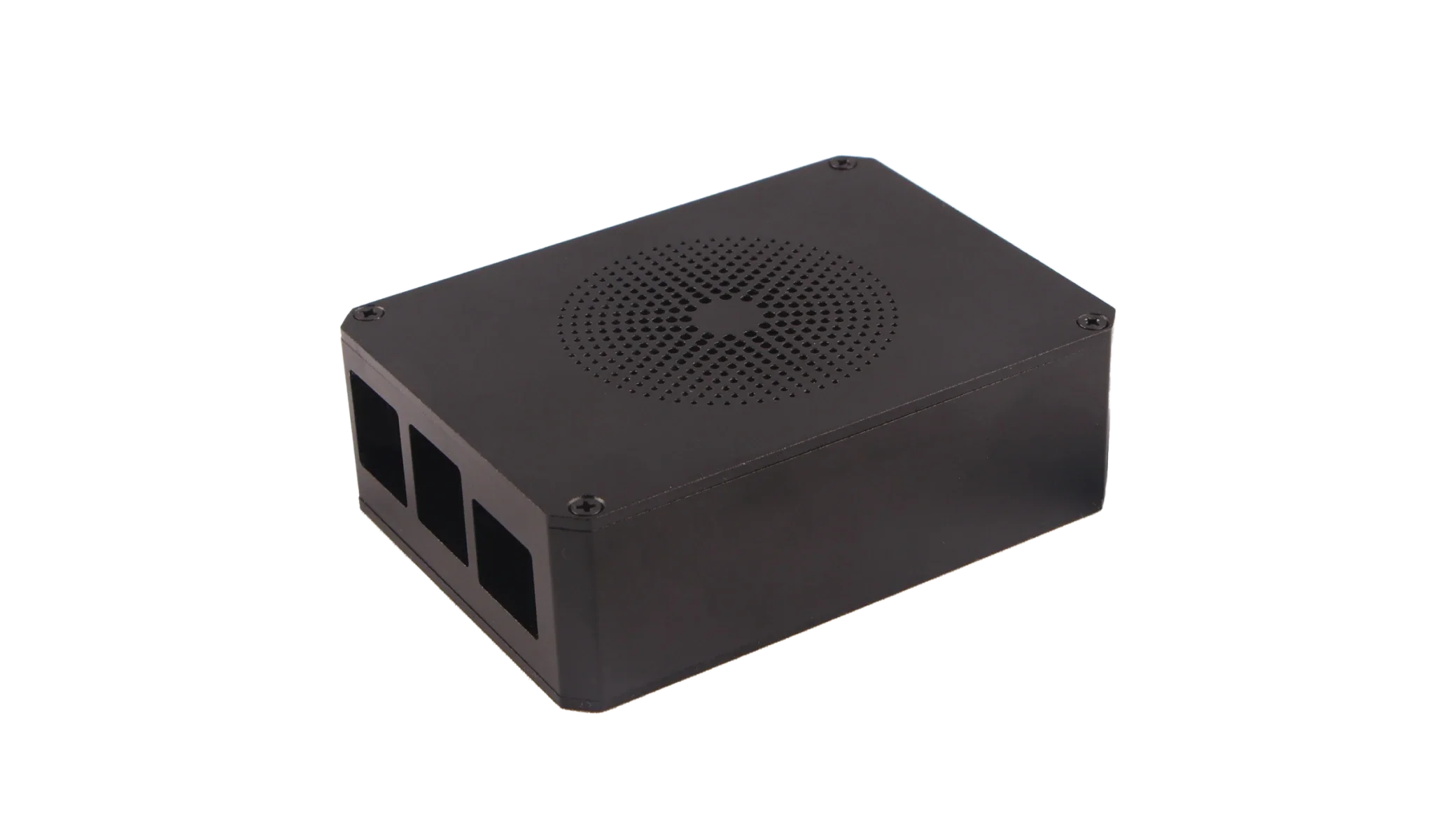

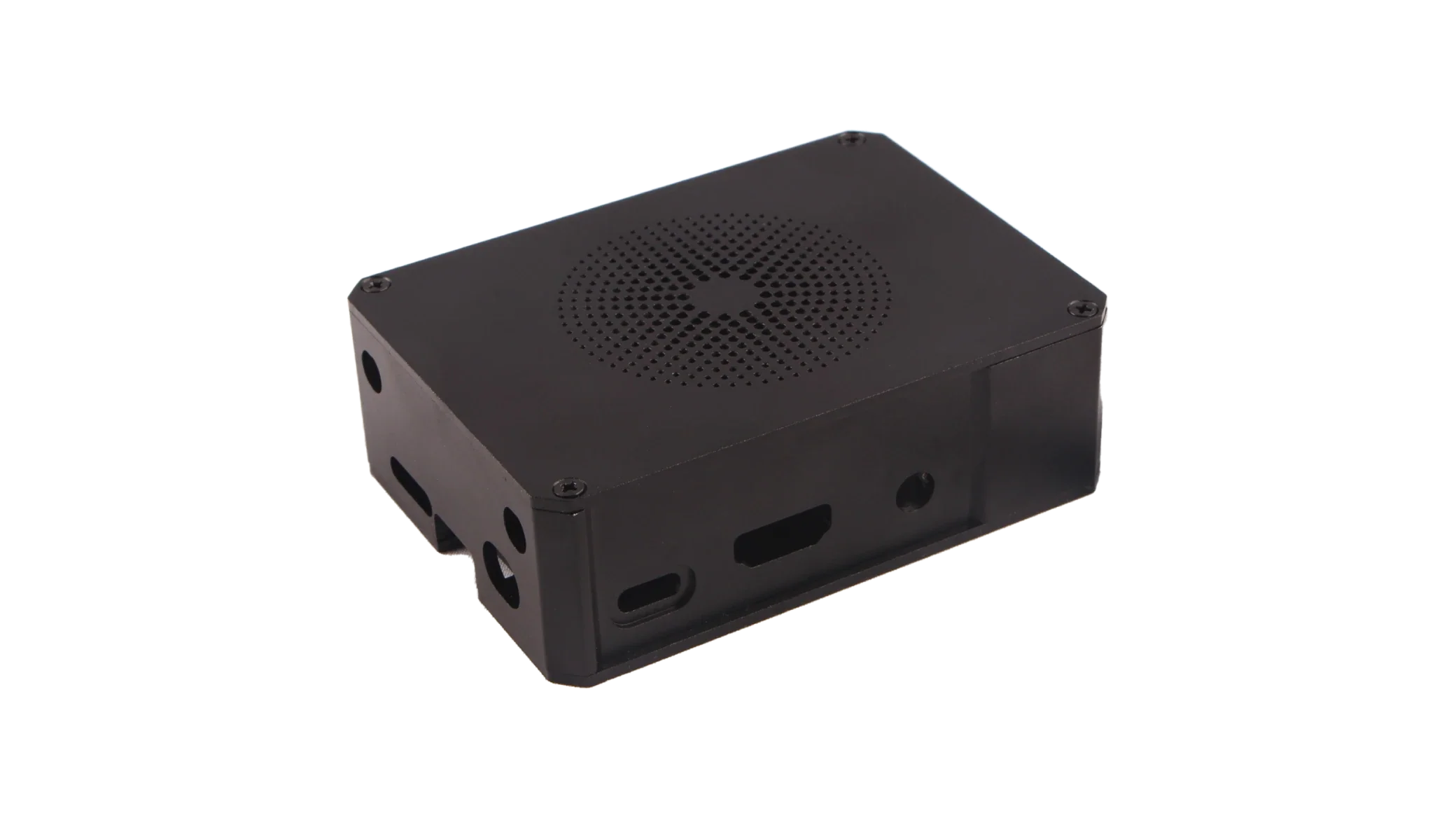

Radxa Metal Case for ROCK 5C is a precision-crafted aluminum enclosure specifically designed for the Radxa ROCK 5C single-board computer. Engineered for durability, heat dissipation, and seamless hardware access, the case consists of a top cover, middle frame, and bottom cover, all tailored to fit the ROCK 5C’s dimensions and layout. It includes all necessary mounting hardware—copper pillars and specialized screws—for secure and stable installation.



Radxa Metal Case for ROCK 5C

Metal Case Specialized for ROCK 5C

First, as shown, use four KM2.5x3mm screws to attach the four M2.5x5 copper pillars to the bottom cover.



Next, as shown, secure the ROCK 5C with four CM2.5x4mm screws.



Then, align and install the middle frame as shown. Use four KM2.5x3mm screws from the bottom cover side to attach the middle frame, connecting it to the bottom cover.



Finally, secure the top cover to the middle frame with four KM2.5x4mm screws with a CD pattern, completing the assembly.



Package List

・ 1x Top Cover
・ 1x Bottom Cover
・ 1x Middle Frame
・ 4x M2.5x5 Copper Pillars
・ 8x KM2.5x3 Screws
・ 4x KM2.5x4 CD Pattern Screws
・ 4x CM2.5x4 Screws
Please identify the outer surface of the top/bottom cover (the side facing outward), which features recessed or angled screw holes.





Tech Specs

Parameter	Specification
Compatibility	Radxa ROCK 5C
Dimension	94 x 68 x 31 mm
Package List	1x Top Cover 1x Bottom Cover 1x Middle Frame 4x M2.5x5 Copper Pillars 8x KM2.5x3 Screws 4x KM2.5x4 CD Pattern Screws 4x CM2.5x4 Screws





Downloads

Product Information

3D Drawings - Metal Case for ROCK 5C

Download >>

Metal Case for ROCK 5C Works with

> Radxa ROCK 5C
Your 8K Computer for Everything
