Metal Case for ROCK 5A

Metal Case for ROCK 5A

Specialized for Radxa ROCK 5A

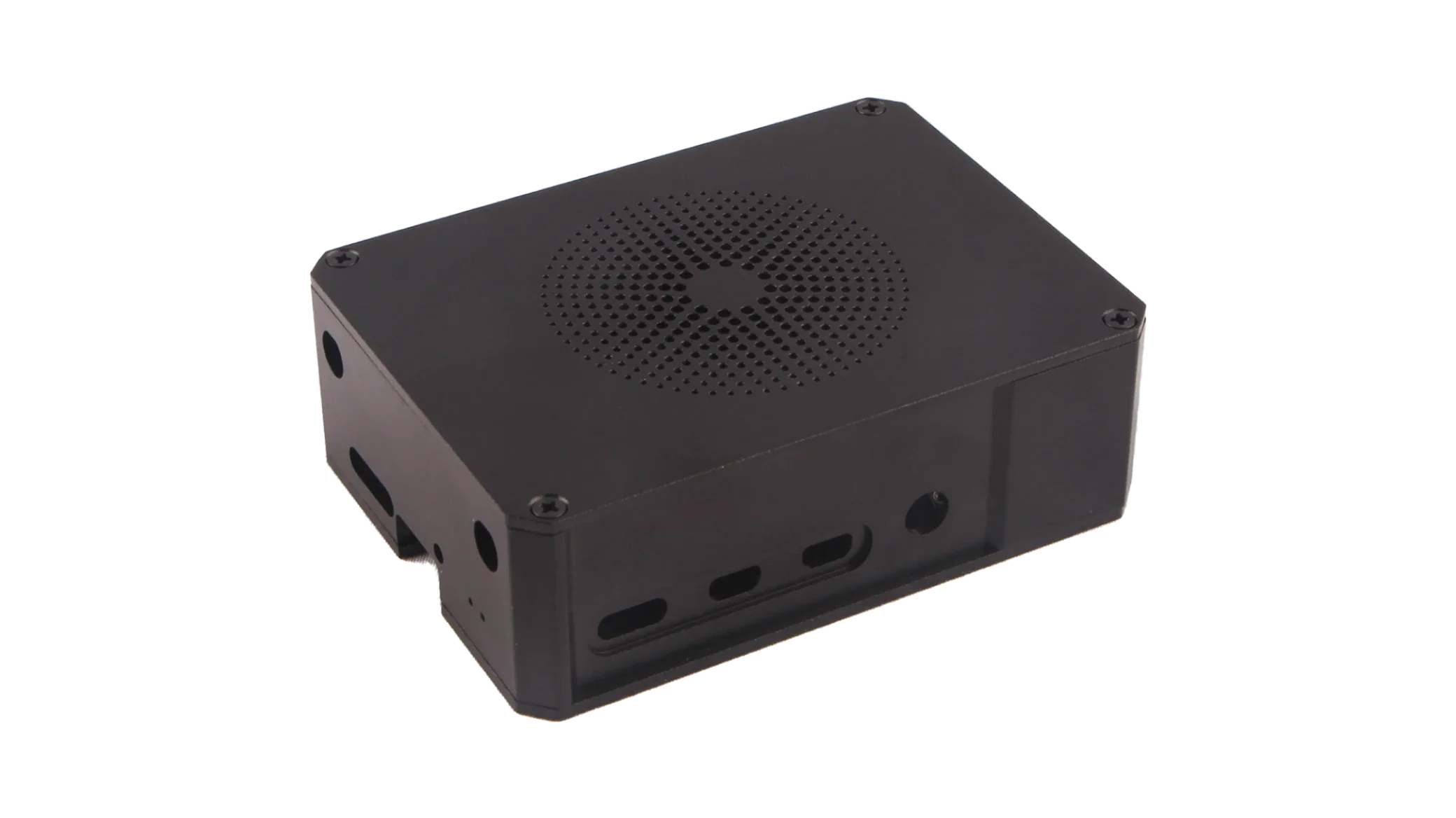

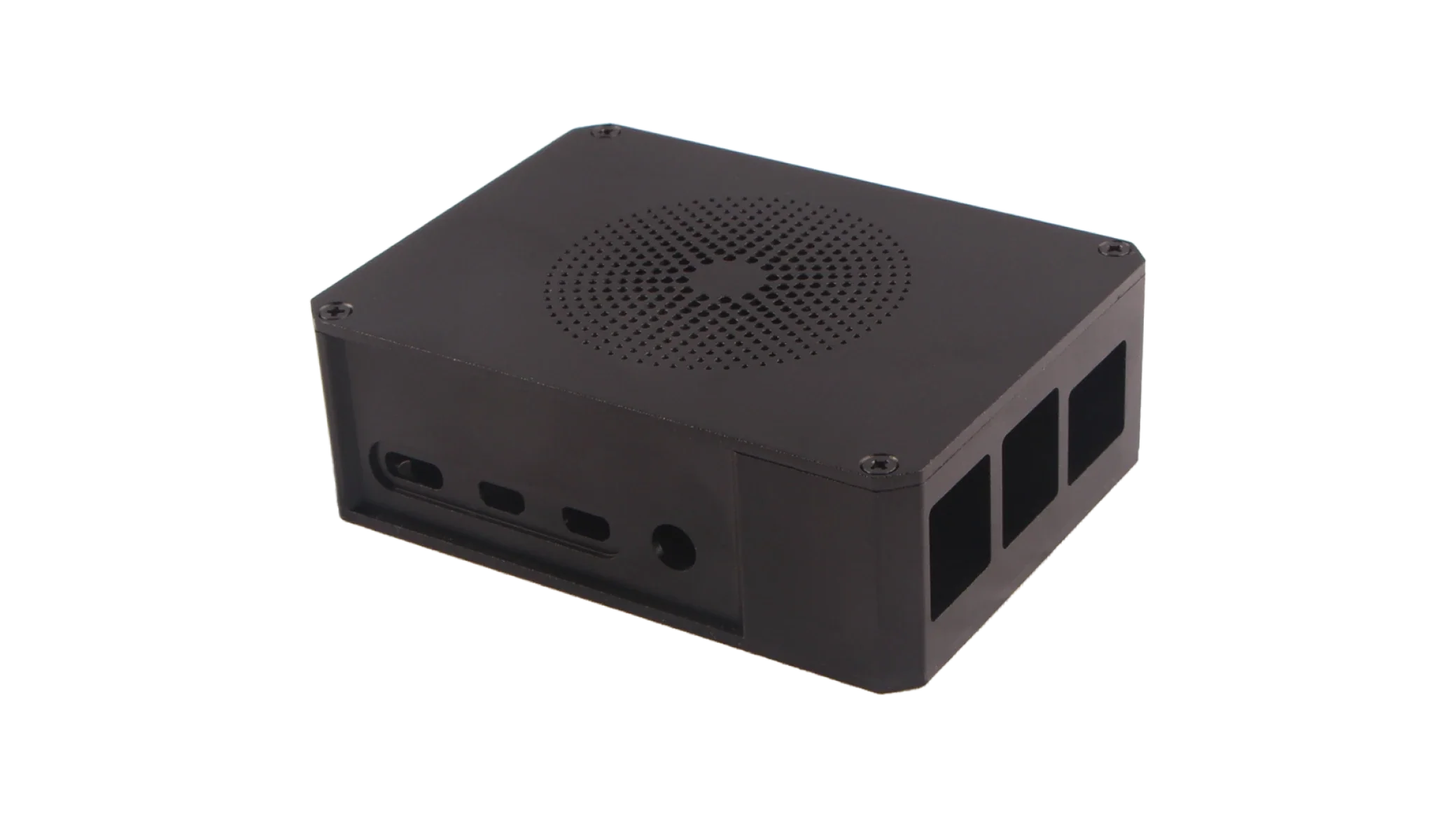

Radxa Metal Case for ROCK 5A is a precision-engineered enclosure specifically designed to protect and complement the Radxa ROCK 5A single-board computer. Built from durable aluminum alloy, the case provides efficient heat dissipation and robust physical protection. Its multi-part design includes a top cover, middle frame, and bottom cover, along with mounting hardware like copper pillars and custom screws for secure installation. The case supports full access to ROCK 5A ports and ensures compatibility with other accessories.





Radxa Metal Case for ROCK 5A

Metal Case Specialized for ROCK 5A



First, as shown, use four KM2.5x3mm screws to attach the four M2.5x5 copper pillars to the bottom cover.





Next, as shown, secure the ROCK 5A with four CM2.5x4mm screws.



Then, align and install the middle frame as shown. Use four KM2.5x3mm screws from the bottom cover side to attach the middle frame, connecting it to the bottom cover.



Finally, secure the top cover to the middle frame with four KM2.5x4mm screws with a CD pattern, completing the assembly.





Package List

・ 1x Top Cover
・ 1x Bottom Cover
・ 1x Middle Frame
・ 4x M2.5x5 Copper Pillars
・ 8x KM2.5x3 Screws
・ 4x KM2.5x4 CD Pattern Screws
・ 4x CM2.5x4 Screws

Please identify the outer surface of the top/bottom cover (the side facing outward), which features recessed or angled screw holes.

Tech Specs

Parameter	Specification
Compatibility	Radxa ROCK 5A
Dimension	94 x 68 x 31 mm
Package List	1x Top Cover 1x Bottom Cover 1x Middle Frame 4x M2.5x5 Copper Pillars 8x KM2.5x3 Screws 4x KM2.5x4 CD Pattern Screws 4x CM2.5x4 Screws





Downloads

Product Information

3D Drawings - Metal Case for ROCK 5A

Download >>

Metal Case for ROCK 5A Works with

> Radxa ROCK 5A
