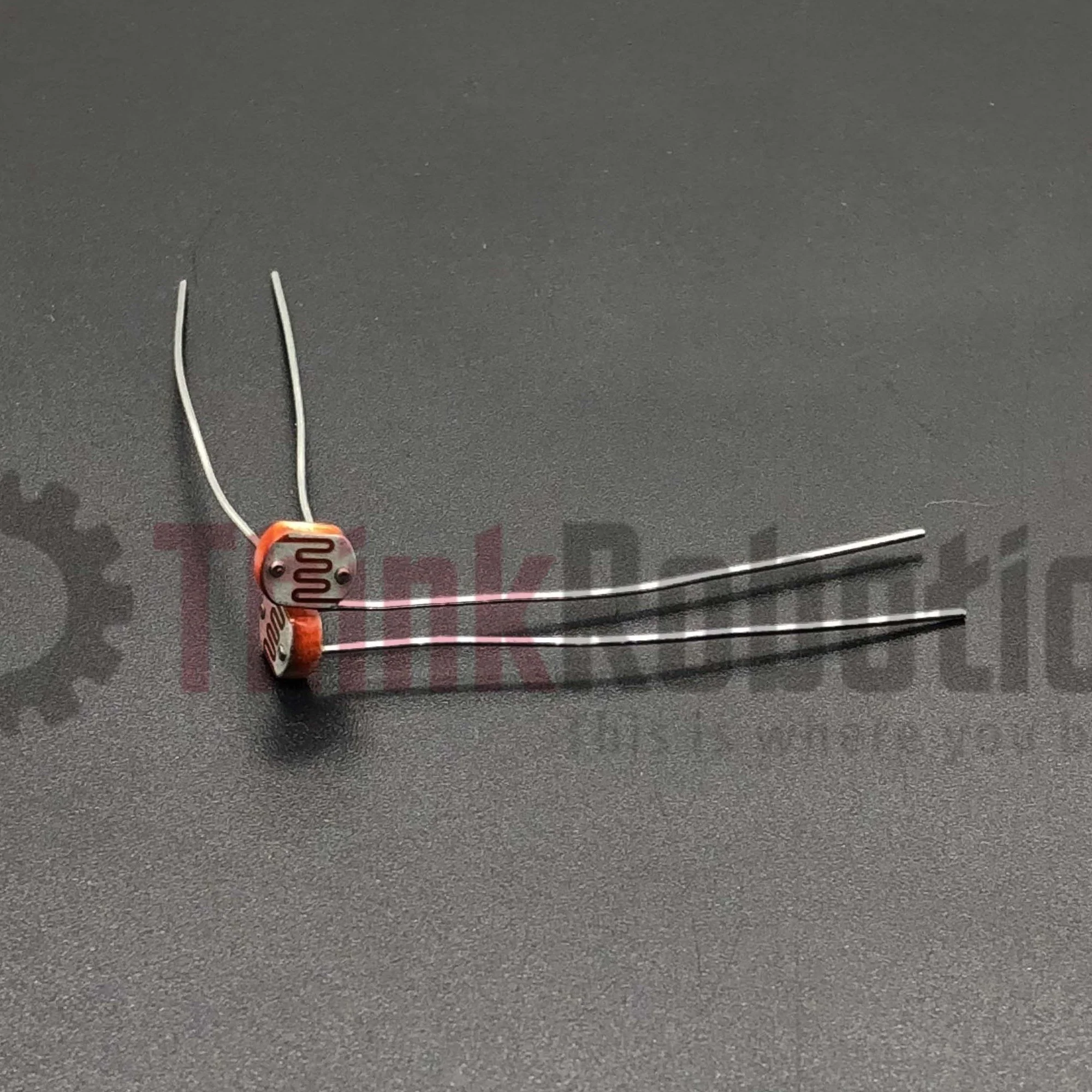

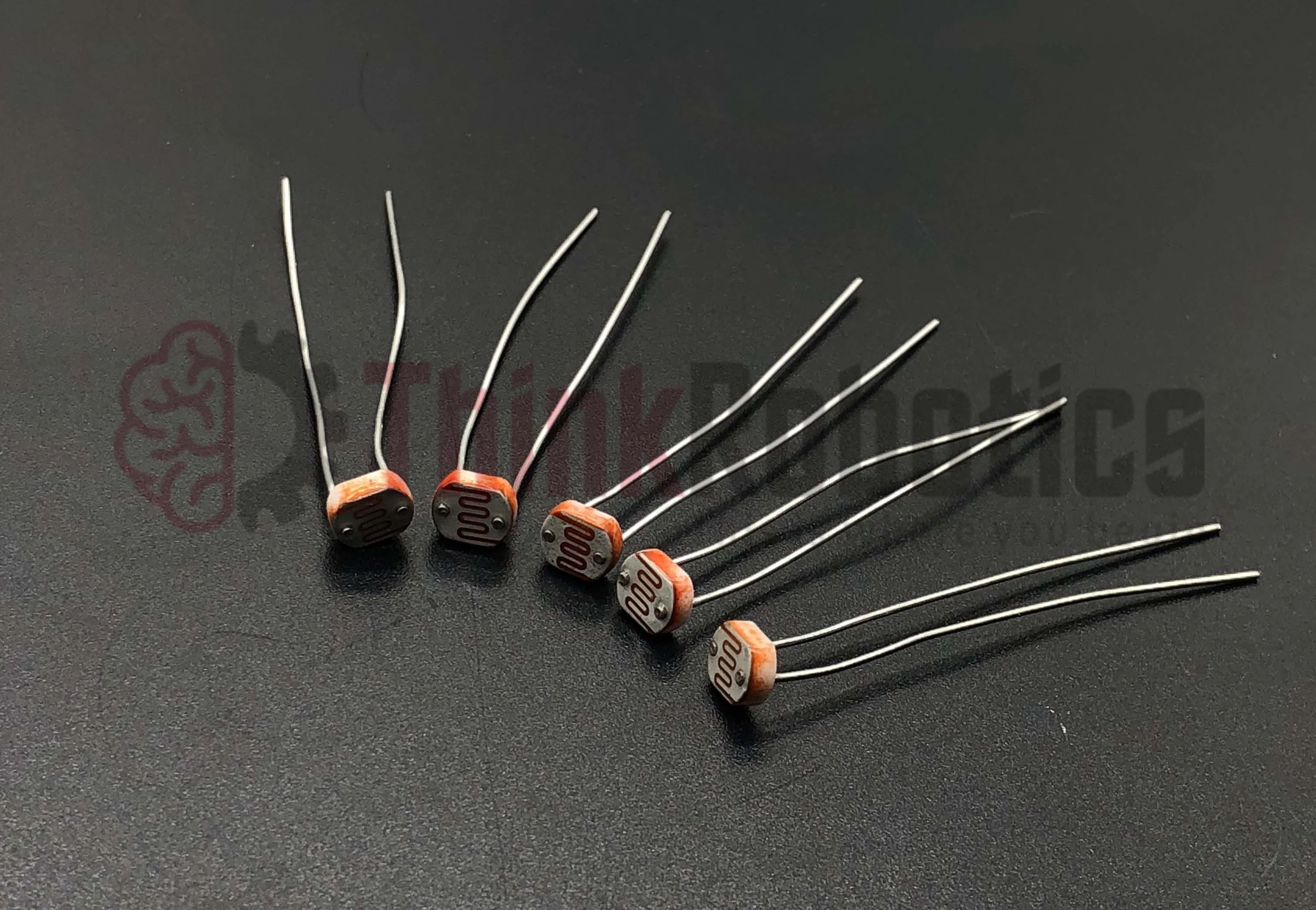

GL5516 Photoresistor or LDR (Pack of 10)

The cadmium sulfide (CdS) or light dependent resistor (LDR) whose resistance is inversly dependent on the amount of light falling on it, is known by many names including the photo resistor, photoresistor, photoconductor, photoconductive cell, or simply the photocell.

• Photoresistor 5mm GL5516 LDR Photo Resistors Light-Dependent Resistor
• Model: GL5516
• Size: 5mm x 2mm
• Maximum Voltage: 150 Volt DC
• Maximum Wattage: 90mW
• Operating Temperature: -30 ~ +70 deg C
• Spectral Peak: 540nm
• Light Resistance (at 10 Lux): 5-10 Kohm
• Dark Resistance: 0.5 Mohm
• Response time: 20ms (Rise), 30ms (Down)
• Resistance Illumination: 4

Specifications

Resources

Datasheet

Sample Code

Tutorial
