Flat Top LED Wide Angle (Pack of 10)

Flat Top LED Wide Angle (Pack of 10)

Features:

  • Size (mm) : 5mm / 3mm
  • Lens Colour : Water Clear
  • Forward Voltage (V) : 1.8~2.2
  • Reverse Current (uA) : <=30
  • Luminous Intensity Typ Iv (mcd) : Average in 5000
  • Life Rating : 100,000 Hours
  • Absolute Maximum Ratings (Ta=25°C)
  • Max Power Dissipation : 80mw
  • Max Continuous Forward Current : 30mA
  • Max Peak Forward Current : 75mA
  • Reverse Voltage : 5~6V
  • Lead Soldering Temperature : 240°C (<5Sec)
  • Operating Temperature Range : -25°C ~ +85°C
  • Preservative Temperature Range : -30°C ~ +100°C

NOTE: Multipack includes 10 LEDs of each color, totaling to 90 LEDs



Resources

Sample Code

Select Size
Select Colors
From $0.06

Original: $0.21

-71%
Flat Top LED Wide Angle (Pack of 10)—

$0.21

$0.06
Product image 1
Product image 2
Product image 3

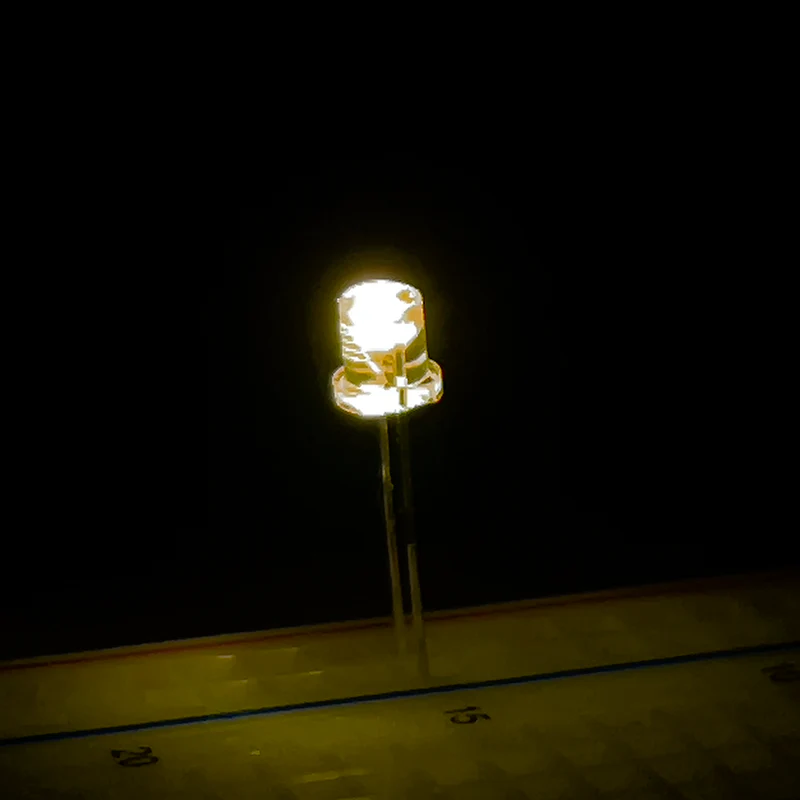

Product image 4
Product image 5
Product image 6

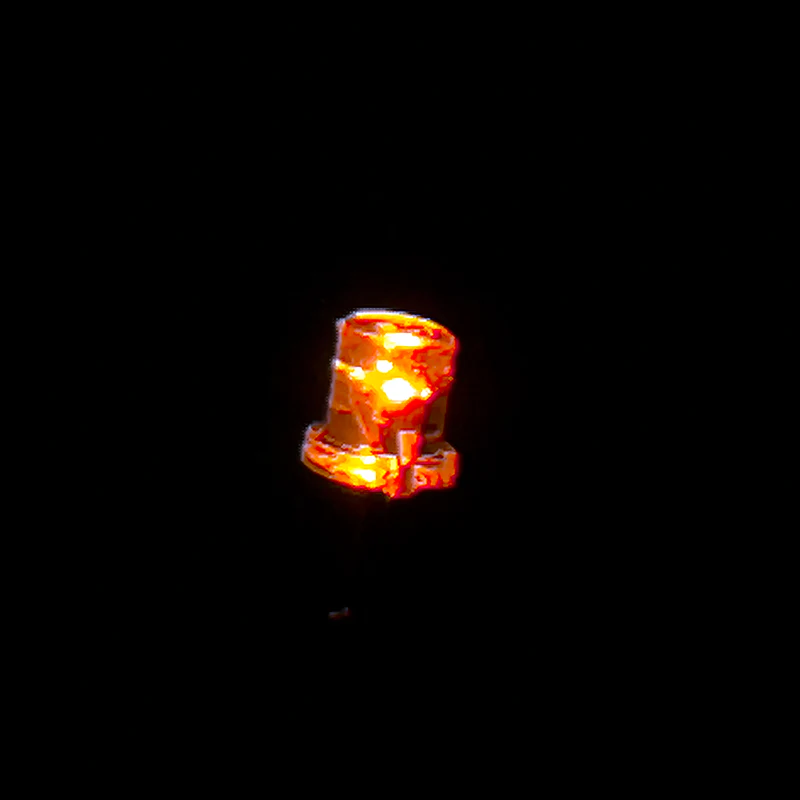

Product image 7
Product image 8

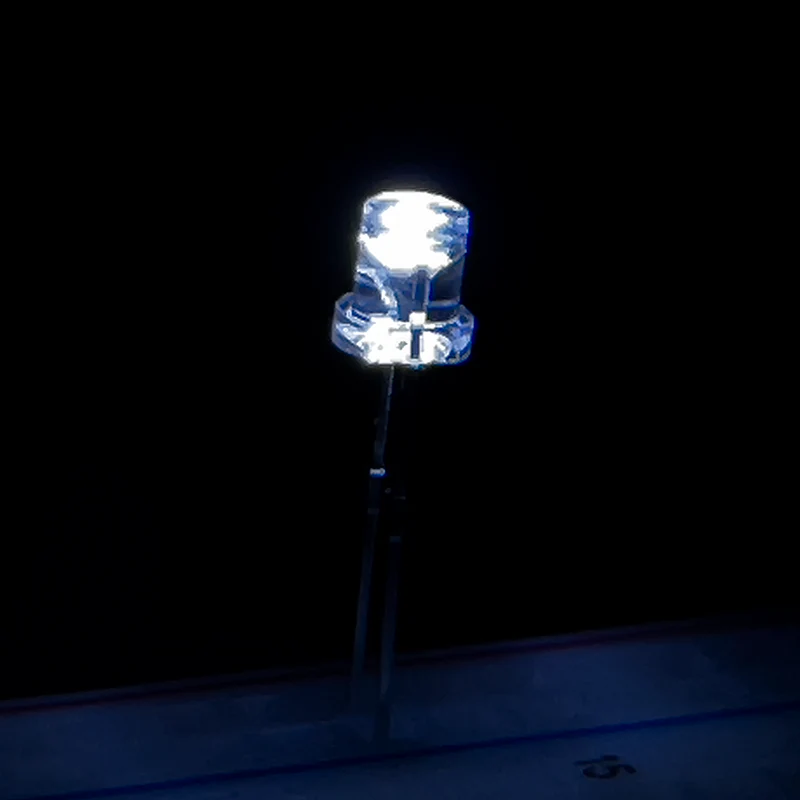

Product image 9
Product image 10
Product image 11
Product image 12

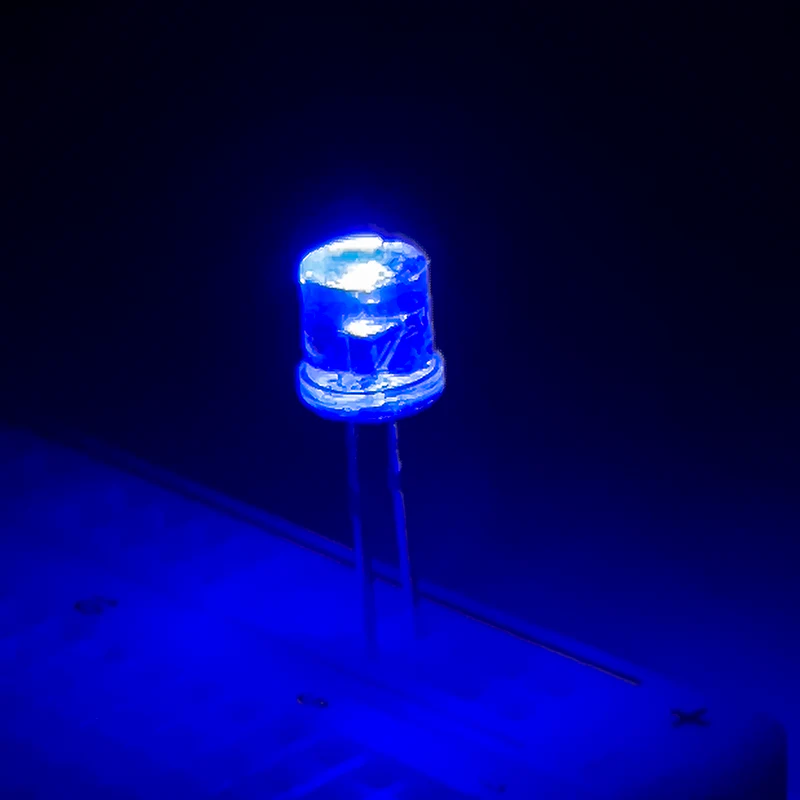

Product image 13
Product image 14
Product image 15
Product image 16

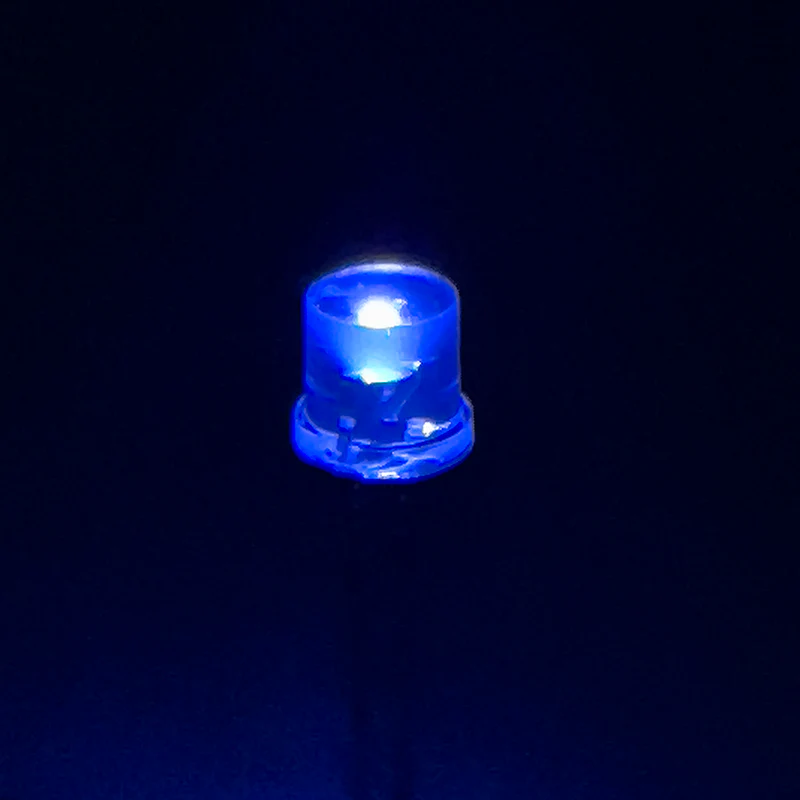

Product image 17

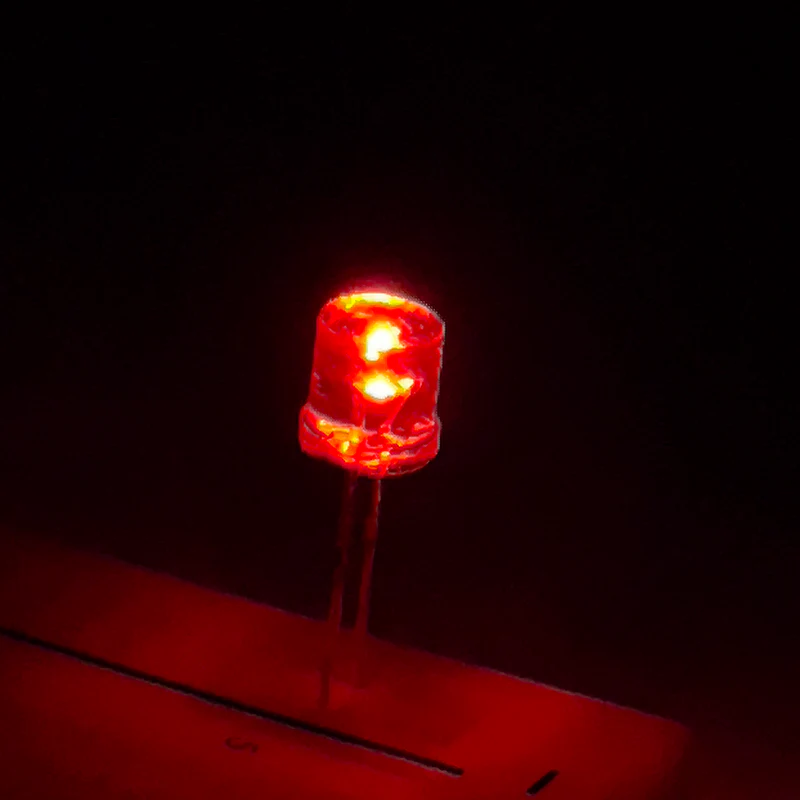

Product image 18

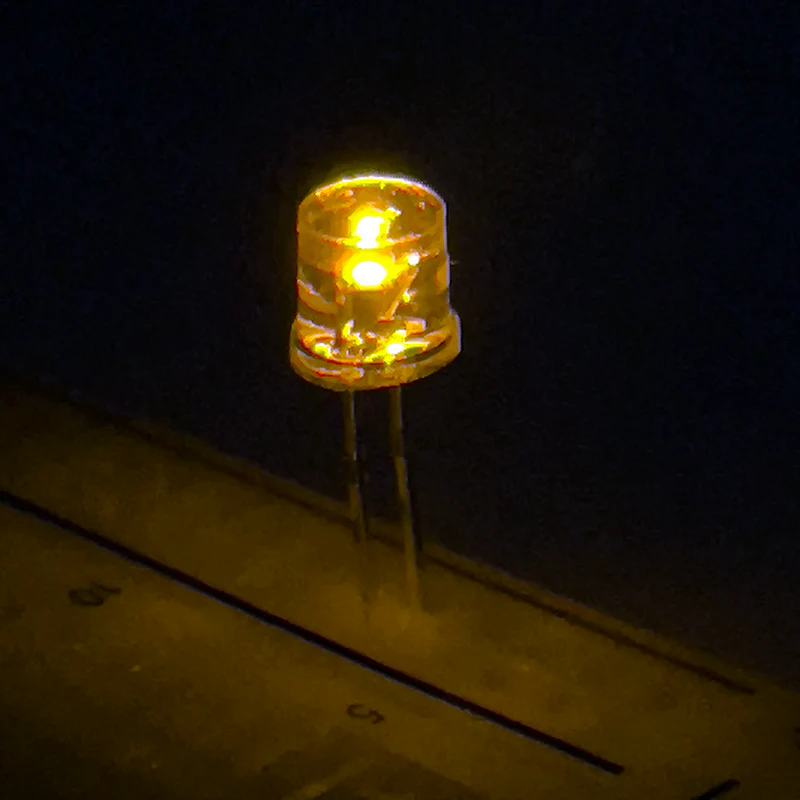

Product image 19
Product image 20

Description

Features:

  • Size (mm) : 5mm / 3mm
  • Lens Colour : Water Clear
  • Forward Voltage (V) : 1.8~2.2
  • Reverse Current (uA) : <=30
  • Luminous Intensity Typ Iv (mcd) : Average in 5000
  • Life Rating : 100,000 Hours
  • Absolute Maximum Ratings (Ta=25°C)
  • Max Power Dissipation : 80mw
  • Max Continuous Forward Current : 30mA
  • Max Peak Forward Current : 75mA
  • Reverse Voltage : 5~6V
  • Lead Soldering Temperature : 240°C (<5Sec)
  • Operating Temperature Range : -25°C ~ +85°C
  • Preservative Temperature Range : -30°C ~ +100°C

NOTE: Multipack includes 10 LEDs of each color, totaling to 90 LEDs
