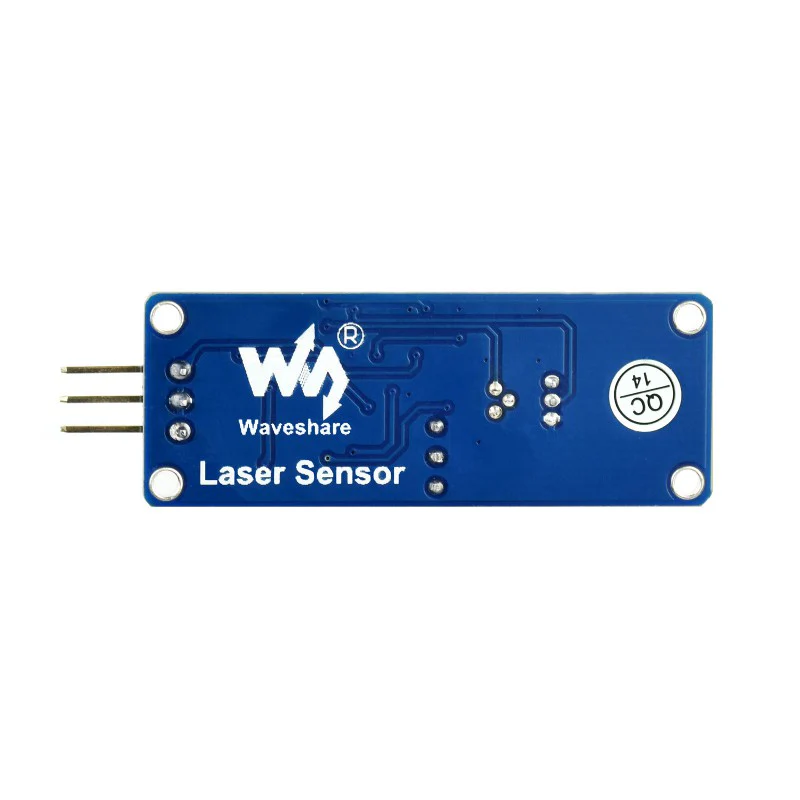

Laser Sensor

Laser Sensor

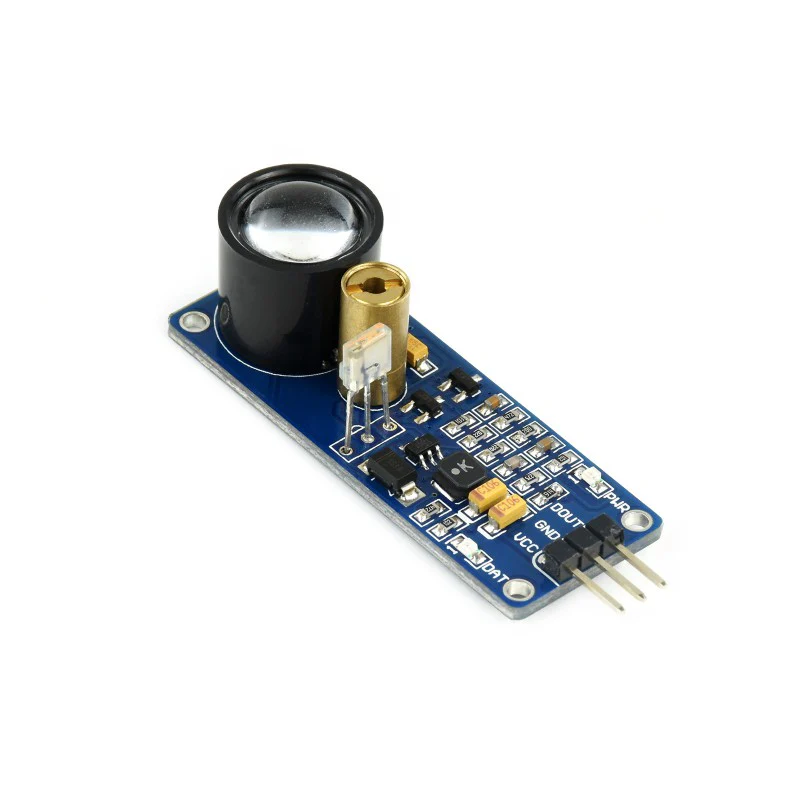

Principle: The emitting part of the laser sensor is a 180KHz oscillator emitted by an oscillator tube, amplified by a triode, the laser tube emits light, and the receiving part receives the returned light intensity from a matching 180KHz receiver tube. Since the laser sensor uses modulation processing, the receiving tube can only accept the reflected light of the same frequency, so the influence of visible light on the reflected laser can be effectively prevented.

• Features boost circuit
• Signal output indicator

Specifications

• Effective distance: 0.8m(typ), 1.5m(max)
• Power: 2.5V ~ 5.0V
• Dimension: 47.7mm * 17.9mm
• Mounting holes size: 2.0mm

Applications

• Obstacle detection
• Pipeline counter
• Smart robot
• Obstacle-avoiding car

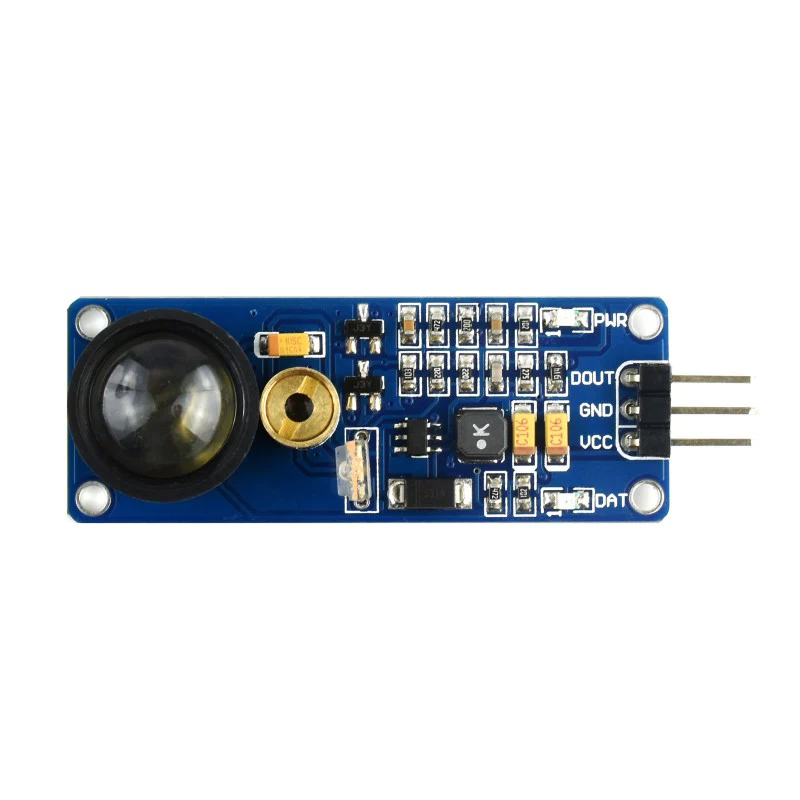

How to Use

In the case of working with a MCU:

• VCC ↔ 2.5V ~ 5.0V
• GND ↔ power supply ground
• DOUT ↔ MCU.IO (digital output)

Downloads

Development resources: demo codes, schematic, datasheets, etc.
Wiki: Laser_Sensor

Package Contains

1. 1x Laser Sensor

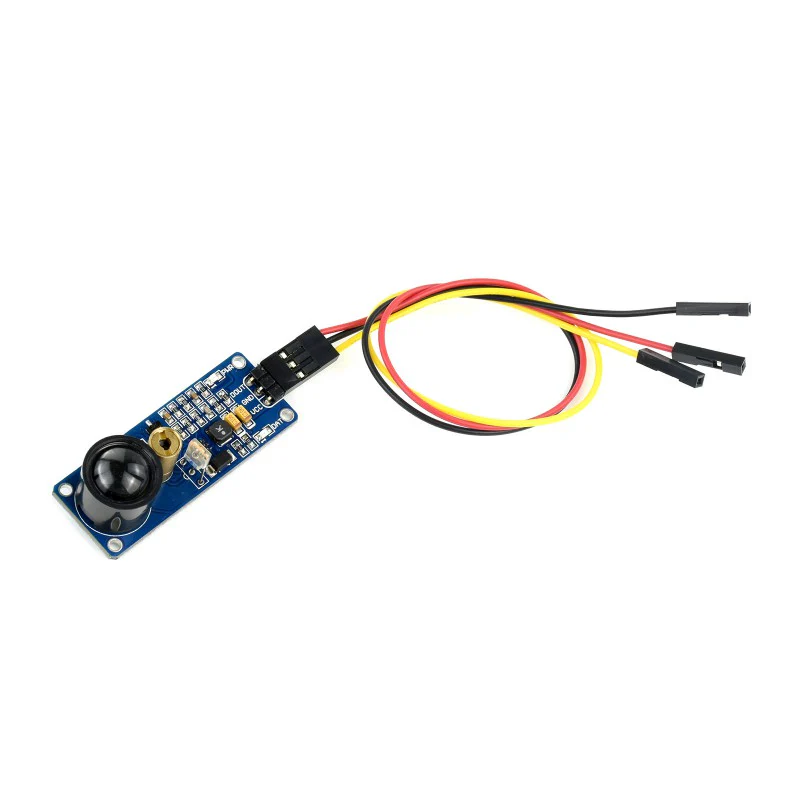

2. 1x 3-pin custom connector jumper wire
