Dot Laser Module

We offer a variety of Dot Laser modules to cover all aspects of your next LASER DIY project.

Specifications:

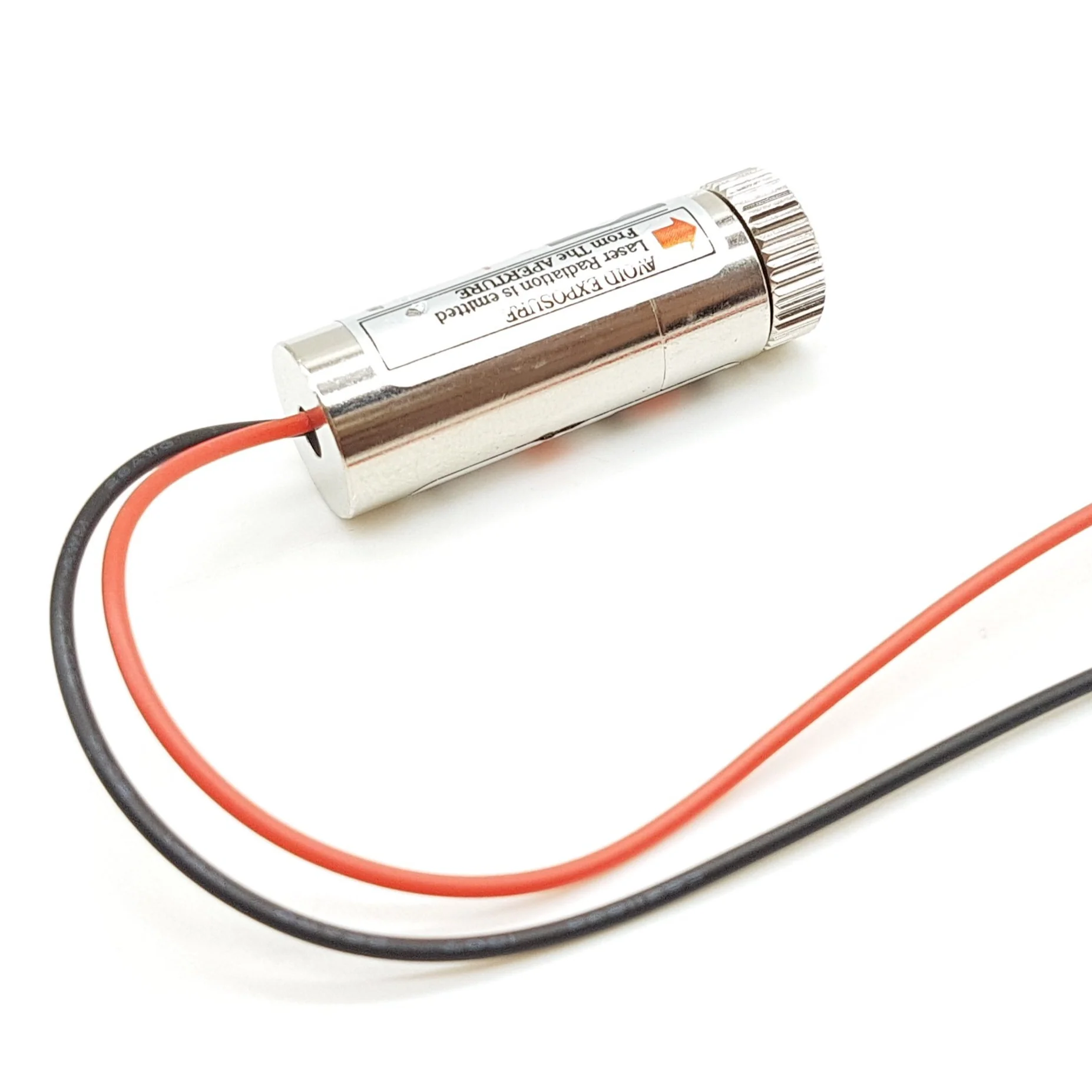

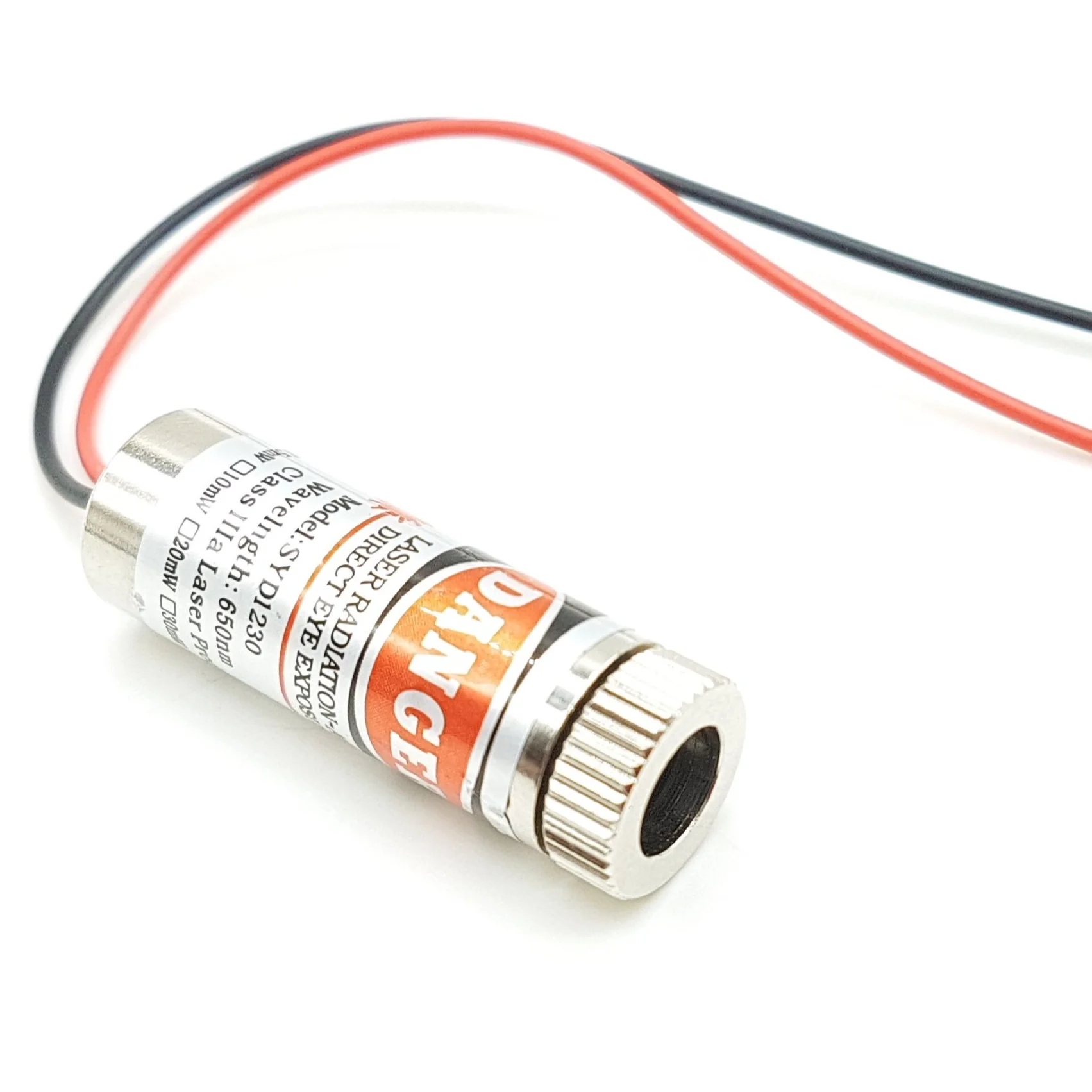

650nm 5mW Red Laser Module

• Size: 40mm X 12mm
• Wavelength: 650 nanometer

• Output Power: 5mW
• Irradiation Distance: >500m
• Line Width (at 5m): <5mm
• Operating Voltage: 3 - 5V
• Max. Current Draw: <150mA
• Operating Temperature: -10℃ to 70℃
• Storage Temperature: -40℃ to 100℃

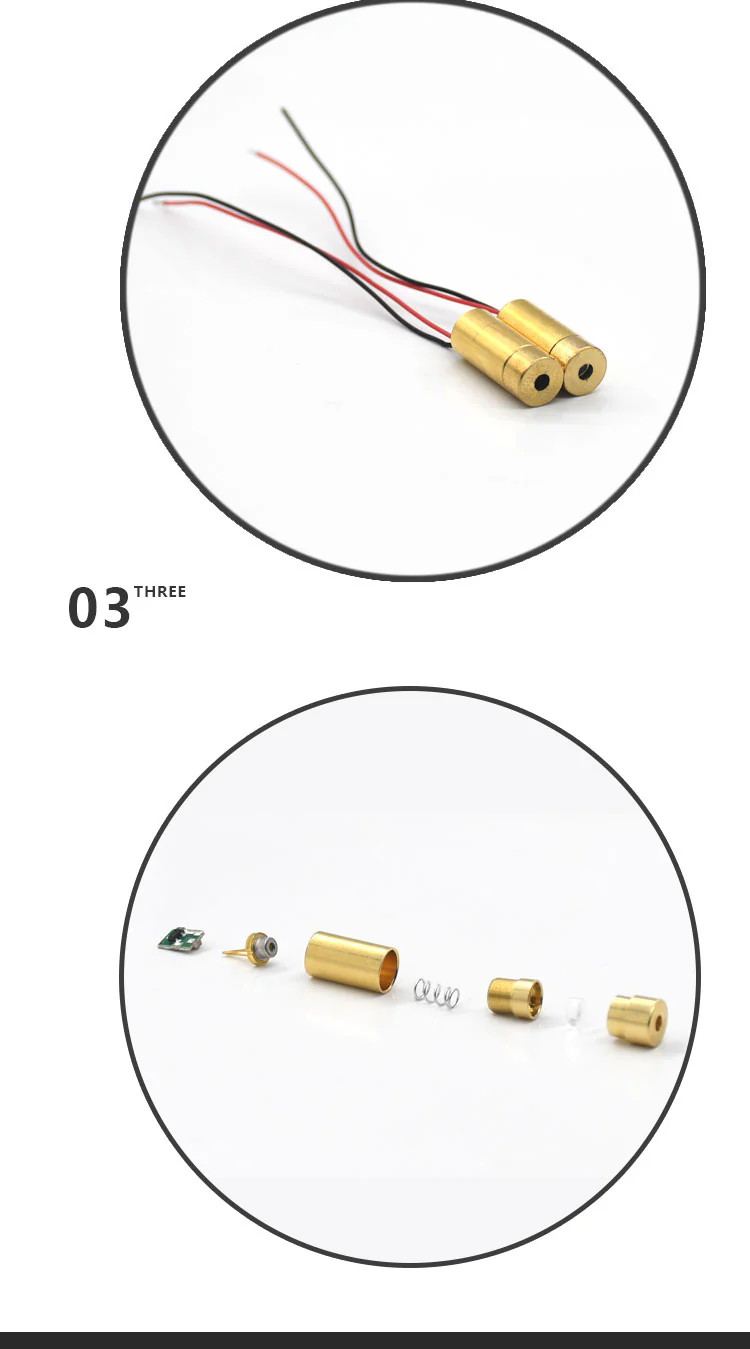

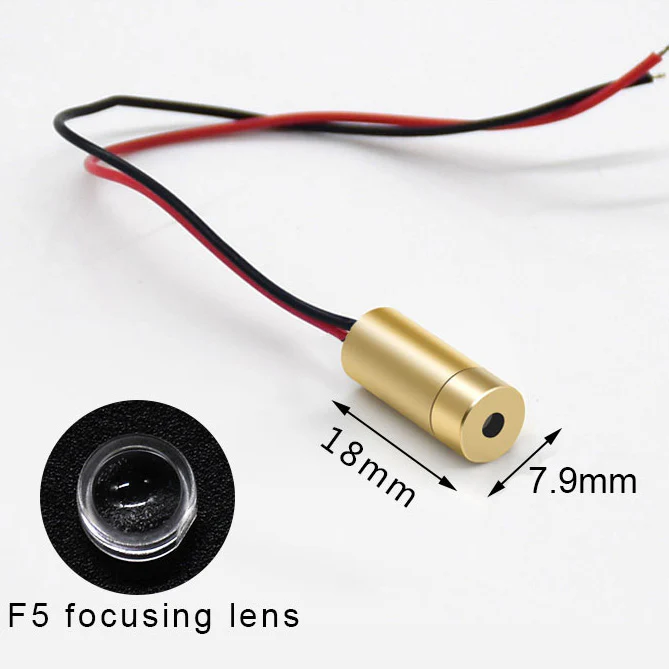

650nm 10mW Red Laser Module

• Size: 18mm X 7.9mm
• Material: Copper
• Wavelength: 650 nanometer

• Output Power: 10mW
• Irradiation Distance: >500m
• Line Width (at 5m): <5mm
• Operating Voltage: 3 - 5V
• Max. Current Draw: <280mA
• Operating Temperature: -10℃ to 70℃
• Storage Temperature: -40℃ to 100℃

405nm 10mW Blue Laser Module

• Size: 42mm X 13mm
• Wavelength: 405 nanometer

• Output Power: 10mW
• Irradiation Distance: >500m
• Line Width (at 5m): <5mm
• Operating Voltage: 3 - 5V (Red wire is +)
• Max. Current Draw: <100mA
• Operating Temperature: -10℃ to 70℃
• Storage Temperature: -40℃ to 100℃

532nm 45mW Green Laser Module

• Size: 32mm X 15mm
• Wavelength: 532 nanometer

• Output Power: 45mW
• Irradiation Distance: >500m
• Line Width (at 5m): <5mm
• Operating Voltage: 3 - 5V
• Max. Current Draw: <280mA
• Operating Temperature: -10℃ to 70℃
• Storage Temperature: -40℃ to 100℃
