Joystick Module For Arduino Esplora

Trademark registrations throughout the world for ARDUINO or Arduino® are owned by:
Arduino AG, Arduino SA.

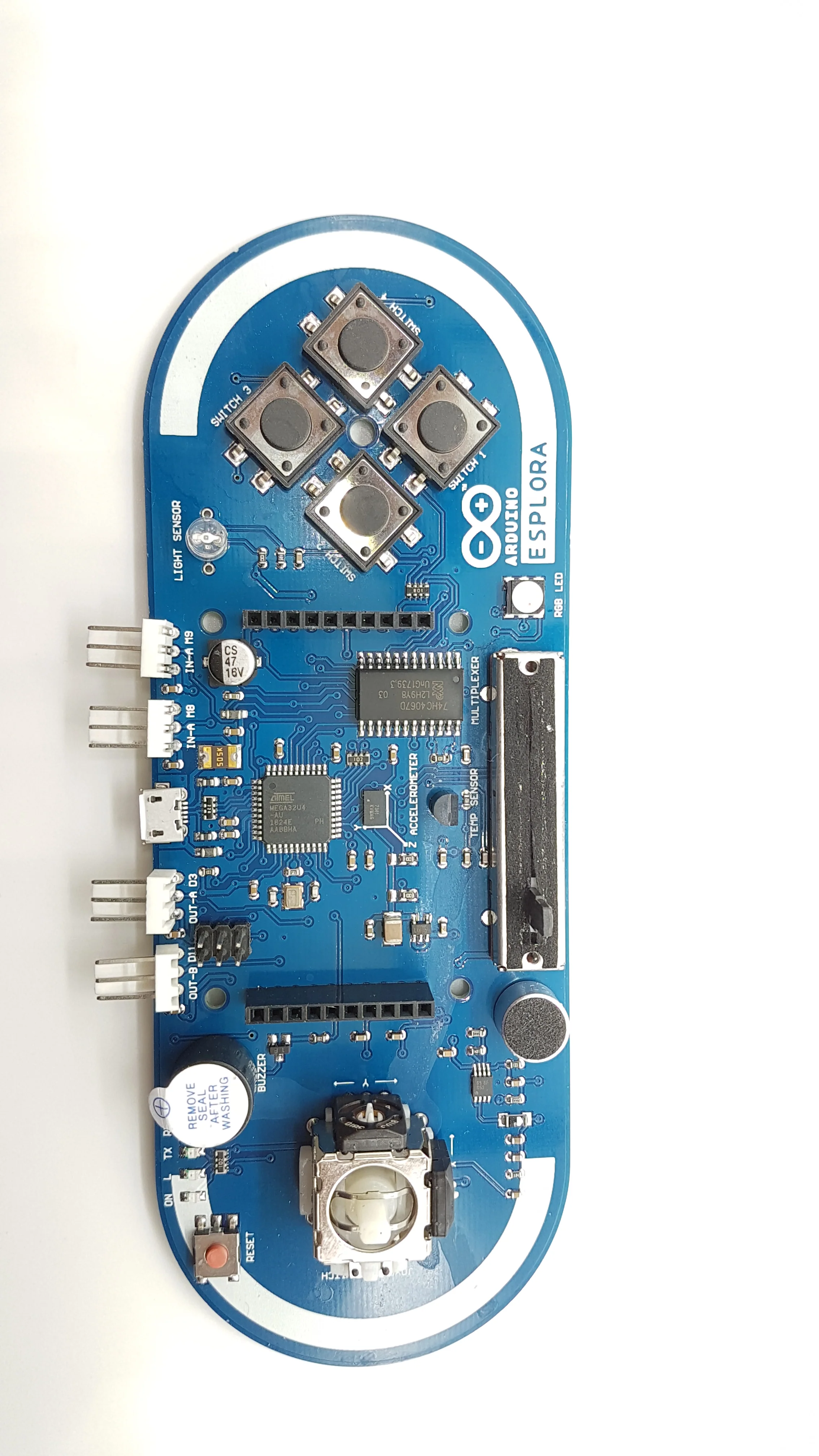

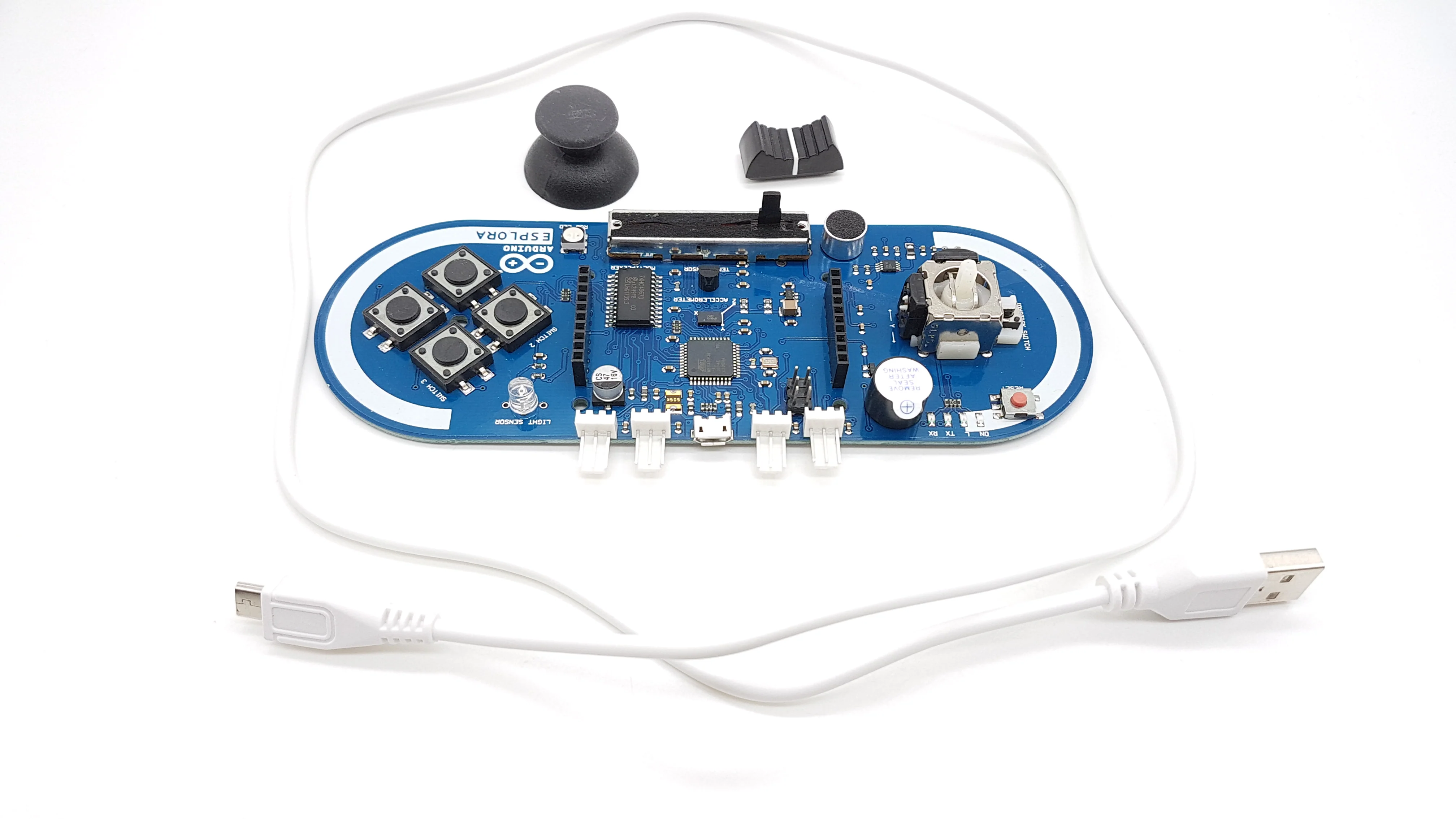

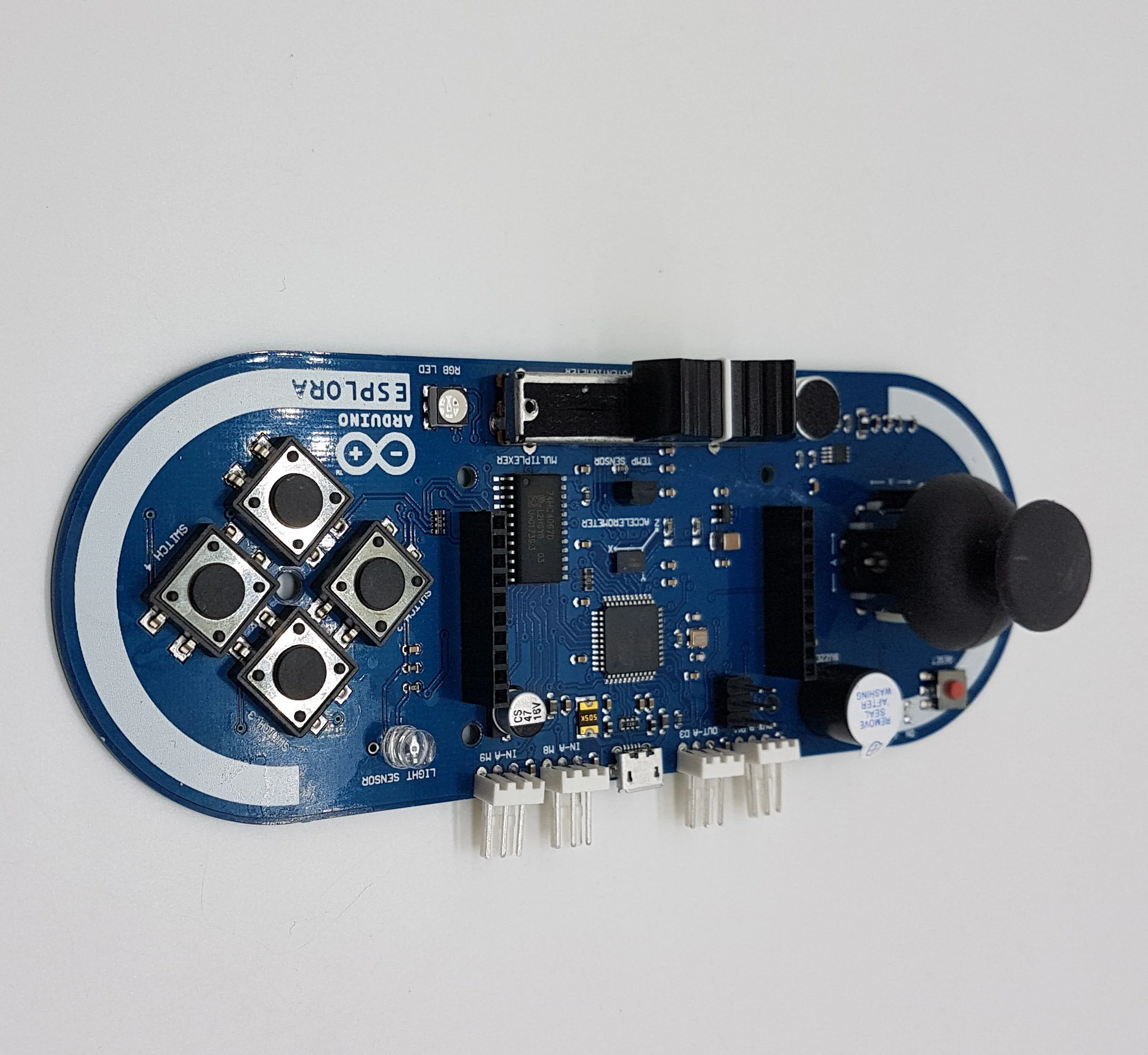

This is for Arduino-compatible Esplora, a game programming module board. About the Arduino Esplora: for Arduino, Esplora is a microcontroller board derived from the Arduino Leonardo. It's designed for people who want to get up and running with FOR Arduino without having to learn about electronics first.

Like the Leonardo board, the Esplora uses an Atmega32U4 AVR microcontroller with a 16 MHz crystal oscillator and a micro USB connection capable of acting as a USB client device, like a mouse or a keyboard. The Esplora differs from all preceding Arduino boards because it provides several built-in, ready-to-use sets of onboard sensors for interaction. The Arduino Esplora has onboard sound and light outputs, and several input sensors, including:

• Joystick
• Slider
• Temperature sensor
• Accelerometer
• Microphone
• Light sensor
• RGB LED

• Microcontroller: ATmega32u4
• Operating voltage: 5V
• Flash memory: 32KB(of which 4KB used by bootloader)
• SRAM: 2.5KB
• EEPROM: 1KB
• Clock speed: 16MHz

Specifications

Resources

Datasheet

Library

Sample Code

Tutorial
