Industrial 8-Channel Relay Module for Raspberry Pi Pico
Industrial 8-Channel Relay Module for Pico
embedded protections: power supply isolation & photocoupler isolation
Features
- Onboard unibody power supply isolation, provides stable isolated voltage, needs no extra power supply for the isolated terminal
- Onboard photocoupler isolation, prevent interference from external high-voltage circuit connected to the relay
- High quality relay, contact rating: 10A 250V AC or ≤10A 30V DC
- ABS protection enclosure with rail-mount support, easy to install, safe to use
- Breakout USB port and BOOT pin, make it easy to debug without disassembling the enclosure
- PWR indicator, RGB LED, and passive buzzer outside the enclosure
- Comes with development resources and manual (Raspberry Pi Pico C/C++ and MicroPython examples)
Specifications
| Operating voltage | 5V | Relay channel | 8 ch |
|---|---|---|---|
| Communication protocol | USB | Contact form | 1NO 1NC |
| Communication interface | Micro USB |
Raspberry Pi Pico header compatibility
onboard female pin header for direct attaching to Raspberry Pi Pico
Raspberry Pi Pico is NOT included.

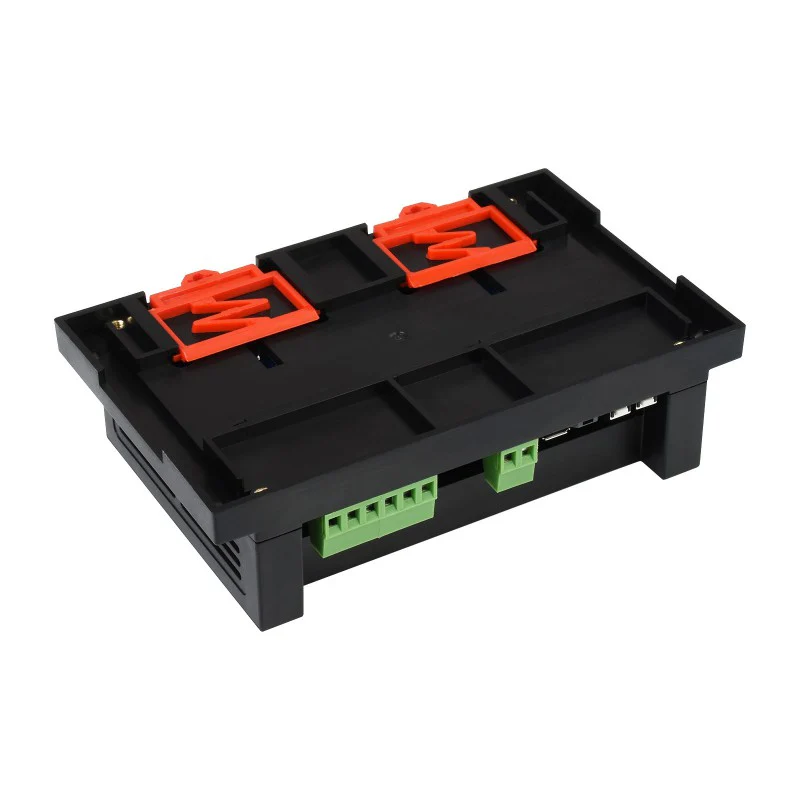

Enclosure design
ABS protection enclosure with rail-mount support, easy to install, safe to use

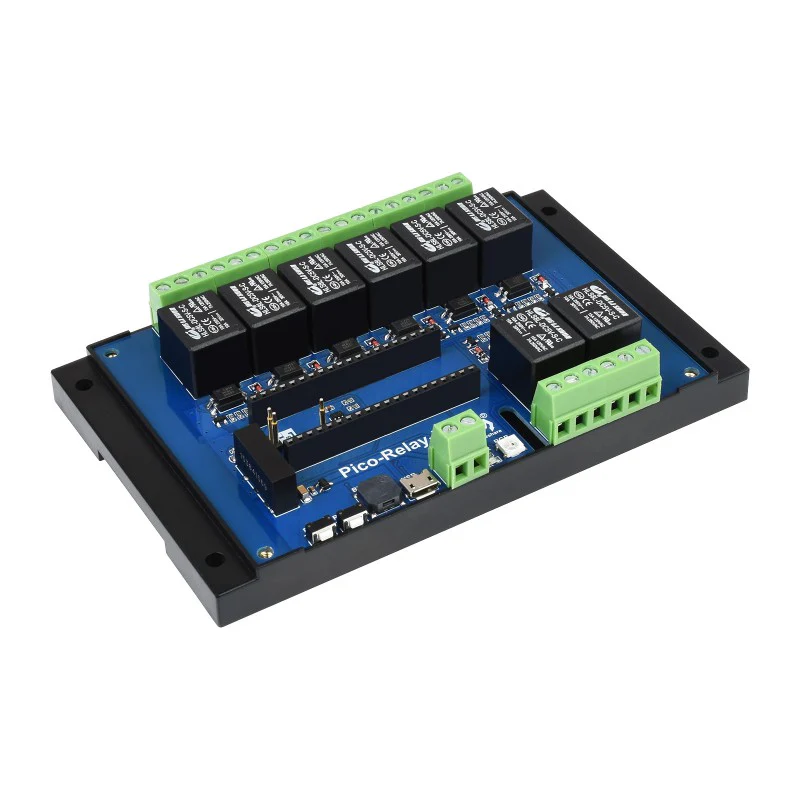

What's On Board
- Raspberry Pi Pico header
-
Relay screw terminal
for connecting external devices -
Power supply screw terminal
the multi relays are connected in parallel - Pogo pins
-
USB communication port
connected via pogo pins -
BOOT key
connected via pogo pins -
Reset key
Pico reset -
Passive buzzer
controllable sound frequency - Power indicator
-
WS2812
RGB LED, cool! -
8-channel quality relays
contact rating per channel: ≤10A 250V AC or ≤10A 30V DC - Relay operating indicator
-
Photocoupler isolation
prevent interference from external high-voltage circuit connected to the relay -
Power supply isolation
provides stable isolated voltage, needs no extra power supply for the isolated terminal -

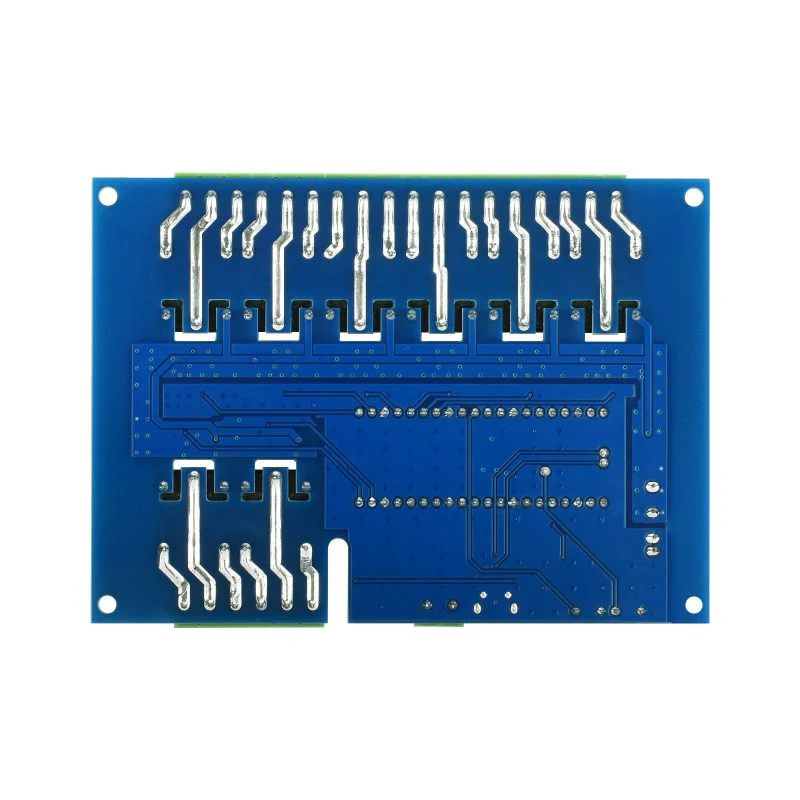

Thickened tracks
allows large current devices
Pinout definition
Outline dimensions
Resources
WIKI: Pico-Relay-B
Package Contains:
Weight: 0.243 kg
- ABS protection enclosure (top and bottom) x1
- Pico-Relay-B x1
- Screwdriver x1
- Screws pack x1
