HEXA - 60W Desktop CO2 Laser Cutter
FLUX HEXA 60W Desktop CO2 Laser Cutter
Exceptional Performance with the Biggest Upgrade Ever. Built for Mass Production. FLUX HEXA brings your work to the next-level quality. With a huge working size of 730 x 410mm, FLUX HEXA is ready for bigger challenges. Made in Taiwan
HEXA offers 60W laser power and 900mm/s (35.43 in/s) maximum engrave speeds, plus a larger working area which is 33% larger than Beambox Pro. A far-extended lifespan laser tube compared with Beam Series, enabling the professionals to efficient your works at just a finger click.
Salient Features

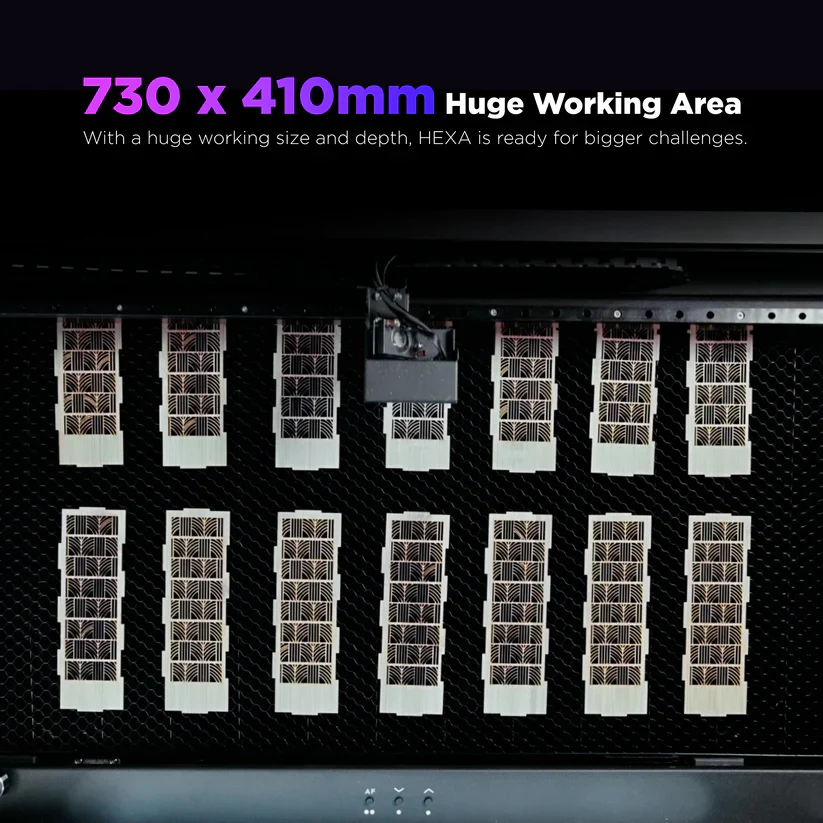

33 % Bigger Working Area: With 730 x 410 x 125mm of working area, it’s 33% larger than Beambox Pro. Built for more capacity, more possibilities.
900 mm/s High Speed Engraving: Carrying the Cortex M4 core chip. HEXA provides maximum engraving speed of 900mm/s, to fulfill business and professional requirements.

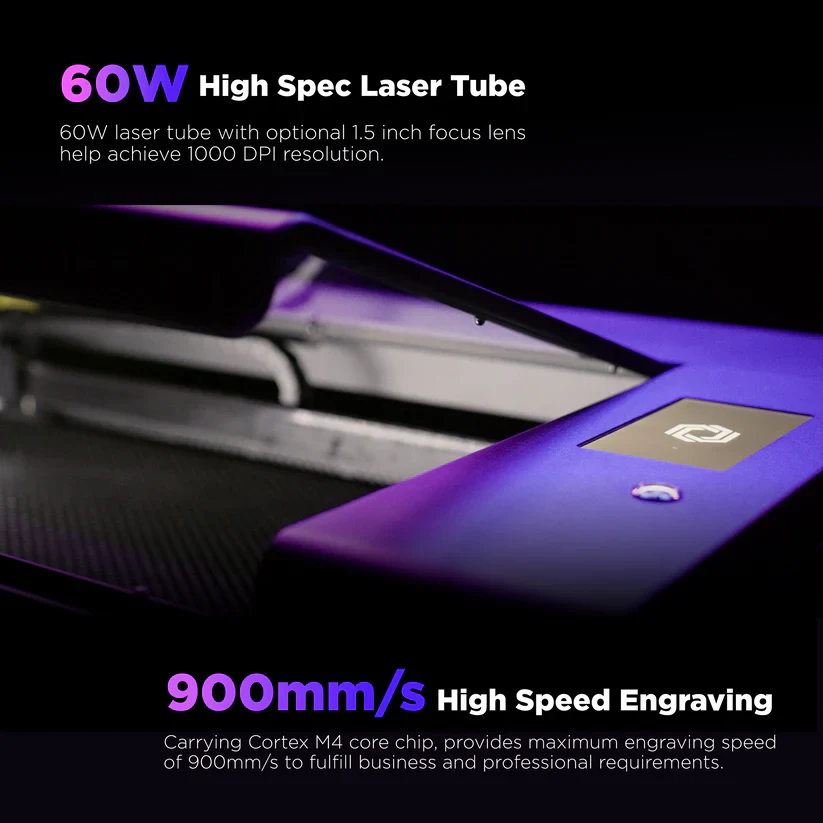

60W High Spec Laser Tube: Brand new high spec 60W laser tube with optional 1.5-inch focus lens substantially shrinking laser spot, achieving 1000 DPI resolution. 10,000 hours of laser tube lifespan with 1 year warranty.
Equipped with electric elevation platform to easily focus with the tap of your fingers.
1000 dpi resolution: HEXA 1.5-inch Focus Lens Add-on allows you to engrave up to 1,000 DPI. Every detail matters.

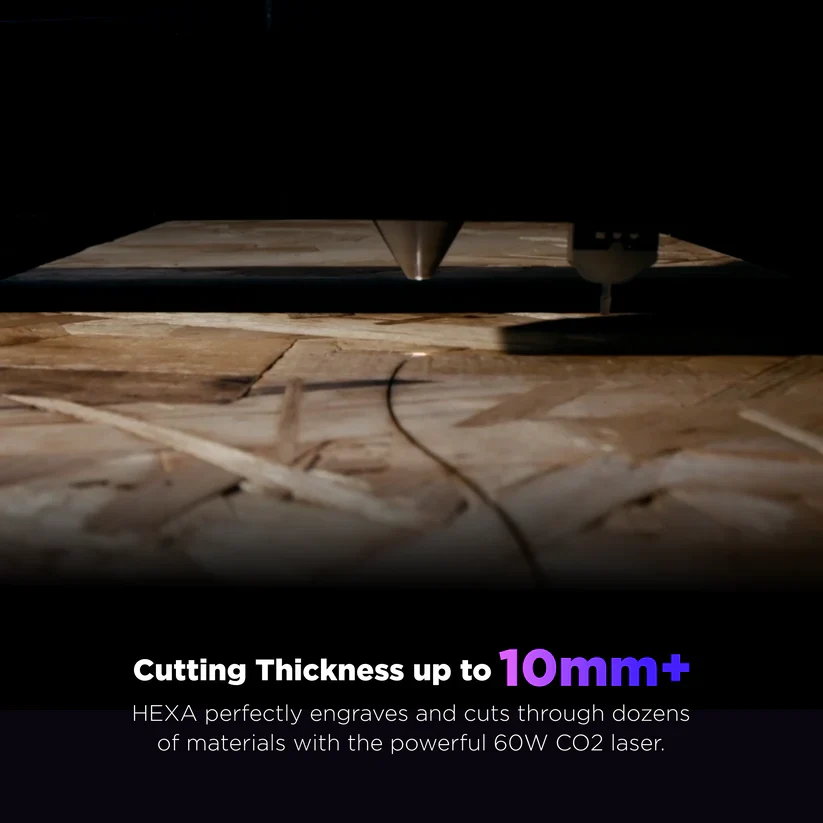

Cutting Thickness: 10mm+
| Cutting Depth - 10mm+ | High Speed Engraving and Cutting | HEXA 1.5-inch Focus Lens Add-on allows you to engrave up to 1,000 DPI. Every detail matters. |
 |
 |
 |
Technical Specifications
| General | |
|---|---|
| Dimensions | 1110 × 670 × 273 mm (43.7" × 26.4" × 10.7") |
| Weight | 58 kg |
| Work Area | 730 × 410 mm (28.7" × 16.1") |
| Work Area Depth | 125 mm |
| Camera Preview Area | 730 × 395 mm (28.7" × 15.5") |
| Power | 110V / 220V AC |
| Speed | 0 – 900 mm/s |

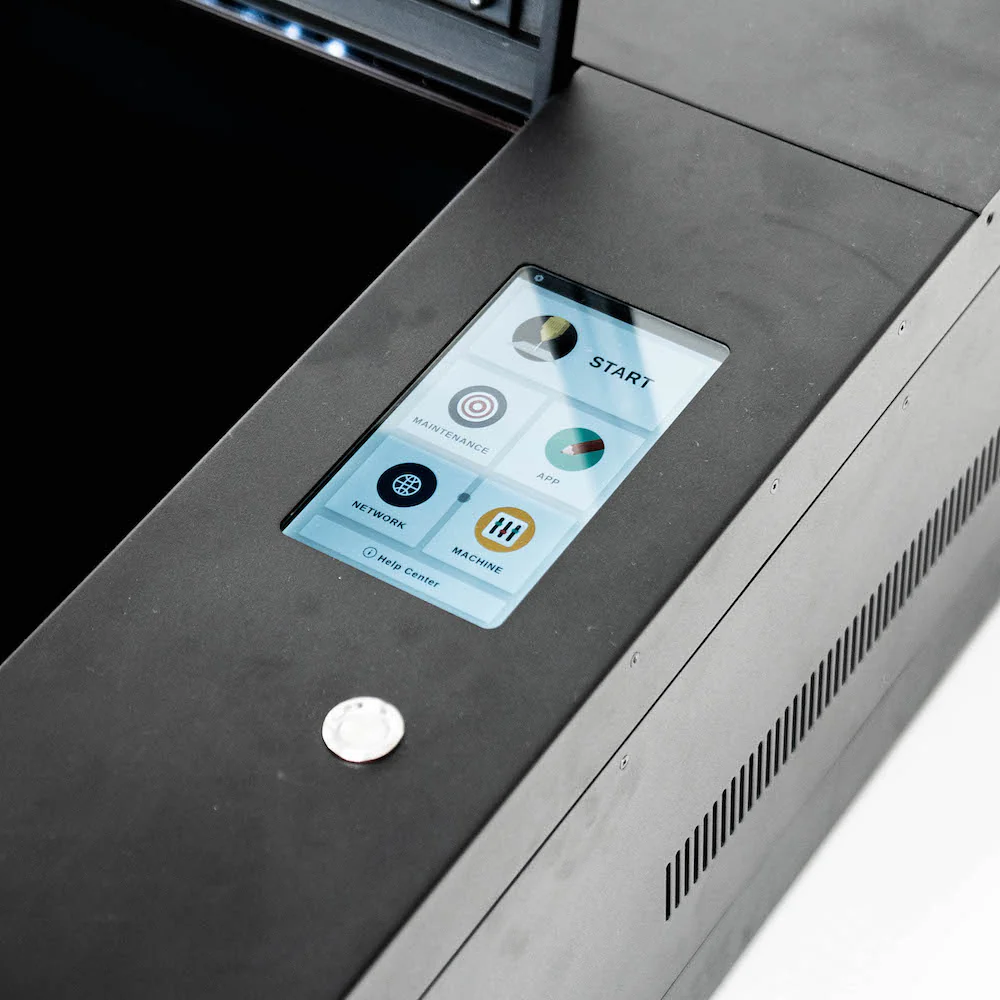

| Touch Panel | 7" 1024 × 600 LCD |
| Camera | HD CMOS |
| I/O | Wi-Fi / USB / Ethernet / Direct Network Cable |
| Laser | |
| Spec | 60W CO₂ Laser |
| Wavelength | 10640 nm |
| Cutting Thickness | 10+ mm (varies by material) |
| Software | |
| Mode | Vector / Graphic (monochrome, gray scale) |
| Operating System | Windows / macOS / Linux |
| File Type | JPG / PNG / SVG / DXF / AI / PDF |
| Software Download | Download Software from here |
 |
HEXA Rotary Add-onNew Upgrade: The operability is stronger, the application scene is wider, the engraving degree is finer, and you can flexibly engrave your works. Easy Installation: Connect to laser engraving machine simply by replacing Y-axis terminal, no assembling needed, smaller size to better work with most laser engravers. Specs ● Object Height: HEXA 1 – 7.5 cm (0.39″ – 2.95″) ● Object Weight: 2.3 kg (5 lbs ) ● Maximum Object Length: 60cm (23.62″) for HEXA (depends on the center of mass) |
Original: $6,349.80
-70%$6,349.80
$1,904.94
Description
FLUX HEXA 60W Desktop CO2 Laser Cutter
Exceptional Performance with the Biggest Upgrade Ever. Built for Mass Production. FLUX HEXA brings your work to the next-level quality. With a huge working size of 730 x 410mm, FLUX HEXA is ready for bigger challenges. Made in Taiwan
HEXA offers 60W laser power and 900mm/s (35.43 in/s) maximum engrave speeds, plus a larger working area which is 33% larger than Beambox Pro. A far-extended lifespan laser tube compared with Beam Series, enabling the professionals to efficient your works at just a finger click.
Salient Features
33 % Bigger Working Area: With 730 x 410 x 125mm of working area, it’s 33% larger than Beambox Pro. Built for more capacity, more possibilities.
900 mm/s High Speed Engraving: Carrying the Cortex M4 core chip. HEXA provides maximum engraving speed of 900mm/s, to fulfill business and professional requirements.
60W High Spec Laser Tube: Brand new high spec 60W laser tube with optional 1.5-inch focus lens substantially shrinking laser spot, achieving 1000 DPI resolution. 10,000 hours of laser tube lifespan with 1 year warranty.
Equipped with electric elevation platform to easily focus with the tap of your fingers.
1000 dpi resolution: HEXA 1.5-inch Focus Lens Add-on allows you to engrave up to 1,000 DPI. Every detail matters.
Cutting Thickness: 10mm+
| Cutting Depth - 10mm+ | High Speed Engraving and Cutting | HEXA 1.5-inch Focus Lens Add-on allows you to engrave up to 1,000 DPI. Every detail matters. |
|
|
|
Technical Specifications
| General | |
|---|---|
| Dimensions | 1110 × 670 × 273 mm (43.7" × 26.4" × 10.7") |
| Weight | 58 kg |
| Work Area | 730 × 410 mm (28.7" × 16.1") |
| Work Area Depth | 125 mm |
| Camera Preview Area | 730 × 395 mm (28.7" × 15.5") |
| Power | 110V / 220V AC |
| Speed | 0 – 900 mm/s |
| Touch Panel | 7" 1024 × 600 LCD |
| Camera | HD CMOS |
| I/O | Wi-Fi / USB / Ethernet / Direct Network Cable |
| Laser | |
| Spec | 60W CO₂ Laser |
| Wavelength | 10640 nm |
| Cutting Thickness | 10+ mm (varies by material) |
| Software | |
| Mode | Vector / Graphic (monochrome, gray scale) |
| Operating System | Windows / macOS / Linux |
| File Type | JPG / PNG / SVG / DXF / AI / PDF |
| Software Download | Download Software from here |
|
|
HEXA Rotary Add-onNew Upgrade: The operability is stronger, the application scene is wider, the engraving degree is finer, and you can flexibly engrave your works. Easy Installation: Connect to laser engraving machine simply by replacing Y-axis terminal, no assembling needed, smaller size to better work with most laser engravers. Specs ● Object Height: HEXA 1 – 7.5 cm (0.39″ – 2.95″) ● Object Weight: 2.3 kg (5 lbs ) ● Maximum Object Length: 60cm (23.62″) for HEXA (depends on the center of mass) |
