Beam Air - Air Filter Fume Extractor
FLUX Beam Air - Air Filter Fume Extractor

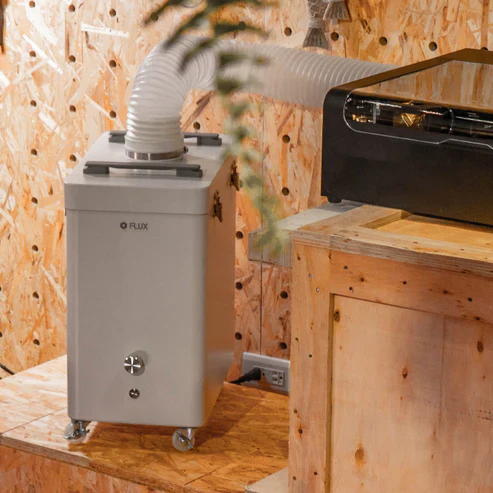

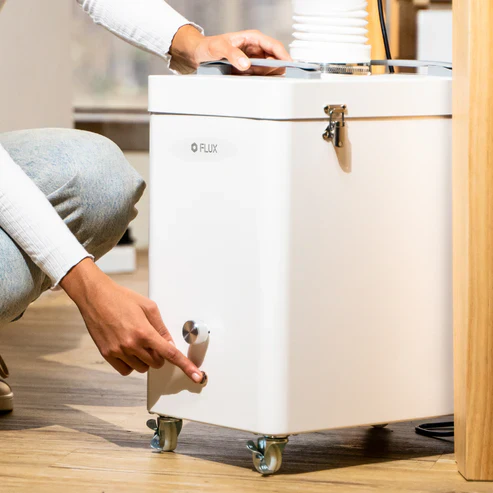

The Beam Air is a universal fume extractor for laser cutters. Whether planning to buy a laser cutter for home, hobby, or business use, the Beam Air can provide the ability to minimize or eliminate a majority of particles and scents of materials in use for almost any laser cutter.
Beam Air provides the ability to minimize or eliminate a majority of particles and scents of materials in use for any laser cutter.
✓ POWERFUL 4-LAYER FILTRATION - Captures 99.9% of PM2.5 particles with 350 CFM (9800L/min) airflow
✓ ADJUSTABLE QUIET OPERATION - Customize airflow while maintaining low noise levels
✓ SMART AUTOMATION - Auto power sync with FLUX laser cutters via USB-B connection
✓ UNIVERSAL COMPATIBILITY - Works with any laser cutter with standard 10cm outlet
✓ COMPACT MOBILE DESIGN - Space-saving footprint with wheels for workshop flexibility
Best for: ador, beamo and the Beambox Series
If already using a laser cutter, the strong scents and particles that could be emitted from the laser cut material may be all too familiar. The Beam Air can efficiently solve these problems by using four layers of technologically advanced filters:
| Filter Type | Position | Function | Estimated Replacement Interval |
|---|---|---|---|
| Pre-Filter | Top (1st Layer) | Initial defense against particles from the laser cutter; thinnest filter | Every 10 – 30 hours |
| Medium Efficiency Filter | Below Pre-Filter (2nd Layer) | Buffers and filters particles that pass the pre-filter | Every 50 – 150 hours |
| H13 HEPA Filter | Center (3rd Layer) | Captures remaining fine particles | Every 100 – 200 hours |
| Activated Charcoal Filter | Bottom (Final Layer) | Eliminates residual particles and odors; ensures clean air output | Every 300 – 600 hours |
Technical Specifications
System Flow: 353 CFM - 195 CFM
| Size | 470 x 260 x 490 mm |
| Weight | 22 kg |
| Power | 180 W |
| Inlet Diameter | Φ 100 mm |
| Max Air Flow | 350 CFM / 9800 L per min |
| Estimated Filter Replacement Times | |
|---|---|
| Pre-filter | 10 – 30 hours |
| Medium Efficiency Filter | 50 – 150 hours |
| Activated Charcoal Filter | 300 – 600 hours |
| HEPA Filter | 100 – 200 hours |
Original: $603.23
-70%$603.23
$180.97
Description
FLUX Beam Air - Air Filter Fume Extractor
The Beam Air is a universal fume extractor for laser cutters. Whether planning to buy a laser cutter for home, hobby, or business use, the Beam Air can provide the ability to minimize or eliminate a majority of particles and scents of materials in use for almost any laser cutter.
Beam Air provides the ability to minimize or eliminate a majority of particles and scents of materials in use for any laser cutter.
✓ POWERFUL 4-LAYER FILTRATION - Captures 99.9% of PM2.5 particles with 350 CFM (9800L/min) airflow
✓ ADJUSTABLE QUIET OPERATION - Customize airflow while maintaining low noise levels
✓ SMART AUTOMATION - Auto power sync with FLUX laser cutters via USB-B connection
✓ UNIVERSAL COMPATIBILITY - Works with any laser cutter with standard 10cm outlet
✓ COMPACT MOBILE DESIGN - Space-saving footprint with wheels for workshop flexibility
Best for: ador, beamo and the Beambox Series
If already using a laser cutter, the strong scents and particles that could be emitted from the laser cut material may be all too familiar. The Beam Air can efficiently solve these problems by using four layers of technologically advanced filters:
| Filter Type | Position | Function | Estimated Replacement Interval |
|---|---|---|---|
| Pre-Filter | Top (1st Layer) | Initial defense against particles from the laser cutter; thinnest filter | Every 10 – 30 hours |
| Medium Efficiency Filter | Below Pre-Filter (2nd Layer) | Buffers and filters particles that pass the pre-filter | Every 50 – 150 hours |
| H13 HEPA Filter | Center (3rd Layer) | Captures remaining fine particles | Every 100 – 200 hours |
| Activated Charcoal Filter | Bottom (Final Layer) | Eliminates residual particles and odors; ensures clean air output | Every 300 – 600 hours |
Technical Specifications
System Flow: 353 CFM - 195 CFM
| Size | 470 x 260 x 490 mm |
| Weight | 22 kg |
| Power | 180 W |
| Inlet Diameter | Φ 100 mm |
| Max Air Flow | 350 CFM / 9800 L per min |
| Estimated Filter Replacement Times | |
|---|---|
| Pre-filter | 10 – 30 hours |
| Medium Efficiency Filter | 50 – 150 hours |
| Activated Charcoal Filter | 300 – 600 hours |
| HEPA Filter | 100 – 200 hours |
