GNSS L1+L5 Dual-Frequency Active Antenna

Supports Multiple GNSS Such As BD, GPS, Galileo, QZSS, IRNSS, Etc.





Specifications

FREQUENCY RANGE	BDS B1I/B1C/B2a GPS L1/L1C/L5C GALILEO E1/E5a QZSS L5 IRNSS S-L5	PHASE CENTER ERROR	±2mm
LNA GAIN	28±2dB	POLARISATION	Right-Hand Circular Polarization
GAIN	2dBi	CONNECTOR	SMA-J
VSWR	≤2.0	ANTENNA SIZE	50.0×50.0×19.1mm
OUTPUT IMPEDANCE	50Ω	CABLE	RG174
WORKING CURRENT	≤20mA	CABLE LENGTH	3m
WORKING VOLTAGE	DC 3.0~18.0V	WORKING TEMPERATURE	-40~85˚C
AXIAL RATIO	≤3.0dB	STORAGE TEMPERATURE	-55~85˚C
NOISE FIGURE	≤2dB	MOUNTING	Magnetic base/Double-sided tape

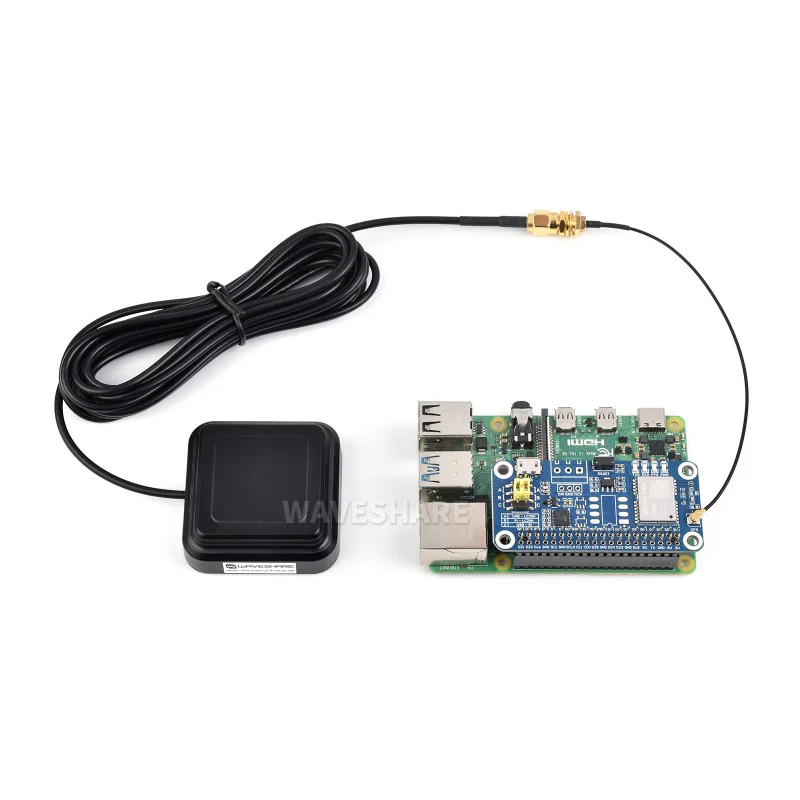

Application Example

* for reference only, the Raspberry Pi board and GPS HAT are NOT included



Application Scenarios



Antenna Performance Parameters
