GPS External Antenna, Ceramics with Amplifier

GPS External Antenna, Ceramics With Amplifier

Specifications

CERAMICS	CENTER FREQUENCY	1575±1MHz
	BAND WIDTH	CF±8MHz
	POLARIZATION	RHCP
	GAIN	5dBic (Zenith)
	V.S.W.R	＜1.5
	RESISTANCE	50Ω
	AXIAL RATIO	3dB (max)
	DIMENSION	25*25*4mm
AMPLIFIER	GAIN	28±2dB
	NOISE FACTOR	＜1.0
	FILTER INSERTION LOSS	＜3dB
	EX-BAND ATTENUATION	35dB@CF±50MHz/50dB@CF±100MHz
	POWER SUPPLY VOLTAGE	2.7-5V DC
	CURRENT CONSUMPTION	16mA
	V.S.W.R	＜2.0
MECHANICAL	TYPE	GPS active antenna
	CABLE LENGTH	about 3m
	CABLE MATERIAL	RG174 96-weave copper with tin coating

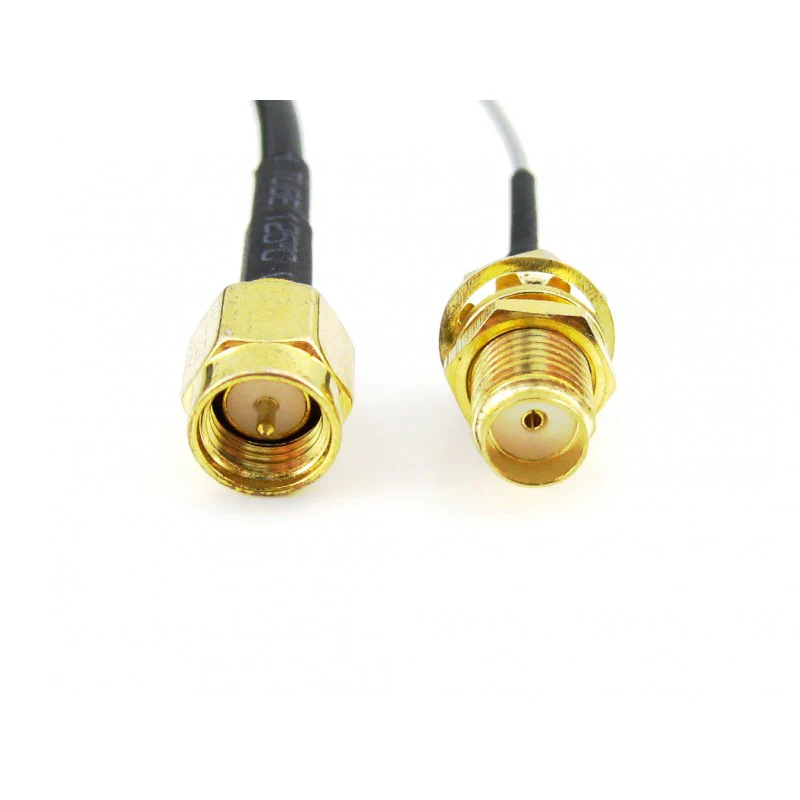

	CONNECTOR	SMA, IPX (via adapter wire)
	RADOME MATERIAL	PC
	MOUNTING METHOD	Magnet/Adhesive
ENVIRONMENTAL	OPERATING TEMPERATURE	-40℃~+85℃
	RELATIVE HUMIDITY	Up to 95%
	WATERPROOF RATING	IP65~IP67
	VIBRATION	10 to 55Hz with 1.5mm amplitude 2hours
	ENVIRONMENTALLY FRIENDLY	ROHS compliant



Applications

• GPS antenna
• Navigator antenna
• Car DVD antenna

Package Includes:

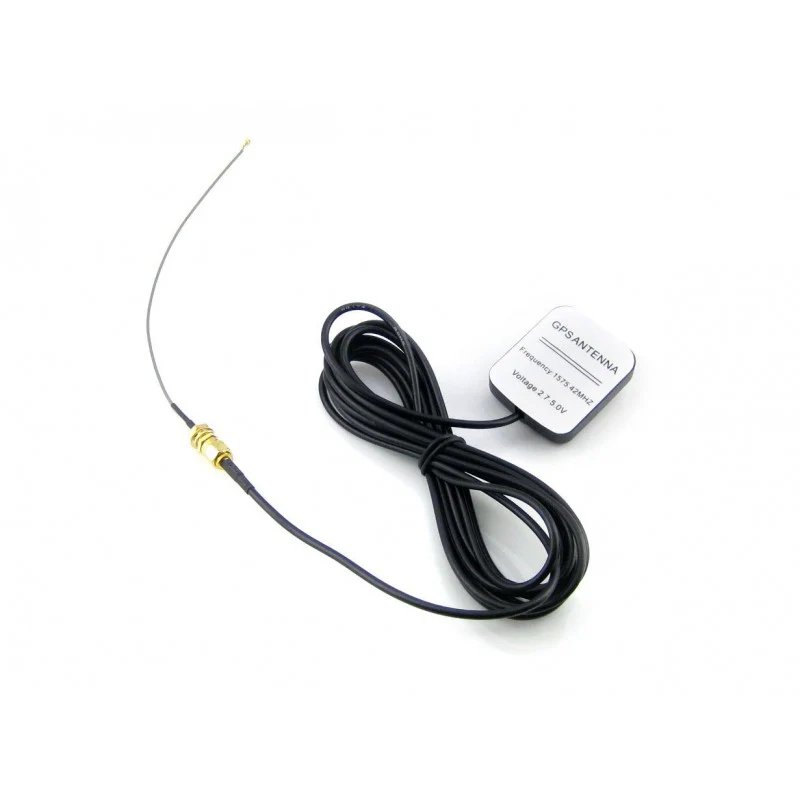

1. 1x GPS External Antenna
2. 1x IPX to SMA adapter wire
