GNSS L1+L2+L5 Multi-GNSS & Multi-Frequency Active Antenna
GNSS L1+L2+L5 Multi-GNSS & Multi-Frequency Active Antenna
Sunproof | High Temperature Tolerance | IP67 Waterproof
Supports Multiple GNSS Such As BD, GPS, GLONASS, Galileo, Etc.
Specifications
| FREQUENCY RANGE | BDS B1/B2/B3 GPS L1/L2/L5 GLONASS G1/G2/G3 GALILEO E1/E2/E5a/E5b/E6 |
PHASE CENTER ERROR | ±2mm |
|---|---|---|---|
| LNA GAIN | 40±2dB | POLARISATION | Right-Hand Circular Polarization |
| GAIN | 4dBi | CONNECTOR | SMA-J |
| VSWR | ≤2.0 | ANTENNA SIZE | 108×76×27mm |
| OUTPUT IMPEDANCE | 50Ω | CABLE | RG174 |
| WORKING CURRENT | ≤45mA | CABLE LENGTH | 5m |
| WORKING VOLTAGE | DC 3.0~18.0V | WORKING TEMPERATURE | -40~70˚C |
| AXIAL RATIO | ≤3.0dB | STORAGE TEMPERATURE | -55~85˚C |
| NOISE FIGURE | ≤1.8dB | MOUNTING | Magnetic base |

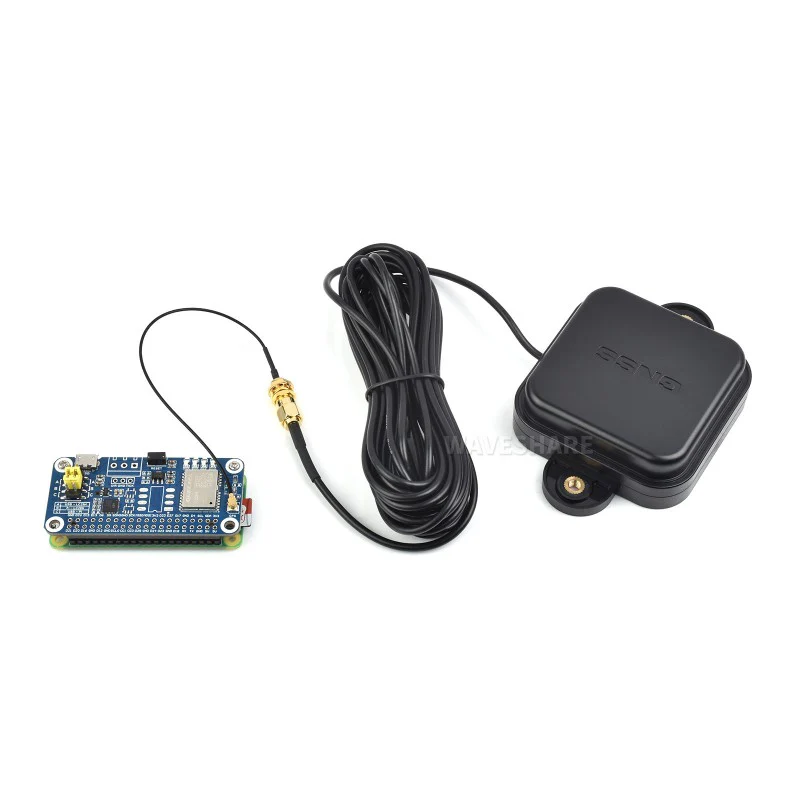

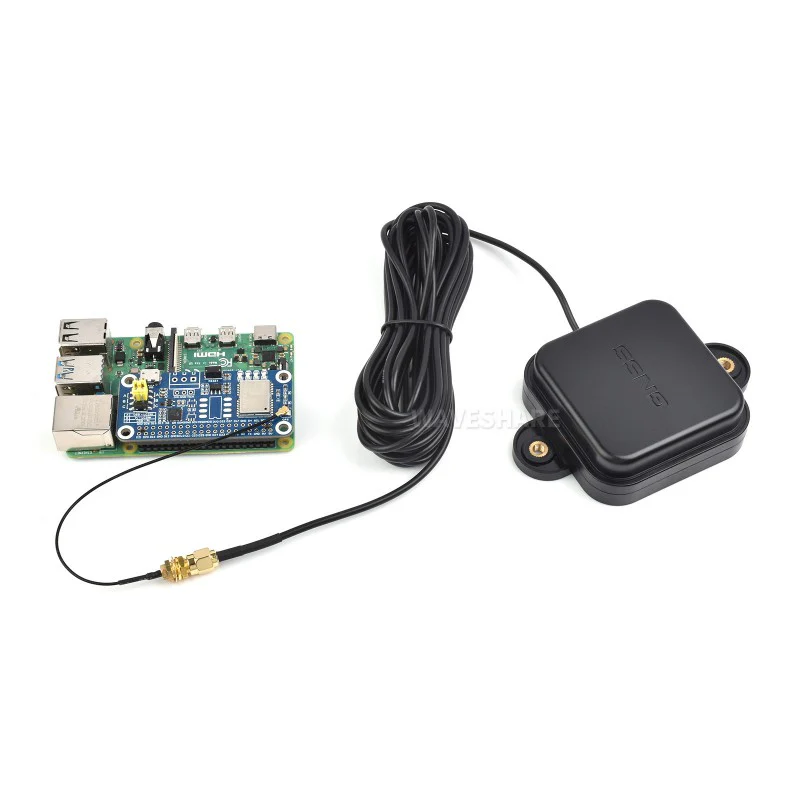

Application Example
* for reference only, the Raspberry Pi board and GPS HAT are NOT included
Application Scenarios

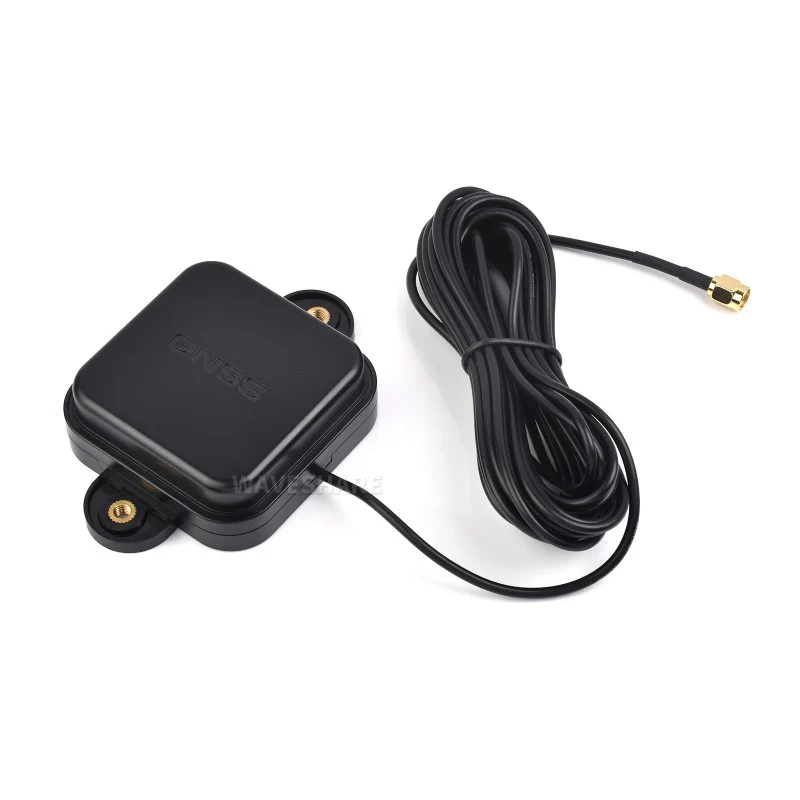

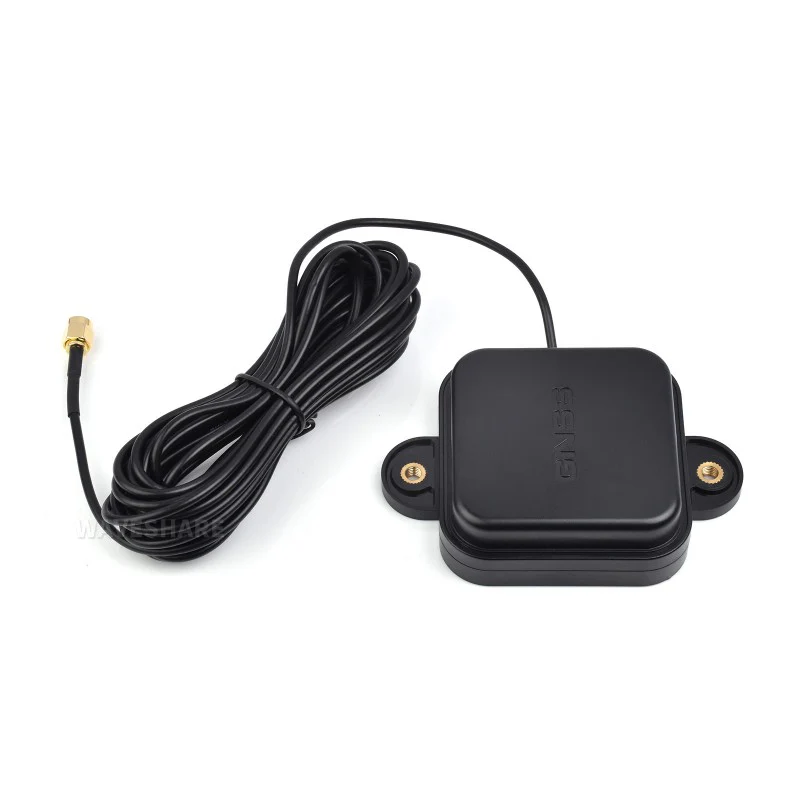

Product Show
Outline Dimensions
Note: supports mass customization for cable length and antenna connector
$20.95
Original: $69.85
-70%GNSS L1+L2+L5 Multi-GNSS & Multi-Frequency Active Antenna—
$69.85
$20.95
Description
GNSS L1+L2+L5 Multi-GNSS & Multi-Frequency Active Antenna
Sunproof | High Temperature Tolerance | IP67 Waterproof
Supports Multiple GNSS Such As BD, GPS, GLONASS, Galileo, Etc.
Specifications
| FREQUENCY RANGE | BDS B1/B2/B3 GPS L1/L2/L5 GLONASS G1/G2/G3 GALILEO E1/E2/E5a/E5b/E6 |
PHASE CENTER ERROR | ±2mm |
|---|---|---|---|
| LNA GAIN | 40±2dB | POLARISATION | Right-Hand Circular Polarization |
| GAIN | 4dBi | CONNECTOR | SMA-J |
| VSWR | ≤2.0 | ANTENNA SIZE | 108×76×27mm |
| OUTPUT IMPEDANCE | 50Ω | CABLE | RG174 |
| WORKING CURRENT | ≤45mA | CABLE LENGTH | 5m |
| WORKING VOLTAGE | DC 3.0~18.0V | WORKING TEMPERATURE | -40~70˚C |
| AXIAL RATIO | ≤3.0dB | STORAGE TEMPERATURE | -55~85˚C |
| NOISE FIGURE | ≤1.8dB | MOUNTING | Magnetic base |
Application Example
* for reference only, the Raspberry Pi board and GPS HAT are NOT included
Application Scenarios
Product Show
Outline Dimensions
Note: supports mass customization for cable length and antenna connector
