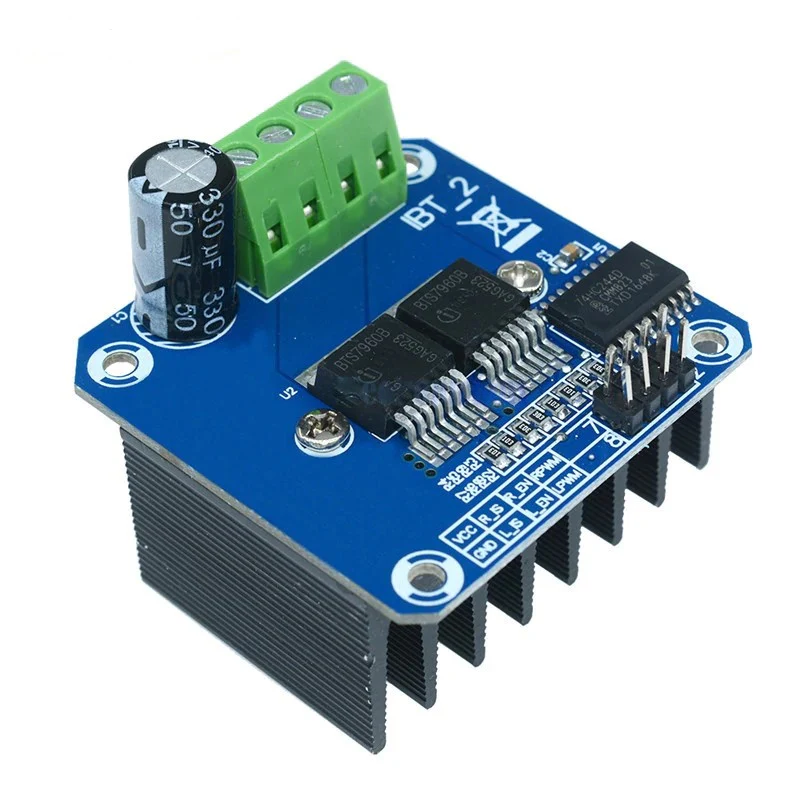

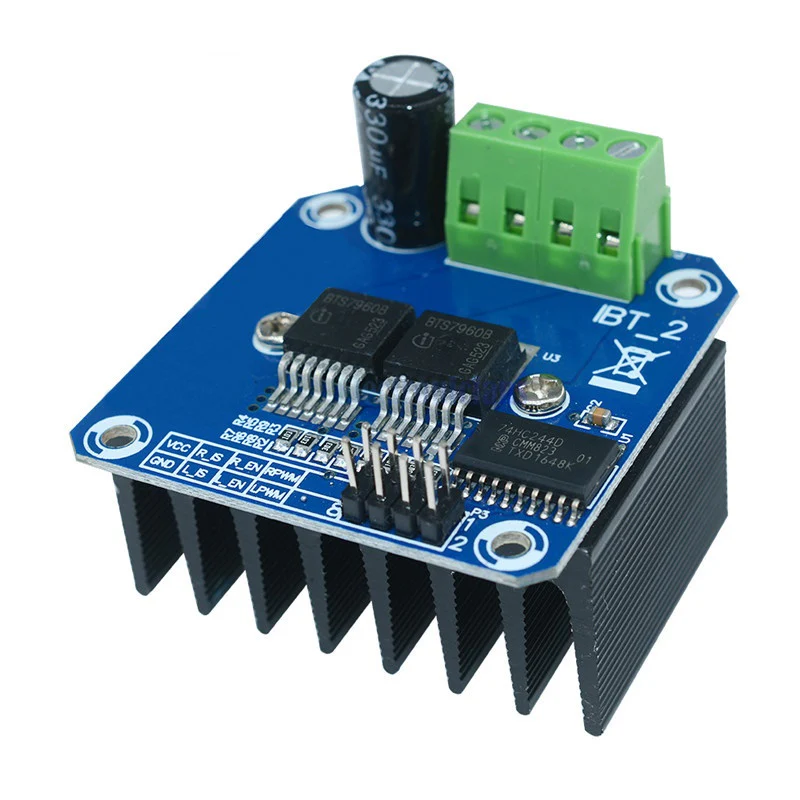

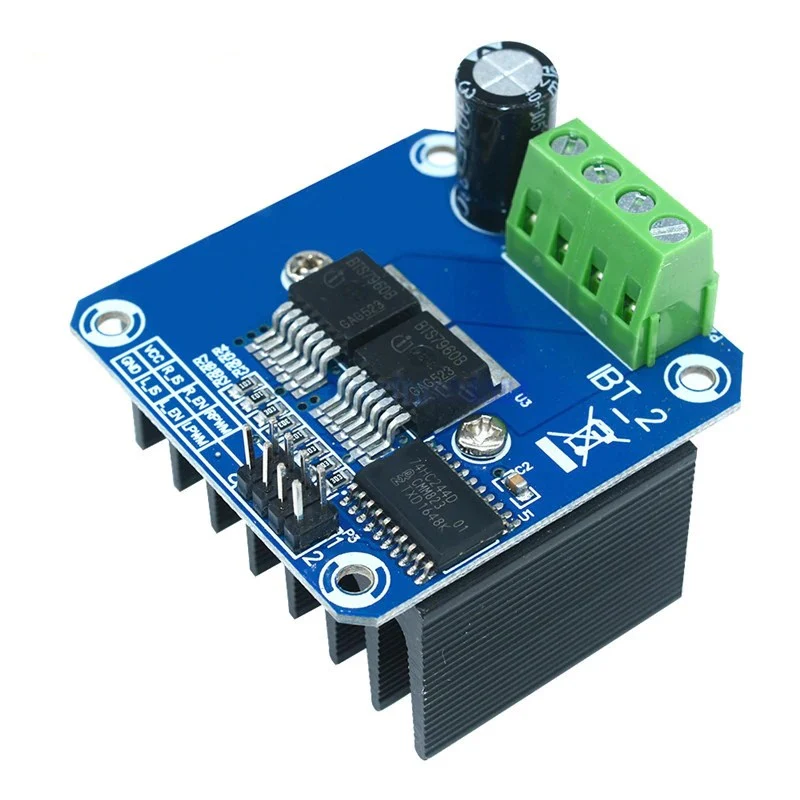

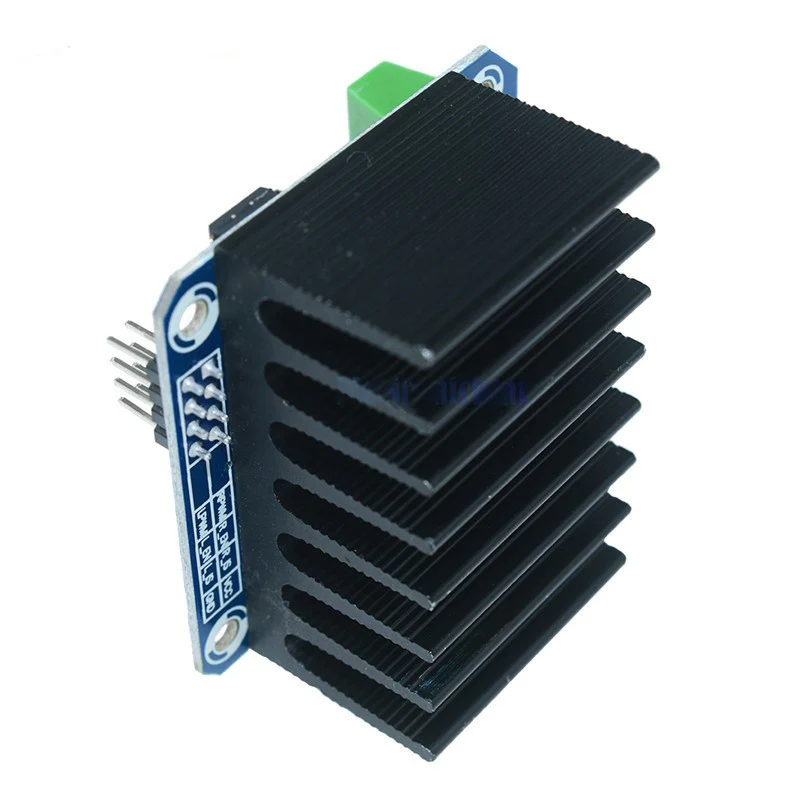

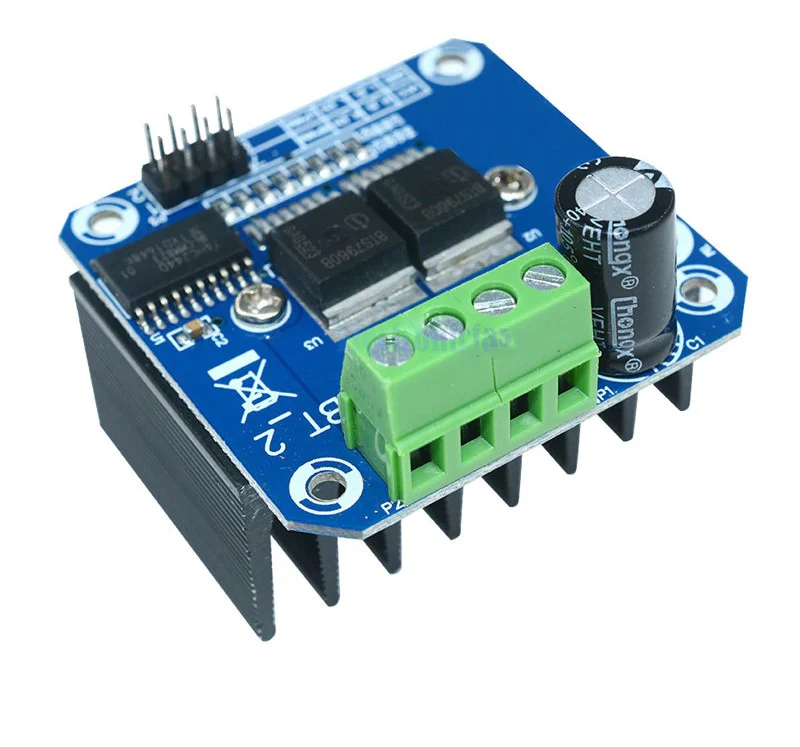

BTS7960B Motor Driver H-Bridge



Details:

• Double BTS7960 large current (43 A) H bridge driver;
• 5V isolate with MCU, and effectively protect MCU;
• 5V power indicator on board;
• Just need four lines from MCU to driver module (GND. 5V. PWM1. PWM2);
• Reverse the motor forward, two PWM input frequency up to 25kHZ;
• Two heat flow passing through an error signal output;
• Isolated chip 5V power supply (can be shared with the MCU 5V), can also use the on-board 5V supply;
• Supply voltage 5.5V to 27V

This driver uses Infineon chips BTS7960 composed of high-power drive full H-bridge driver module with thermal over-current protection. Double BTS7960 H-bridge driver circuit, with a strong drive and braking, effectively isolating the microcontroller and motor driver! High-current 43A

Specifications

Resources

Datasheet

Tutorial
