DRV8825 High Current Stepper Motor Driver

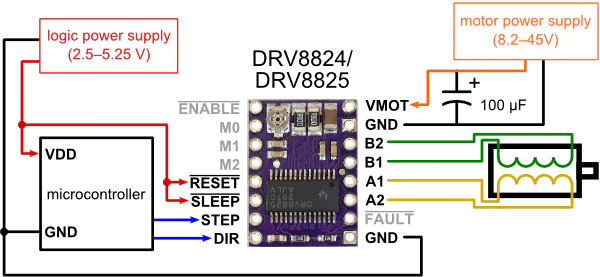

This breakout board for TI’s DRV8825 microstepping bipolar stepper motor driver features adjustable current limiting, over-current and over-temperature protection, and six microstep resolutions (down to 1/32-step). It operates from 8.2 V to 45 V and can deliver up to approximately 1.5 A per phase without a heat sink or forced air flow (rated for up to 2.2 A per coil with sufficient additional cooling). The driver has a pinout and interface that are nearly identical to those of our A4988 stepper motor driver carriers, so it can be used as a higher-performance drop-in replacement for those boards in many applications. This board ships with soldered 0.1″ male header pins and heat sink.



Minimum operating voltage:	8.2 V
Maximum operating voltage:	45 V
Continuous current per phase:	1.5 A2
Maximum current per phase:	2.2 A3
Minimum logic voltage:	2.5 V4
Maximum logic voltage:	5.25 V4
Microstep resolutions:	full, 1/2, 1/4, 1/8, 1/16, and 1/32
