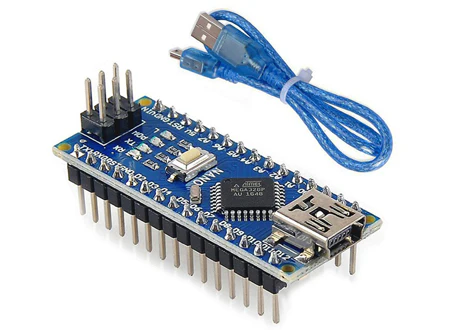

Nano V3.0 ATMEGA 328P (with USB Cable)

Description

The Arduino Nano is a small, complete, and breadboard-friendly board based on the ATmega328P (Arduino Nano 3.x). It has more or less the same functionality as the Arduino Duemilanove but in a different package. It lacks only a DC power jack and works with a Mini-B USB cable instead of a standard one.

Compatible with the Arduino line of products. Trademark registrations throughout the world for ARDUINO or Arduino® are owned by: Arduino AG and Arduino SA.

Features

• Microcontroller: ATmega328
• Architecture: AVR
• Operating Voltage: 5V
• Flash Memory: 32 KB of which 2 KB used by bootloader
• SRAM: 2 KB
• Clock Speed: 16 MHz
• Analog IN Pins: 8
• EEPROM: 1 KB
• DC Current per I/O Pins: 40 mA (I/O Pins)
• Input Voltage: 7-12 V
• Digital I/O Pins: 22 (6 of which are PWM)
• PWM Output: 6
• Power Consumption: 19 mA
• PCB Size: 18 x 45 mm
• Weight: 7g
