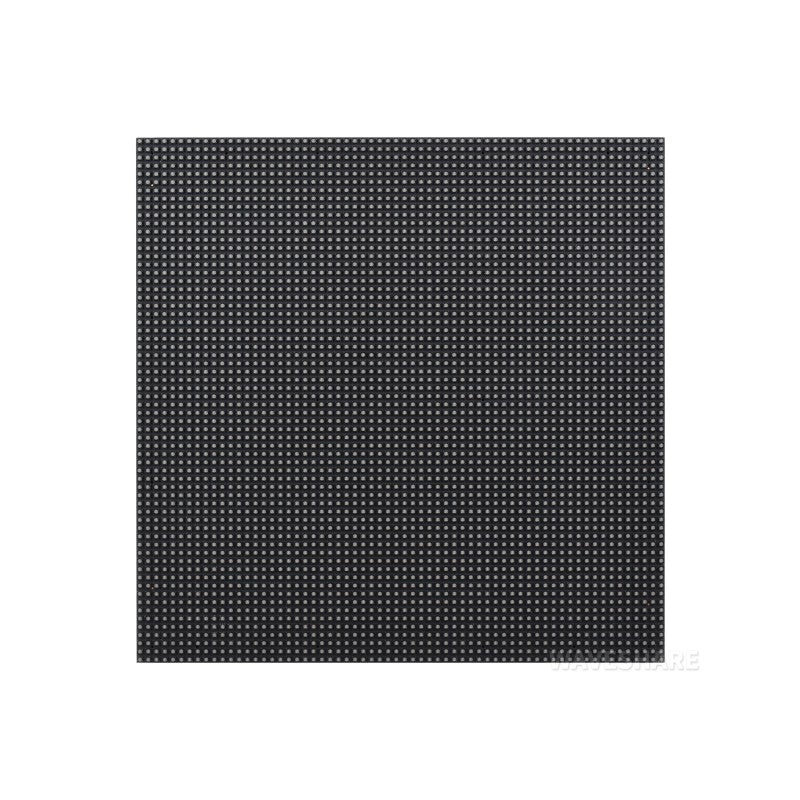

64X64 RGB Full-Color LED Matrix Panel
RGB Full-Color LED Matrix Panel, 64×64 Pixels, Adjustable Brightness
2048 Individual RGB LEDs, 3mm Pitch - Supports Raspberry Pi Pico, ESP32, Arduino...
Features
- 4096 individual RGB LEDs, full-color display, adjustable brightness
- 64×64 pixels, 3mm pitch, allows displaying text, colorful image, or animation
- 192×192mm dimensions, moderate size, suitable for DIY desktop display or wall mount display

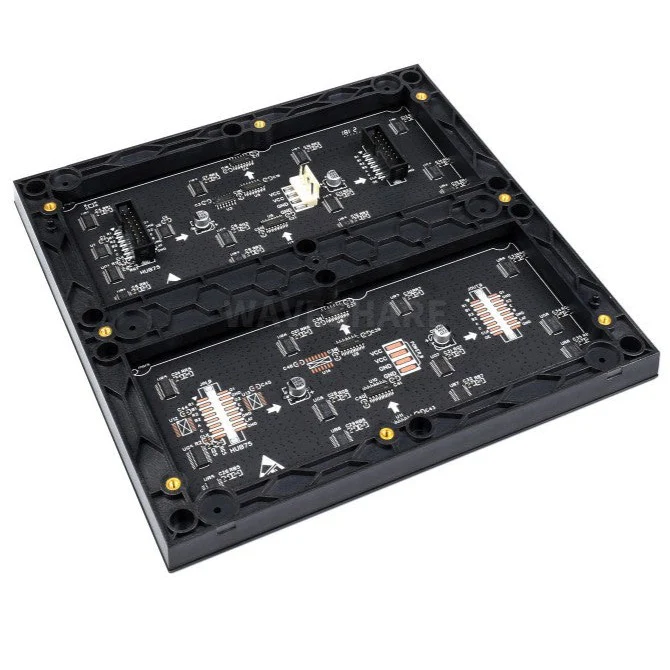

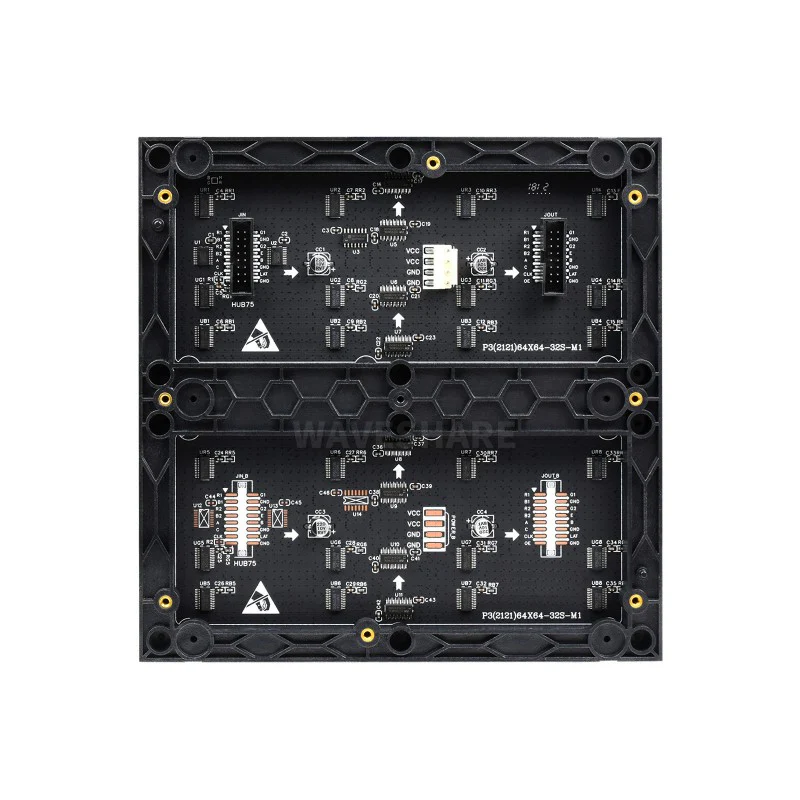

- Onboard two HUB75 header, one for controller data input, one for output, chain support
- Provides open source development resources and tutorials, for use with Raspberry Pi, Arduino, and so on
Specifications
| DIMENSIONS | 192mm × 192mm |
|---|---|
| PIXELS | 64×64=4096 DOTS |
| PITCH | 3mm |
| PIXEL FORM | 1R1G1B |
| VIEWING ANGLE | ≥160° |
| CONTROL TYPE | synchronization |
| DRIVING | 1/32 scan |
| HEADER | HUB75 |
| POWER SUPPLY | 5V / 4A (VH4 header input) |
| POWER | ≤20W |
Header Definition
| PIN | DESCRIPTION | PIN | DESCRIPTION |
|---|---|---|---|
| +5V | 5V power input | GND | Ground |
| R1 | R higher bit data | R2 | R lower bit data |
| G1 | G higher bit data | G2 | G lower bit data |
| B1 | B higher bit data | B2 | B lower bit data |
| A | A line selection | B | B line selection |
| C | C line selection | D | D line selection |
| E | E line selection | CLK | clock input |
| LAT/STB | latch pin | OE | output enable |
Chainable Design
Multi LED Matrix Panel Can Be Chained Together To Build A Larger Panel
Via HUB75 Input/Output Header
Each RGB LED matrix panel requires a standalone 5V/4A or above power supply, when they're chained to display.
Usage Scenarios
DIY Maker Desktop Or Wall Mount Display, Signboard, Environment Monitor...
Dimensions
Resources
WIKI: RGB-Matrix-P3-64x64
