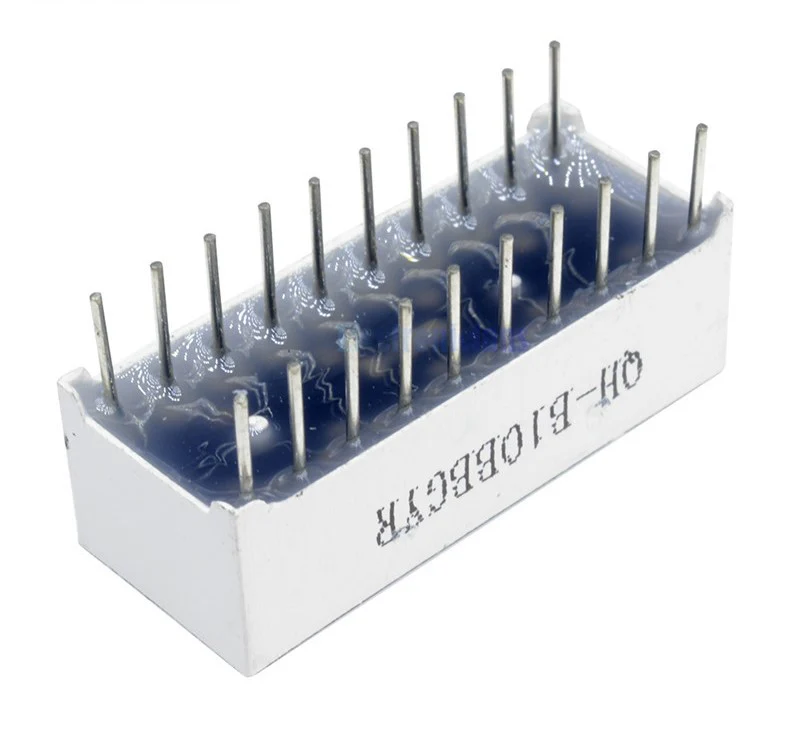

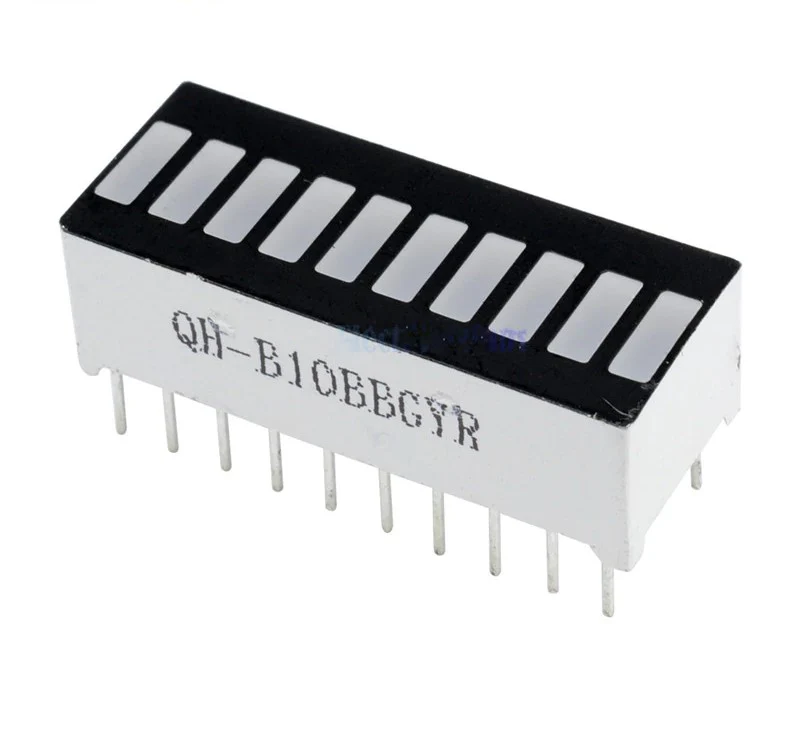

10 Segment LED Bar Graph

Features

• 10 Separately Controlled LED's
• High Brightness
• High-Intensity Green Output
• Ideal for Audio and Meter Displays
• Economically priced
• Easy to Mount
• RoHS Compliant

• Display
  • LED Size: 2 x 5 mm
  • Material: GaAlAs
• Absolute Maximum Ratings
  • Power Dissipation (Pd): 65 * 10 mw
  • Forward Current (If): 25 mA
  • Peak Forward Current (Ifp): 250 mA
• Electro-Optical Data (@ 10 mA)
  • Forward Voltage - Typical: 1.85 V
  • Forward Voltage - Maximum: 2.2 V
  • Luminous Intensity Typical: 120 Mcd
