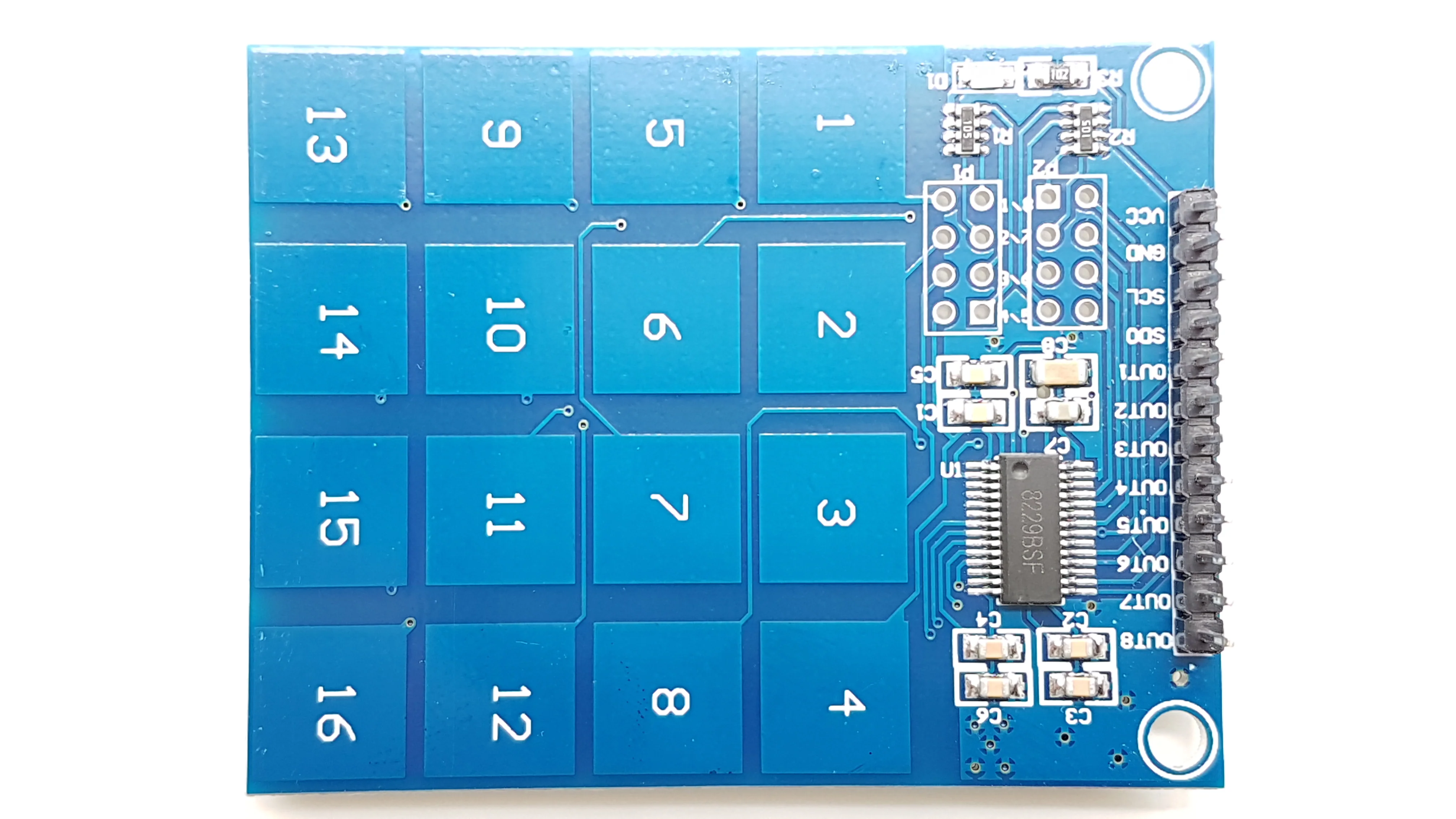

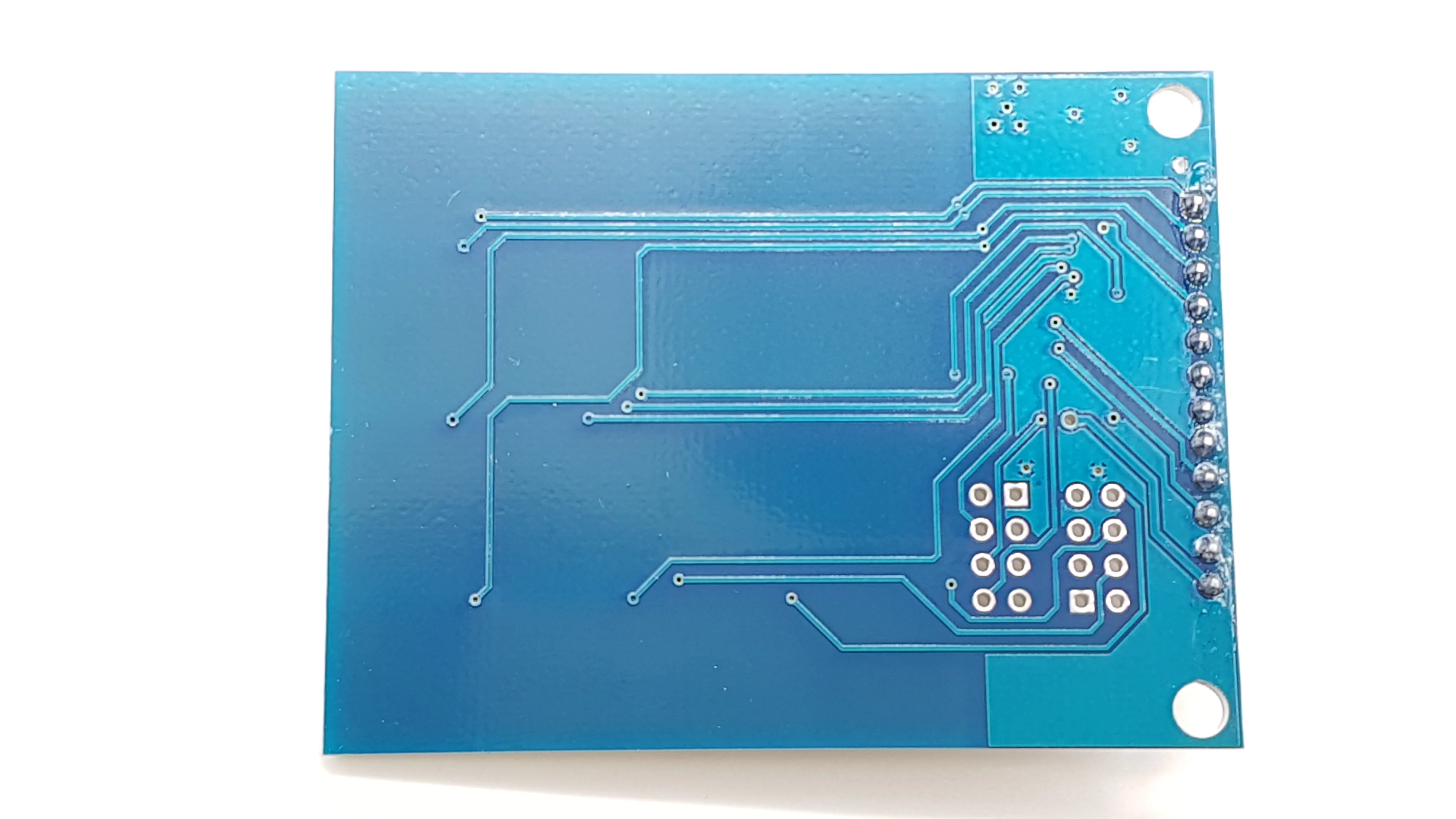

16 Key Way Channel TTP229 Capacitive Touch Switch

The TTP229 Touch switch digital sensor is capacitive sensing design specifically for touch pad controls. The device built in regulator for touch sensor. Stable sensing method can cover diversity conditions.

Human interfaces control panel links through non-conductive dielectric material.The main application is focused at replacing of the mechanical switch or button. The ASSP can independently handle the 8 touch pads or up to 16 touch pads.



Description:

• 16-key board TTP229 capacitive touch sensor IC
• onboard power indicator
• working voltage: 2.4V-5.5V
• the module can be set to output mode, the key output mode, the longest time and fast output / low power options
• PCB board size: 49.3 (mm) x64.5 (mm)



Specifications

Resources

Datasheet

Library

Sample Code

Tutorial
