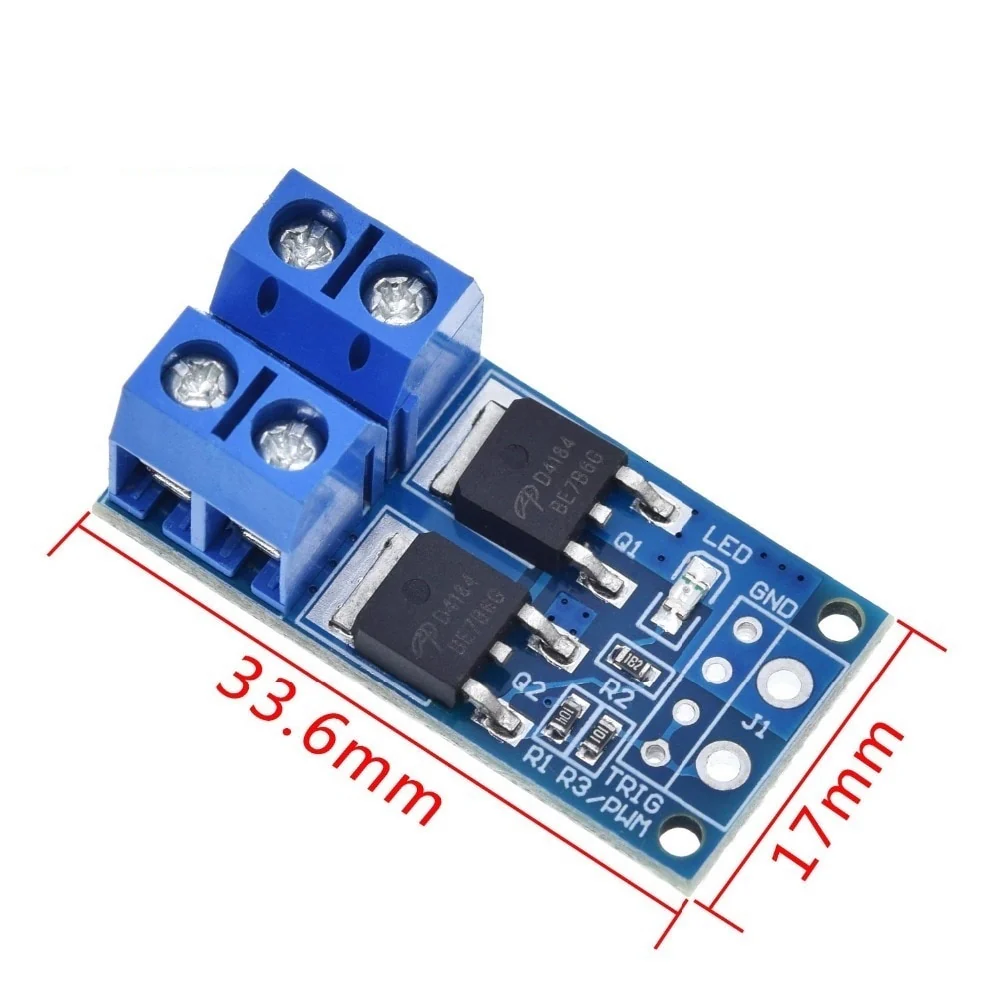

15A 400W DC 5V-36V Dual Large Power Mosfet
- Dual MOSFET parallel active output can manage current of 15A, 400W power at room temperature
- Wide voltage input, supports PWM
- Working voltage: DC 5V - 36V
- The trigger source: digital high-low (DC3.3V - 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal
- Output capacity: DC DC 5V - 36V, at room temperature, continuous current 15A, power up to 400W!
- Applications include High Power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valve; motor speed control, lamp brightness.
- Working temperature: -40-85℃;
- Size: 34mm X 17mm X 12mm
- We highly recommend adding heat sinks for high current operations
$0.32
Original: $1.06
-70%15A 400W DC 5V-36V Dual Large Power Mosfet—
$1.06
$0.32
Description
- Dual MOSFET parallel active output can manage current of 15A, 400W power at room temperature
- Wide voltage input, supports PWM
- Working voltage: DC 5V - 36V
- The trigger source: digital high-low (DC3.3V - 20V), can be connected microcontroller IO port, PLC interfaces, DC power, you can access the PWM signal
- Output capacity: DC DC 5V - 36V, at room temperature, continuous current 15A, power up to 400W!
- Applications include High Power equipment, motors, light bulbs, LED lights, DC motors, micro-pumps, solenoid valve; motor speed control, lamp brightness.
- Working temperature: -40-85℃;
- Size: 34mm X 17mm X 12mm
- We highly recommend adding heat sinks for high current operations
