Super Bright White Piranha LED Panel

3x4 5V 12LED

• 5mm high brightness piranha 12 LEDs
• Long lifetime, low consumption, very convenient to use
• Light board four corners with a fixed screw hole, easy fixed
• Input voltage: DC 3.5-5.5V (Recommended 5V DC)
• Operating current: about 200MA
• Power: about 1W
• Light Color: White
• Dimension: Approx. 45 x 28 x 10mm (LxWxH)

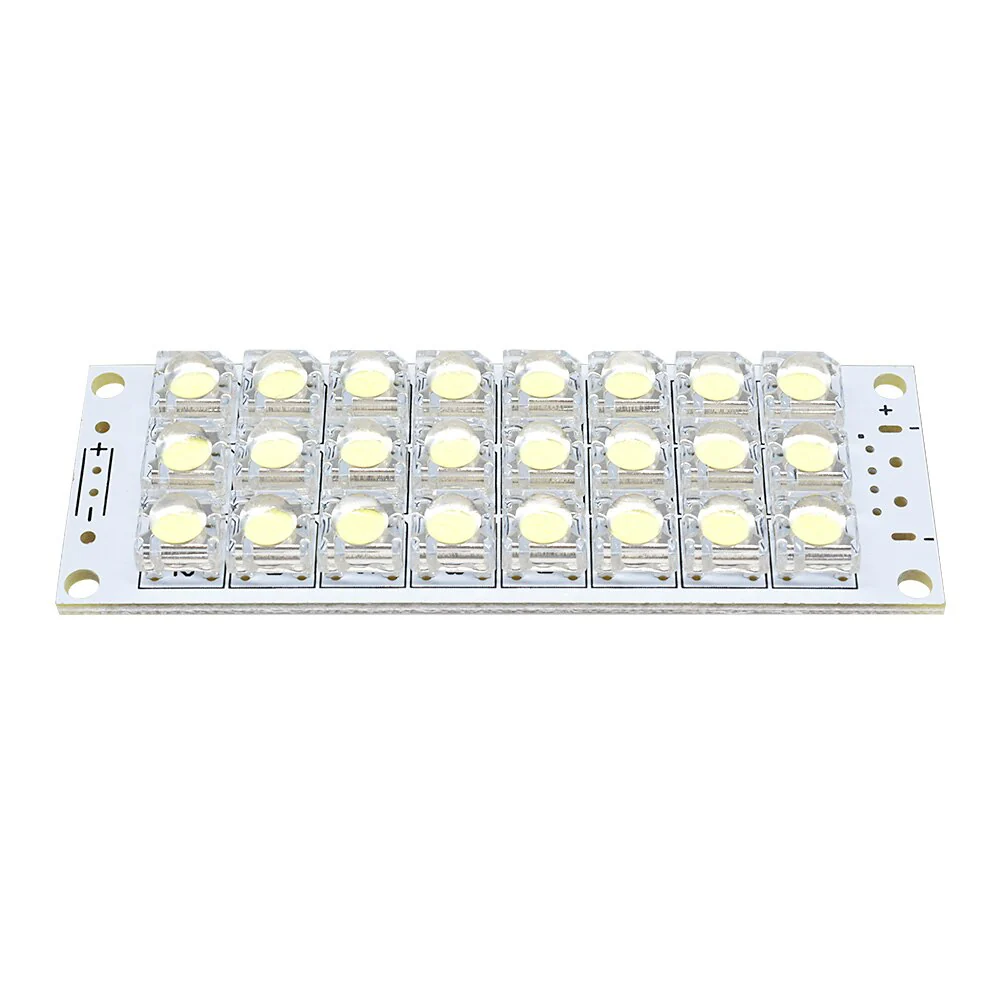

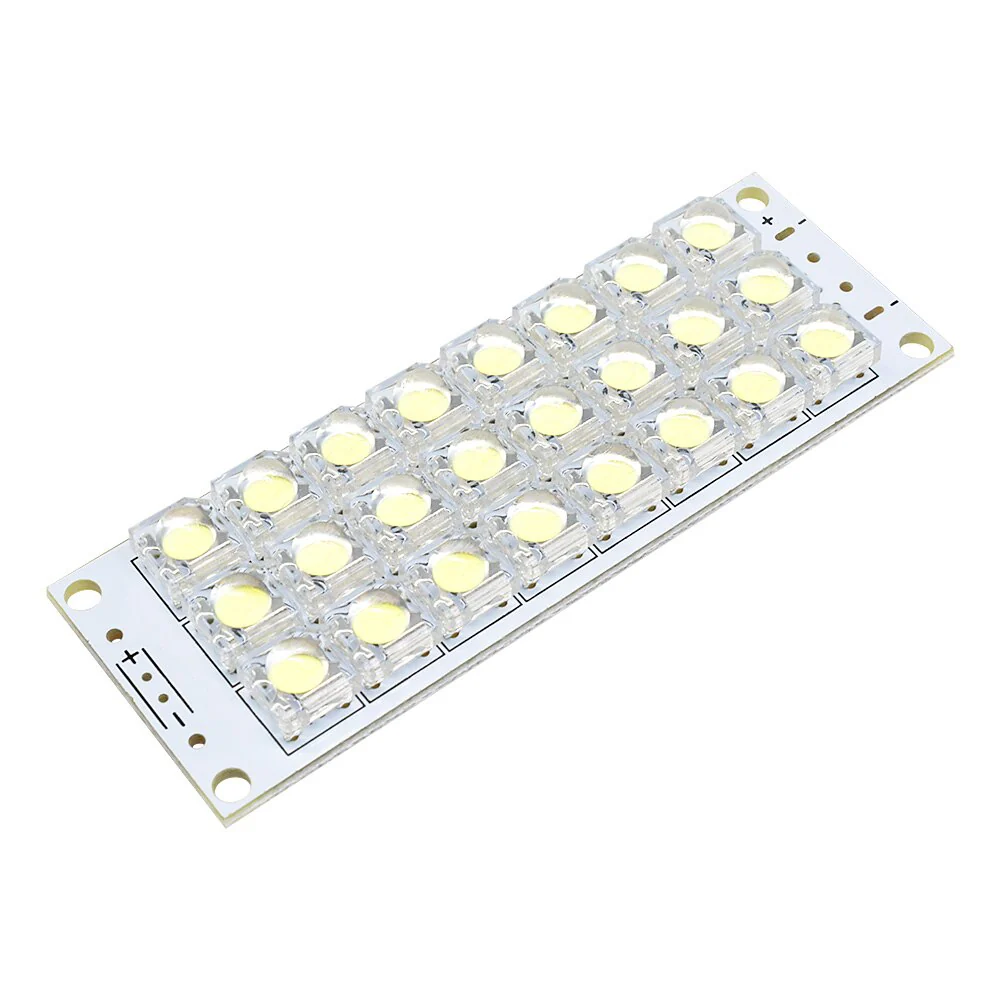

3x8 5V 24 LEDs

• Brightness: 100 lumens (equivalent to 15W desk lamp)
• Lamp beads: 24
• Color Temperature: 5500K-6500K (white)
• Operating voltage: 4.5V-5.5V
• Operating Current: 360mA
• Rated Power: about 1.6W
• Life :50000-80000 hours
• Beam Angle: astigmatism (about 150 °)
• Dimensions: 80 x 28mm
• Weight: 20g



3x8 12V 24 LEDs

• Brightness: 100 lumens (equivalent to 15W desk lamp)
• Lamp beads: 24
• Color Temperature: 5500K-6500K (white)
• Operating voltage: 10V-14V
• Operating Current: 160mA
• Rated Power: about 1.6W
• Life :50000-80000 hours
• Beam Angle: astigmatism (about 150 °)
• Dimensions: 80 x 28mm
• Weight: 20g

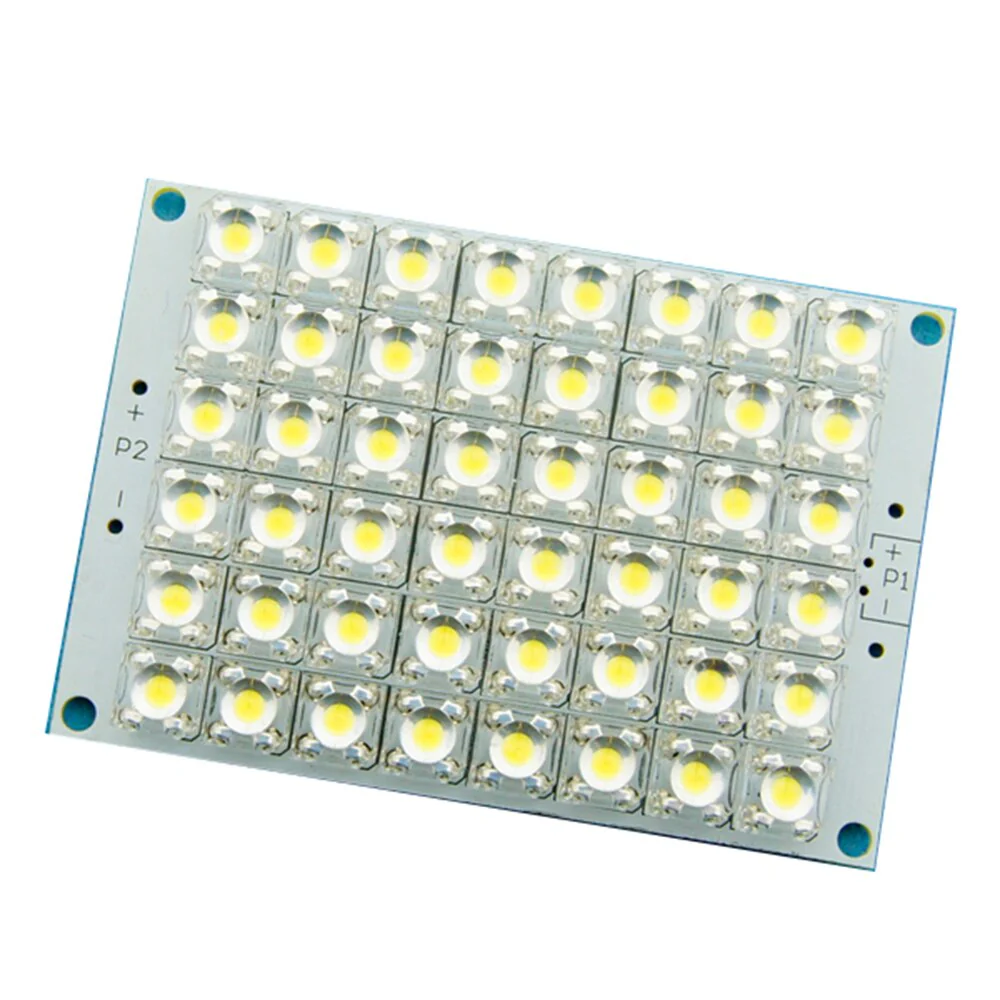

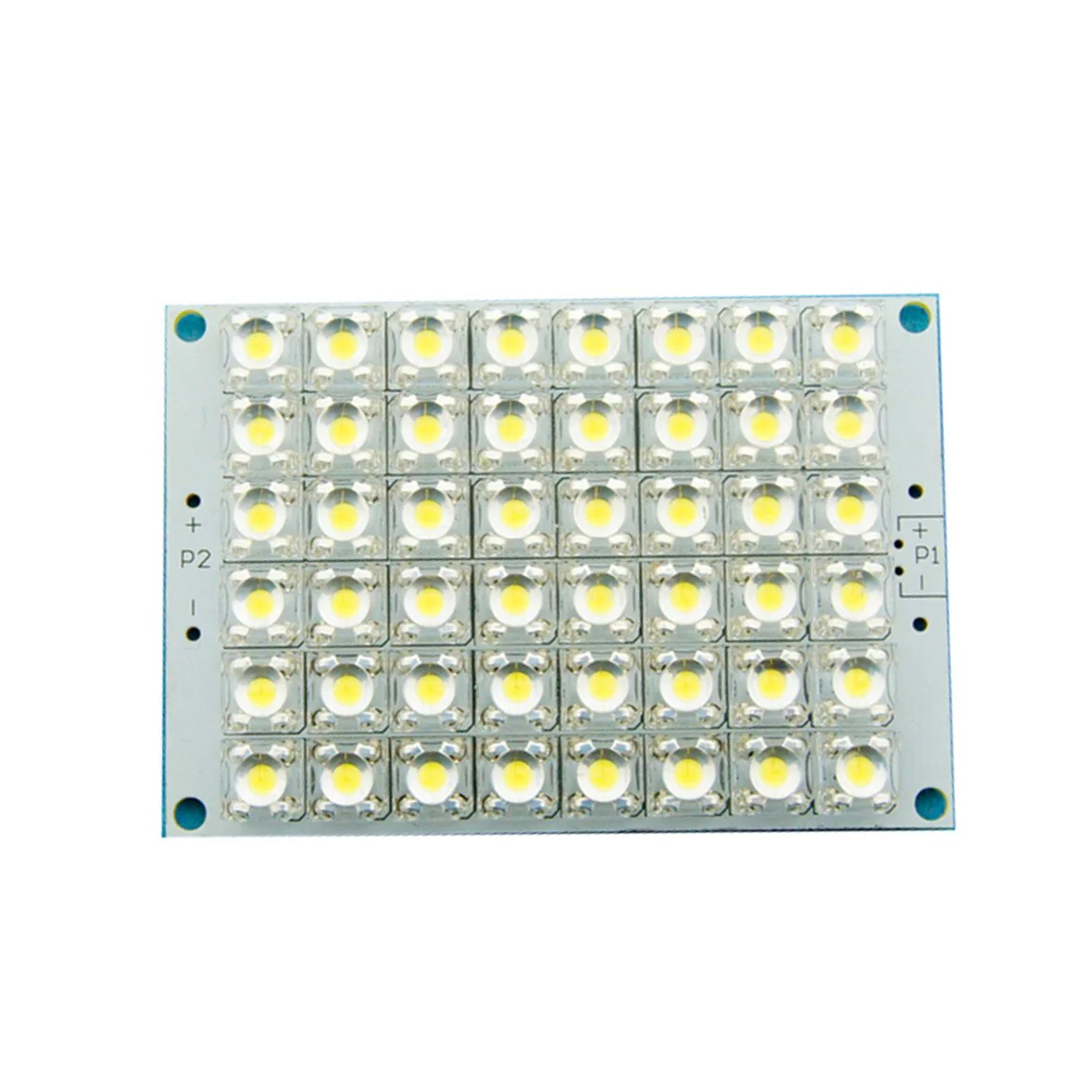

6x8 12V 48 LEDs

• 48x 5mm high brightness piranha LED
• Color: White
• Brightness of 200 lumens
• Color temperature 5500-6500K
• Life 50000-80000H
• Input voltage: DC 10-14V (Recommended 12V DC)
• Operating current: about 300mA
• Power: about 3.2W
• Size : 74mm x 51mm

Resources

Datasheet

Sample Code
