MyCobot 280 Raspberry Pi- 6 DOF Collaborative Robotic Arm (Raspberry Pi Version)

myCobot-Pi six-axis collaborative robot is a multi-functional and lightweight intelligent robotic arm designed & developed by Elephant Robotics. It belongs to the "myCobot series" products and adopts a Raspberry Pi microprocessor. It is one of Elephant Robotics’ core robots for the robot and artificial intelligence education ecology， It is used for artificial intelligence education and robotics research, as well as the electric ecology of small entrepreneurs.

The net weight of myCobot-Pi is 850g, the payload is 250g, and the working range is 280mm. This is a compact but powerful collaborative robot. It has rich software and hardware interaction methods and diversified compatible expansion interfaces. The open-source robotic arm supports multi-platform secondary development, effectively helping users realize multi-scenario application development.

myCobot V.S myCobot-Pi

		myCobot-Pi	myCobot-M5
Robot Parameters	Working Range	280mm	280mm
	DOF	6	6
	Payload	250g	250g
Hardware Parameters	SOC	Broadcom BCM2711	ESP32
	CPU	1.5GHz Quad-core	240MHz Dual-core
	Bluetooth/WiFi	Yes	Yes
	USB	USB3.0 x2;USB2.0 x2	Type-C x1
	Display	No	2 inch IPS screen
	HDMI Port	micro HDMI x2	No
	Custom Buttons	No	3
	IO Pins	40	20
Software Platform	-	Works Independently	Connect with PC
	Programming Environment	Debian / Ubuntu	Arduino
	ROS / Python	Built-in	External
	Supported Cameras	Any camera	M5-StickV

Features:

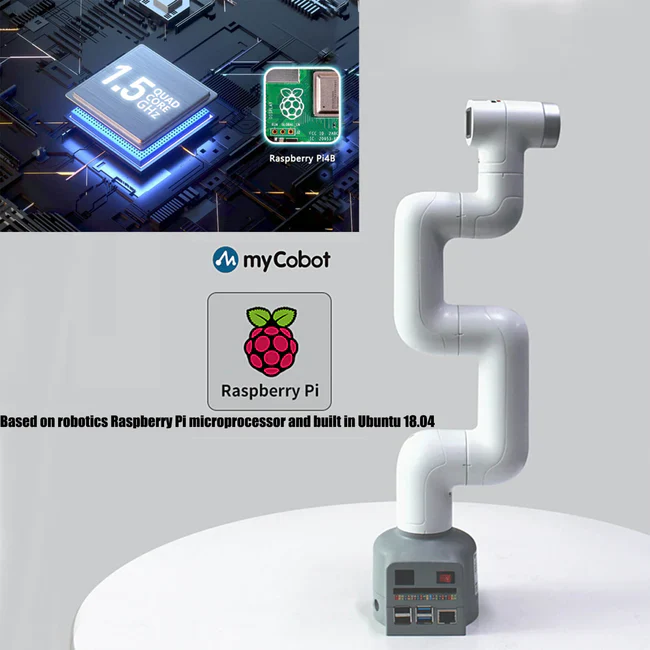

Unlimited potential with Raspberry Pi ecosystem

Raspberry Pi 4B，1.5GHz 4 core CPU, running on Debian/Ubuntu platform
Support 4 USB, 2 HDMI, standardized GPIO interface

image of myCobot pi, contrlled by Blocky programming

Built-in ROS & Blockly programming

Built-in ROS simulation manipulator operating state, super scalability
blockly visual programming, while supporting general Python software interface

Image recognition with multiple end-effectors

Comes with an image recognition algorithm, can work with a variety of cameras
Independently match different accessories such as display, gripper suction pump, etc., realizing more application scenarios.

Unique industrial design, extremely compact

Integrated design, the structure of the robot arm is compact, and the net weight is only 850g, super convenient to carry
Modular design, few spare parts, low maintenance cost, quick disassembly, and replacement, realizing plug and play

High configuration, with Lego interface

Contains 6 high-performance servo motors, fast response, small inertia, smooth rotation
The base and the end of the cobot are equipped with Lego component interfaces, easier for the development of various micro-embedded equipment

Track Recording & Learn by hand

Get rid of the traditional point saving mode, myCobot supports drag trial teaching to record the saved track and can save up to 60mins different Tracks making it easy and fun for beginners to learn robotic arms.

How to control myCobot Pi?

Learn by Hand: Get rid of the traditional point saving mode, myCobot supports drag trial teaching to record the saved track and saves up to 60mins different tracks making it easy and fun for new players to learn.
You can use the digital pins on the robot to make it communicate with other devices.
With Myblockly, our free desktop application uses blocks to create your own robotic programs. Based on Blockly (similar to Scratch), our visual programming interface allows you to quickly and easily create robotic programs without any prior programming knowledge. You can also use RoboFlow, our software for industrial robots.
Advanced Users: develop your own controller (use a computer mouse, a keyboard, a game controller or Leap Motion to control myCobot according to your preferences and needs), use our API (Python、C++、C#、Javascript) to control myCobot directly or remotely or dive directly into the ROS code, which is open-source.

Specifications

myCobot-Pi
Model	myCobot-Pi
DOF	6
Payload	250g
Working range	280mm
Repeatability	±0.5mm
Weight	850g
Power Input	8V，5A
Working Condition	-5-45℃
Communication	Type-C

Working Range

myCobot is compact but powerful, can not only be matched with a variety of end effectors to adapt to different kinds of application scenarios also support the secondary development of multi-platform software to meet the needs of various scenarios such as scientific research and education, smart home, light industry, and commercial applications.

Kitchen assistant myCobot can take the bread out of the microwave and put it on the plate	The perfect helper for the studio myCobot can work as a “third hand” to deliver tools
Teaching assistant Simulating industrial robot sorting and handling	Combined with M5StickT, an infrared thermal imager, myCobot can sense human body temperature

Instructions

Gitbook[Recommended reading]

Github

User Manual

myStudio

myStudio is a one-stop platform for robot arms of myRobot/myCobot. The main functions of myStudio are:

Update the firmware;
Provide video tutorials on how to use the robot;
Provide maintenance and repair information (such as video tutorials, Q&A, etc.).

Package Includes:

1x MyCobot 280
1x Power Supply
1x Cable Set
1x User Manual

Frequently Asked Questions (FAQs)

Q1: Does it support secondary development of functions?

A1: Of course. You can use our API (Python、C++、C#、Javascript) to control myCobot directly or remotely or dive directly into the ROS code, which is open-source.

Q2: What can one learn?

A2:

With myCobot M5 , you can learn that

Hardware: Embedded Microcontroller Based on ESP32, Motor and Steering Gear, M5Stack Basic/ Atom;

Software: Arduino, UiFlow, Myblockly, Mind+, RoboFlow, C#, C++, Python, Javascript, ROS，MoveIt, Communication Data, Virtual Machines & Linux (visual system).

With myCobot Pi, you can learn that

Hardware: microprocessor, motor and steering gear;

Software: Myblockly, Mind+, RoboFlow, C#, C++, Python, Javascript, ROS, MoveIt.

Q3: How long it lasts?

A3: It uses adapter power instead of battery power. It can work all the time as long as power supply. But we don't suggest keeping it working for a long time.Just like you use a computer, letting it take a rest at times is better.

Q4: How much weight can it lift / grip?

A4:

myCobot 280: The net weight of myCobot is 850g, the payload is 250g, and the working range is 280mm.

myCobot 320:The net weight of myCobot is 3.5kg, the payload is 1kg, and the working range is 320mm.

myCobot 260:The net weight of myPalletizer is 960g, the payload is 300g, and the working range is 260mm.

myCobot Pro 600:The net weight of myCobot Pro is 8.8kg, the payload is 2kg, and the working range is 600mm.

Q5: What is warranty on this?

A5: Please refer to the warranty policy mentioned below.

Q6: How long will it take to ship after I placed the order? And What kind of logistics?

A6: If the product is in stock, we ship within 24 business hours. In case of pre-order, we may take 3-4 weeks to ship the product.

Q7: I don’t know how to develop robot arm. Is there a graphical interface for operations?

A7: For non-technical players, myCobot supports drag teaching function, which allows you to teach it every action and instruction you want. Get rid of the traditional path point storage mode, no programming is required. The saved path can be recorded, and different paths can be saved as long as 60mins at most.

Q8: How about the repeated positioning accuracy?

A8: The repeated positioning accuracy of myCobot 280 is ±0.5mm, and the repeated positioning accuracy of myCobot 320 is ±0.3mm. The repeat positioning accuracy of the two manipulators is determined based on the length of use.

The positioning of the two products is not the same. The ER 280 robotic arm is a consumer type and is mostly used in the education field. It is recommended to use 1-2 hours to rest for 15-30 minutes. The repeat positioning accuracy can reach ±0.2mm in a short time.The ER 320 is suitable for commercial work within 12 hours, with a repeat positioning accuracy of ±0.3mm. If used in a short time, the repeat positioning accuracy can also reach ±0.2mm.

Q9: Is there a camera on the robotic arm? And is there a visual recognition sorting function?

A9: The robotic arm does not have a camera. But we have machine vision-related kits now available for vision development.

Returns Policy

Elephant Robotics products cannot be returned.

Warranty

Customers should provide the purchasing invoice and warranty card as the warranty certification when a warranty is being asked.
Elephant Robotics will be responsible for the hardware faults of products caused by normal use during the warranty period.
The warranty period starts from the date of purchase or the receipt date of the logistics.
The faulty parts from the products will be owned by Elephant Robotics, and the appropriate cost will be charged if necessary.

If you need to apply for warranty service, please contact our customer service first to confirm the detailed information.

During the warranty period of the delivered product, the company only repairs the malfunctions that occur during the normal use of the robot for free. However, in the following cases, the customer will be charged for repairs (even during the warranty period):

Damage or malfunction caused by incorrect use and improper use different from the contents of the manual.
Failure caused by unauthorized disassembly by the customer.
Damage caused by improper adjustment or unauthorized repairs.
Damage is caused by natural disasters such as earthquakes and floods.

Warranty Terms of Detailed Components

Sever motor

Warranty Period	Warranty Services
≤1 month	Elephant Robotics offers a free new sever motor and bear the freight.
1-3 months	Elephant Robotics offers a free new sever motor, customs shall bear the freight.
≥3 month	Customers need to buy it themselves.

Electrical Parts（M5Hardware）

Warranty Period	Warranty Services
≤3 months	Customers need to send it back after disassembly, Elephant Robotics shall send a new one for free and bear the freight out and home.
3-6 months	Customers need to send it back after disassembly and bear the freight out and home, Elephant Robotics shall send a new one for free.
≥6 months	Customers need to buy it themselves.

Structure Parts，including shell parts

Warranty Period	Warranty Services
≤12 months	Elephant Robotics offers free new components, customs shall bear the freight.
≥12 months	Customers need to buy it themselves.

Educational Kits

6-Digit DIY Digital Electronic Clock Kit with AT89C2051

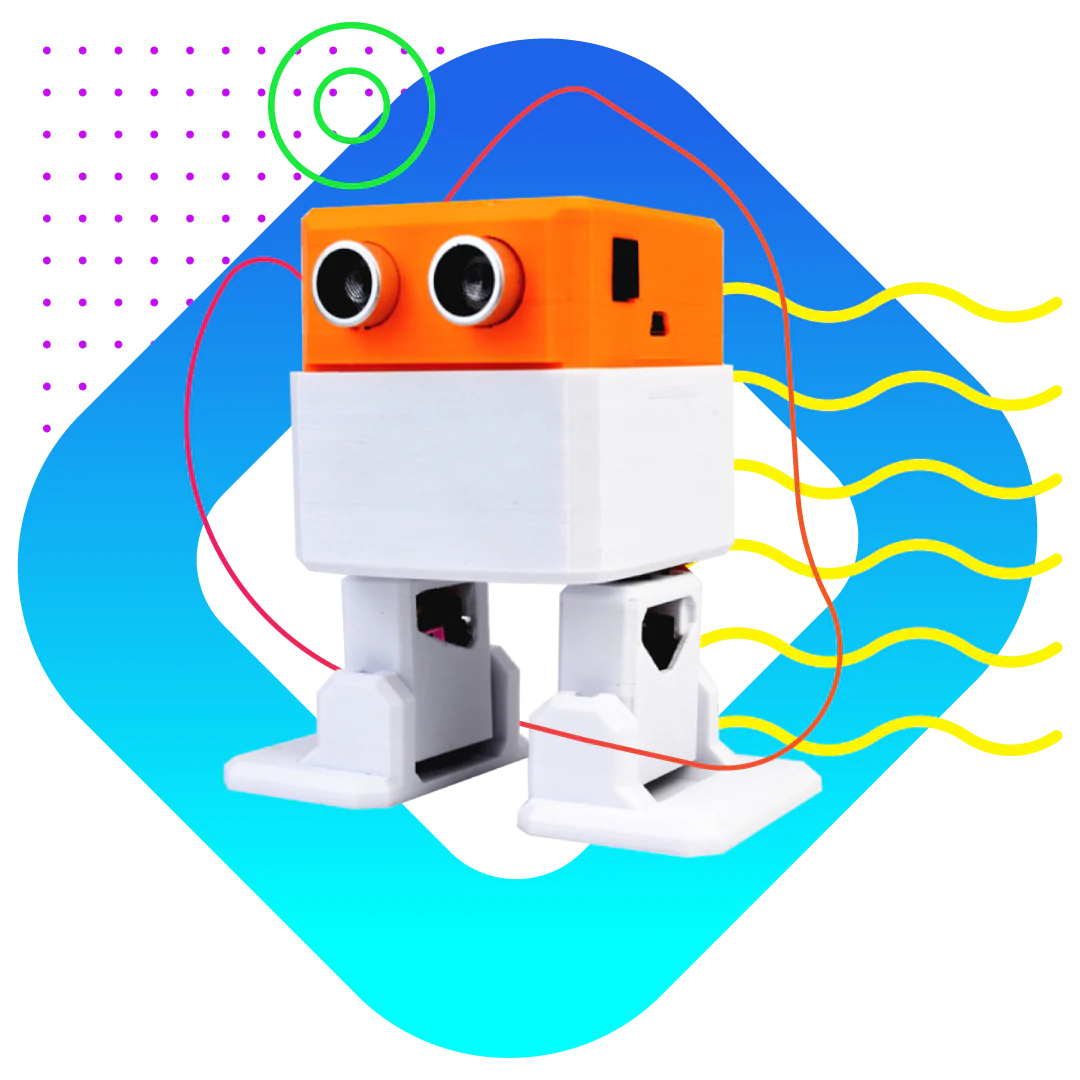

OTTO PRO / HUMANOID

OTTO DIY Builder Kit

OTTO+

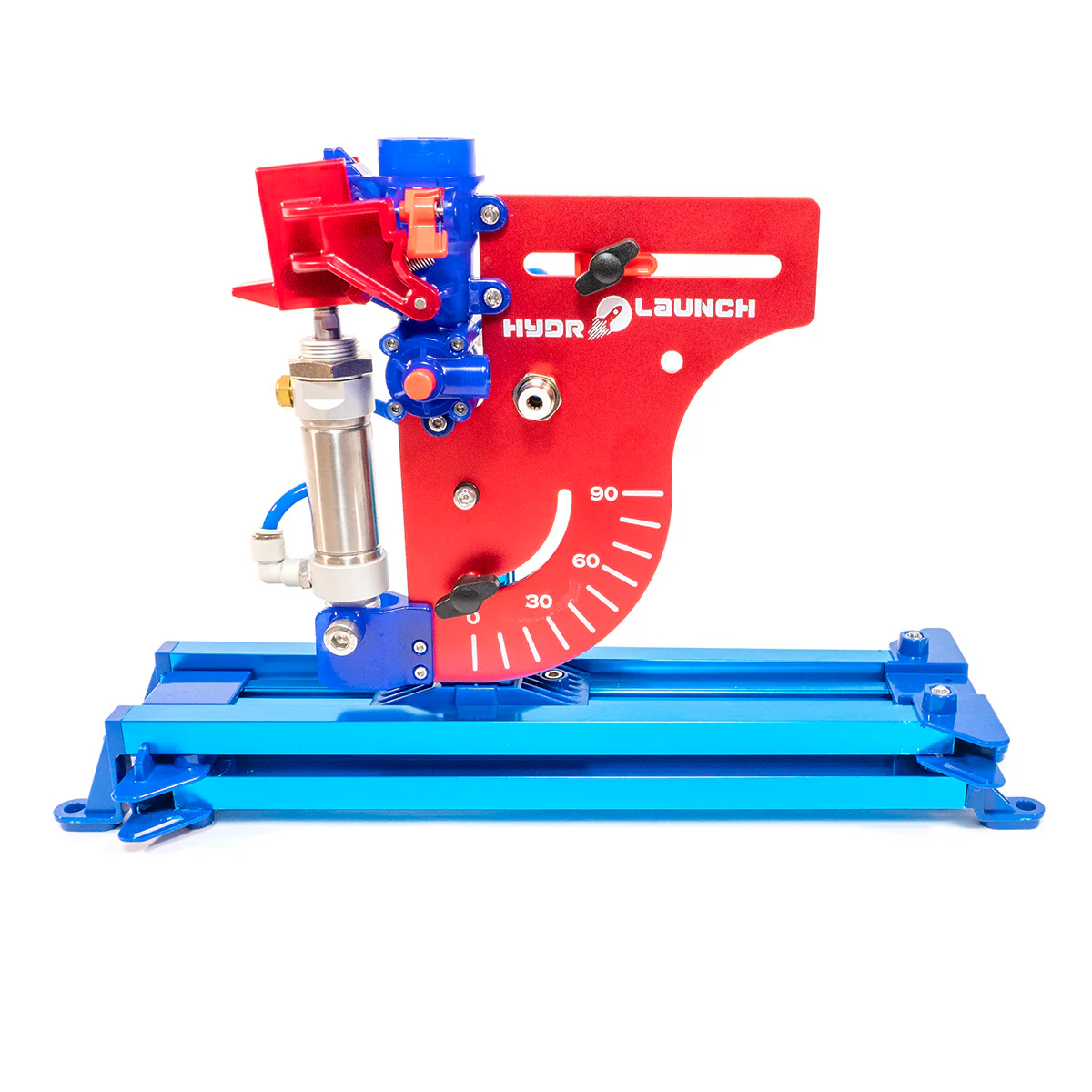

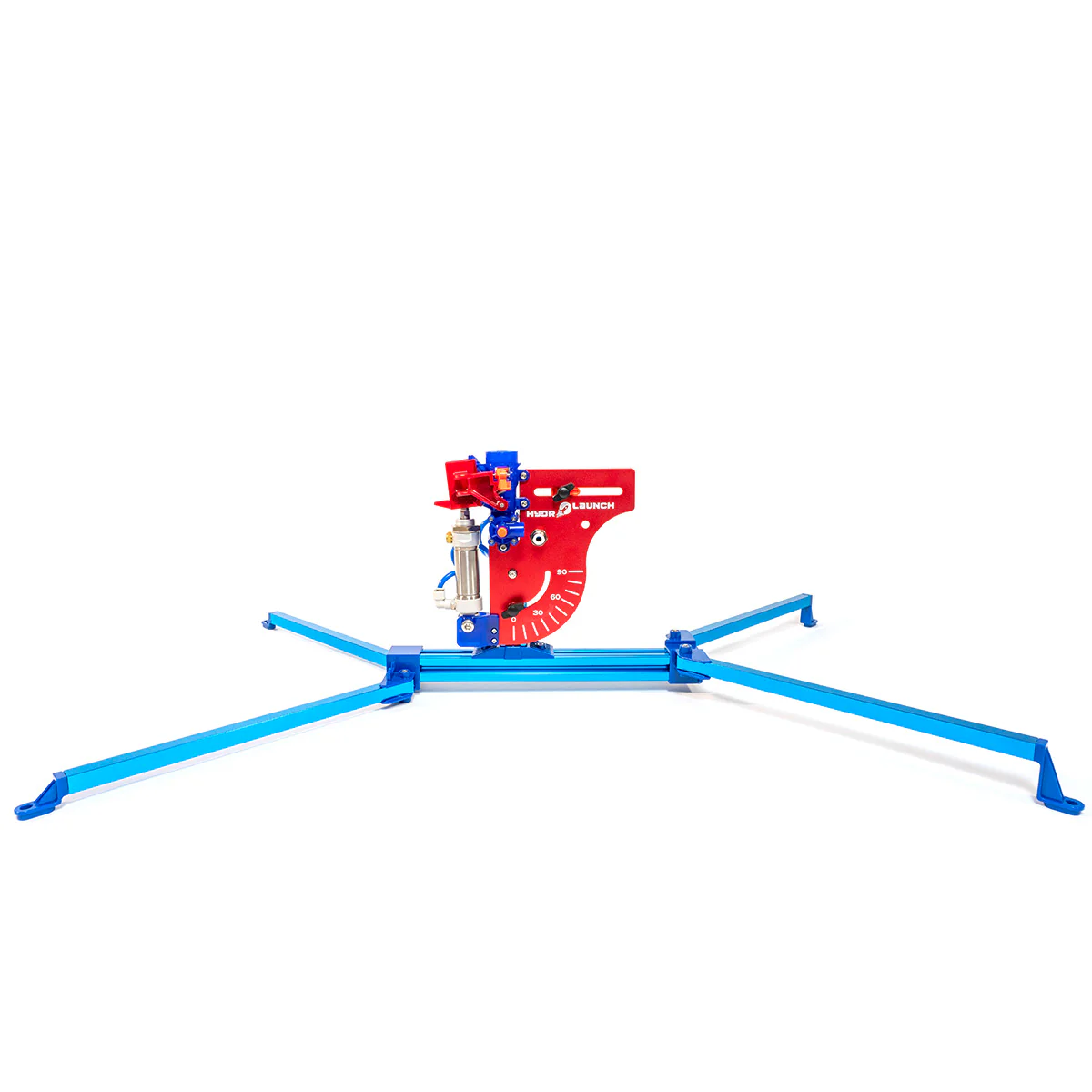

HydroLaunch Water Rocket Launcher

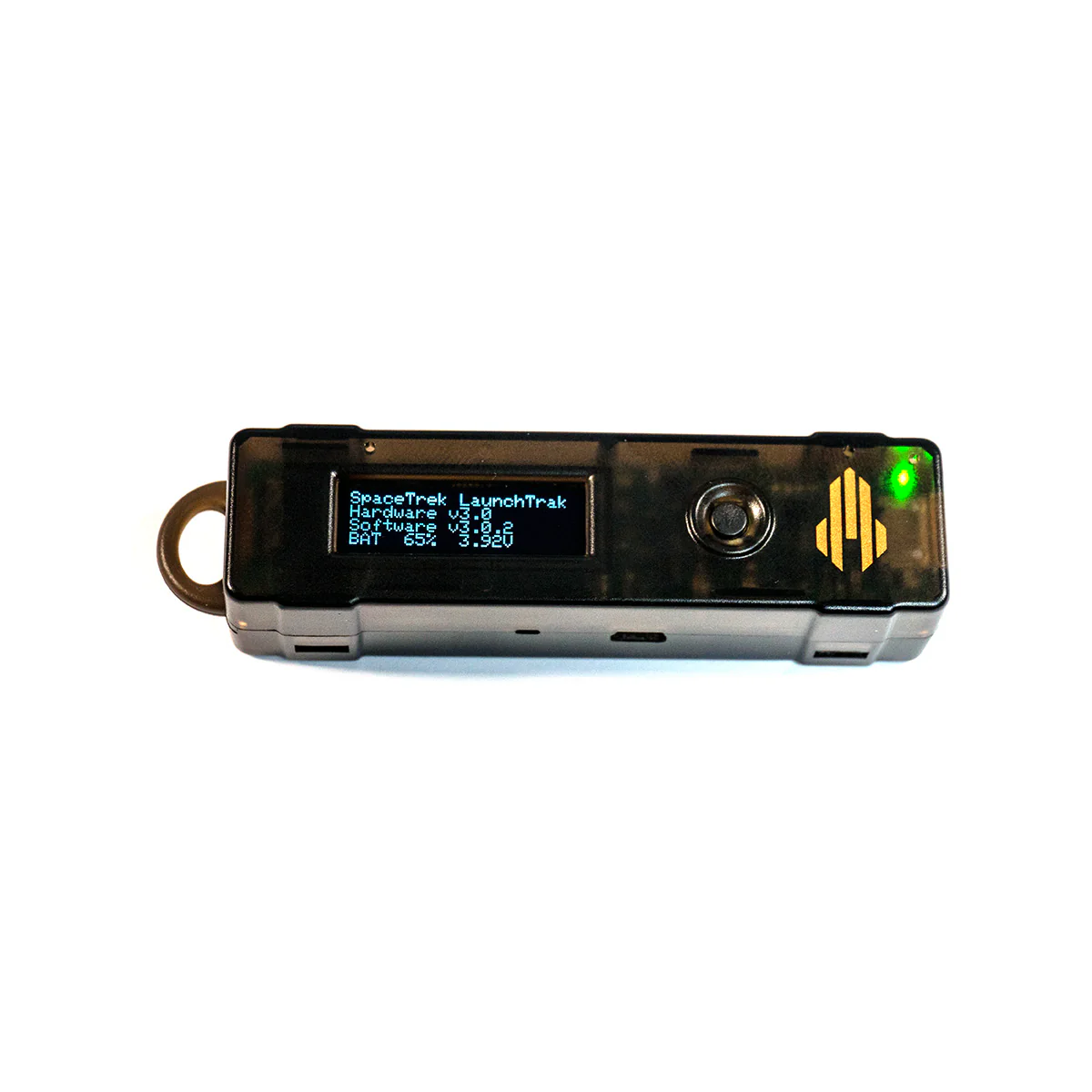

LaunchTrak Altimeter by SpaceTrek

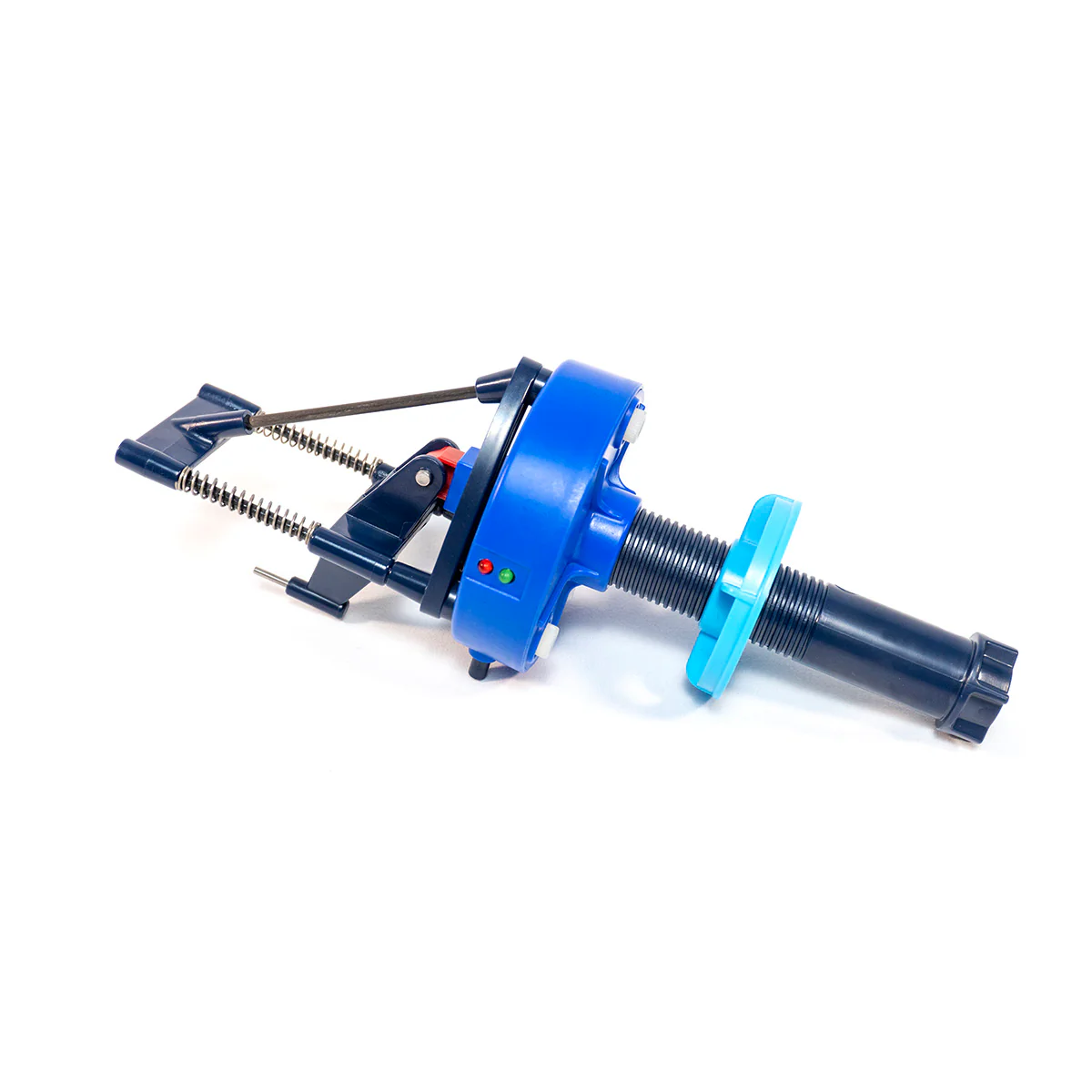

Elev8Eject - Parachute Eject Mechanism

Quadruped Spider Robot

RFID Starter DIY Kit for Arduino UNO R3 Upgraded Version

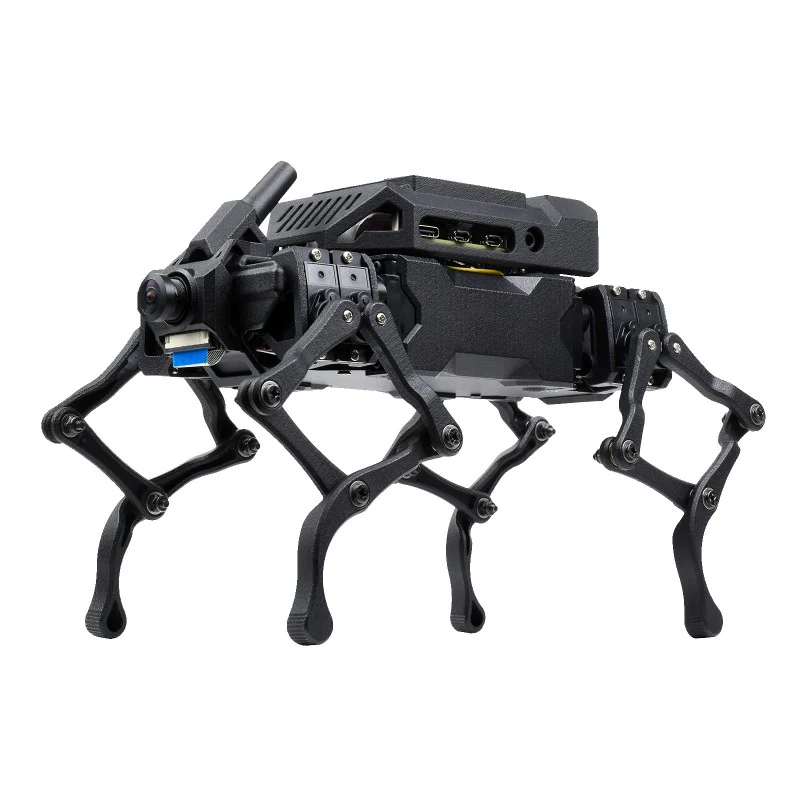

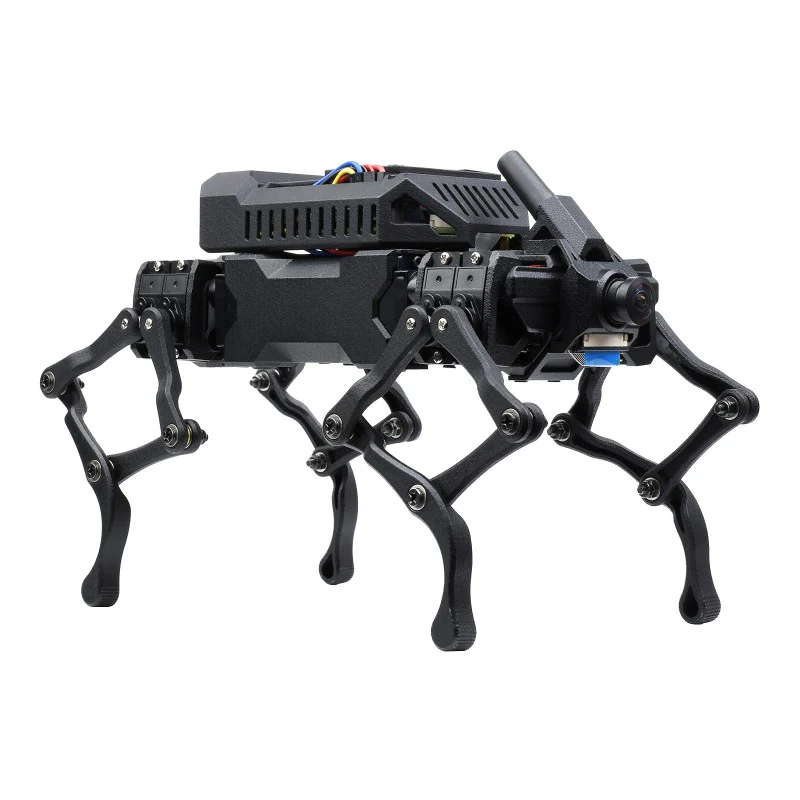

WAVEGO 12-DOF Bionic Dog-Like Robot
