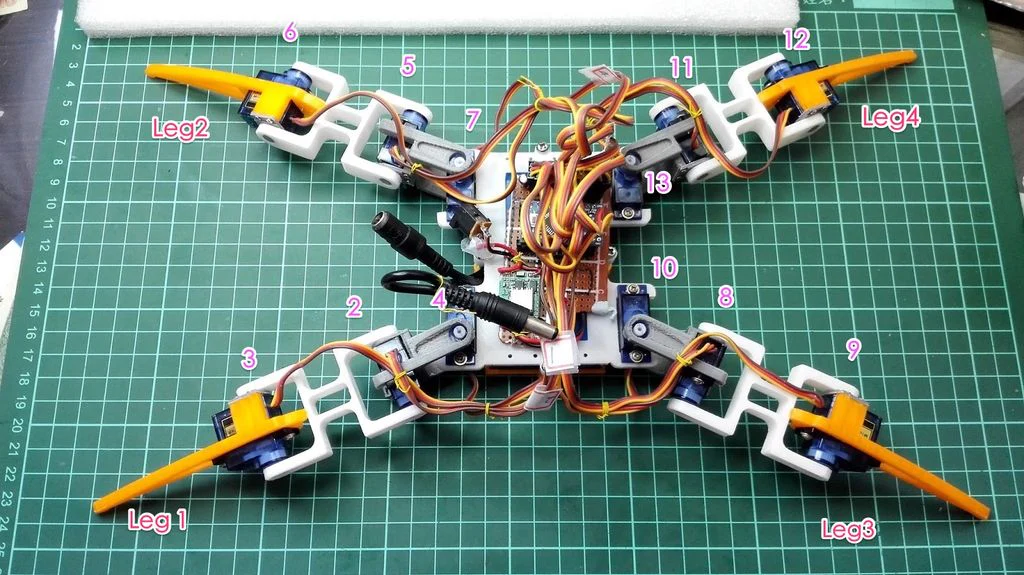

Quadruped Spider Robot

Introducing a quadruped Spider robot built with Arduino Nano and SG90 servos. The robot can be controlled with a Bluetooth remote or with an android phone. The robot is fully 3D Printed with PLA. The robot runs on a Lipo battery and has 3 Degrees of Freedom. The code is given when the order is placed.

The color of the Spider would depend upon the availability. If any specific color, please add that request to the order notes.

The sample code for the robot can be found here: GitHub

Components Induced:

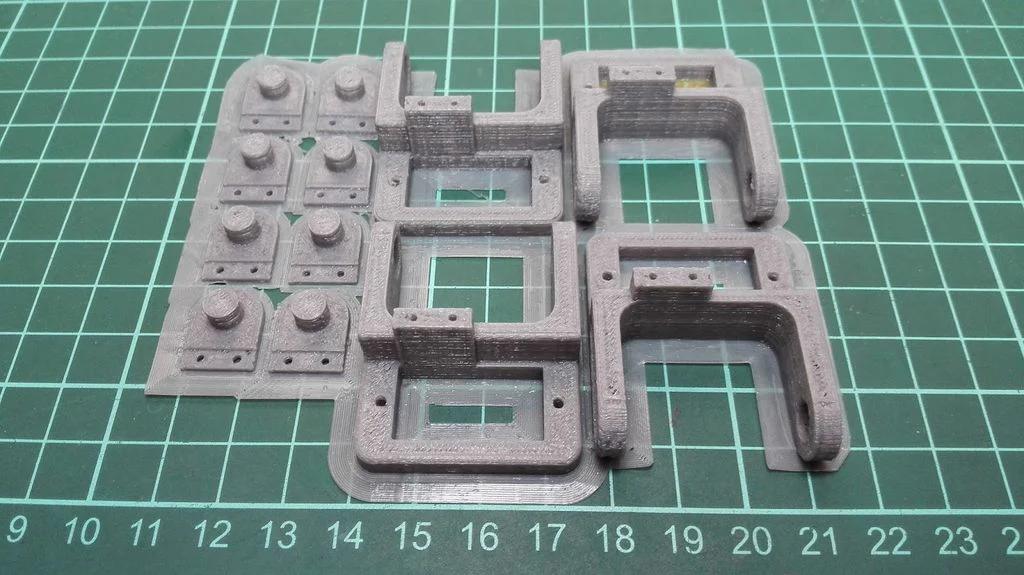

3D Printed Parts:

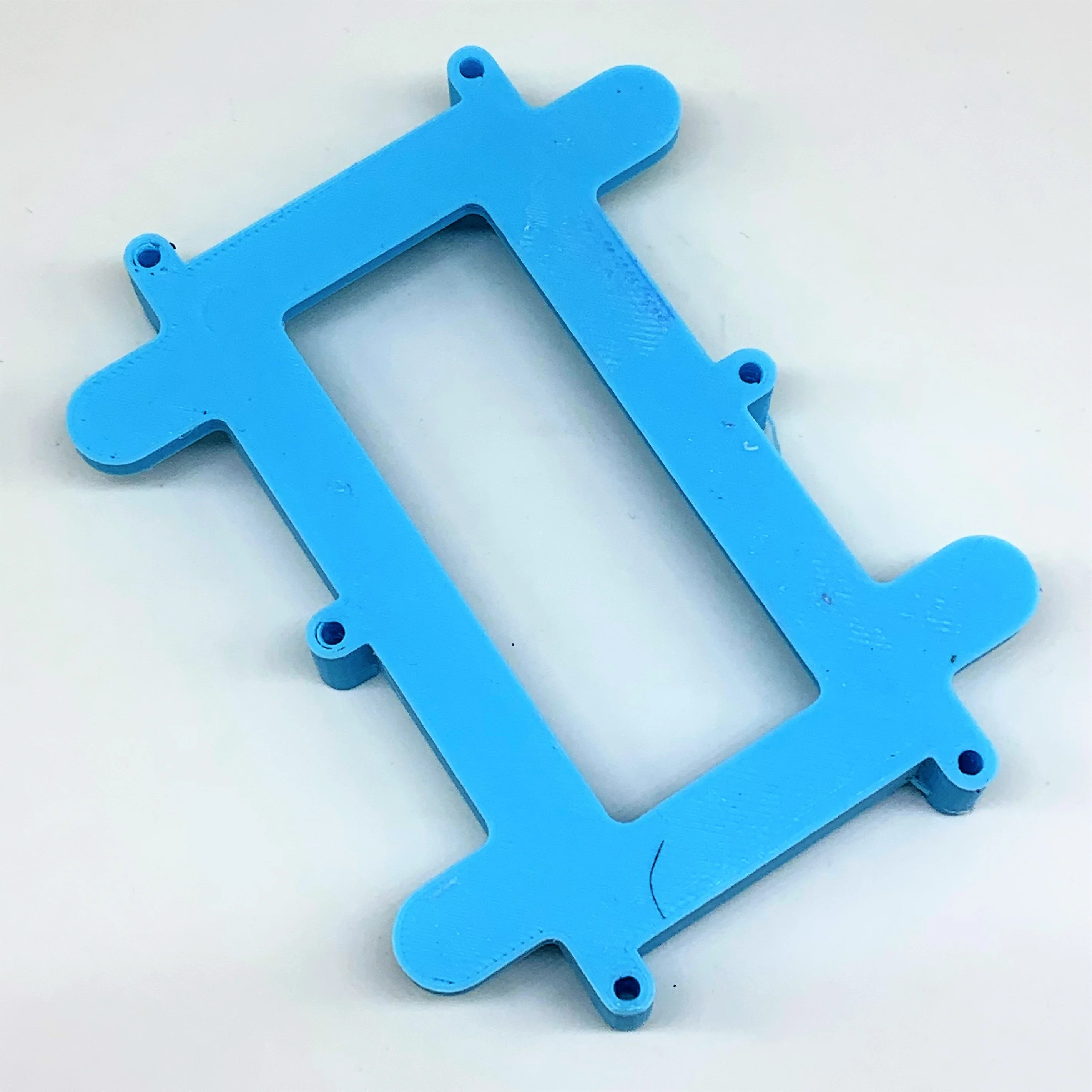

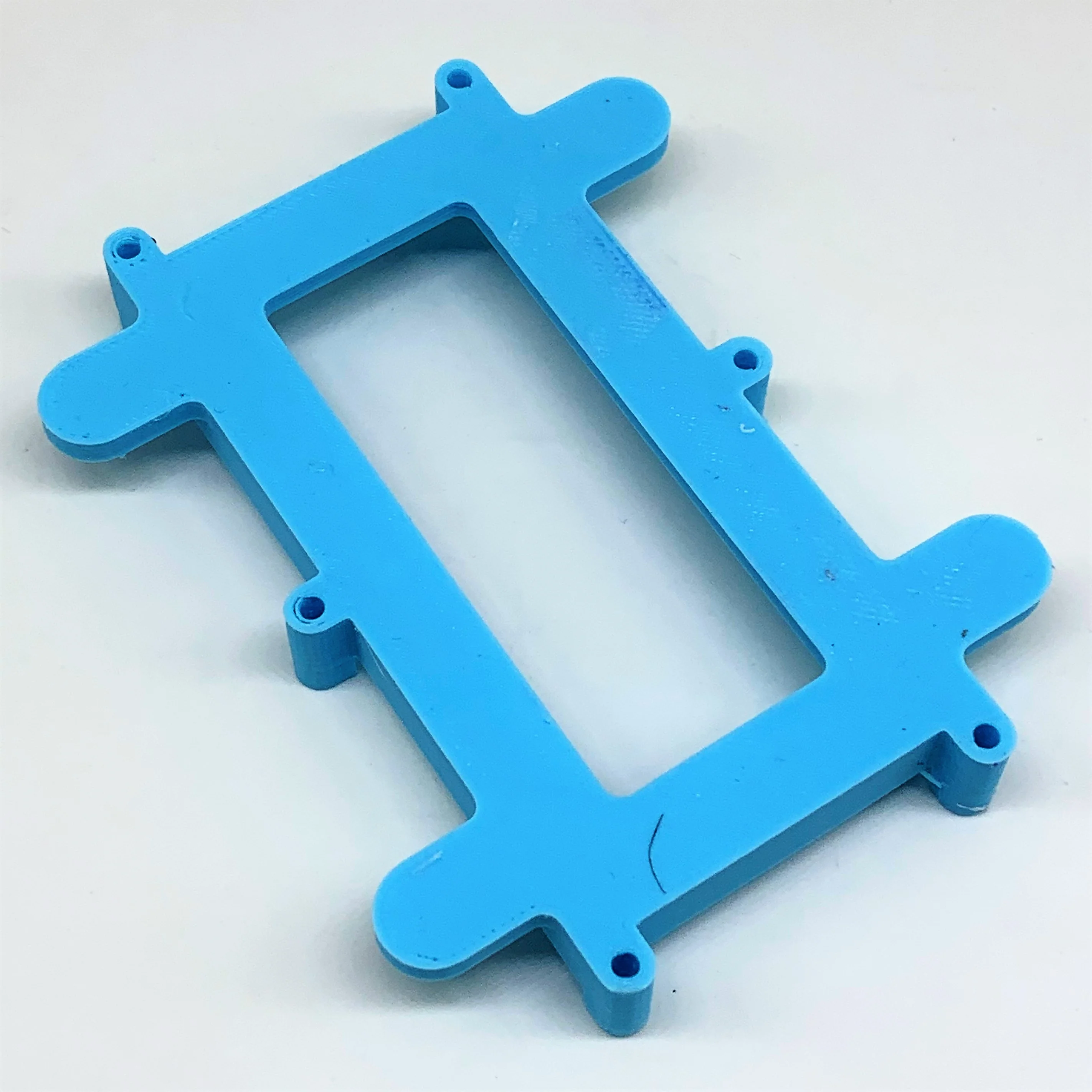

• 1 - Lower Body
• 1 - Upper Body
• 2 - Left Coxa

• 2 - Right Coxa

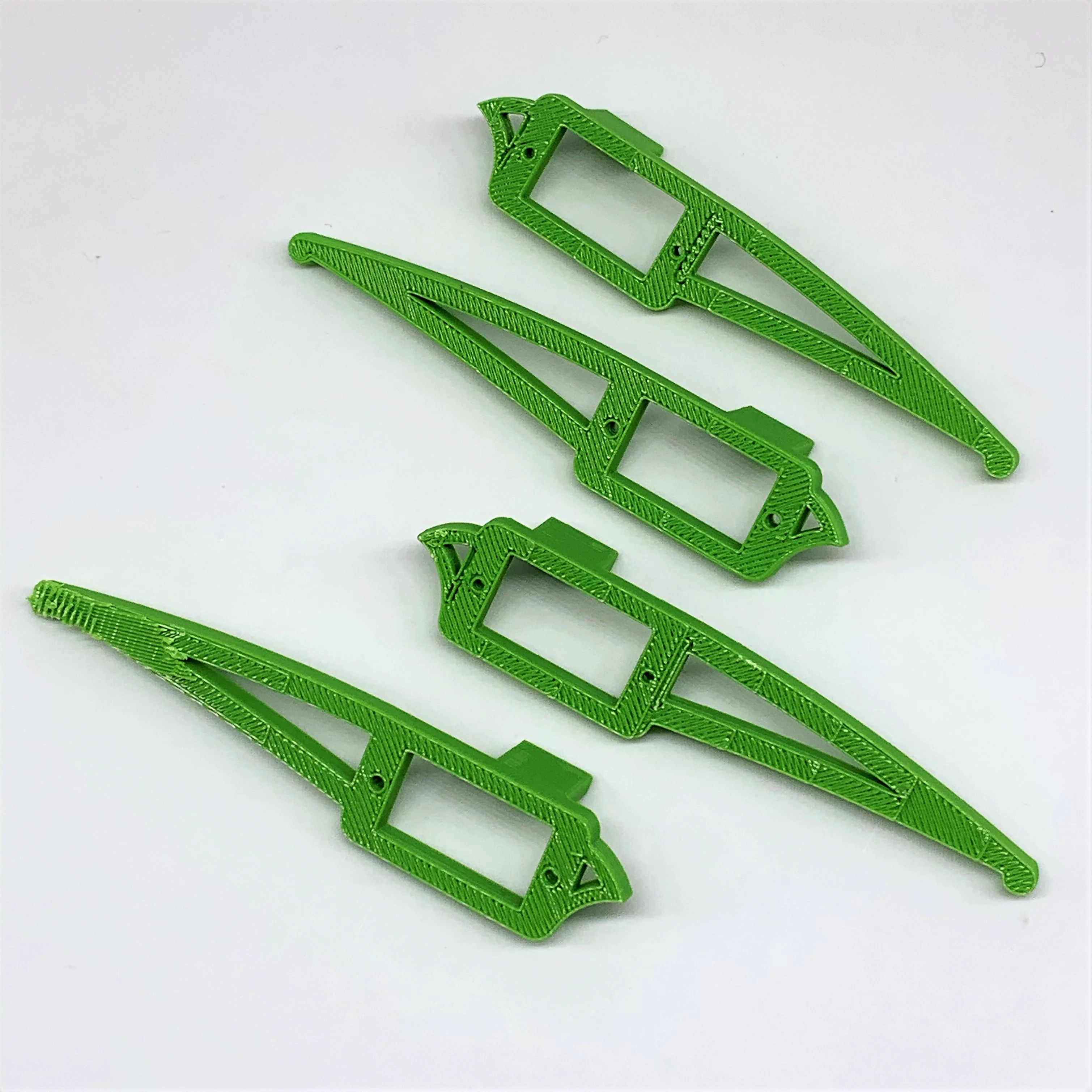

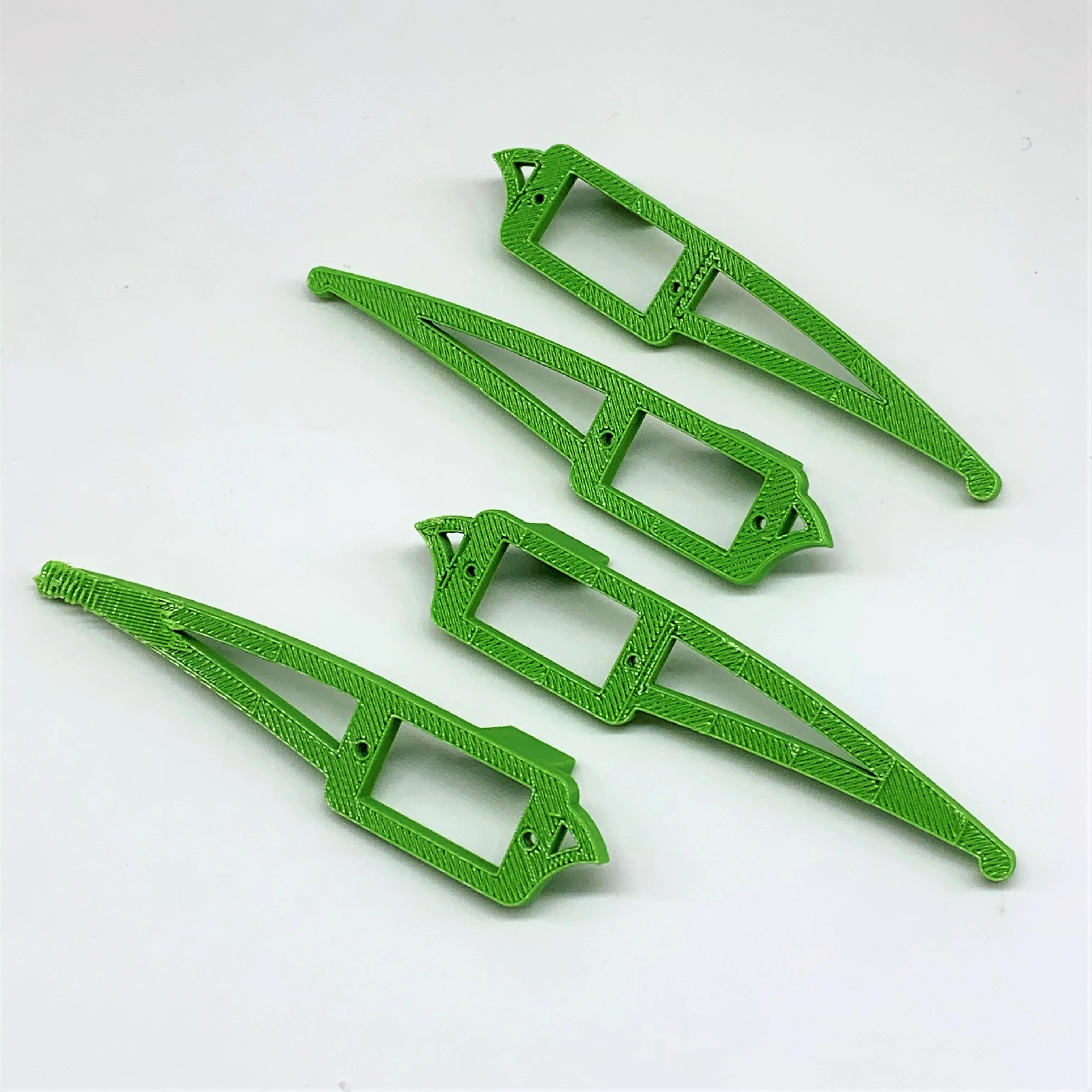

• 2 - Left Tibia

• 2 - Right Tibia

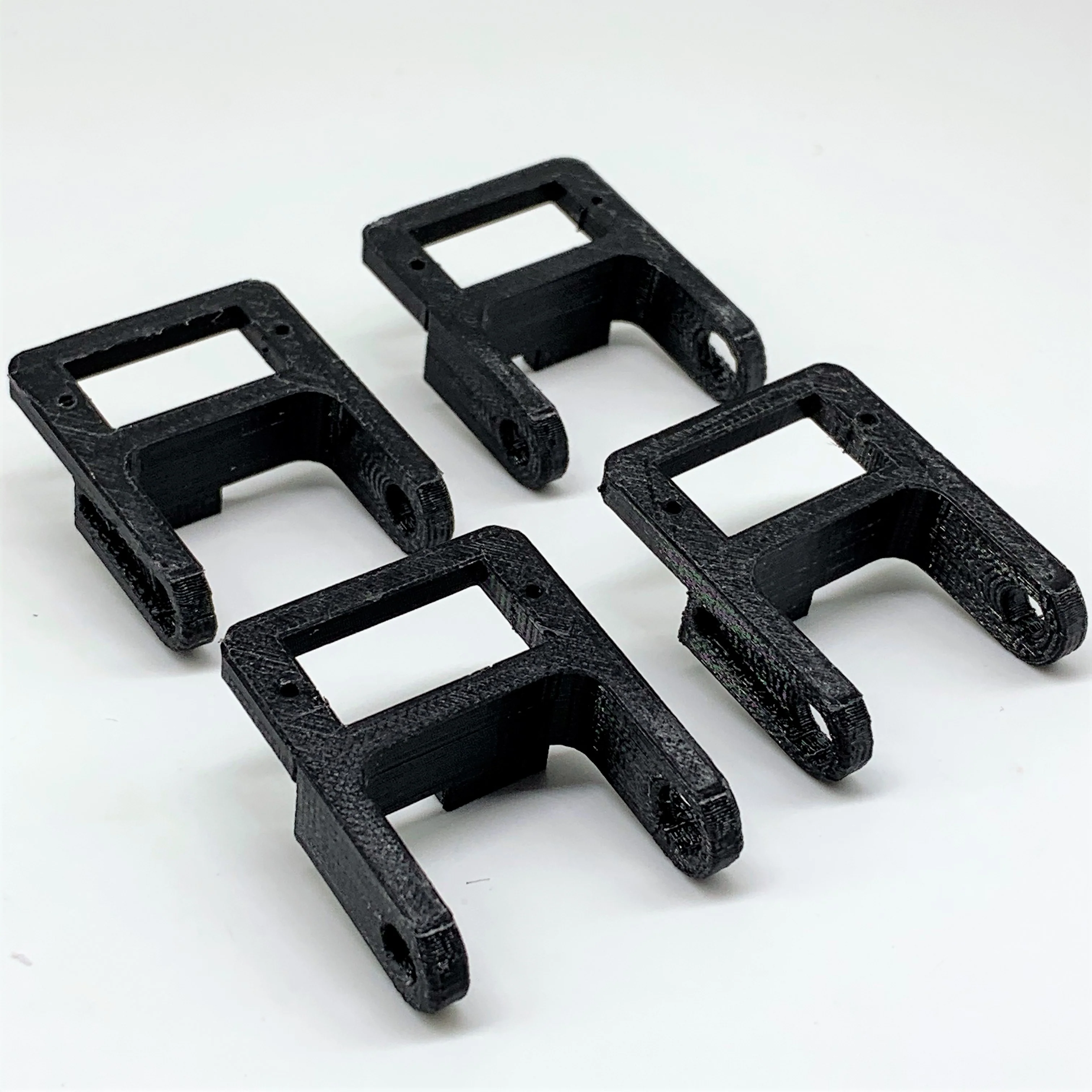

• 4 - Femur

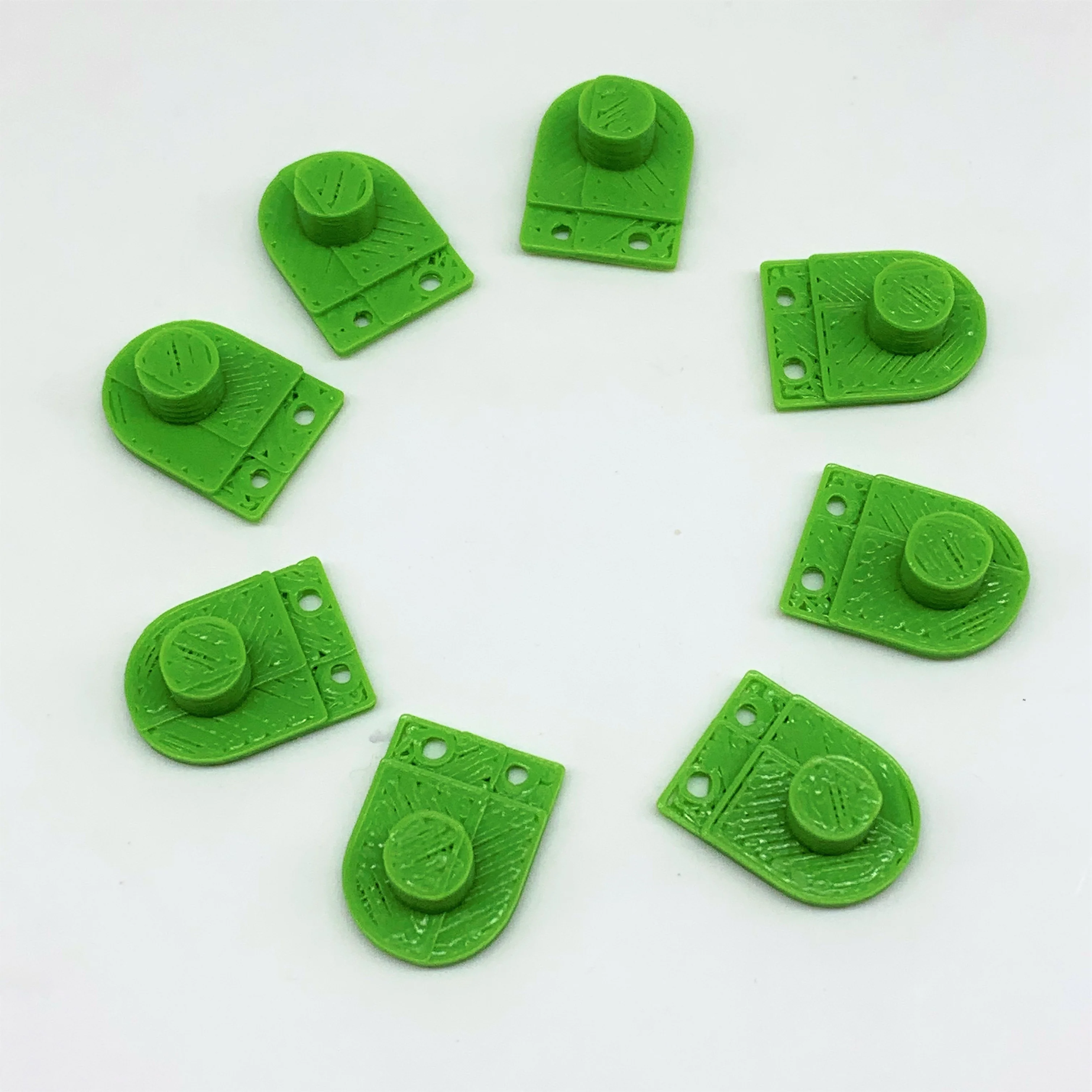

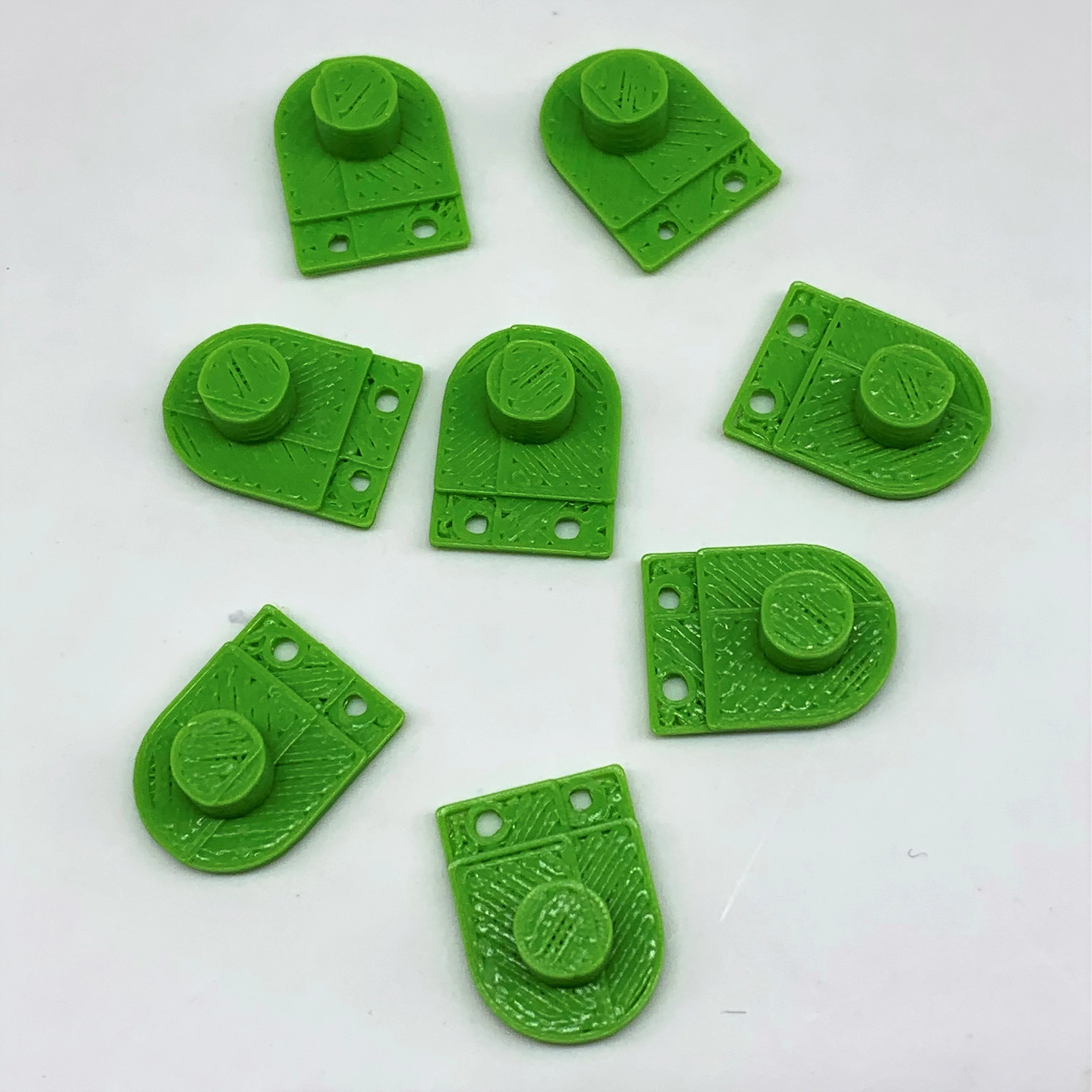

• 8 - Holds


Body With Components:

• All 3D Printed Parts
• 1 - Arduino Nano (ARD1003)
• 1 - Arduino Programming Cable (ARD3002)
• 1 - Arduino Nano I/O Expansion Shield (ARD2011)
• 1 - HC-06 Bluetooth Module (ELC8015)
• 1 - PCB Perfboard (PRO1007)
• 2 - LED
• 2 Tactile Switch
• 1 - 12V Jack
• 1 - 18650 Battery Holder (ELC5017) / 4 AA battery holder
• 12 - Micro servo motors (SG90 9g)  MOT4009 OR (MG90 9g)  MOT4007 (Select in package type)
