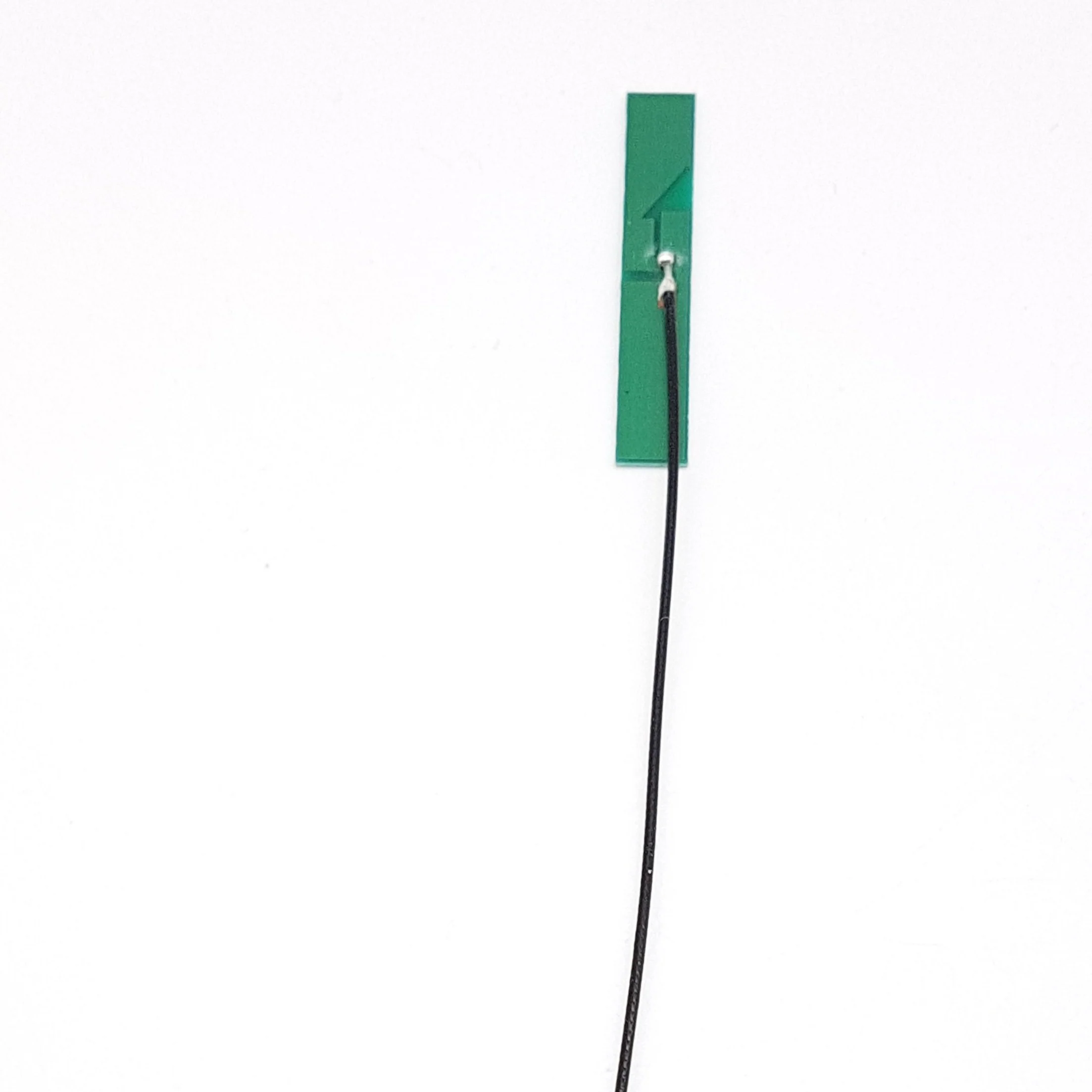

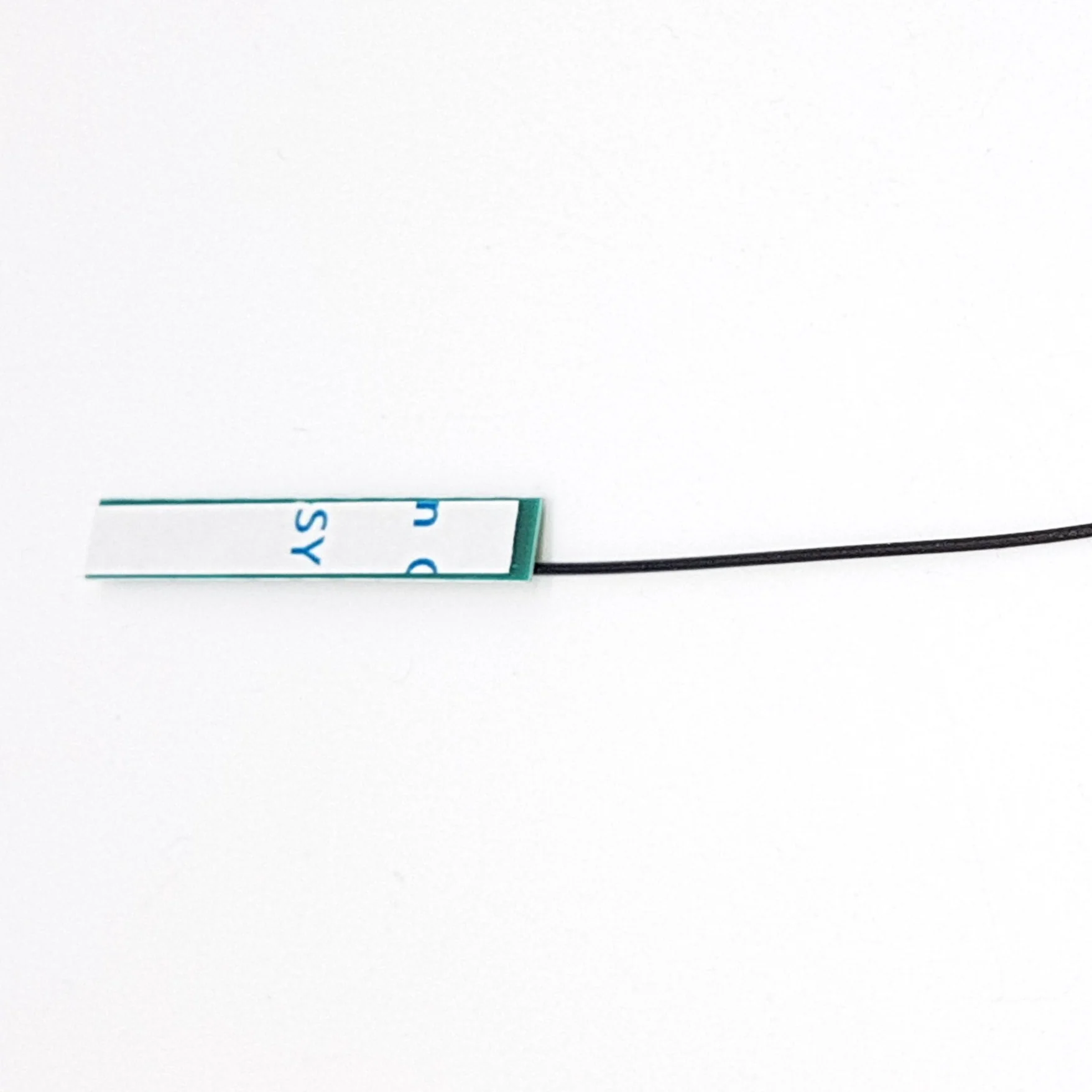

WIFI 2.4G 3dBi PCB Board Antenna
Parameter:
Frequency 2400 ~ 2500 MHz
S.W.R. <= 2.0
Antenna Gain 3.0 ± 0.7dBi
Polarization Linear
Impedance 50 Ohm
Length: 35mm
Width: 6mm
Material & Mechanical Characteristics:
Material of Radiator PCB
Cable Type O.D. 1.13 mm // 100 mm

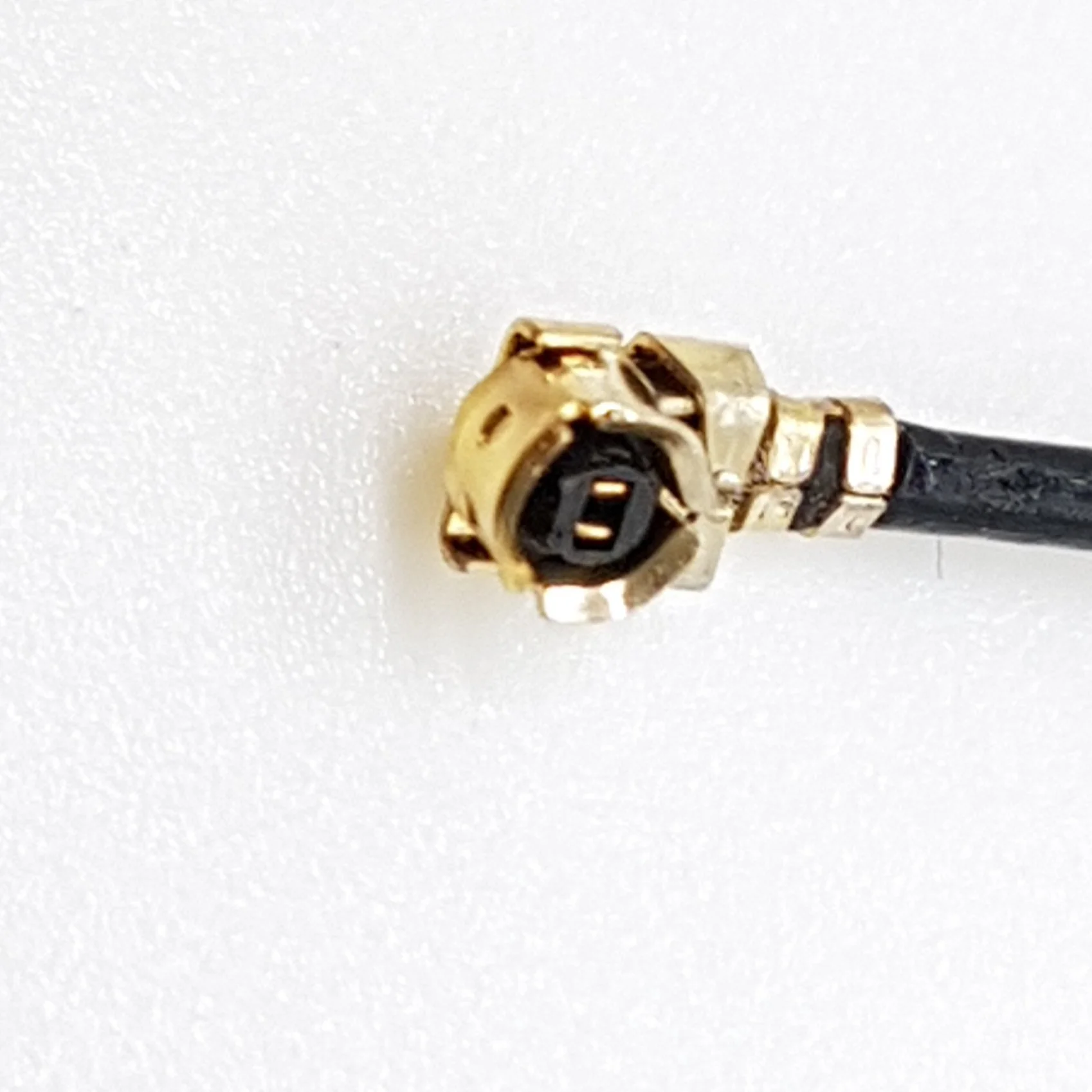

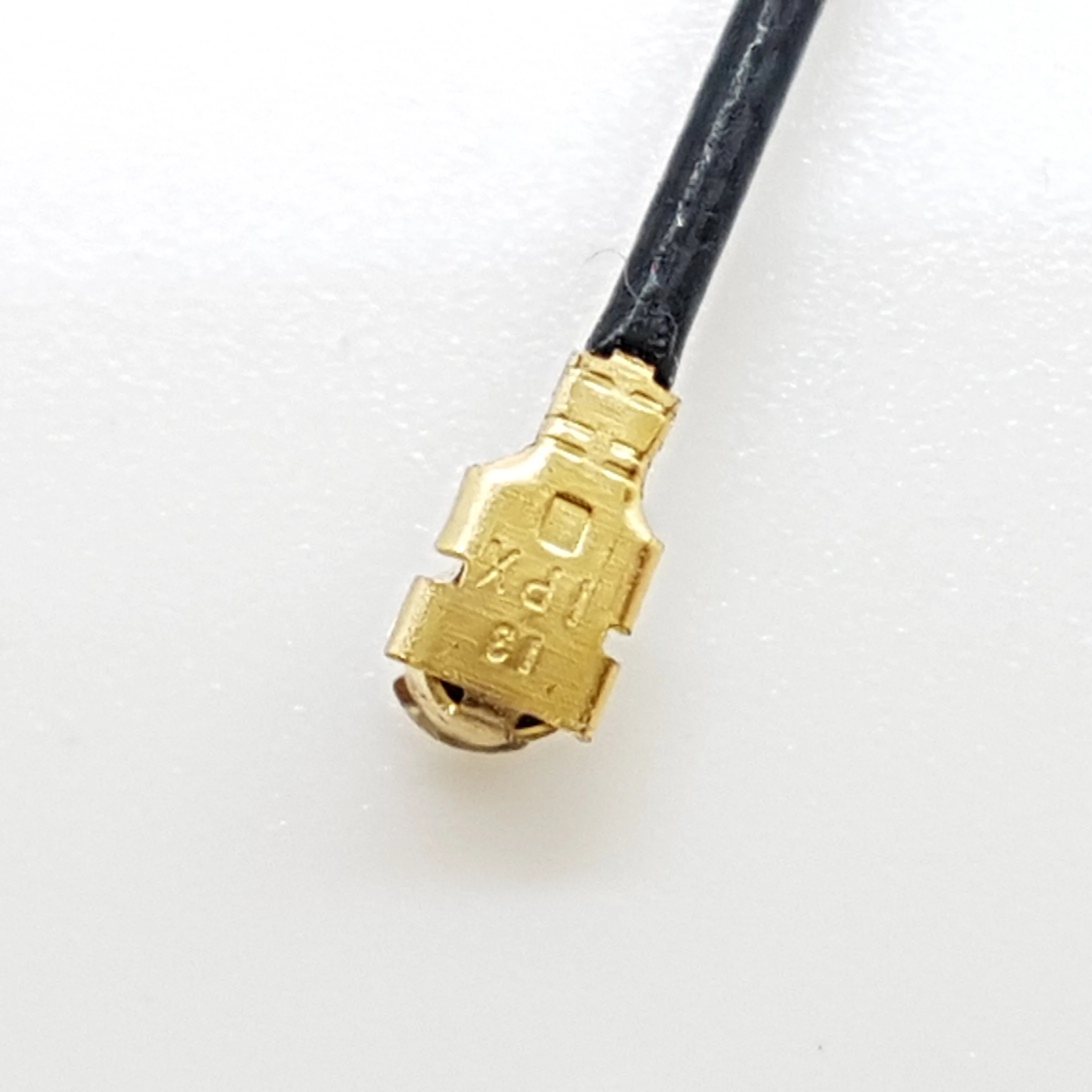

Connector Type Mini Connector
Pull Test >= 1.0 Kg
Environmental:
Operation Temperature - 40 °C ~ + 65 °C
Storage Temperature - 40 °C ~ + 80 °C
Application:
1.IEEE 802.11 b/g/n WLAN System
2.Wireless Communication System
3.Wi-Fi / WiMAX / MIMO System
4.Laptop/Bluetooth/Zigbee Antenna
Specifications
$0.26
Original: $0.85
-69%WIFI 2.4G 3dBi PCB Board Antenna—
$0.85
$0.26
Description
Parameter:
Frequency 2400 ~ 2500 MHz
S.W.R. <= 2.0
Antenna Gain 3.0 ± 0.7dBi
Polarization Linear
Impedance 50 Ohm
Length: 35mm
Width: 6mm
Material & Mechanical Characteristics:
Material of Radiator PCB
Cable Type O.D. 1.13 mm // 100 mm
Connector Type Mini Connector
Pull Test >= 1.0 Kg
Environmental:
Operation Temperature - 40 °C ~ + 65 °C
Storage Temperature - 40 °C ~ + 80 °C
Application:
1.IEEE 802.11 b/g/n WLAN System
2.Wireless Communication System
3.Wi-Fi / WiMAX / MIMO System
4.Laptop/Bluetooth/Zigbee Antenna
Specifications
