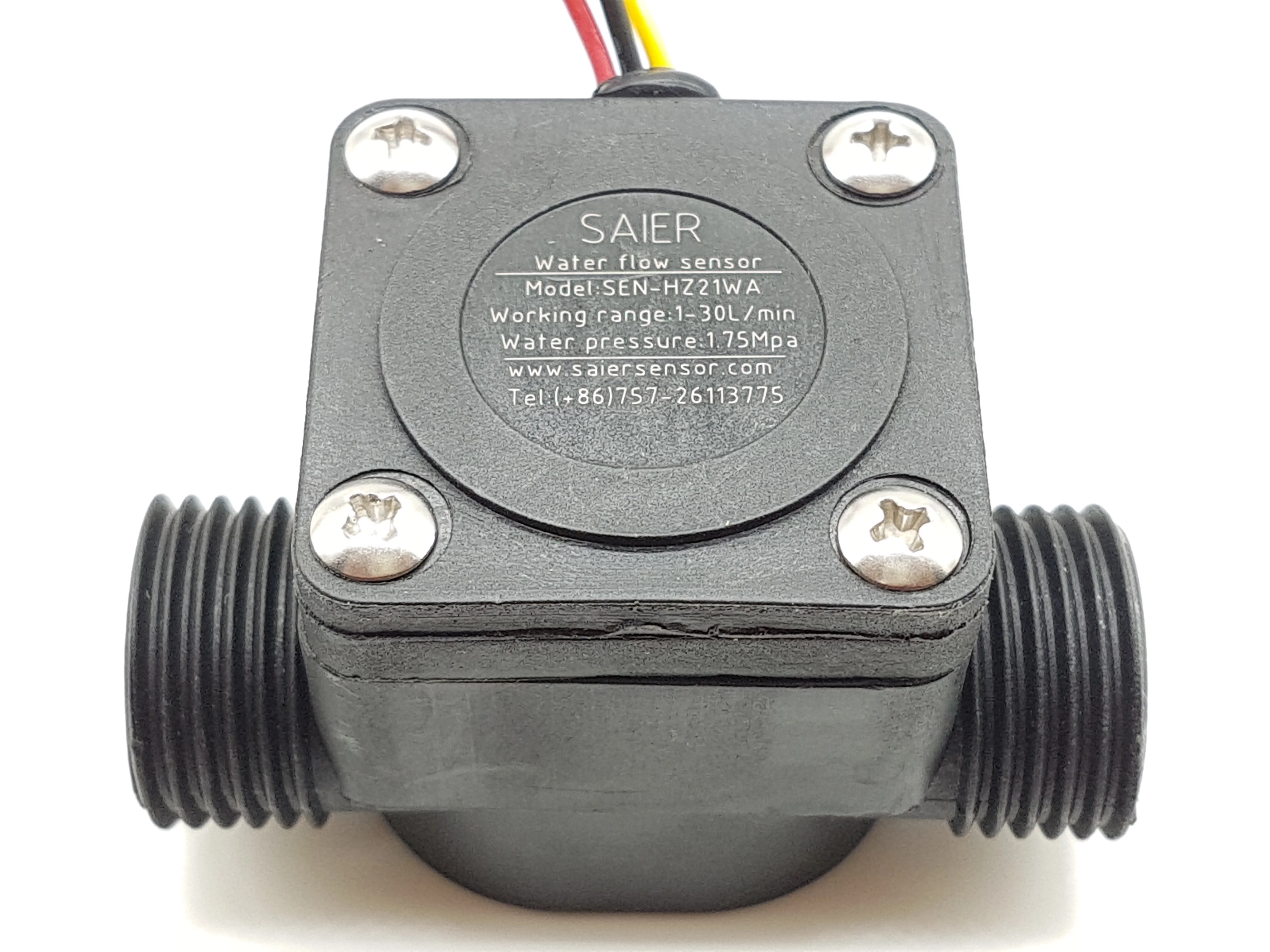

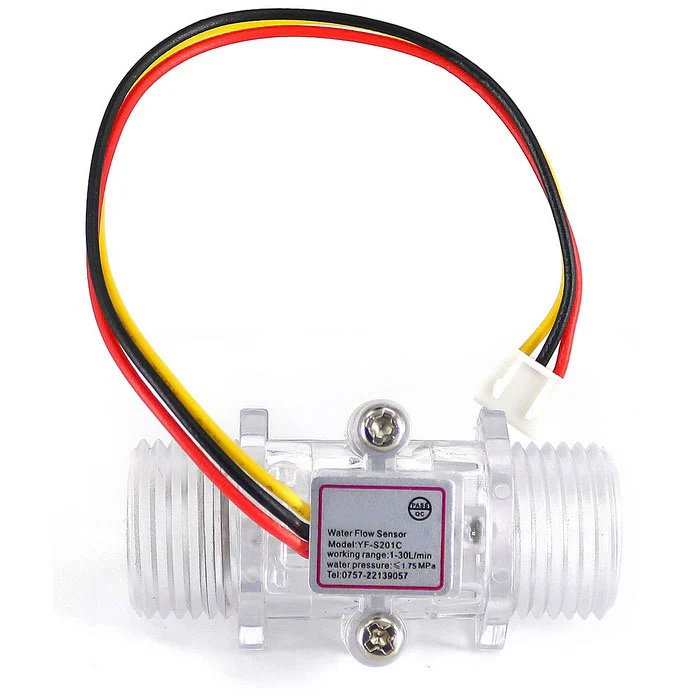

G1/2" Hall Effect Flow Sensor Switch

Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different flow rate. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine.

We have a comprehensive line of water flow sensors in different diameters. Check them out to find the one that meets your need most.



Features:

• Water pressure maximum: 1.75MPa
• Working range: 1-30L / min
• Size: Approx. 5.6 * 3.5 * 3.5cm (L * W * H )
• Outer diameter: 1.9 cm
• Inner diameter: 1.1 cm
• Cable length: 10.5 cm
• Color: Black
