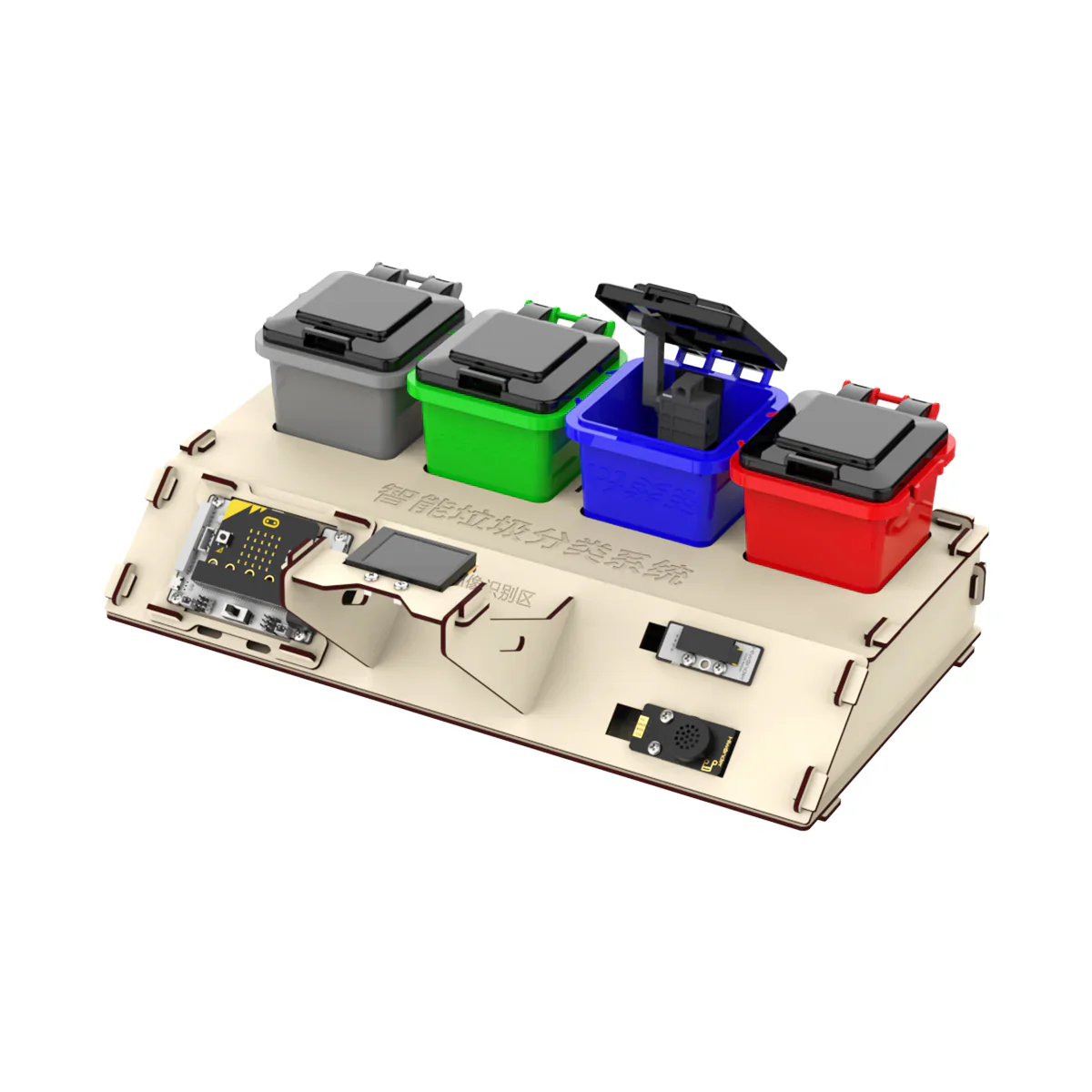

Waste Sorting Robot Kit: Hiwonder AI Vision Waste Classification Kit

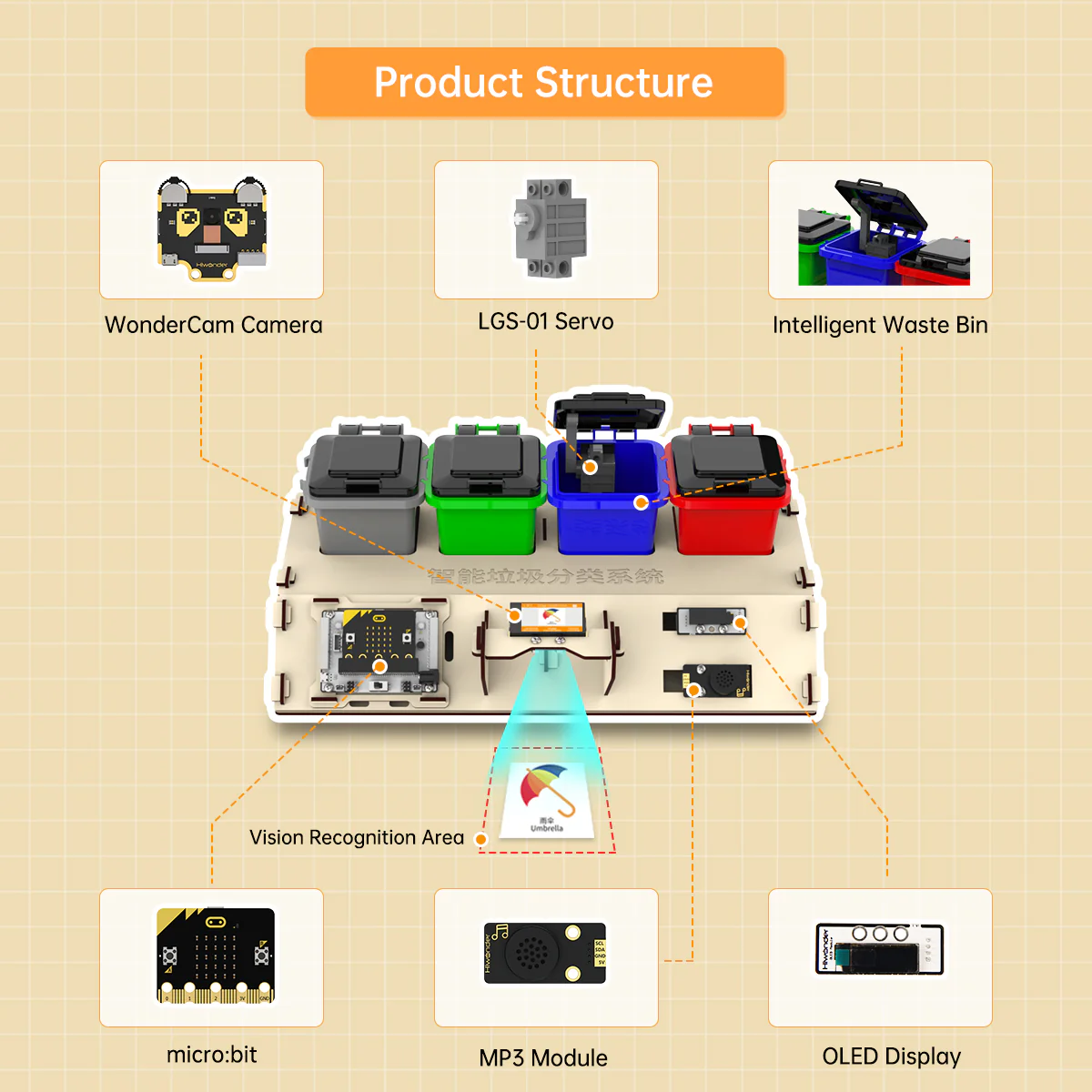

Powered by micro:bit, AI vision waste sorting robot kit is equipped with WonderCam AI vision camera, OLED display, voice broadcast system and 12 built-in trained models of waste sorting. It recognizes the waste category through WonderCam. After recognition, the result is announced by MP3 module and OLED display, and the corresponding waste bin opens at the same time.It is a nice tool applied to AI project learning and demonstration! This kit lets you learn artificial intelligence in simulated waste sorting scenario. In this way, you can better comprehend how to combine artificial intelligence and our daily life!

> Powered by micro:bit

> Loaded with Hiwonder WonderCam vision camera

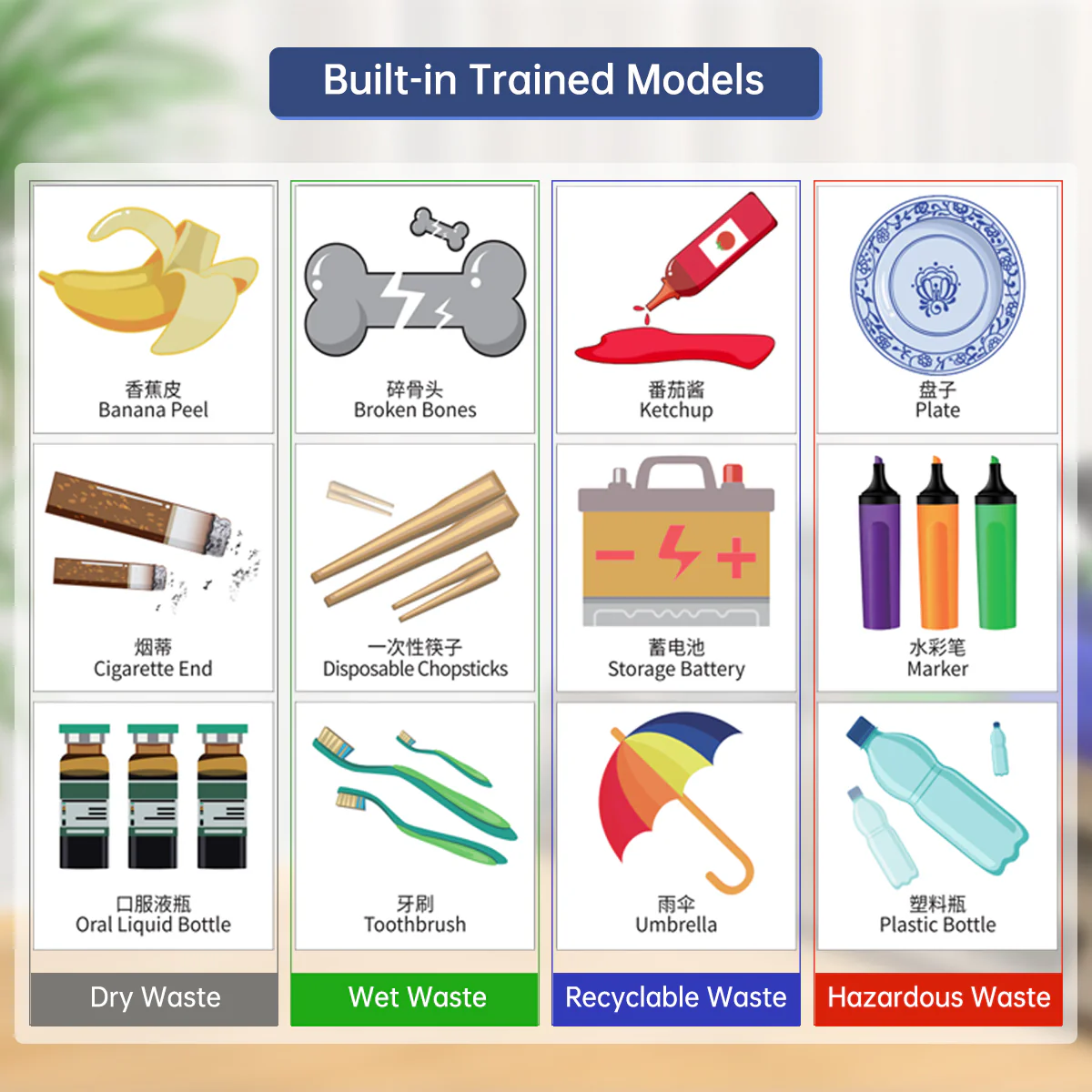

> Involve 12 built-in trained models of waste sorting

> Classification result will be broadcast by MP3 module and displayed on OLED

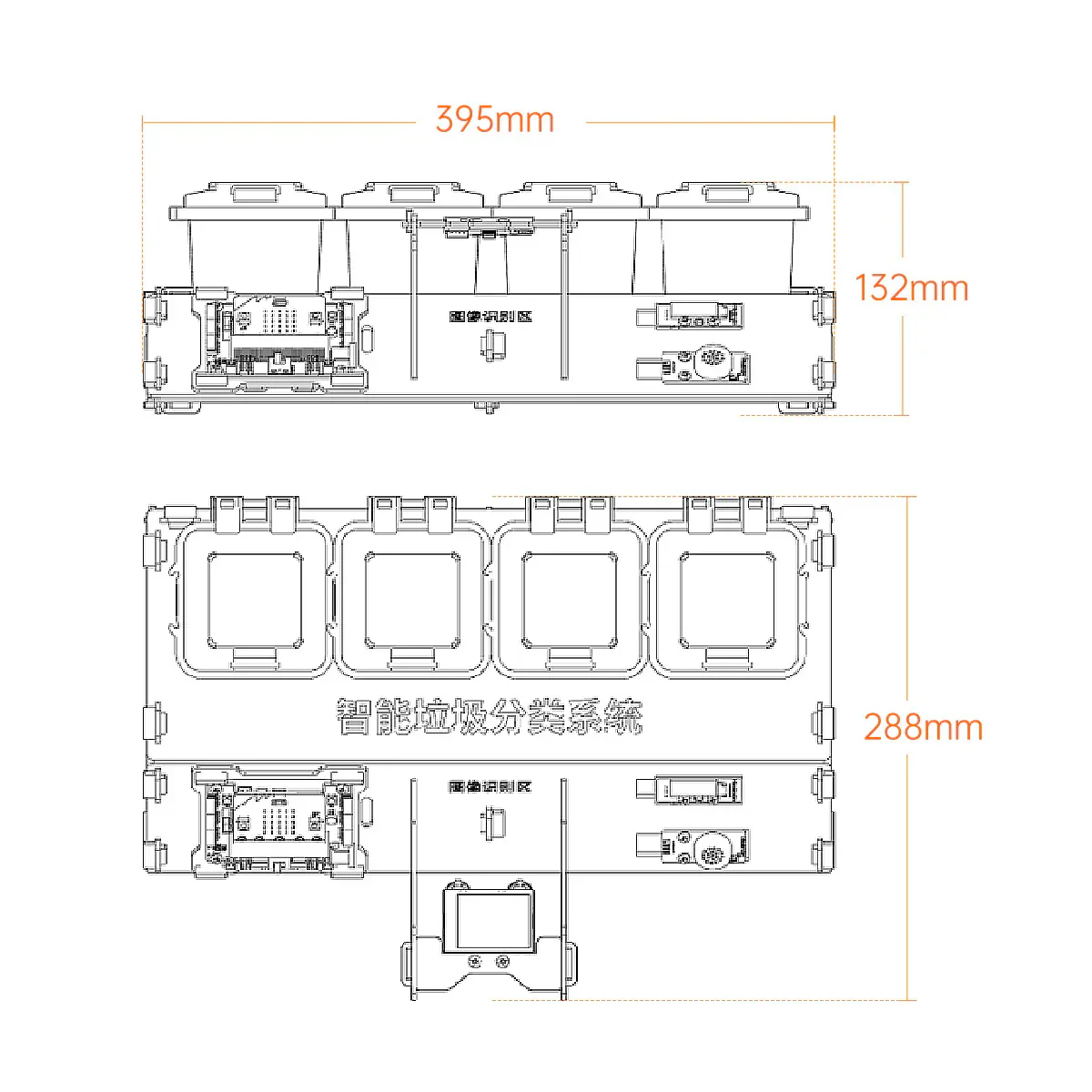

Dimensional Diagram



Dimensional Diagram





SPECIFICATIONS

Item	Specification
Size	395 × 288 × 132 mm
Weight	About 0.9 kg
Power Supply	3.7V 18650 battery (1200mAh)
Camera	WonderCam AI Vision Module
Control System	micro:bit
Processor	Kendryte K210
Camera Resolution	2 megapixel
Image Sensor	0V2640 (2 megapixel)
Supply Voltage	5.0V
Working Current	300mA (Typical: facial recognition, 100% backlight, fill light off)
Connectors	I2C
Display	2.0 IPS, resolution 320×240
Built-in Functions	Facial recognition, image classification, feature learning, color recognition, vision line following, tag recognition, number recognition, landmark recognition
Module Dimension	52 mm × 50 mm
Display Dimension	41 mm × 31 mm
Product Weight	24g

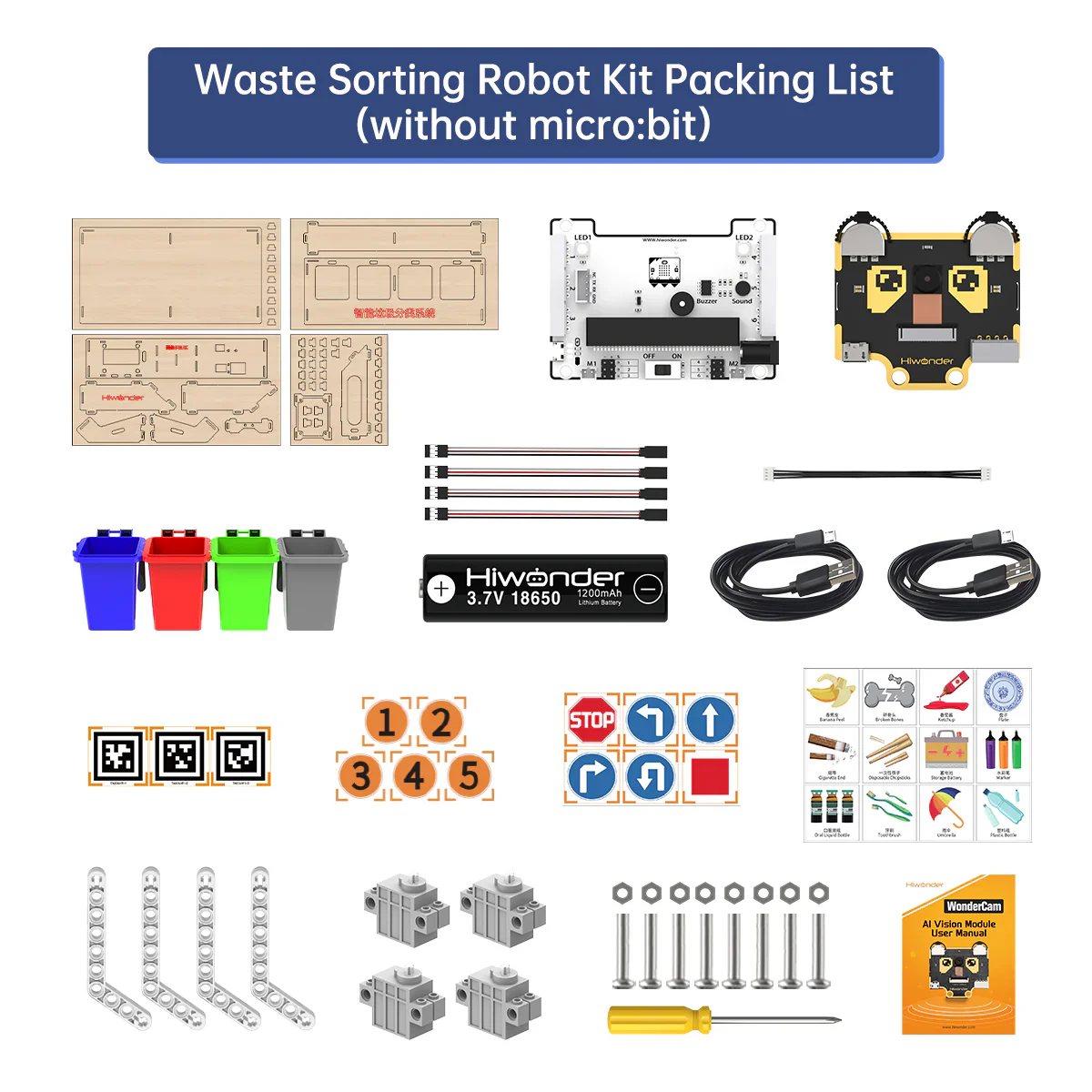

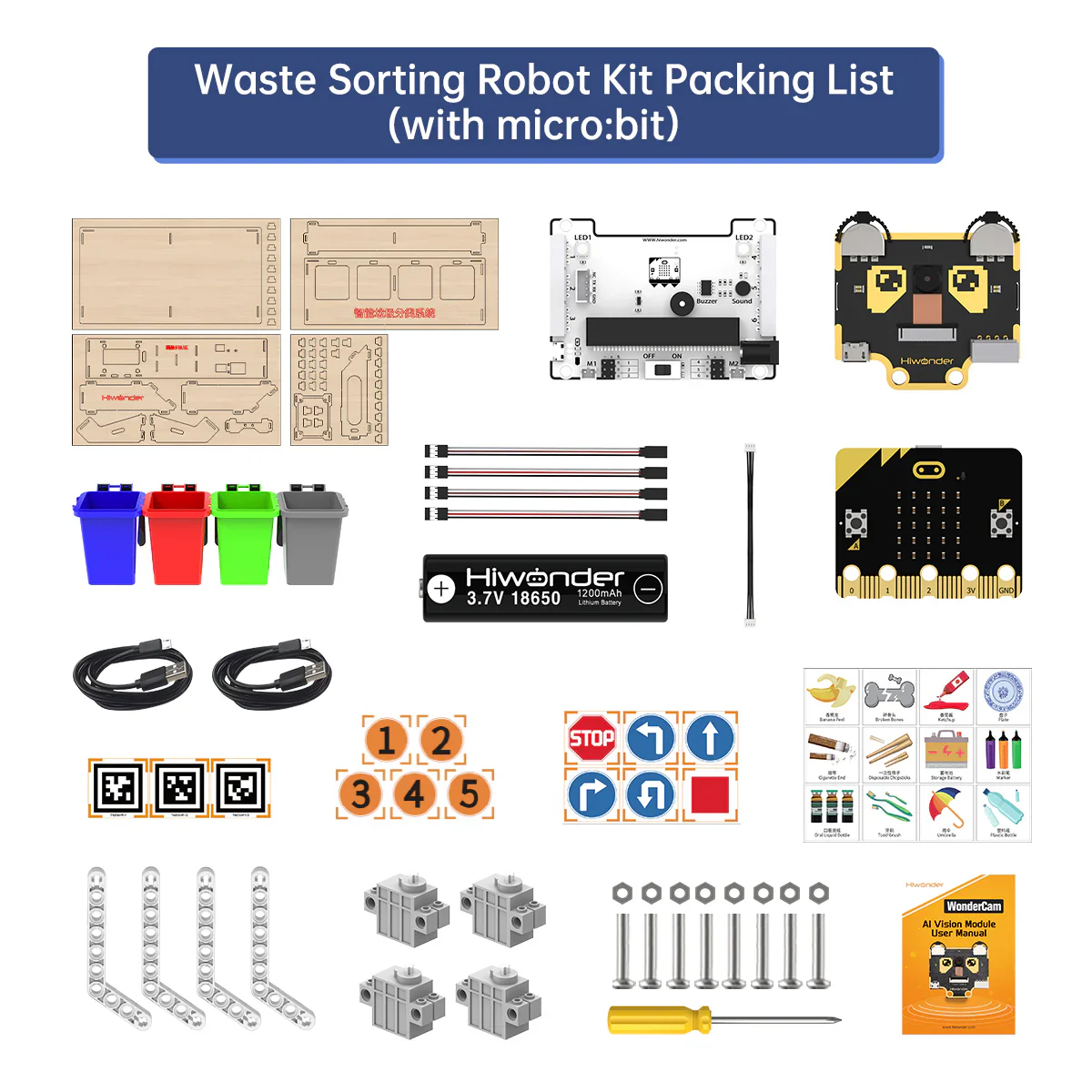

Waste Sorting Robot Kit Packing List





VIDEO
