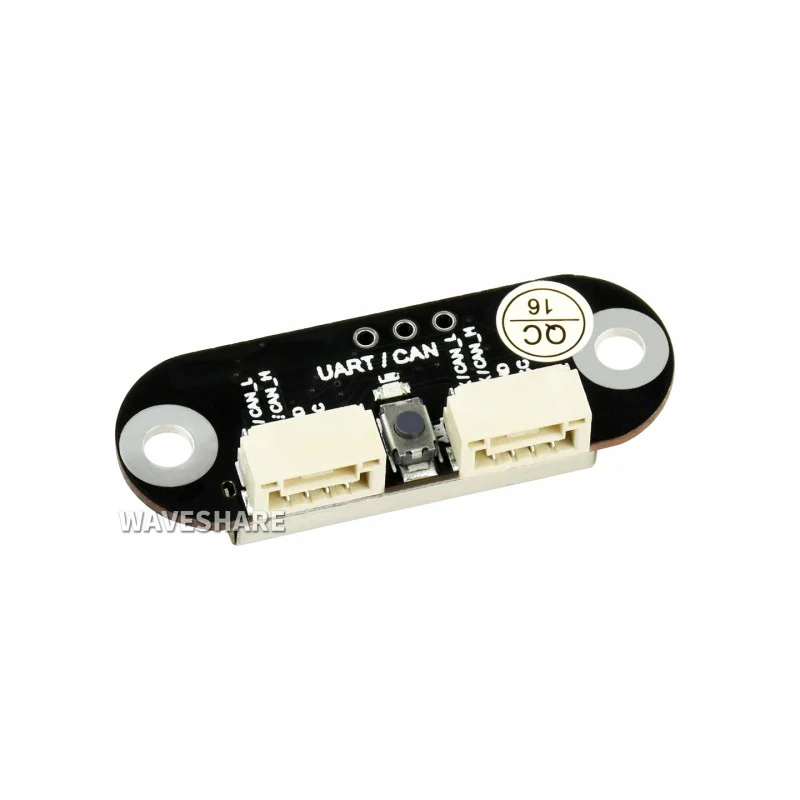

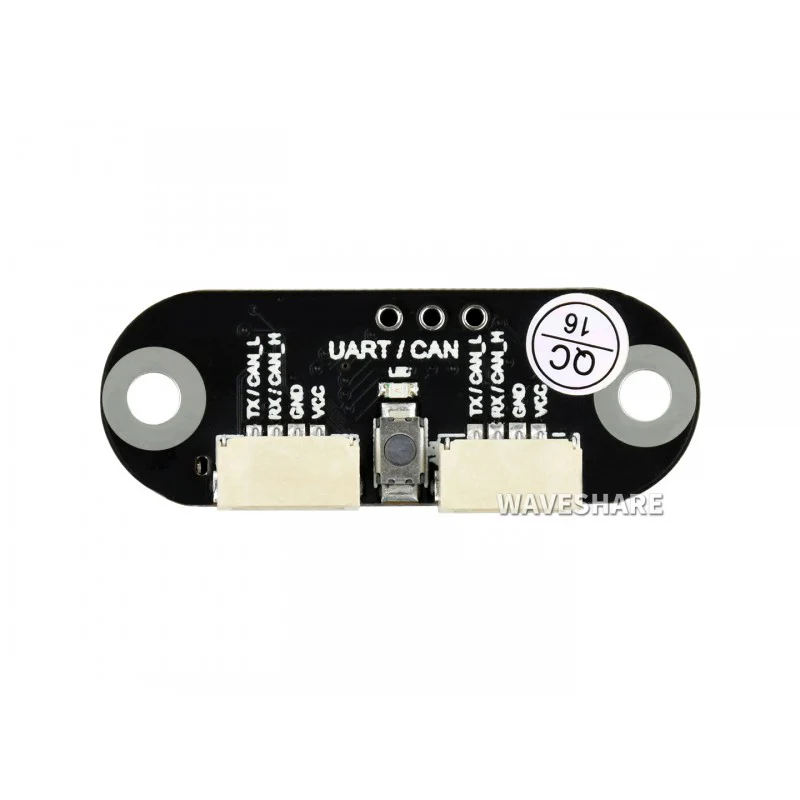

TOF Laser Range Sensor - 5m range
TOF (Time Of Flight) Laser Range Sensor, UART / CAN Bus, Cascading Support, Comes With Host Computer Assistant Software
The TOF Laser Range Sensor is a TOF-based (time of flight) laser ranging sensor with embedded MCU and ranging algorithm, which is capable of offering up to 5m measuring range, ±1.5cm accuracy, and 1mm resolution. It supports cascade ranging via UART or CAN bus, configurable data output including active output and query output.
This sensor can be widely used in applications like common distance measuring, robot obstacle avoidance / route planning, as well as drone altitude setting / ceiling detection, and more...
Specifications
| TYPICAL MEASURING RANGE | Short range: 0.012~2.16m |
|---|---|
| Mid range: 0.012~3.60m | |
| Long range: 0.01~5.00m | |
| TYPICAL MEASURING ACCURACY | Short range: accuracy ±1.0cm, standard deviation<0.3cm |
| Mid range: accuracy ±1.0cm, standard deviation<1.5cm | |
| Long range: accuracy ±1.5cm, standard deviation<[email protected]~3m, standard deviation<8cm@3~5m | |
| RESOLUTION | 1mm |
| WAVELENGTH | 940nm (Class1 standard compliant) |
| FIELD OF VIEW (FOV) | 15°~27° (adjustable) |
| COMMUNICATION INTERFACE | UART: both of the two ports can be used as UART simultaneously, 3.3V TTL signal level |
| CAN: both of the two ports can be used as CAN simultaneously | |
| BAUDRATE | UART: 115200~3000000bps (921600bps by default) |
| CAN: 100000~3000000bps (100000bps by default) | |
| CASCADE SUPPORT | UART: supports up to 8x cascades |
| CAN: supports up to 7x cascades | |
| POWER SUPPLY | 3.7~5.2V |
| POWER CONSUMPTION | 290mW (UART active output, long-range mode, 5.0V power supply, 58mA current) |
| WEIGHT | 2.7g |
| DIMENSIONS (L × W × H) |
35.58 × 12 × 8.05mm |
Embedded MCU & Ranging Algorithm
UART / CAN Support, Configurable Output
UART / CAN COMMUNICATION
Configurable communication bus, providing two ports (identical electric connection) for cascade ranging
ACTIVE OUTPUT / QUERY OUTPUT
Configurable data output mode, make it more flexible to acquire data
Cascade Ranging Support
Multiple sensors can connected in series thanks to onboard two identical ports, and each sensor can be configured with an ID,
therefore, the ranging data of all sensors can be acquired through one single communication bus.
When using cascade ranging, three output modes are available: UART query, CAN query, and CAN active output
Up To 8x Cascades On UART Bus, Up To 7x Cascades On CAN Bus
Comes With Assistant Software
Provides Host Computer Assistant Software, Offering Functions Including Sensor Configuration, Wave Form Monitor, Data Analysis, Data Record Export And Replay, Firmware Upgrade, And So On.
Applications
Hardware Connection
Connecting With Raspberry Pi
Connecting With Arduino
Dimensions
Resources
Wiki: TOF_Laser_Range_SensorPackage Contains:
- 1x TOF Laser Range Sensor
- 1x GH1.25 4PIN wire
- 1x GH1.25 4PIN squid wire
Original: $22.22
-70%$22.22
$6.67
