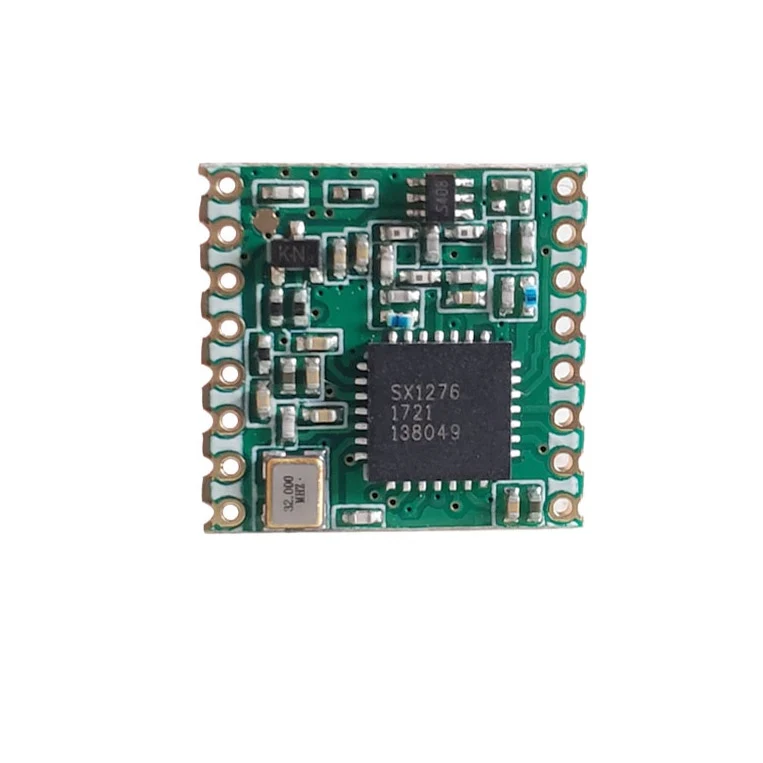

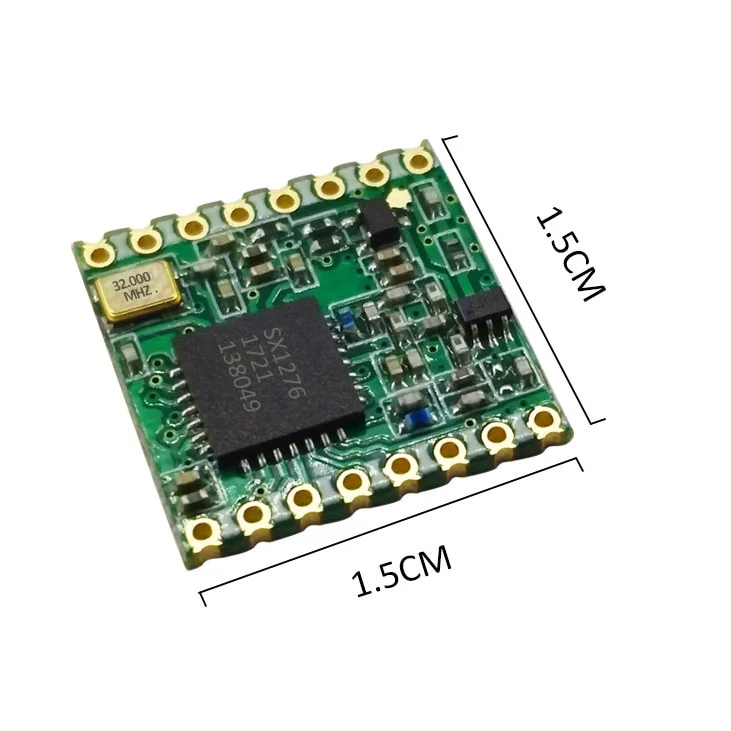

Super Low Power RF LoRa Module SX1276 868MHz
Features:
- Frequency Range: 868MHz
- Modulation: FSK/GFSK/MSK/LoRa
- SPI Data Interface
- Sensitivity: -139dBm
- Output Power: +20dBm
- Data Rate: <300 kbps
- 127dB dynamic Range RSSI
- FSK/GFSK , LoRa(Long Range) spread spectrum technique
- Half-duplex communication
- Excellent blocking immunity
- Channel rejection ration(ADJ):56dBm
- ISM multiband, free of charge with no need to apply for frequencies
- Optional multi-frequency, multiple transmission rate,can be applied in FDMA and FM technologies
- Intelligent reset, low voltage monitor, timing wakeup, low-power mode,sleep mode
- Low power RX current: 12~13 mA
- 256 Bytes FIFO TX/RX
- ISSI channel detection Transmission mode：FIFO / direct mode（recommend FIFO packet mode）
- Configuration：AFC/air wakeup/low power/carrier sense/FEC error correction/AEC encryption
- Package Contains: 1 Piece with Spring Antenna
Resources
Datasheet
Library
Sample Code
Tutorial
$2.70
Original: $9.00
-70%Super Low Power RF LoRa Module SX1276 868MHz—
$9.00
$2.70
Description
Features:
- Frequency Range: 868MHz
- Modulation: FSK/GFSK/MSK/LoRa
- SPI Data Interface
- Sensitivity: -139dBm
- Output Power: +20dBm
- Data Rate: <300 kbps
- 127dB dynamic Range RSSI
- FSK/GFSK , LoRa(Long Range) spread spectrum technique
- Half-duplex communication
- Excellent blocking immunity
- Channel rejection ration(ADJ):56dBm
- ISM multiband, free of charge with no need to apply for frequencies
- Optional multi-frequency, multiple transmission rate,can be applied in FDMA and FM technologies
- Intelligent reset, low voltage monitor, timing wakeup, low-power mode,sleep mode
- Low power RX current: 12~13 mA
- 256 Bytes FIFO TX/RX
- ISSI channel detection Transmission mode：FIFO / direct mode（recommend FIFO packet mode）
- Configuration：AFC/air wakeup/low power/carrier sense/FEC error correction/AEC encryption
- Package Contains: 1 Piece with Spring Antenna
Resources
Datasheet
Library
Sample Code
