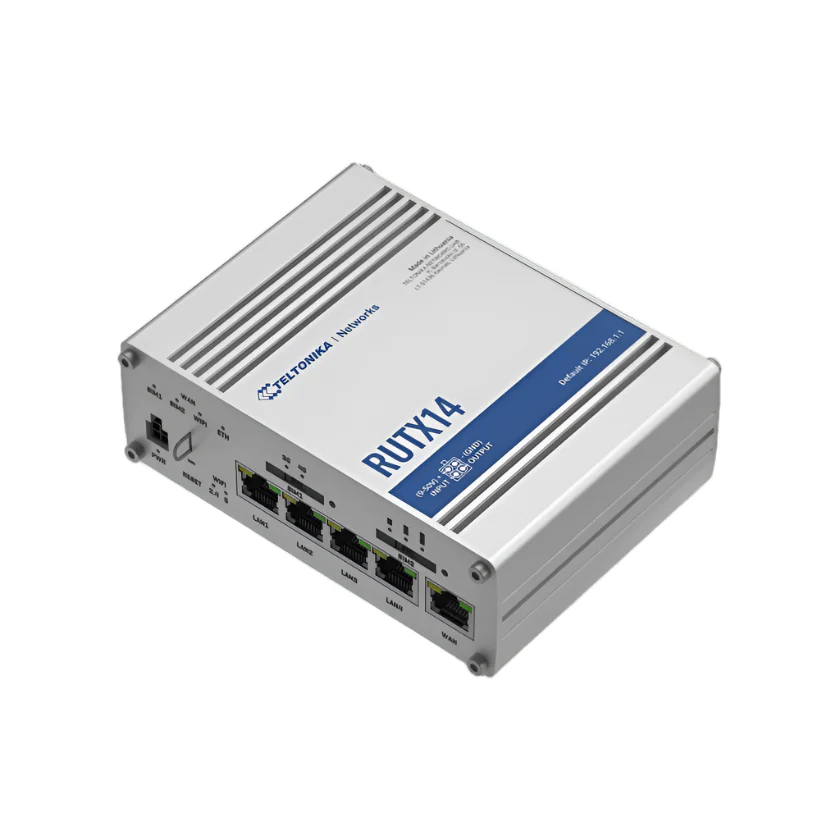

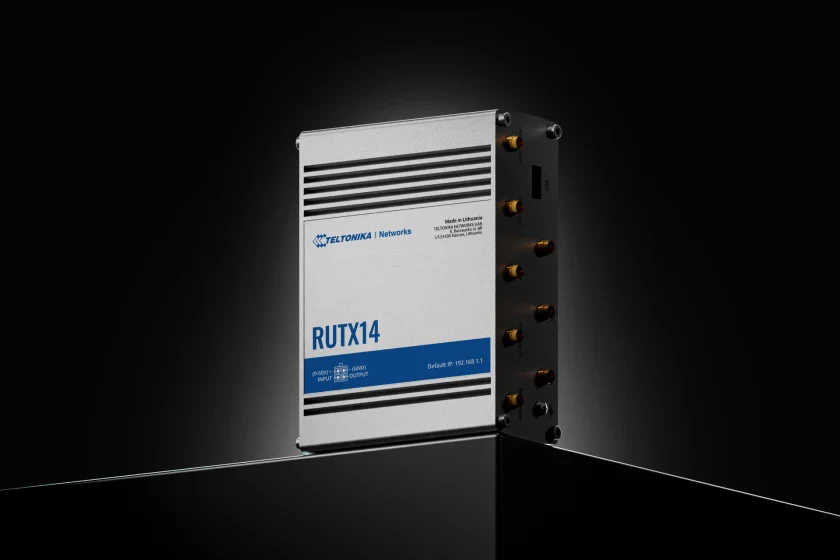

RUTX14 - 4G LTE CAT12 - Industrial Cellular Router

• Router RUTX14
• 24 W PSU
• 4x LTE antennas (swivel, SMA male)
• 2x Wi-Fi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
• 1x GNSS antenna (adhesive, SMA male, 3 m cable)
• 1x Bluetooth antenna (magnetic mount, RP-SMA male, 1.5 m cable)
• Ethernet cable (1.5 m)
• SIM Adapter kit
• QSG (Quick Start Guide)
• Packaging box

*Standard package contents may differ based on standard order codes.

Feature

Mobile

Feature	Details
Mobile Module	4G LTE Cat 12 up to 600 DL/150 UL Mbps; 3G up to 42 DL/11.2 UL Mbps
3GPP Release	Release 12
SIM Switch	2 SIM cards, auto-switch on weak signal, data limit, roaming, no network, etc.
Status	IMSI, ICCID, operator, data connection state, network type, signal strength (RSSI), etc.
SMS	SMS status, send/read SMS via HTTP, SMS to Email, SMS autoreply, SMPP
USSD	Supports sending/reading Unstructured Supplementary Service Data messages
Black/White list	Operator black/white list (by country or operator)
Multiple PDN	Supports multiple PDNs for different network access/services
Band Management	Band lock, used band status display
SIM Idle Protection	Idle SIM protection for unused SIM slots
SIM PIN Code Management	Set, change, or disable SIM PIN code
APN	Auto APN
Bridge	Direct connection (bridge) between mobile ISP and LAN device
Passthrough	Router assigns mobile WAN IP to another device on LAN

Wireless

Feature	Details
Wireless Mode	802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data rates up to 867 Mbps, Dual Band
Wi-Fi Security	WPA2-Enterprise, WPA3, AES-CCMP, TKIP, EAP-TLS with PKCS#12 certificates, etc.
SSID/ESSID	ESSID stealth mode
Wi-Fi Users	Up to 150 simultaneous connections
Wireless Connectivity Features	Wireless mesh (802.11s), fast roaming (802.11r), 802.11v, etc.
Wireless MAC Filter	Allowlist, blocklist
Wireless QR Code Generator	Auto network entry for scanned users
TravelMate	Forward Wi-Fi hotspot landing page to subsequent device

Bluetooth

Feature	Details
Bluetooth	Bluetooth 4.0, Bluetooth LE for short-range communication

Ethernet

Feature	Details
WAN	1 x WAN port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover
LAN	4 x LAN ports, 10/100/1000 Mbps, supports auto MDI/MDIX crossover



Network

Feature	Details
Routing	Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP), Policy-based routing
Network Protocols	TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SFTP, FTP, SMTP, SSL/TLS, ARP, VRRP, PPP, PPPoE, UPNP, SSH, DHCP, Telnet, SMPP, SNMP, MQTT, WOL, VXLAN
VoIP Passthrough Support	H.323 and SIP-alg protocol NAT helpers for VoIP packet routing
Connection Monitoring	Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection
Firewall	Port forward, traffic rules, custom rules, TTL target customization
Firewall Status Page	View all Firewall statistics, rules, and rule counters
Ports Management	View device ports, enable/disable, transmission speed changes
Network Topology	Visual representation of your network
Hotspot	Captive portal, internal/external Radius, SMS/SSO auth, user management, customizable themes
DHCP	Static and dynamic IP allocation, DHCP relay/server configuration
QoS / Smart Queue Management (SQM)	Traffic priority, WMM, 802.11e
DDNS	Supported >25 service providers, manual configuration
DNS over HTTPS	Secure DNS resolution via HTTPS
Network Backup	Wi-Fi WAN, Mobile, VRRP, Wired for automatic failover
Load Balancing	Balance Internet traffic over multiple WAN connections
SSHFS	Mount remote file system via SSH
VRF Support	Initial virtual routing and forwarding support
Traffic Management	Real-time monitoring, signal charts, traffic usage history

Security

Feature	Details
802.1x	Port-based network access control
Authentication	Pre-shared key, certificates, TACACS+, RADIUS, IP/login block, time-based blocking
Firewall	Preconfigured firewall rules via WebUI, unlimited config via CLI, NAT, DMZ, NAT64
Attack Prevention	DDOS prevention, port scan prevention, SSH/HTTP attack prevention
VLAN	Port and tag-based VLAN separation
Mobile Quota Control	Data limit, customizable period, warning limit, phone number
Web Filter	Blacklist/whitelist unwanted or allowed sites
Access Control	SSH, Web, CLI, Telnet access control
SSL Certificate Generation	Let's Encrypt, SCEP certificate generation

VPN

Feature	Details
OpenVPN	Multiple clients and server, 27 encryption methods
OpenVPN Encryption	DES, RC2, AES, BF, CAST, RC2, AES-GCM, etc.
IPsec	XFRM, IKEv1, IKEv2, 14 encryption methods (3DES, AES128, AES256, etc.)
GRE	GRE tunnel, GRE over IPsec support
PPTP, L2TP	Client/server instances, L2TPv3, L2TP over IPsec
Stunnel	Adds TLS encryption to existing clients and servers
DMVPN	Scalable IPsec VPNs, Phase 2, Phase 3, Dual Hub support
SSTP	SSTP client instance support
ZeroTier	ZeroTier VPN client support
WireGuard	WireGuard VPN client/server support
Tinc	Encryption, authentication, compression in tunnels
Tailscale	Speed, stability, simplicity with WireGuard protocol



OPC UA

Feature	Details
Supported Modes	Client, Server
Supported Connection Types	TCP

MODBUS

Feature	Details
Supported Modes	Server, Client
Supported Connection Types	TCP, USB
Custom Registers	MODBUS TCP custom register block requests, read/write to a file inside router, extend MODBUS TCP Client functionality
Supported Data Formats	8-bit: INT, UINT; 16-bit: INT, UINT (MSB/LSB first); 32-bit: float, INT, UINT (ABCD, DCBA, CDAB, BADC), HEX, ASCII

Data to Server

Feature	Details
Protocol	HTTP(S), MQTT, Azure MQTT, Kinesis
Data to Server	Extract parameters from multiple sources/protocols, send to a single server; Custom LUA scripting for Data to server functionality

MQTT Gateway

Feature	Details
Modbus MQTT Gateway	Allows sending commands and receiving data from MODBUS Server via MQTT broker

DNP3

Feature	Details
Supported Modes	Station, Outstation
Supported Connection	TCP, USB

DLMS

Feature	Details
DLMS Support	Standard protocol for utility meter data exchange
Supported Modes	Client
Supported Connection Types	TCP, USB
COSEM (Companion Specification for Energy Metering)	Allows scanning of meter COSEM objects for automatic detection and configuration



API

Feature	Details
Teltonika Networks Web API (beta) support	Expand your device's possibilities with configurable API endpoints to retrieve or change data. For more information, visit Teltonika Web API

Monitoring & Management

Feature	Details
WEB UI	HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, multiple event log servers, firmware update availability notifications, event log, system log, kernel log, Internet status
FOTA	Firmware update from server, automatic notification
SSH	SSH (v1, v2)
SMS	SMS status, SMS configuration, send/read SMS via HTTP POST/GET
Call	Reboot, Status, Mobile data on/off, Output on/off, answer/hang-up with a timer, Wi-Fi on/off
TR-069	OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem
MQTT	MQTT Broker, MQTT publisher
SNMP	SNMP (v1, v2, v3), SNMP Trap, Brute force protection
JSON-RPC	Management API over HTTP/HTTPS
RMS	Teltonika Remote Management System (RMS)

IoT Platforms

Platform	Details
ThingWorx	Allows monitoring of WAN Type, WAN IP, Mobile Operator Name, Mobile Signal Strength, Mobile Network Type
Cumulocity - Cloud of Things	Allows monitoring of Device Model, Revision and Serial Number, WAN Type and IP, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength. Has reboot and firmware upgrade actions
Azure IoT Hub	Can be configured with Data to Server to send parameters to the cloud. Supports Direct Method and Plug and Play integration for zero-touch device provisioning to IoT Hubs
AWS IoT Core	Utility to interact with AWS cloud platform. Jobs Support for API calls via AWS Jobs functionality

System Characteristics

Feature	Details
CPU	Quad-core ARM Cortex A7, 717 MHz
RAM	256 MB, DDR3
FLASH Storage	256 MB, SPI Flash



Firmware / Configuration

Feature	Details
WEB UI	Update FW from file, check FW on server, configuration profiles, configuration backup
FOTA	Update FW
RMS	Update FW/configuration for multiple devices at once
Keep settings	Update FW without losing current configuration
Factory settings reset	A full factory reset restores all system settings to default manufacturer's configuration

FIRMWARE CUSTOMISATION

Feature	Details
Operating system	RutOS (OpenWrt based Linux OS)
Supported languages	Busybox shell, Lua, C, C++, Python, Java in Package manager
Development tools	SDK package with build environment provided
GPL customization	Custom branded firmware and web page application (colours, logos, etc.)
Package Manager	Service for installing additional software on the device

Location Tracking

Feature	Details
GNSS	GPS, GLONASS, BeiDou, Galileo, QZSS
Coordinates	GNSS coordinates via WebUI, SMS, TAVL, RMS
NMEA	NMEA 0183
NTRIP	NTRIP protocol (Networked Transport of RTCM via Internet Protocol)
Server software	Supported server software TAVL, RMS
Geofencing	Configurable multiple geofence zones

USB

Feature	Details
Data rate	USB 2.0
Applications	Samba share, USB-to-serial
External devices	Connect external HDD, flash drive, modem, printer, USB-serial adapter
Storage formats	FAT, FAT32, exFAT, NTFS (read-only), ext2, ext3, ext4

Input / Output

Feature	Details
Input	1 x Digital Input, 0 - 6 V detected as logic low, 8 - 30 V detected as logic high
Output	1 x Digital Output, Open collector output, max output 30 V, 300 mA
Events	Email, RMS, SMS
I/O juggler	Set conditions to initiate events based on I/O status



Power

Feature	Details
Connector	4-pin industrial DC power socket
Input voltage range	9 - 50 VDC, reverse polarity protection, voltage surge/transient protection
PoE (passive)	Power through LAN1 port, Mode B, 9 - 50 VDC (not compatible with IEEE802.3af, 802.3at, and 802.3bt standards)
Power consumption	Idle: < 4 W, Max: < 22 W

Physical Interfaces

Feature	Details

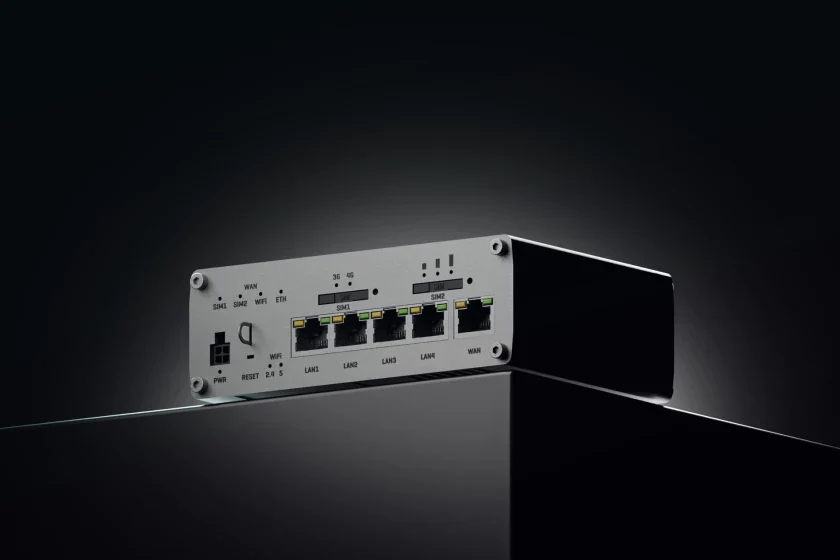

Ethernet	5 x RJ45 ports, 10/100/1000 Mbps
I/O's	1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs	2 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1 x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
SIM	2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders
Power	1 x 4-pin power connector

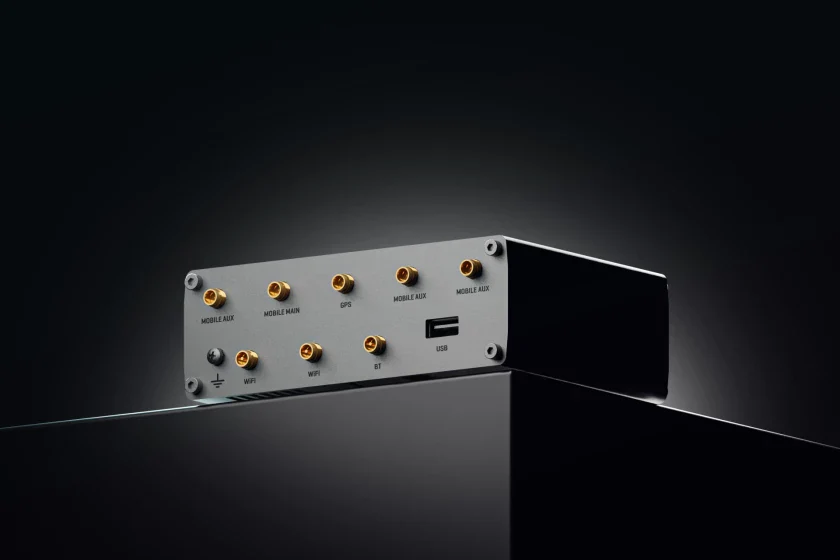

Antennas	4 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GNSS
USB	1 x USB A port for external devices
Reset	Reboot/User default reset/Factory reset button
Other	1 x Grounding screw

Physical Specification

Feature	Details
Casing material	Full aluminium housing
Dimensions (W x H x D)	132 x 44 x 95 mm
Weight	515 g
Mounting options	DIN rail, wall mount, flat surface (all require additional kit)

Operating Environment

Feature	Details
Operating temperature	-40 °C to 75 °C
Operating humidity	10% to 90% non-condensing
Ingress Protection Rating	IP30



Regulatory

Certification	Details
CE	Compliance with European standards
UKCA	Compliance with UK regulations
RCM	Compliance with Australian regulations
UCRF	Compliance with UAE regulations
CITC	Compliance with Saudi Arabia regulations
Kenya	Compliance with Kenyan standards
ICASA	Compliance with South African regulations
ANRT	Compliance with Moroccan regulations
NTC	Compliance with Thai regulations
SIRIM	Compliance with Malaysian regulations
GCF	Global Certification Forum compliance
CB	International certification for safety and performance
RoHS	Compliance with the Restriction of Hazardous Substances directive
REACH	Compliance with the Registration, Evaluation, Authorisation and Restriction of Chemicals regulation

EMC Emissions & Immunity

Standard	Details
EN 55032:2015 + A1:2020	EMC emissions standard for multimedia equipment
EN 55035:2017 + A11:2020	Immunity standard for multimedia equipment
EN IEC 61000-3-2:2019	Harmonic current emissions standard
EN 61000-3-3:2013 + A1:2019	Voltage fluctuations and flicker standards
EN 301 489-1 V2.2.3	General EMC requirements for radio equipment
EN 301 489-17 V3.2.4	EMC requirements for broadband radio communication equipment
Draft EN 301 489-19 V2.2.0	Draft standard for EMC of multi-band radio equipment
Draft EN 301 489-52 V1.1.2	Draft standard for EMC of cellular base stations
ESD (EN 61000-4-2:2009)	Electrostatic discharge immunity standard
Radiated Immunity (EN IEC 61000-4-3:2020)	Immunity to radiated electromagnetic fields
EFT (EN 61000-4-4:2012)	Immunity to electrical fast transients
Surge Immunity (AC Mains Power Port EN 61000-4-5:2014 + A1:2017)	Immunity to surge transients
CS (EN 61000-4-6:2014)	Immunity to conducted disturbances
DIP (EN IEC 61000-4-11:2020)	Immunity to voltage dips and short

RF Standards

Standard	Details
EN 300 328 V2.2.2	Wireless LAN standards for 2.4 GHz
EN 301 893 V2.1.1	Standards for 5 GHz wireless equipment
EN 300 440 V2.2.1	Standards for short-range devices operating in the 5 GHz frequency range
EN 301 908-1 V13.1.1	Standards for IMT cellular equipment
EN 301 908-2 V13.1.1	Standards for base stations and other IMT equipment
EN 301 908-13 V13.1.1	Standards for long-range and public safety communication networks
EN 303 413 V1.1.1	Standards for cellular and radio communication in IoT devices

Safety Standards

Certification	Details
CE	Compliance with CE safety standards (EN 62368-1:2014 + A11:2017, EN 62232:2017, EN 50385:2017)
UL/CSA Safety	Compliance with UL 62368-1 (3rd Ed., Rev. December 13, 2019) and CAN/CSA C22.2 No. 62368-1:19 (3rd Ed., Rev. December 13, 2019)
CB	Compliance with IEC 62368-1:2018 safety standard



Downloads

Manual & Documentation
