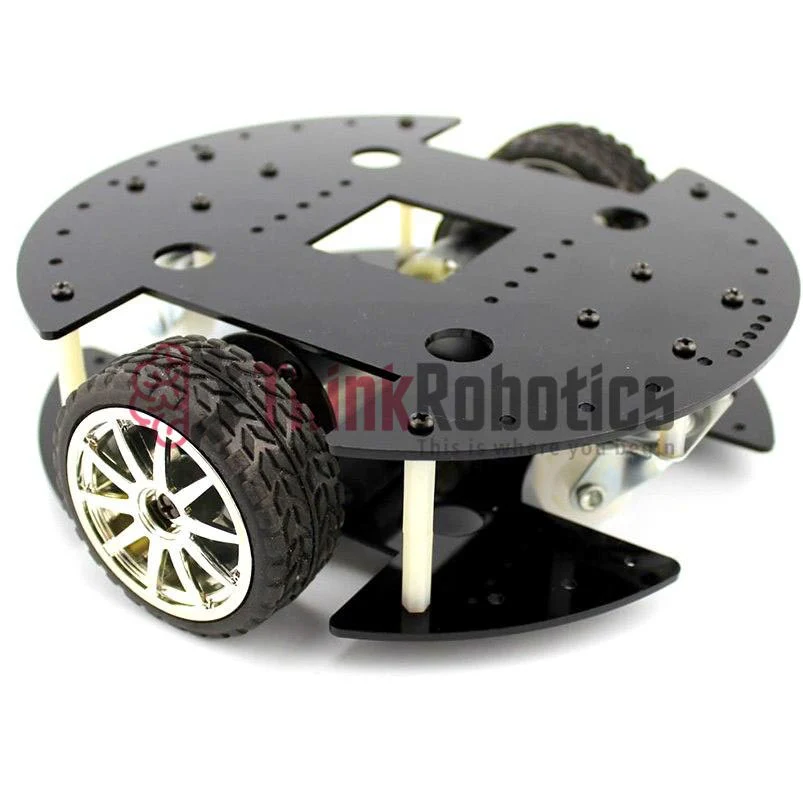

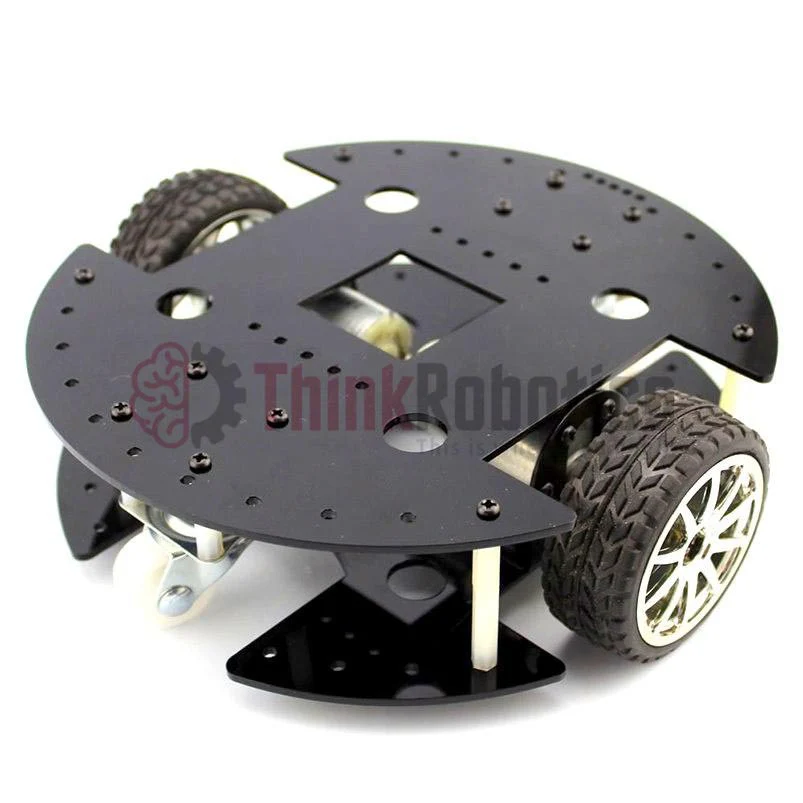

2-Wheel Drive Rugged Robot Chassis with 37mm 37B280 Gear Motor

8" circular dual-layer 2-Wheel drive acrylic chassis is best suited for building fast robots and enable speedy development. The caster wheel and large wheels offer a stable platform for sophisticated robots.

• Acrylic dual layer chassis
• Offers a great base for small robots
• Tons of mounting holes & slots!

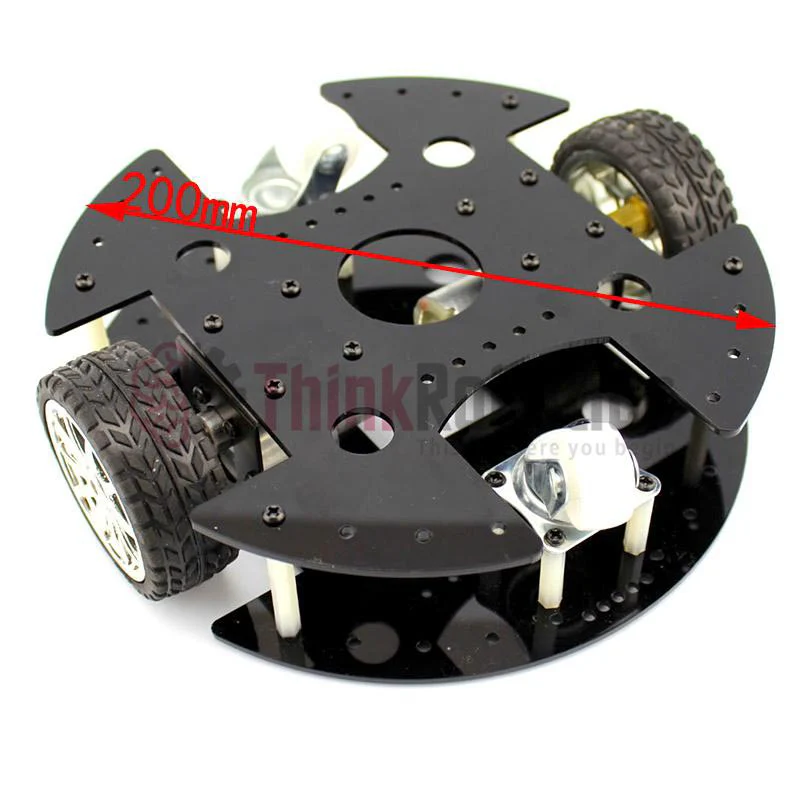

• Size: 200m diameter; Ground Clearance: 1mm; Layer Clearance: 49mm
• 3mm thick transparent acrylic plate
• 37mm DC Geared Motor: 4.5V (100 RPM) and 9V (200 RPM)
• Tire: 65mm Diameter, 26mm Width, Rubber Tread Material with electroplated plastic wheels
• Weight: 650 grams
