Edge AI Device with Jetson Xavier NX Module
Aluminium Case | Pre-Installed Jetpack | reComputer J2012 / J2021
reComputer series for Jetson are compact edge computers built with NVIDIA advanced AI embedded systems: J10 (Nano 4GB) and J20 (Jetson Xavier NX 8GB and Jetson Xavier 16GB).
With rich extension modules, industrial peripherals, thermal management, reComputer for Jetson is ready to help you accelerate and scale the next-gen AI product by deploying popular DNN models and ML frameworks to the edge and inferencing with high performance, for tasks like real-time classification and object detection, pose estimation, semantic segmentation, and natural language processing (NLP).
At Seeed Studio, you will find everything you want to work with NVIDIA Jetson Platform – official NVIDIA Jetson Dev Kits, Seeed-designed carrier boards, and edge devices, as well as accessories.
Features
| Hand-size edge AI device built with Jetson Xavier NX 16GB Production Module, delivering 384 NVIDIA CUDA® cores and up to 21 TOPs AI performance, with a compact form factor of 130mm × 120mm × 50mm. |
| NVIDIA Jetson Xavier NX Dev Kit alternative: the carrier board provides rich I/O including a Gigabit Ethernet port, 4 × USB 3.0 Type-A ports, HDMI port, and DP port. |
| Pre-installed NVIDIA JetPack, supporting the entire Jetson software stack and various developer tools from Seeed Edge AI partners, enabling fast and robust AI application development for manufacturing, logistics, retail, service, agriculture, smart city, healthcare, and life sciences. |
| Power-efficient operation: consumes as little as 10 watts while delivering high-performance, accurate, multi-modal AI inference at the edge. |
| Expandable through onboard interfaces and the reComputer case; supports wall mounting using the mounting holes on the back. |
Description
reComputer J202 is a high-performance, interface-rich NVIDIA Jetson Nano / Xavier NX compatible carrier board, providing HDMI 2.0, Gigabit Ethernet, USB3.1 Gen 2, M.2 key E wifi / BT, M.2 key M, CSI camera, CAN, GPIO, I2C, I2S, Fan, and other rich peripheral interfaces. It has the same functional design and size as the carrier board of NVIDIA® Jetson Xavier™ NX DEVELOPER KIT.
Functionality
With the NVIDIA Jetson module assembled, it could support NVIDIA JetPack, which includes a board support package (BSP), Linux OS, NVIDIA CUDA®, cuDNN, and TensorRT™ software libraries for deep learning, computer vision, GPU computing, multimedia processing, and much more.
With its multiple camera connectors, it is suitable for running multiple neural networks in parallel for applications like image classification, object detection, segmentation, and speech processing.
Specifications
| Module Compatibility | Xavier NX |
| PCB Size / Overall Size | 100mm × 80mm |
| Display | 1 × HDMI, 1 × DP |
| CSI Camera | 2 |
| Ethernet | 1 × Gigabit Ethernet (10/100/1000M) |
| USB | 4 × USB 3.1 Type-A (10Gbps for NX, 5Gbps for Nano) 1 × USB Type-C (Device mode) |
| M.2 Slots | 1 × M.2 Key E, 1 × M.2 Key M |
| Fan | 1 × Fan Connector |
| CAN | 1 × CAN |
| Multifunctional Port | 1 × 40-Pin, 1 × 12-Pin |
| RTC | RTC 2-pin, RTC socket (reserved) |
| Power Supply | 12V / 5A (Barrel Jack 5.5 / 2.1mm) |
Edge AI Applications
Work with up to 21 TOPS AI performances provided by the Jetson Xavier NX, it delivers the capability to develop and test power-efficient, small form factor intelligent solutions with accurate, multi-modal AI inference across industries.
-
Pedestrian detection by Edge Impulse
-
Hard hat detection and build custom PPE detection
-
Pose Estimation with alwaysAI
-
Visual anomaly detection using NVIDIA Deepstream IoT
-
Retail store items detection
-
Wildfire detection
-
Animal detection
Find in the Jetson Community Resources page tools and tutorials the community has created to power your development experience, and check out the Community Projects page to inspire your next project!
Comparison with NVIDIA Xavier NX Dev Kit carrier boards

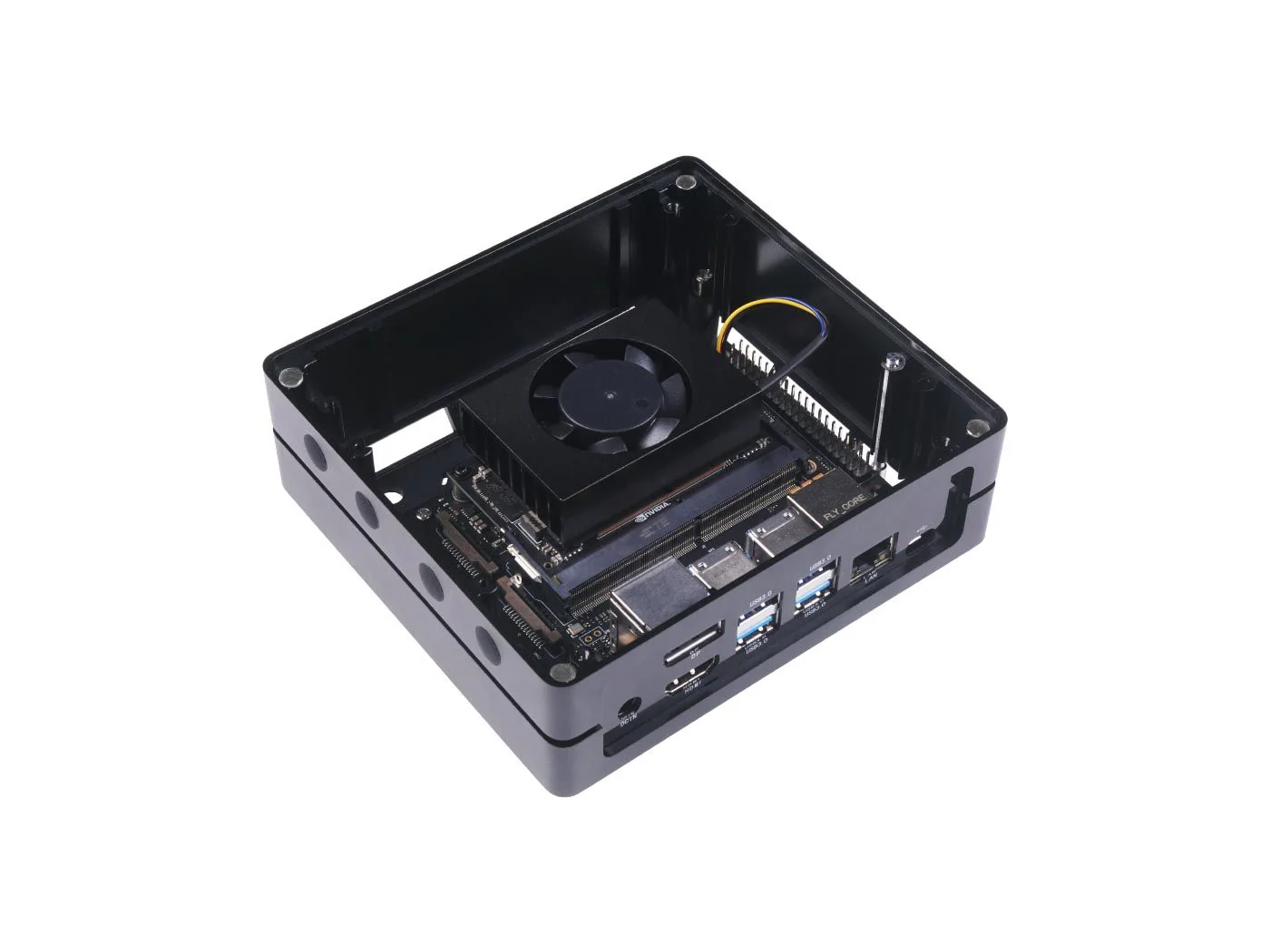

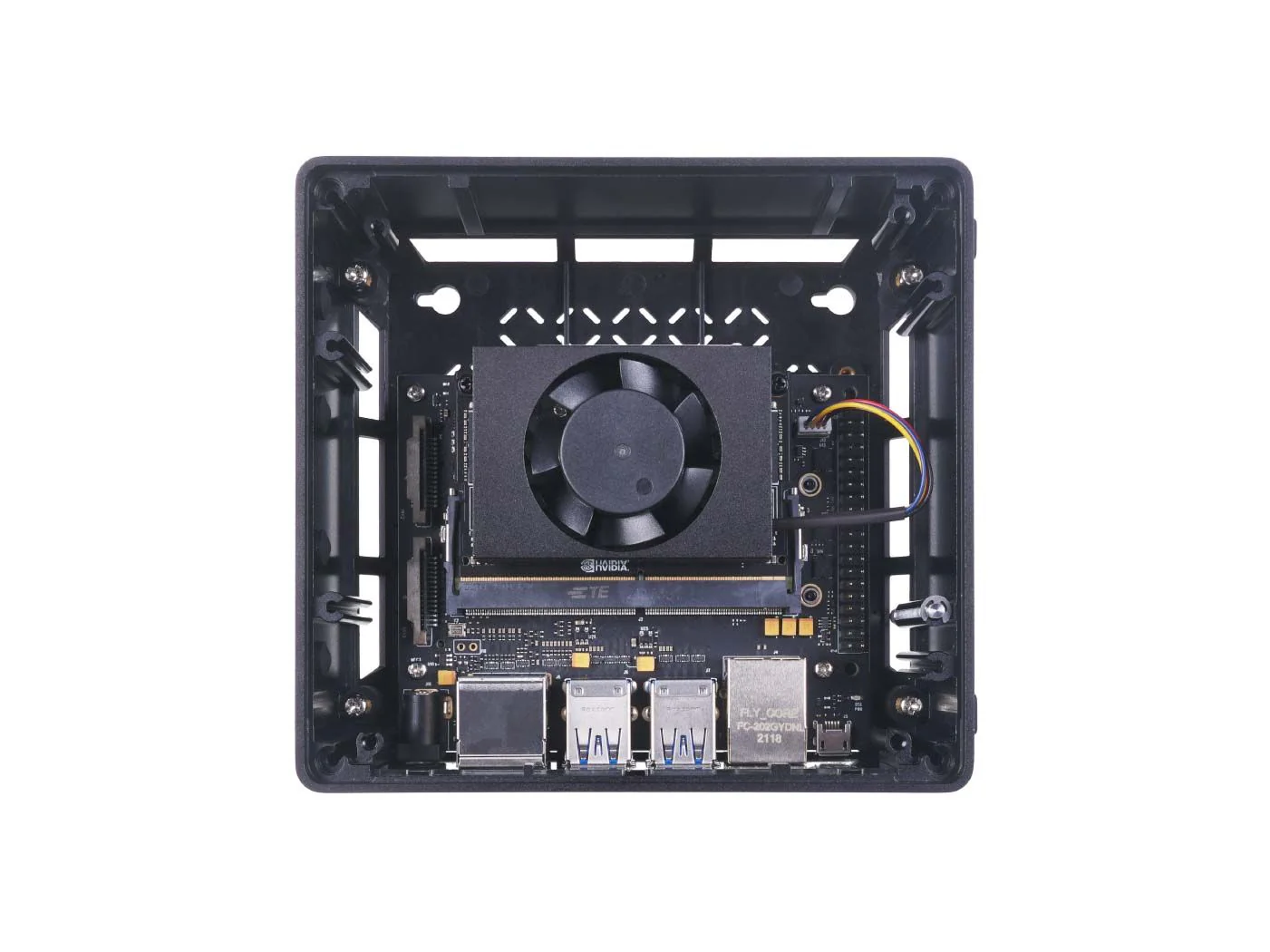

Hardware Overview
Parts List (Assembled)
| Item | Quantity |
| reComputer J202 – Carrier Board for Jetson Nano and Xavier NX with 4 × USB 3.1, M.2 Key | 1 |
| Nvidia Jetson Xavier NX SOM (8GB / 16GB) | 1 |
| Official Jetson Xavier NX Heatsink with Fan | 1 |
| 12V / 5A 60W Power Adapter | 1 |
| re_computer Case – Compatible Enclosure for Popular SBCs | 1 |
