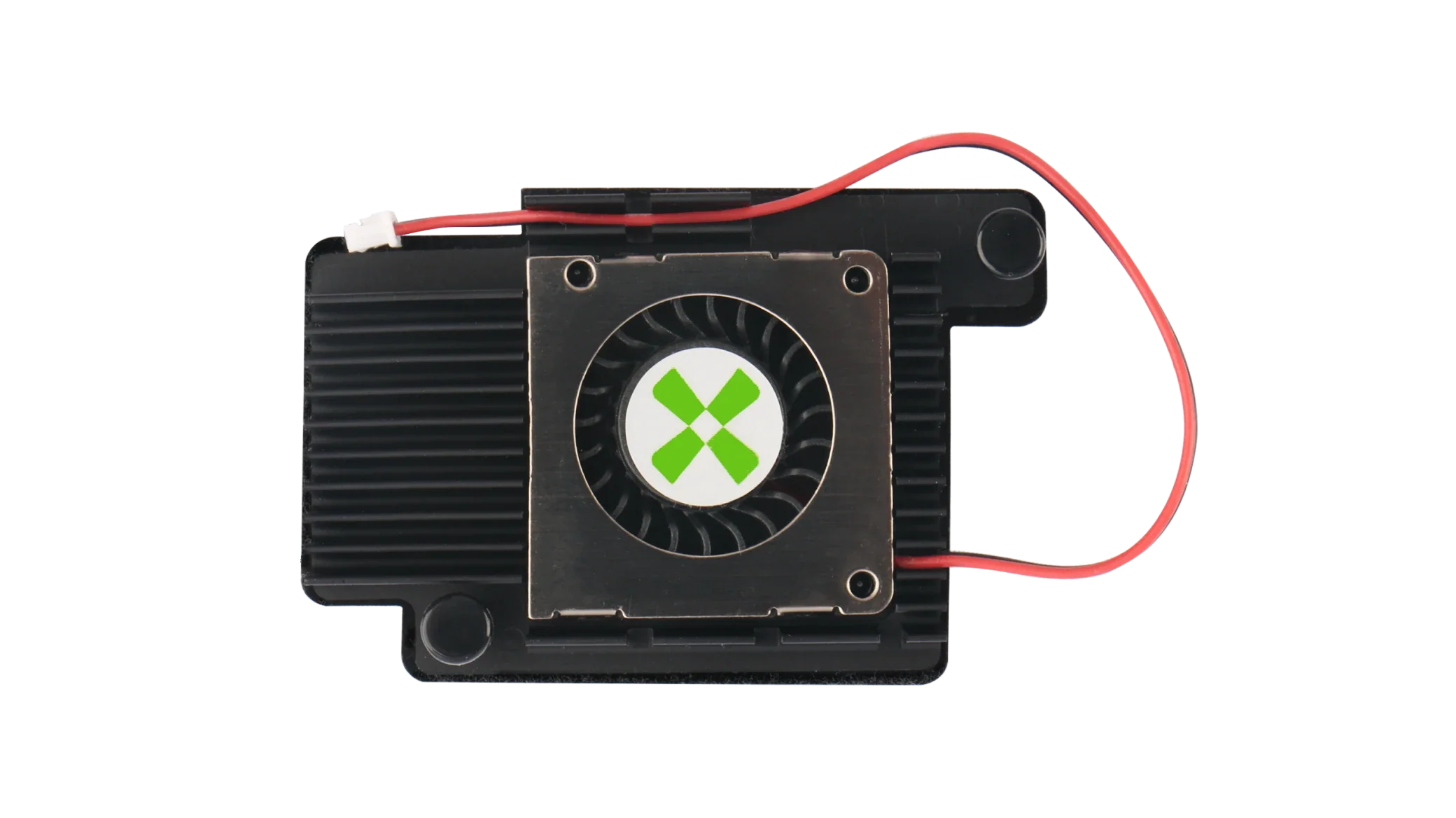

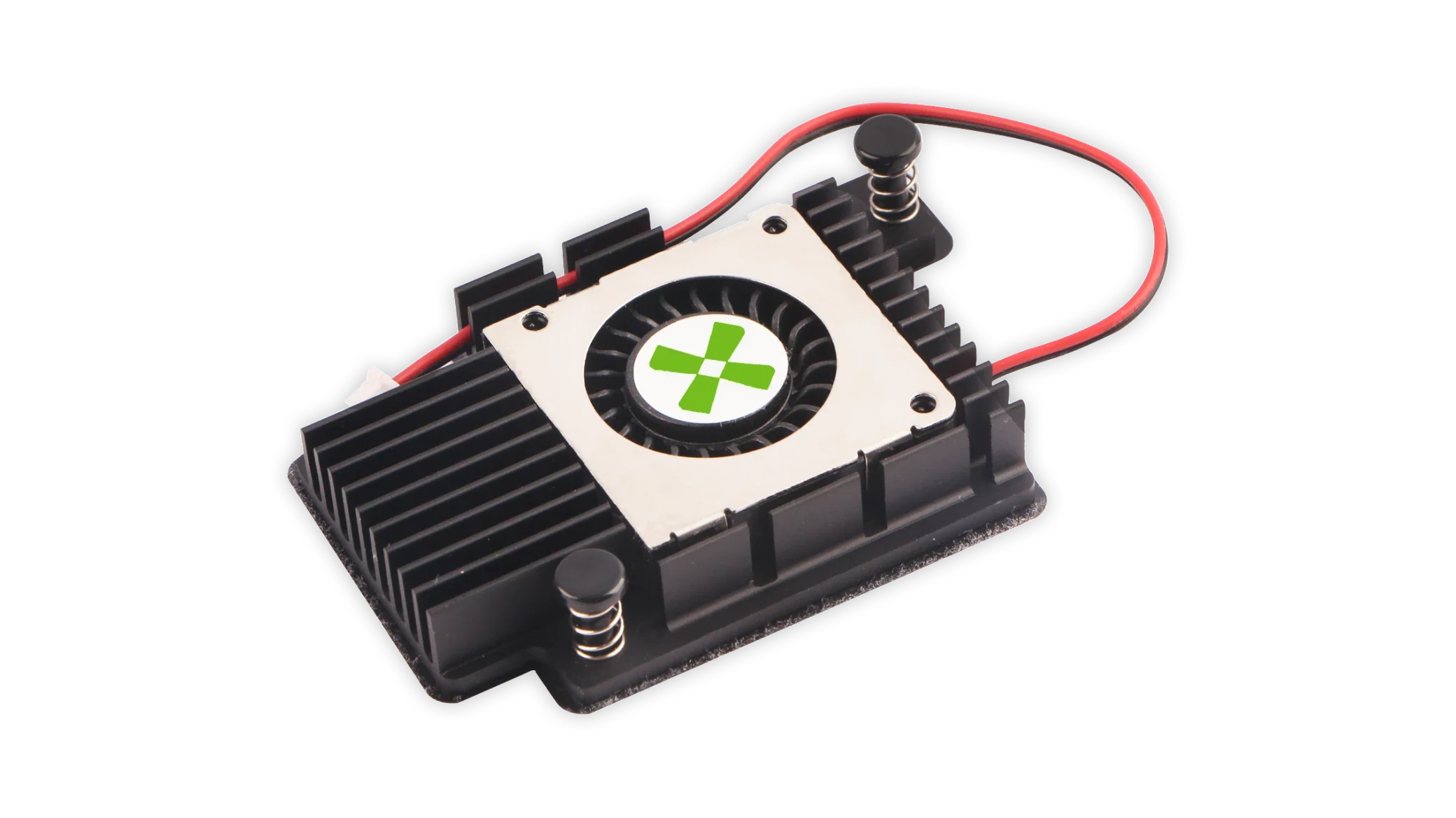

Radxa Heatsink 6540B - Specialized for Radxa ROCK 5C

Heatsink 6540B

Specialized for Radxa ROCK 5C

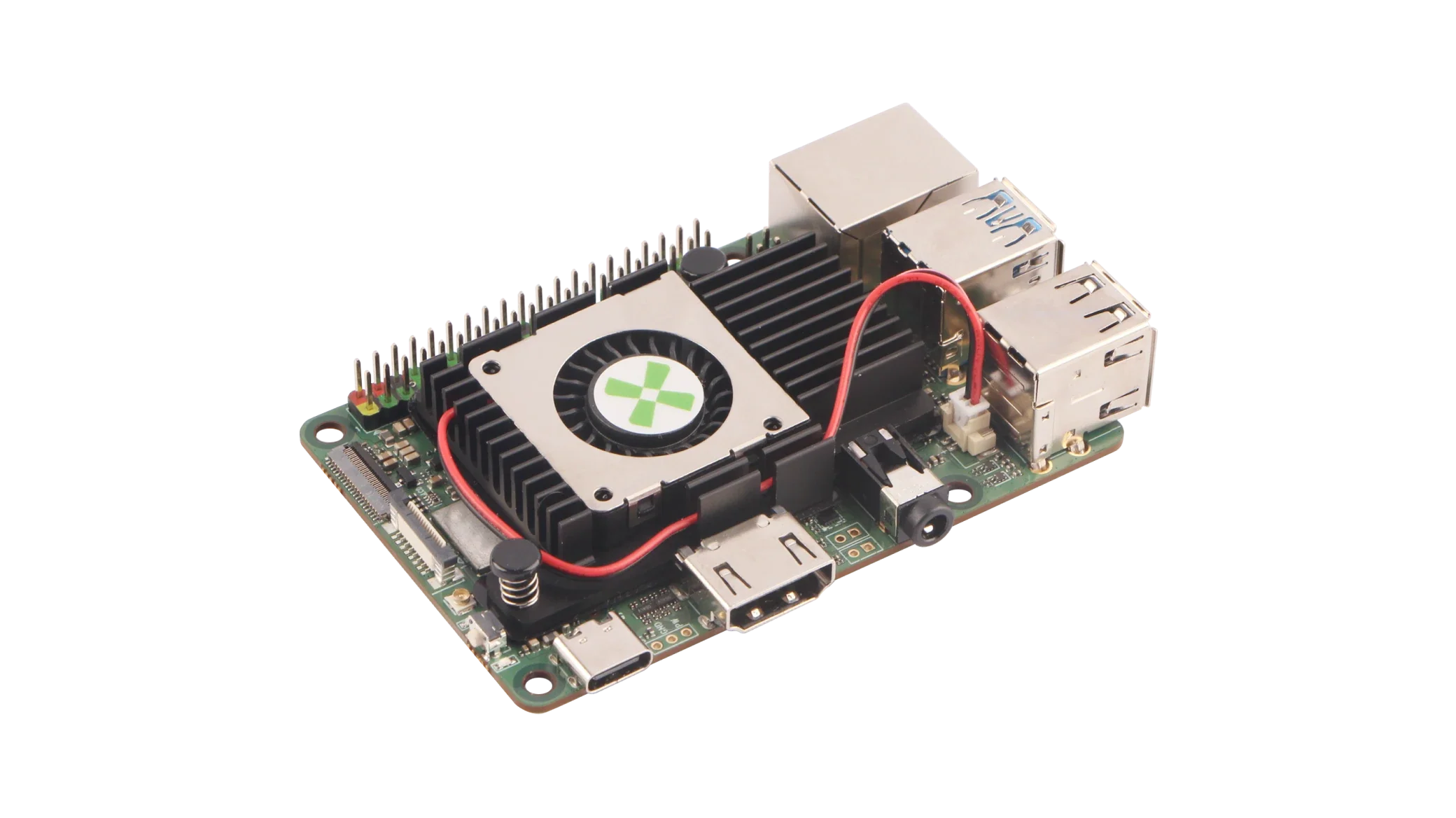

The Heatsink 6540B is a high-performance aluminum cooling solution designed specifically for the Radxa ROCK 5C single-board computer. Engineered for optimal heat dissipation, it ensures stable operation and extended lifespan of the board even under heavy workloads. With a compact form factor and easy installation, it fits seamlessly onto the ROCK 5C without obstructing ports or connectors. Ideal for development, edge computing, and thermal-critical applications.



Heatsink Specialized for Radxa ROCK 5C







Version Upgrade

Heatsink 6540B has been optimized and upgraded. Currently, it can realize the combined use of ROCK 5C with Heatsink 6540B and Penta SATA HAT.

The V2.0 version has optimized the product and removed the heatsink fins
with interference problems in the V1.0 version.





Highest RATED SPEED up to 7000 RPM

SPEED up to 7000 RPM

Aluminum Heat Sink







Specifications

Parameter	Specification
Compatibility	Radxa ROCK 5C
Material	Aluminum
Dimension	65 x 40 x 10 mm
Speed	7000rpm ± 10%
Connector	2-Pin 1.25mm Pitch Connector
Input Voltage	5V DC
Package List	Heatsink 6540B, Thermally Conductive Paste





Download

Product Information

3D Drawings - Radxa Heatsink for 5C

Download >>





Heatsink 6540B Works with

> Radxa ROCK 5C
