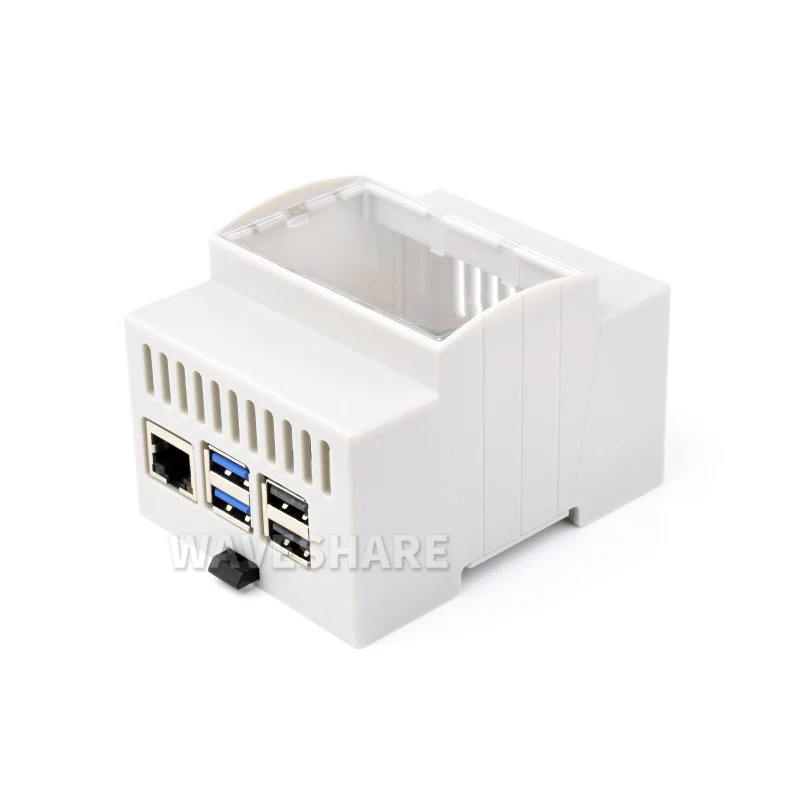

DIN rail ABS Case for Raspberry Pi 5
DIN Rail ABS Case For Raspberry Pi 5
DIN Rail Mount Support, ABS Material, Clear Top Window, Large Inner Space

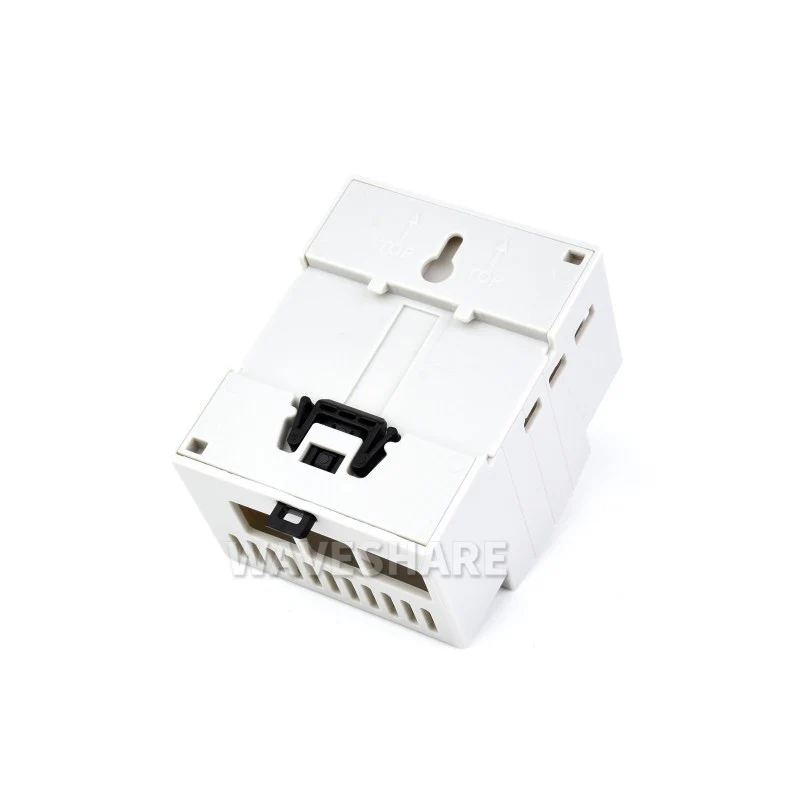

DIN Rail Mount Support
Injection Moduling ABS Body With Rail Mount Support, Easy-To-Use

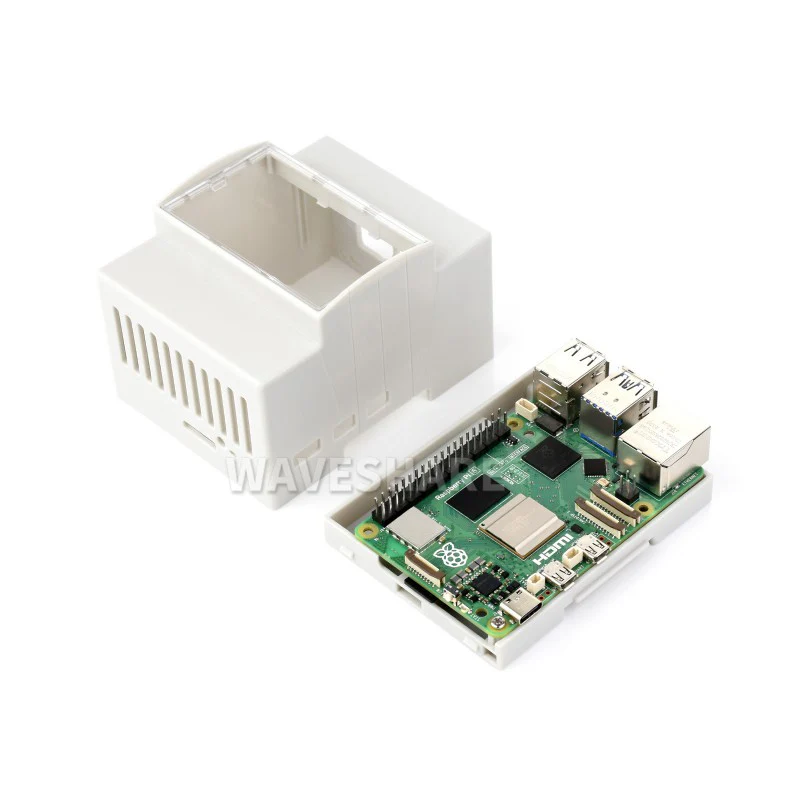

* for reference only, Raspberry Pi 5 and RS485 TO ETH (B) are NOT included.
Ingenious Opening Design
Compatible With Various Raspberry Pi HATs
The Large Inner Space Allows Accommodating An Extra Add-On
PoE HAT (F) |
RS485 CAN HAT |
2-CH RS485 HAT |
Outline Dimensions
How To Install
1. press the rail lock by forefinger, then push it out by thumb as the picture shown |
2. remove the bottom panel from the main part |
3. fix the Raspberry Pi onto the bottom panel by screws |
4. put on the bottom panel, aligning it with the buckle and USB connectors |
5. snap another side |
6. insert the rail lock (note the different sides, don't be upside down) |
Package Contents:
Weight: 0.108 kg
PI5-CASE-DIN-RAIL-B (with screw 2PCS) x1
