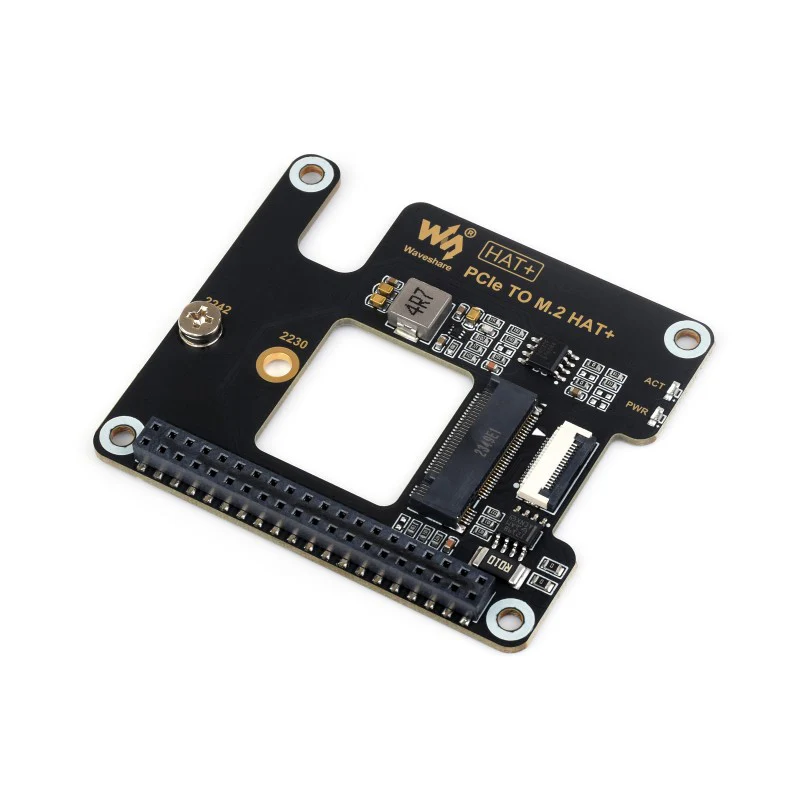

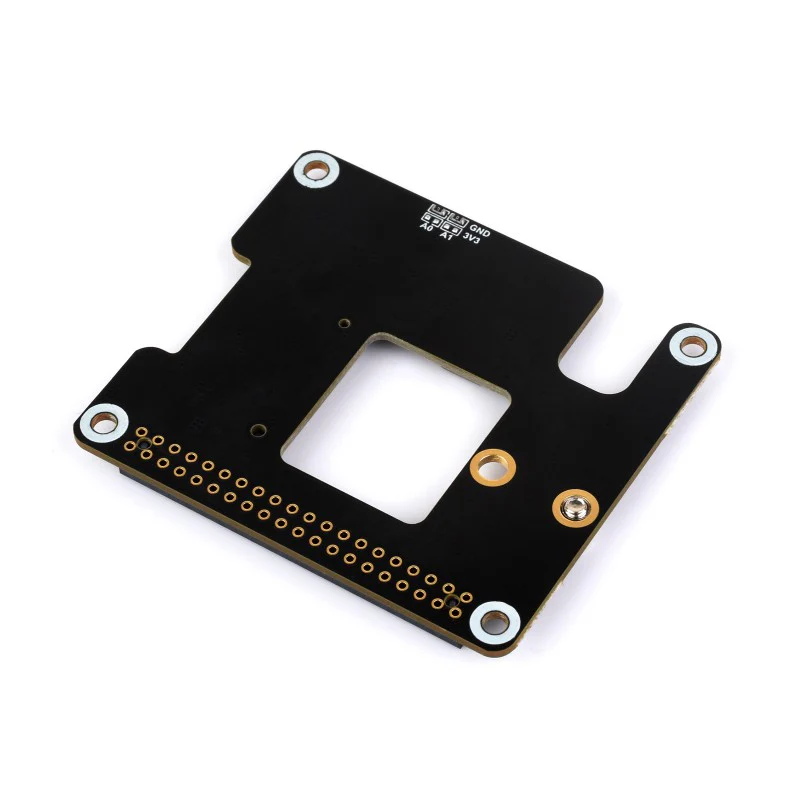

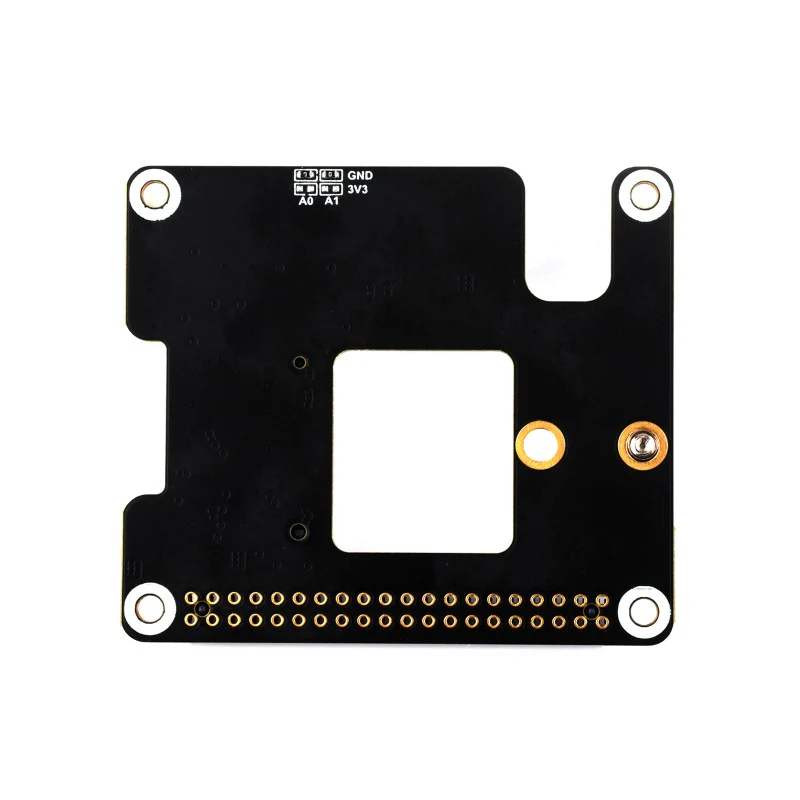

PCIe To M.2 Adapter for Raspberry Pi 5
PCIe To M.2 Adapter For Raspberry Pi 5
Designed for Raspberry Pi 5
Adapter For NVMe Protocol M.2 Solid State Drive, High-Speed Reading/Writing
Connecting To PI5 Via 16PIN Cable
Based On 16PIN PCIe Interface Of Raspberry Pi 5
* for reference only, please refer to the Package Content for detailed part list
NVMe Drive Protocol Support

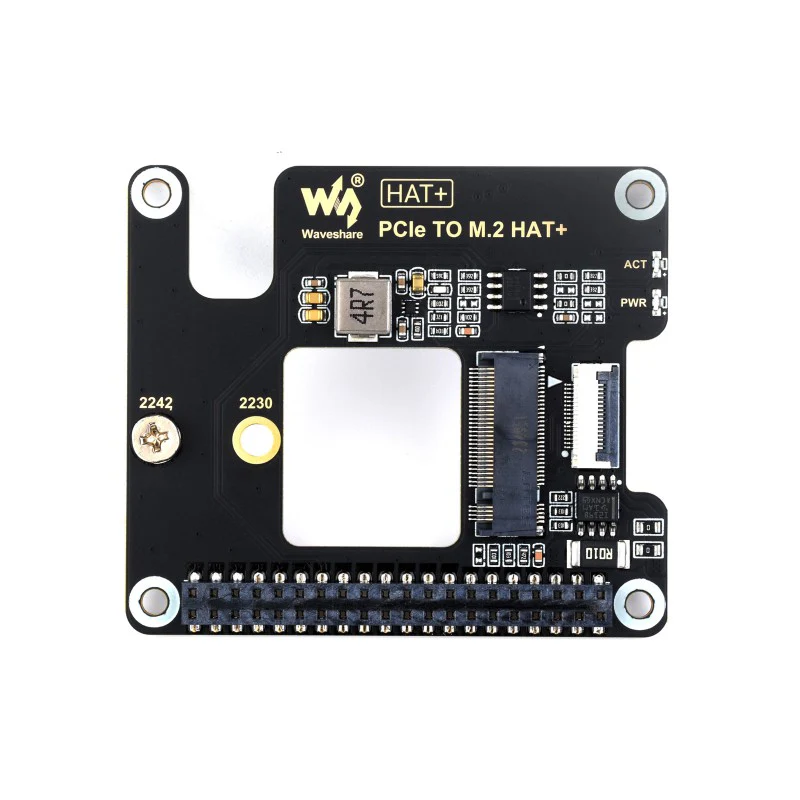

Compatible With 2230/2242 Size M.2 Solid State Drive
Supports Gen2 And Gen3 Modes, Supports Booting PI5 From Solid State Drive
Onboard Dual LED Indicators
Easy To Monitor The Working Status
Onboard Power Monitoring Chip And EEPROM
Real-Time Monitoring Of Solid State Drive Power Status For More Stable Operation
Reserved Airflow Vent For Cooling Fan
Better Cooling Effect For Pi5 And Solid State Drive
* for reference only, the Raspberry Pi 5, cooling fan and Solid State Drive are not included

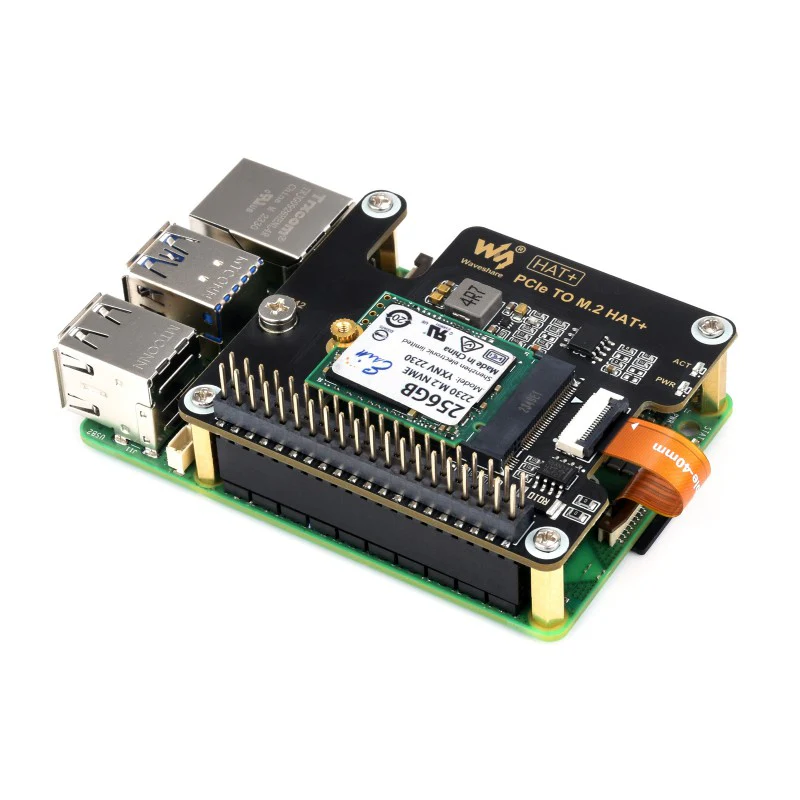

How To Install
* for reference only, please refer to the Package Content for detailed part list
Outline Dimensions
Resources
Wiki: www.waveshare.com/wiki/PCIe_TO_M.2_HAT+
Packing List
Weight: 0.022 kg
- PCIe TO M.2 HAT+ x1
- 2*20 Pin header x1
- 16P-Cable-40mm x1
- Standoff pack x1
