PCIe To 4-Ch USB3.2 For Raspberry Pi 5

PCIe To 4-Ch USB3.2 For Raspberry Pi 5

PCIe TO USB 3.2 Gen1 Board (C)

Designed for Raspberry Pi 5
Supports Raspberry Pi OS, Driver-free, Plug and Play

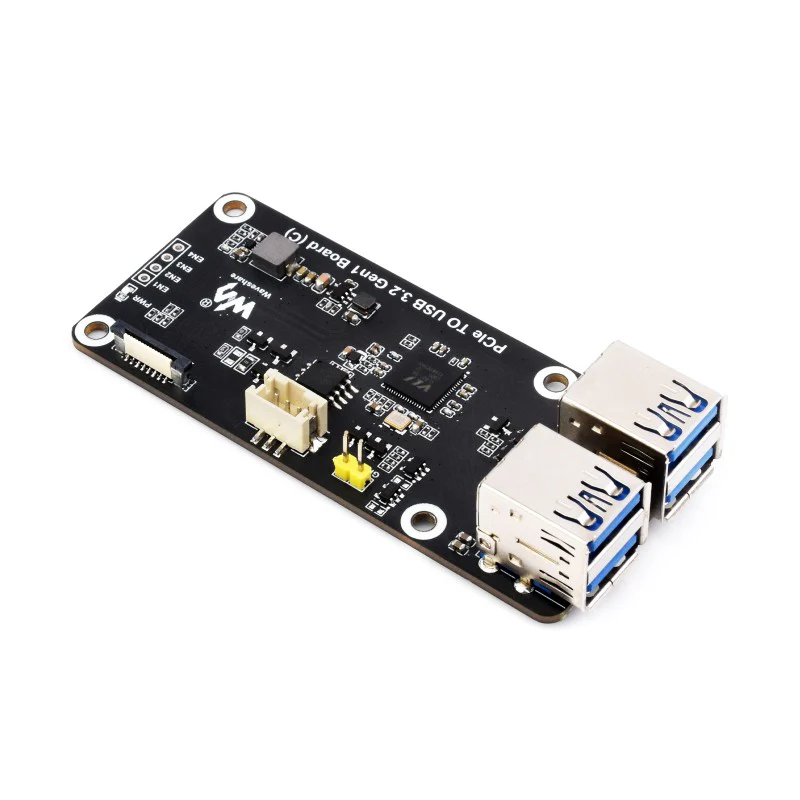

PCIe to 4-ch USB3.2 Gen1 Board (C), front view



Connecting to PI5 via 16PIN Cable

PCIe to 4-ch USB3.2 Gen1 Board (C), connecting to PI5



Specifications

Interface standard High-speed USB 3.2 Gen1
Communication rate 5Gbps for single USB port
total 5Gbps for 4-ch USB ports
USB output 5V@Imax: 2A; USB-A connector
Power supply 5V DC power supply header/connector
operating temperature 0℃ ~ 75℃



5Gbps Ultra-fast Transmission

Extending 4x USB 3.2 Gen1 Ports, up to 500MB/s transmission speed theoretically. Enjoy stable and high-speed file transmission

PCIe to 4-ch USB3.2 Gen1 Board (C) up to 500MB/s transmission speed



Enabling up to 8-ch USB ports for the Raspberry Pi 5

PCIe to 4-ch USB 3.2 Gen 1 High-speed ports For Connecting More Peripherals

PCIe to 4-ch USB3.2 Gen1 Board (C), supports connecting to various USB devices

* the Raspberry Pi 5 is NOT included, please refer to the Package Content for detailed part list



4-ch power supply independent control

Allows controlling the power ON/OFF of each USB port via commands

PCIe to 4-ch USB3.2 Gen1 Board (C), allows controlling the power ON/OFF of each USB port via commands



Two Power Supply Methods

Supports Power Supply Via 2PIN header Or 3PIN connector

PCIe to 4-ch USB3.2 Gen1 Board (C), supports two power supply methods



Comes with Transparent acrylic
mounting plate

Adopts side-mounting solution to save space above the Raspberry Pi 5
Connecting to PI5 via 16PIN Cable

PCIe to 4-ch USB3.2 Gen1 Board (C), adopts side-mounting solution

* for reference only, please refer to the Package Content for detailed part list



Acrylic mounting bottom plate,
Stable and not easy to loosen

PCIe to 4-ch USB3.2 Gen1 Board (C), with Acrylic mounting bottom plate



Outline Dimensions

PCIe to 4-ch USB3.2 Gen1 Board (C), outline dimensions



Resources

Wiki: www.waveshare.com/wiki/PCIe_TO_USB_3.2_Gen1_Board_(C)



Package Contains:

Weight: 0.065 kg

  1. PCIe TO USB 3.2 Gen1 Board (C) x1
  2. Transparent acrylic mounting plate x1
  3. 16PIN PCIe cable x1
  4. PH2.0 3PIN cable x1
  5. Standoff pack x1
