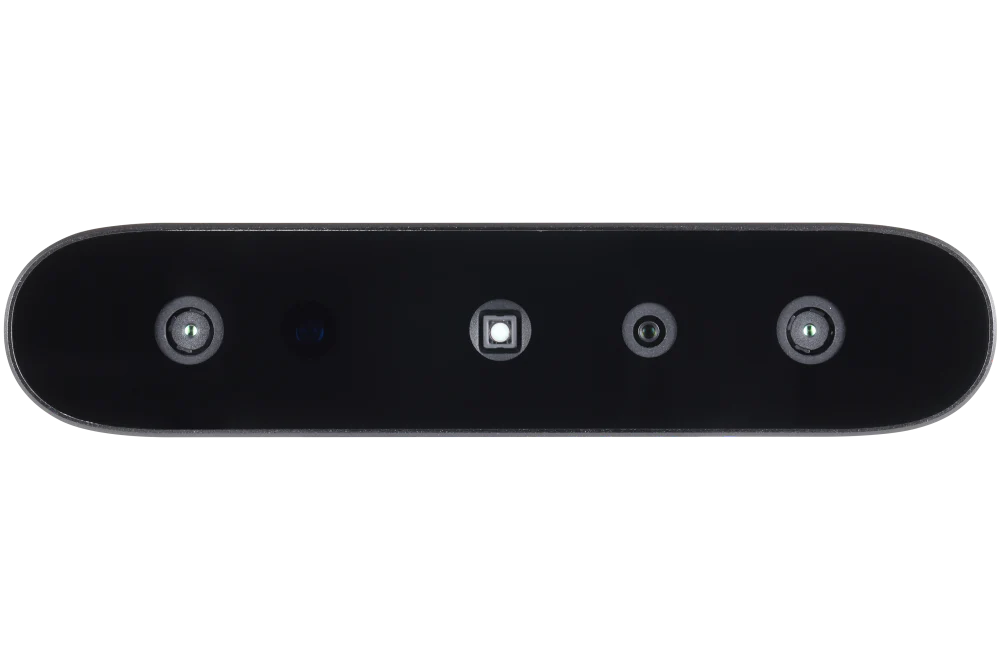

Orbbec GEMINI 215
Gemini 215
Gemini 215, a new addition to Orbbec’s stereo vision Gemini series, is specifically designed for high-precision short-range detailed 3D scanning applications such as body part and object scanning. Powered by Orbbec’s custom ASIC MX6600 and a high-performance optical system, the Gemini 215 excels in short-range indoor scanning, delivering accurate and real-time depth images with fine details.
Supported by the open-source Orbbec SDK, it is easy to develop on platforms such as Windows and Ubuntu, enabling fast, flexible and scalable project implementation.
APPLICATIONS
Body Part Scanning
Ideal for close-range 3D scanning and modeling of specific human body parts, such as the face, feet, hand and head. Provides high-precision depth and point cloud data to ensure detailed and accurate 3D model reconstruction.
Object Scanning
Captures high-precision depth data for objects such as artistic sculpture, enabling accurate modeling and creative applications.
Excellent Accuracy
Captures depth data with ≤0.5mm precision at 300mm and it achieves a minimum point cloud resolution of 0.16mm, delivering highly detailed and accurate 3D scans.
Real-time Depth Processing
Up to 30fps capture rate ensures smooth, real-time data acquisition, enabling fast and accurate 3D modeling without motion blur or lag.
On-chip Depth Processing
Reduced latency and enhanced responsiveness while eliminating the need for external computing power.
Class 1 Laser, Safe for Eyes
Scans without sensation, ensuring risk-free safety.
Compact Design, Easy Integration
Dimensions 120mm x 26mm x 30mm with a 75mm baseline.
GEMINI 215 SPECIFICATIONS
Camera Specifications - Model G20000-150 |
|
|---|---|
| Specification | Value |
| Depth Technology | Active Stereo |
| Wavelength | 850nm |
| Depth Range | 0.15 - 0.70m (Ideal Range 0.25 - 0.5m) Close-up Precision Mode (0.15m - 0.30m) Extended Distance Mode (0.20m -0.70m) |
| Depth Resolution/FPS | Up to 1280 × 800 @ 30fps |
| Depth FOV | H60.7° x V43.6° @ 0.7m |
| RGB Resolutions/FPS | Up to 1920 × 1080 @ 30fps |
| RGB FOV | H74.7° x V46.2° ± 3° |
| Processing | Orbbec ASIC |
| Capture Rate | Up to 30fps |
| Capture Zone | Closest Range: H201 x V125mm Furthest Range: H942 x V584mm |
| Spatial Precision | < 0.5 mm (1280 X 800 @ 300mm) < 1.5 mm (1280 X 800 @ 600mm) |
| Minimum Point Distance/Resolution | 0.16mm |
Physical Parameters - Model G20000-150 |
|
|---|---|
| Parameter | Value |
| Depth Filter | IR-Pass |
| IMU Support | Yes |
| Data Connection | USB 3.0 & USB 2.0 |
| Power Input | USB Type C |
| Sync Function Trigger | Support |
| Power Consumption | Average < 2.5W; Max < 7.0W |
| Operating Environment | 0℃~40℃; Indoor; 5%-95%RH (non-condensing) |
| SDK Support | Orbbec SDK |
| Data Output | Point Cloud, Depth, IR & RGB |
| Dimensions (W*H*D) | 120 mm x 26 mm x 30 mm |
| Weight | 105g ± 3g |

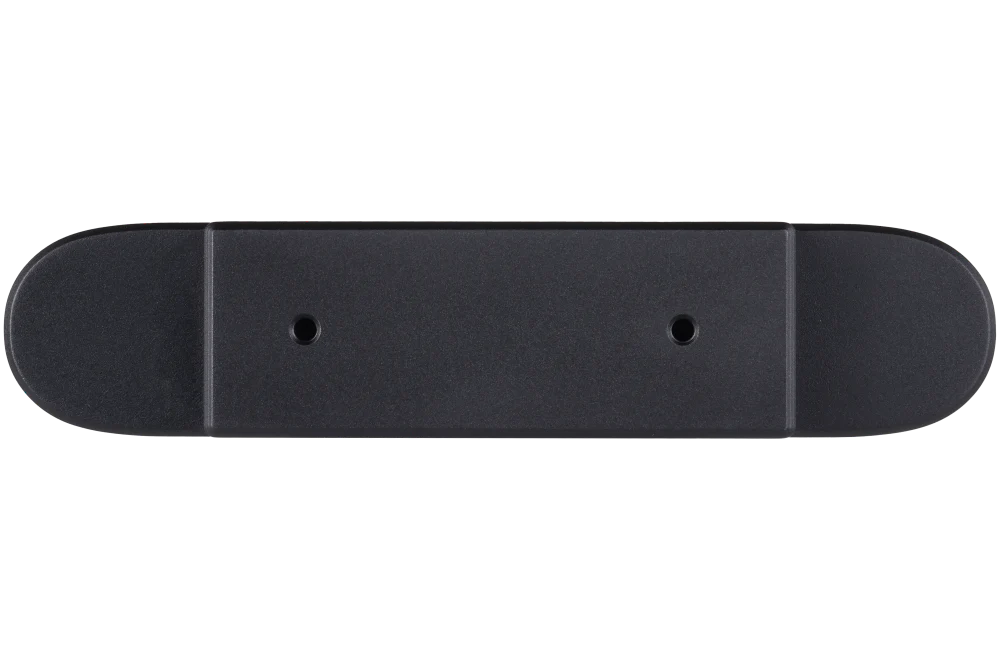

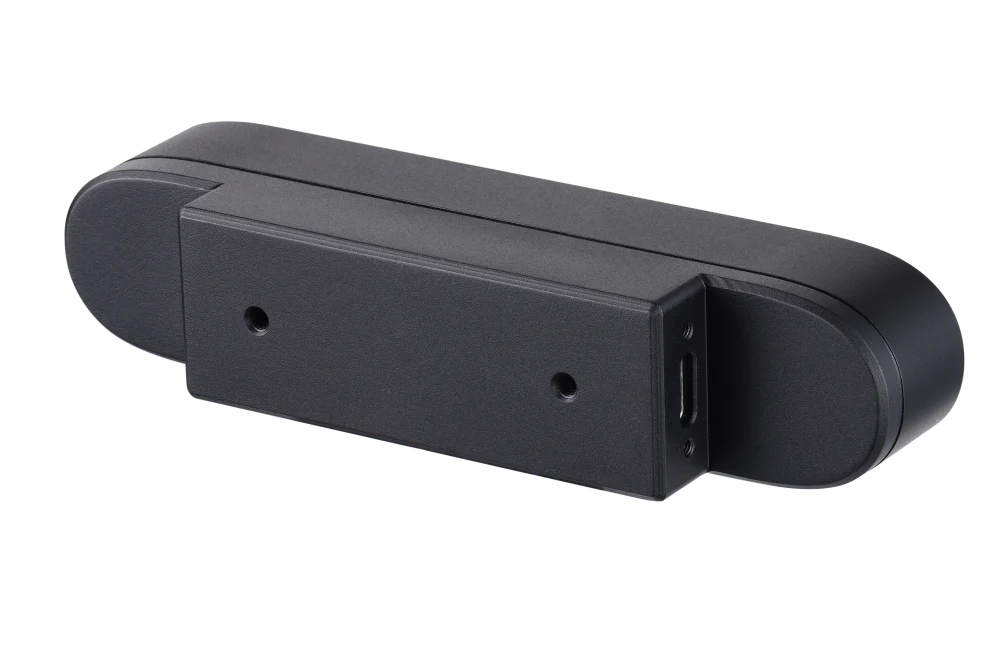

| Installation | Bottom: 1 x 1/4-20 UNC Back: 2 x M3 |
DOWNLOAD
Documents
| Gemini 210 Series Datasheet Version 1.2 | Download >> |
| Product Quick Start Gemini_215 | Download >> |
| Orbbec Gemini 210 Series Documentation | Download >> |
| SDK | Download >> |
Original: $314.84
-70%$314.84
$94.45
Description
Gemini 215
Gemini 215, a new addition to Orbbec’s stereo vision Gemini series, is specifically designed for high-precision short-range detailed 3D scanning applications such as body part and object scanning. Powered by Orbbec’s custom ASIC MX6600 and a high-performance optical system, the Gemini 215 excels in short-range indoor scanning, delivering accurate and real-time depth images with fine details.
Supported by the open-source Orbbec SDK, it is easy to develop on platforms such as Windows and Ubuntu, enabling fast, flexible and scalable project implementation.
APPLICATIONS
Body Part Scanning
Ideal for close-range 3D scanning and modeling of specific human body parts, such as the face, feet, hand and head. Provides high-precision depth and point cloud data to ensure detailed and accurate 3D model reconstruction.
Object Scanning
Captures high-precision depth data for objects such as artistic sculpture, enabling accurate modeling and creative applications.
Excellent Accuracy
Captures depth data with ≤0.5mm precision at 300mm and it achieves a minimum point cloud resolution of 0.16mm, delivering highly detailed and accurate 3D scans.
Real-time Depth Processing
Up to 30fps capture rate ensures smooth, real-time data acquisition, enabling fast and accurate 3D modeling without motion blur or lag.
On-chip Depth Processing
Reduced latency and enhanced responsiveness while eliminating the need for external computing power.
Class 1 Laser, Safe for Eyes
Scans without sensation, ensuring risk-free safety.
Compact Design, Easy Integration
Dimensions 120mm x 26mm x 30mm with a 75mm baseline.
GEMINI 215 SPECIFICATIONS
Camera Specifications - Model G20000-150 |
|
|---|---|
| Specification | Value |
| Depth Technology | Active Stereo |
| Wavelength | 850nm |
| Depth Range | 0.15 - 0.70m (Ideal Range 0.25 - 0.5m) Close-up Precision Mode (0.15m - 0.30m) Extended Distance Mode (0.20m -0.70m) |
| Depth Resolution/FPS | Up to 1280 × 800 @ 30fps |
| Depth FOV | H60.7° x V43.6° @ 0.7m |
| RGB Resolutions/FPS | Up to 1920 × 1080 @ 30fps |
| RGB FOV | H74.7° x V46.2° ± 3° |
| Processing | Orbbec ASIC |
| Capture Rate | Up to 30fps |
| Capture Zone | Closest Range: H201 x V125mm Furthest Range: H942 x V584mm |
| Spatial Precision | < 0.5 mm (1280 X 800 @ 300mm) < 1.5 mm (1280 X 800 @ 600mm) |
| Minimum Point Distance/Resolution | 0.16mm |
Physical Parameters - Model G20000-150 |
|
|---|---|
| Parameter | Value |
| Depth Filter | IR-Pass |
| IMU Support | Yes |
| Data Connection | USB 3.0 & USB 2.0 |
| Power Input | USB Type C |
| Sync Function Trigger | Support |
| Power Consumption | Average < 2.5W; Max < 7.0W |
| Operating Environment | 0℃~40℃; Indoor; 5%-95%RH (non-condensing) |
| SDK Support | Orbbec SDK |
| Data Output | Point Cloud, Depth, IR & RGB |
| Dimensions (W*H*D) | 120 mm x 26 mm x 30 mm |
| Weight | 105g ± 3g |
| Installation | Bottom: 1 x 1/4-20 UNC Back: 2 x M3 |
DOWNLOAD
Documents
| Gemini 210 Series Datasheet Version 1.2 | Download >> |
| Product Quick Start Gemini_215 | Download >> |
| Orbbec Gemini 210 Series Documentation | Download >> |
| SDK | Download >> |
