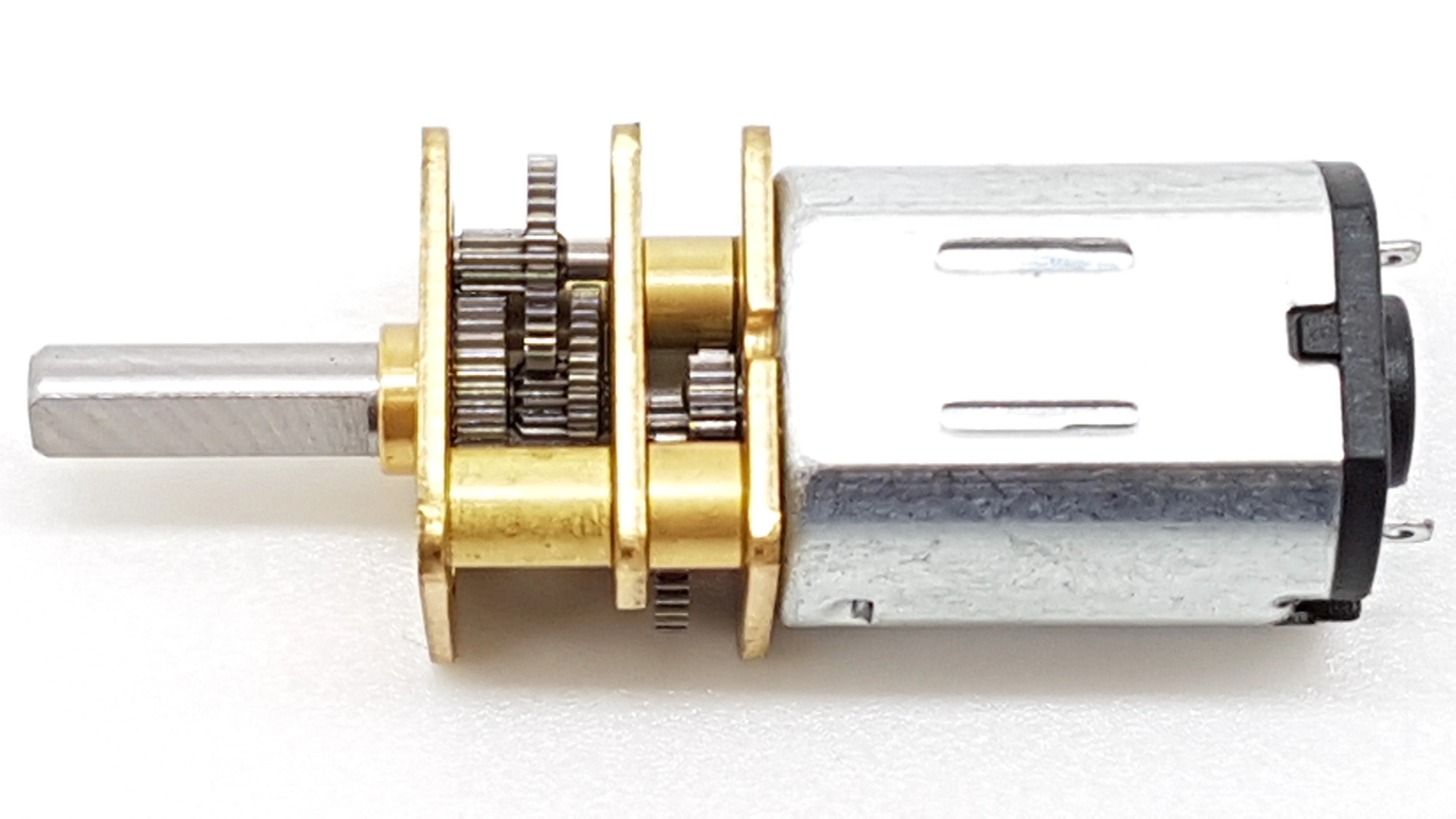

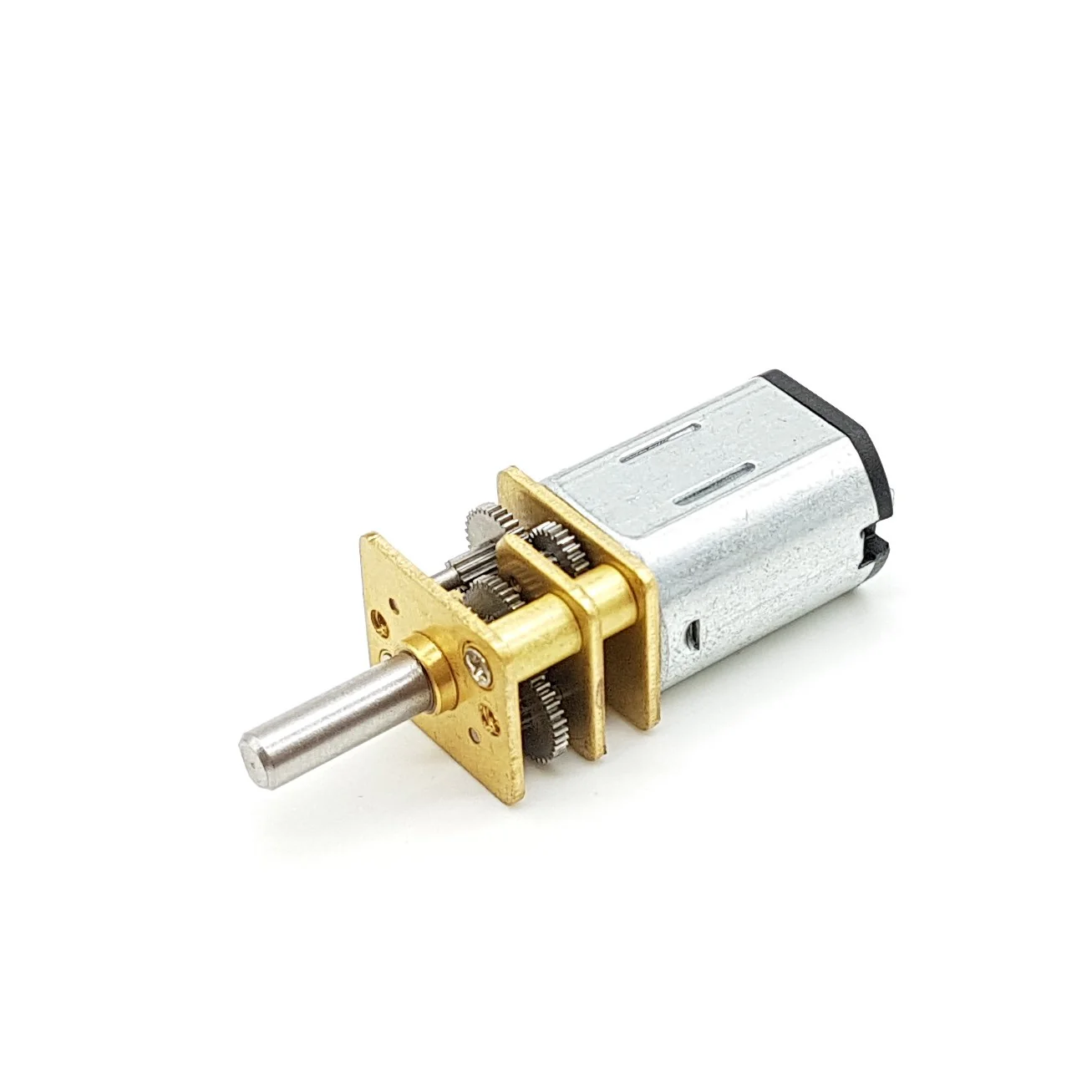

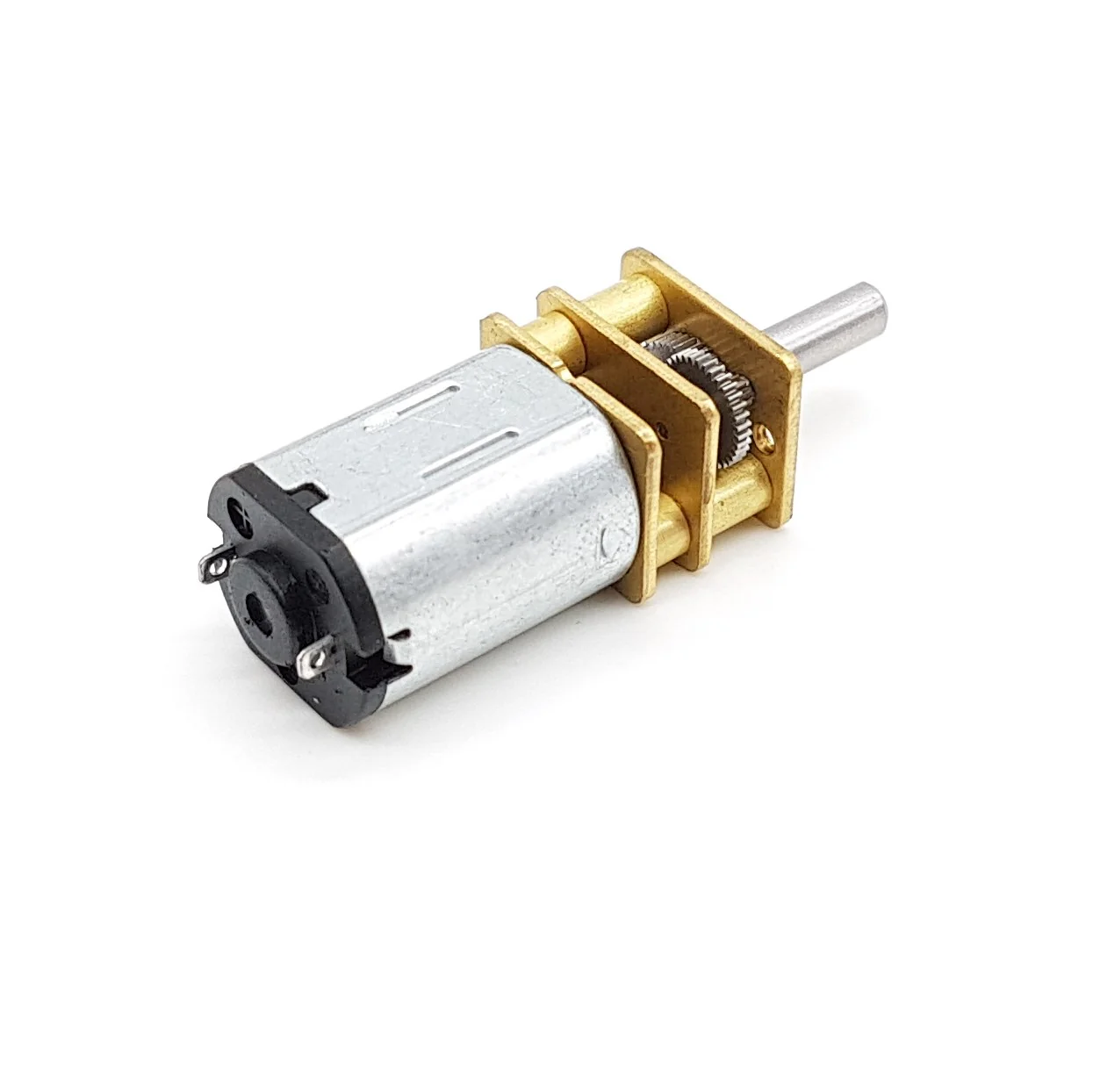

12mm N20 6V/12V Geared DC Motors

With a cross section measuring only 10 × 12 mm (0.39″ × 0.47″), these small brushed DC gearmotors are available in a wide range of gear ratios—from 5:1 up to 1000:1—and with five different motors: high-power 6 V and 12 V motors with long-life carbon brushes (HPCB), and high-power (HP), medium power (MP), and low power (LP) 6 V motors with shorter-life precious metal brushes. With the exception of the 1000:1 gear ratio versions, all of the micro metal gearmotors have the same physical dimensions (though the terminal size and separation on the HPCB versions differ slightly from the other versions), so it is generally easy to swap one version for another if your design requirements change.

• Stall Current: 0.55A (6V)
• No-Load Current: <0.06A (6V)
• At Load Current: 0.17A (6V)
• Shaft Diameter: 3 mm

Specifications

Variant	Reduction Ratio	Load Speed (RPM)	Max. Efficiency(Torque, Kg-cm)	Stall Torque (Kg-cm)	Gear Box Length
39 RPM	380	32	1.5	7.5	9
50 RPM	298	40	1.1	5.5	9
71 RPM	210	56	0.8	4	9
100 RPM	150	80	0.55	2.75	9
150 RPM	100	120	0.35	1.75	9
300 RPM	50	225	0.14	0.7	9
