DIY Ball Bearings (Pack of 2)

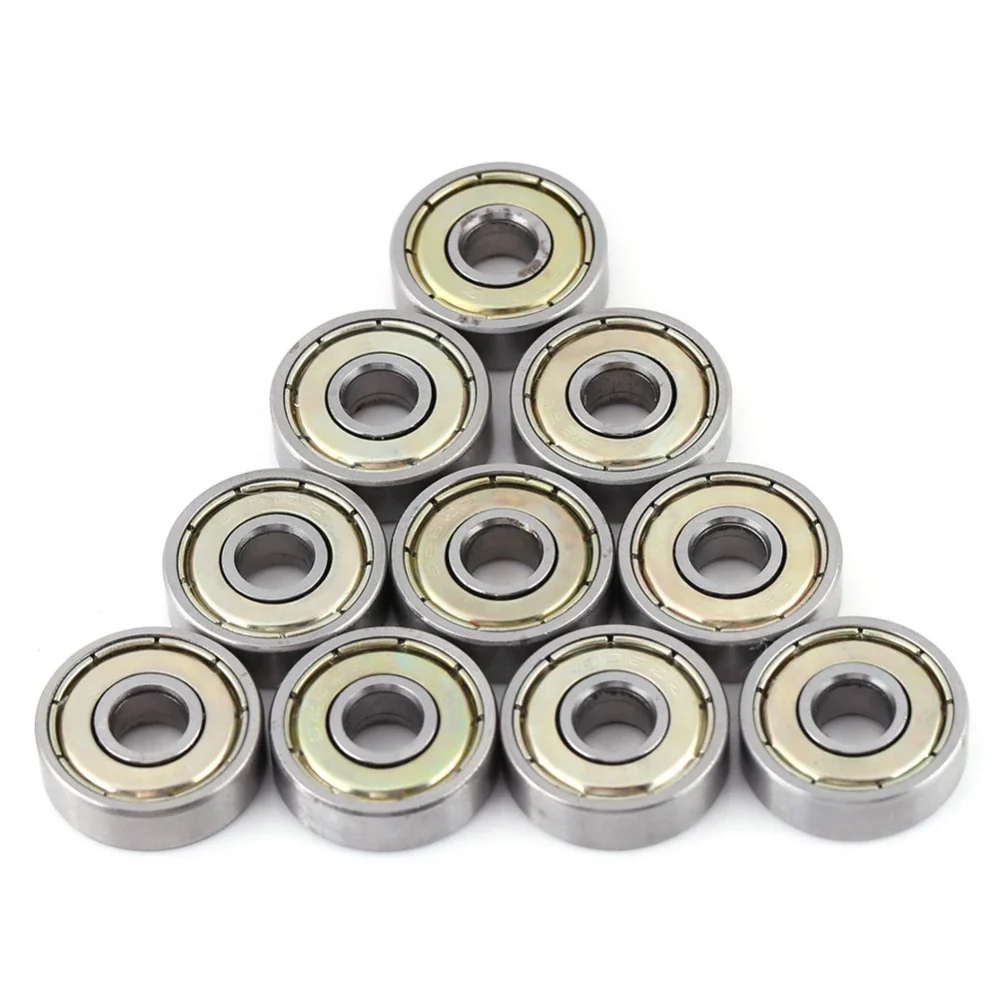

We offer a wide range of miniature precision bearings — 608ZZ, 623ZZ, 624ZZ, 626ZZ, 635ZZ, and 688ZZ — ideal for 3D printers, robotics, tools, and compact mechanisms. These miniature bearings offer low friction, high speed, and long life, making them perfect for high-accuracy, small-scale applications.

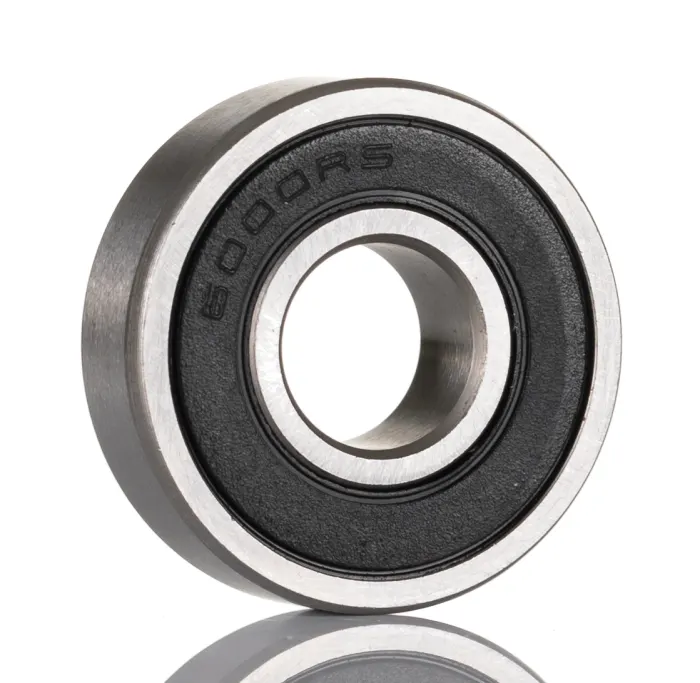

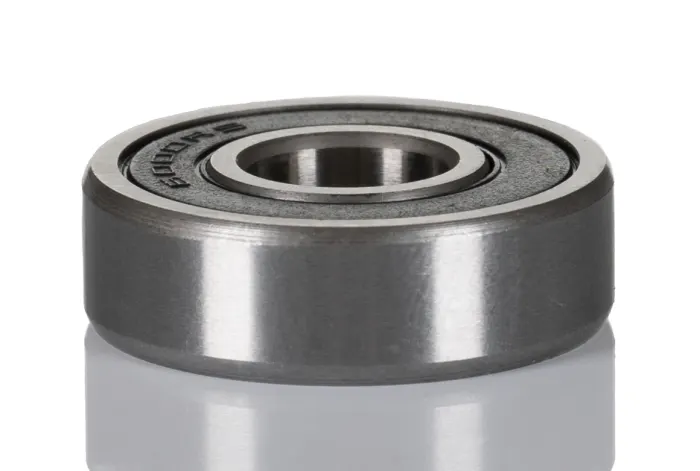

We also offer the 6000-2RS, a durable double-sealed stainless steel bearing (10×26×8 mm) designed for smooth, maintenance-free performance in DIY and industrial applications.
Drawing for 608-ZZ Ball Bearing
Drawing for 623-ZZ Ball Bearing
Drawing for 624-ZZ Ball Bearing
Drawing for 626-ZZ Ball Bearing
Drawing for 635-ZZ Ball Bearing
Drawing for 688-ZZ Ball Bearing
6000-2RS Dimensions
| Property | Specification |
|---|---|
| Bore diameter | 10 mm |
| Outside diameter | 26 mm |
| Width | 8 mm |
| Basic dynamic load rating | 3.97 kN |
| Basic static load rating | 1.96 kN |
| Limiting speed | 19,000 r/min |
| Filling slots | Without |
| Number of rows | 1 |
| Locating feature, bearing outer ring | Without |
| Bore type | Cylindrical |
| Cage | Stamped stainless steel |
| Matched arrangement | No |
| Radial internal clearance | CN |
| Material, bearing | Stainless steel |
| Coating | Without |
| Sealing | Seal on both sides |
| Sealing type | Contact |
| Lubricant | Grease |
| Relubrication feature | Without |
| Indicative carbon footprint for new product | 0.06 kg CO₂e |
Original: $1.06
-70%$1.06
$0.32
Description
We offer a wide range of miniature precision bearings — 608ZZ, 623ZZ, 624ZZ, 626ZZ, 635ZZ, and 688ZZ — ideal for 3D printers, robotics, tools, and compact mechanisms. These miniature bearings offer low friction, high speed, and long life, making them perfect for high-accuracy, small-scale applications.
We also offer the 6000-2RS, a durable double-sealed stainless steel bearing (10×26×8 mm) designed for smooth, maintenance-free performance in DIY and industrial applications.
Drawing for 608-ZZ Ball Bearing
Drawing for 623-ZZ Ball Bearing
Drawing for 624-ZZ Ball Bearing
Drawing for 626-ZZ Ball Bearing
Drawing for 635-ZZ Ball Bearing
Drawing for 688-ZZ Ball Bearing
6000-2RS Dimensions
| Property | Specification |
|---|---|
| Bore diameter | 10 mm |
| Outside diameter | 26 mm |
| Width | 8 mm |
| Basic dynamic load rating | 3.97 kN |
| Basic static load rating | 1.96 kN |
| Limiting speed | 19,000 r/min |
| Filling slots | Without |
| Number of rows | 1 |
| Locating feature, bearing outer ring | Without |
| Bore type | Cylindrical |
| Cage | Stamped stainless steel |
| Matched arrangement | No |
| Radial internal clearance | CN |
| Material, bearing | Stainless steel |
| Coating | Without |
| Sealing | Seal on both sides |
| Sealing type | Contact |
| Lubricant | Grease |
| Relubrication feature | Without |
| Indicative carbon footprint for new product | 0.06 kg CO₂e |
