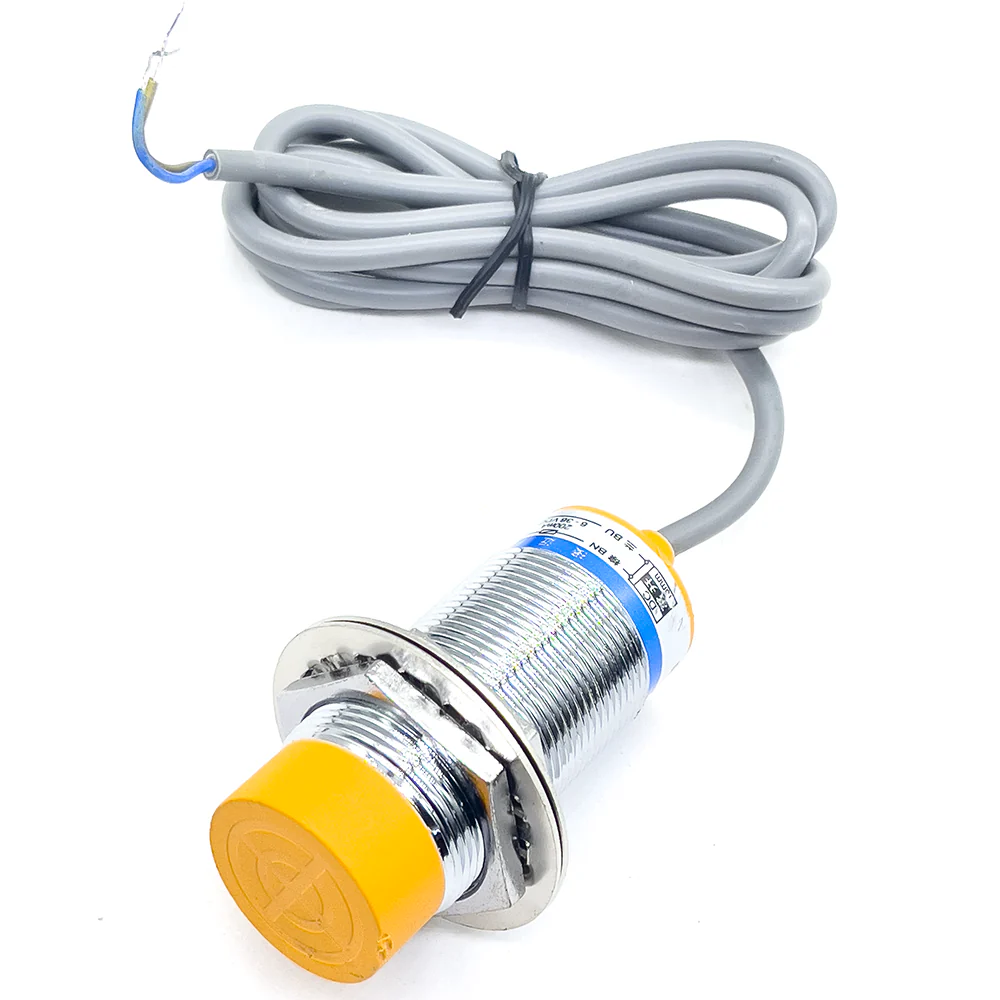

M30 Precision Inductive Proximity Sensor Switch
| Model number | LJ30A3-10-Z/EX (NO - Normally Open) |
| External dimensions | M30x75 |
| Installation type | Shielded |
| Detection distance | 10mm |
| Setting distance | 0-8 mm |
| Supply voltage | 6-36Vdc; 90-250Vac, 50/60Hz |
| Output current | DC type: 300mA max; AC Type: 400mA |
| Standard detected object | Mild steel (18x18x1mm) |
| Sensing object | Magnetic metals (if it is not magnetic metals, the sensing distance would decrease) |
| Response frequency | 500Hz |
| Output indication | Red LED |
| Short-circuit protection | Yes |
| Reverse connection protection | Yes |
| Insulation resistance | 50MΩ min (between charging part and housing) |
| Dielectric strength | 1000Vac, 1min (between charging part and housing) |
| IP Rating | IP67 |
| Operating temperature | -25 to 70 ℃ (13 to 158 ℉) |
| Cable length | 1.2m, PVC cable |
| Material | Case: Brass-nickel plated; Sensing surface: ABS |
| Model number | LJ30A3-15-Z/EX (NO - Normally Open) |
| External dimensions | M30x75 |
| Installation type | Non-shielded |
| Detection distance | 15mm |
| Setting distance | 0-12 mm |
| Supply voltage | 6-36Vdc; 5Vdc; 90-250Vac, 50/60Hz |
| Output current | DC type: 300mA max; AC Type: 400mA |
| Standard detected object | Mild steel (18x18x1mm) |
| Sensing object | Magnetic metals (if it is not magnetic metals, the sensing distance would decrease) |
| Response frequency | 500Hz |
| Output indication | Red LED |
| Short-circuit protection | Yes |
| Reverse connection protection | Yes |
| Insulation resistance | 50MΩ min (between charging part and housing) |
| Dielectric strength | 1000Vac, 1min (between charging part and housing) |
| IP Rating | IP67 |
| Operating temperature | -25 to 70 ℃ (13 to 158 ℉) |
| Cable length | 1.2m, PVC cable |
| Material | Case: Brass-nickel plated; Sensing surface: ABS |
Packaging Details
Package weight: 0.21kg
Package size: 13 x 8 x 9 cm
Product quantity: 1pcs
