LSC-6: Hiwonder 6 CH Bluetooth 4.0 Servo Controller Module

LSC-6: Hiwonder 6 CH Bluetooth 4.0 Servo Controller Module RC Robot Toy for Children

Hiwonder 6 Channel servo controller has built in Bluetooth 4.0 module, which can be used in robotic arm or biped robot. It has over-current protection, as well as support Android phone and PS2 handle control.





Feature

> Built-in power switch, easy to use.

> Built in Bluetooth 4.0 module. Support Android App control.

> Equipped with 6 channel over-current protection, prevent servo from burning out.

> CPU uses high-performance STM32 single chip microcomputer with ARM Cortex-M3 corer.

> 16M high-capacity memory, which is able to hold 230 action groups! Each action group can hold up to 1020 actions!

> Support TTL serial communication, the servo controller can be connected with other single chips which support TTL, other single chips can send instructions to the controller.





12 Product Features



Android Phone APP Operation Interface

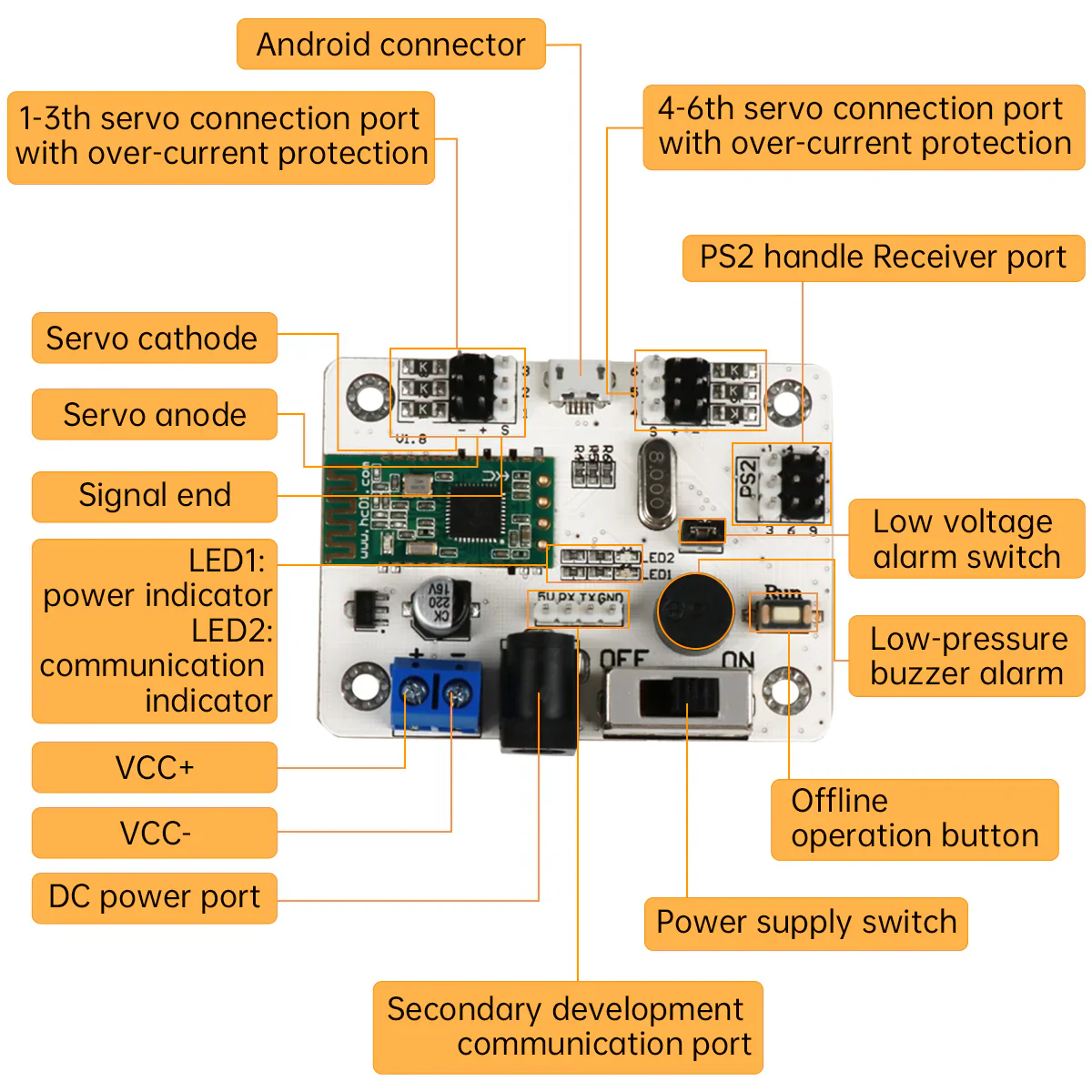

About Wiring





Secondary Development

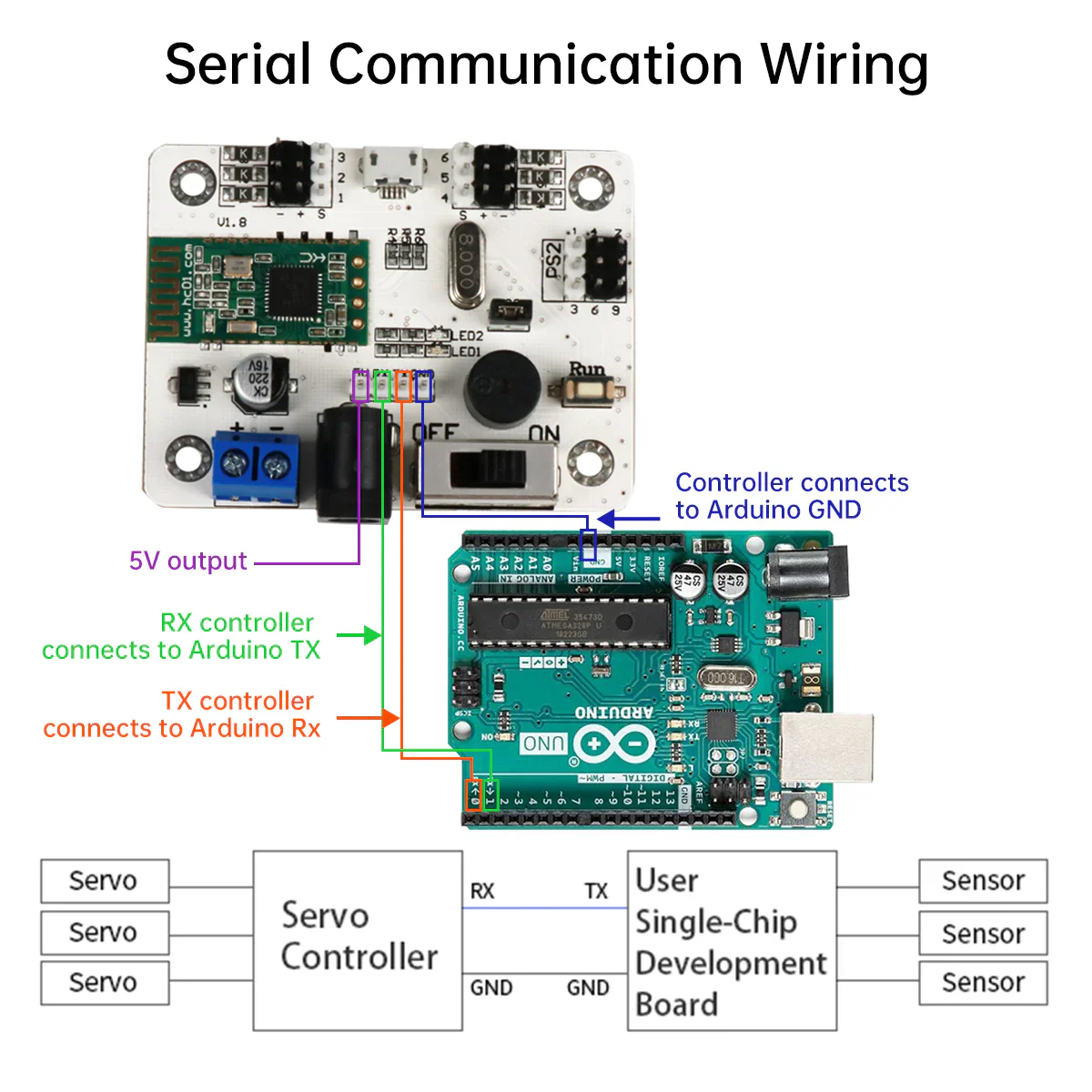

About Serial Communication Wiring

About PS2 Handle Connection





Product Parameter





Specifications

Item	Specification

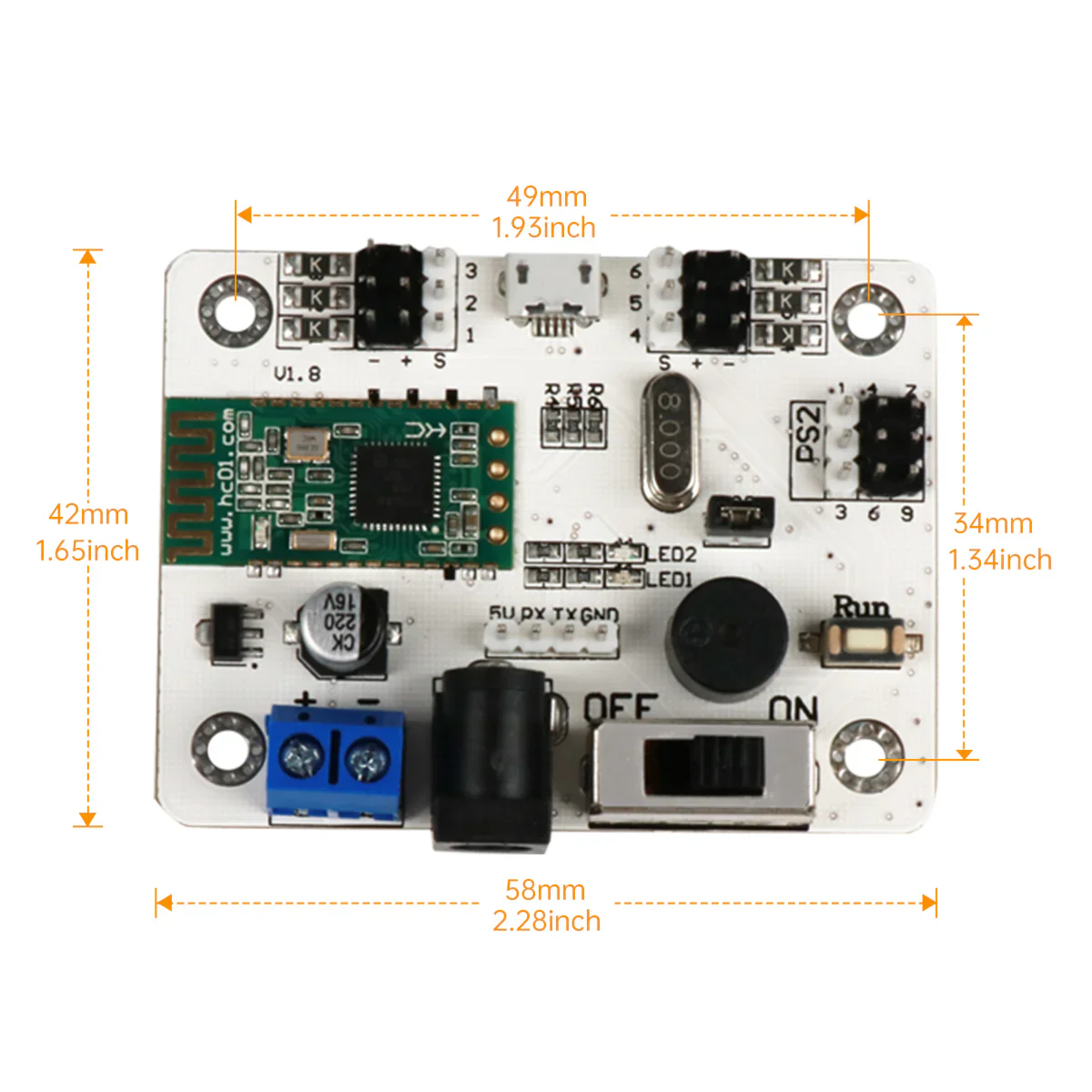

Outline Area Size	2.28inch*1.65inch
Mounting Hole Size	1.93inch*1.34inch
Bluetooth Module	4.0 version
Graphical Programming	support
Wireless Handle Control	support
The Maximum Number of Controlling Servo	6
Memory	16M
Current-limiting Protection	support
External Single-chip (Secondary Development)	support
Low Voltage Alarm	support
Over-current Protection	support
Net Weight	20 grams
Package List	1* servo controller 1* user manual 1* mini-USB cable 4* M3*8 nylon columns 4* M3*6 machine screws



Packing List

1* servo controller
1* user manual
1* mini-USB cable
4* M3*8 nylon columns
4* M3*6 machine screws
