Low-Profile CPU Cooling Fan for Raspberry Pi 4B/3B+/3B, with Aluminum Alloy Bracket

CPU Cooling Fan for Raspberry Pi

Low noise, better cooling



Specifications

Parameter	Details
Supported Pi	Raspberry Pi 4B / 3B+ / 3B
Power Supply	DC 5V input (can be powered from Raspberry Pi)
Structure	Low-profile, aluminum alloy heat-sinking bracket, optional GPIO adapter
Rated Power	1W (5V, 0.2±0.02A)
Cable Length	45 ± 10mm
Fan	3007 fan, 8000 ±10% RPM

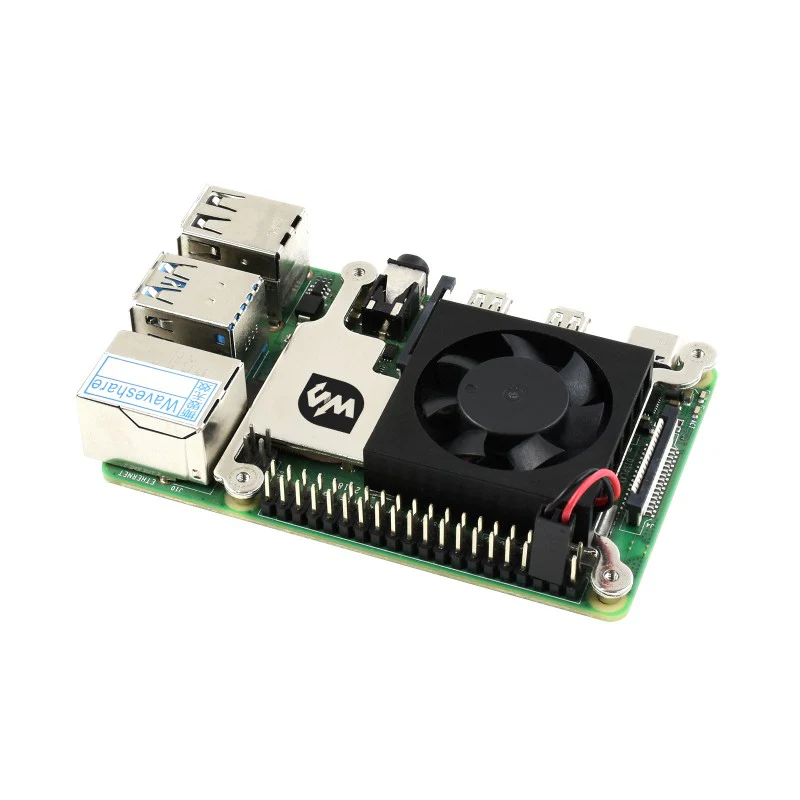

Setup example

Cooling the Raspberry Pi 4B (Left) and Raspberry Pi 3B+/3B with GPIO adapter (Right).



Attaching Other Raspberry Pi HATs Via the GPIO Adapter



The GPIO adapter is optional.
Raspberry Pi and other HATs are NOT included.



Raspberry Pi 4B Cooling Solution Comparing



Outline Dimensions



Resources & Services

Wiki: PI-FAN-3007

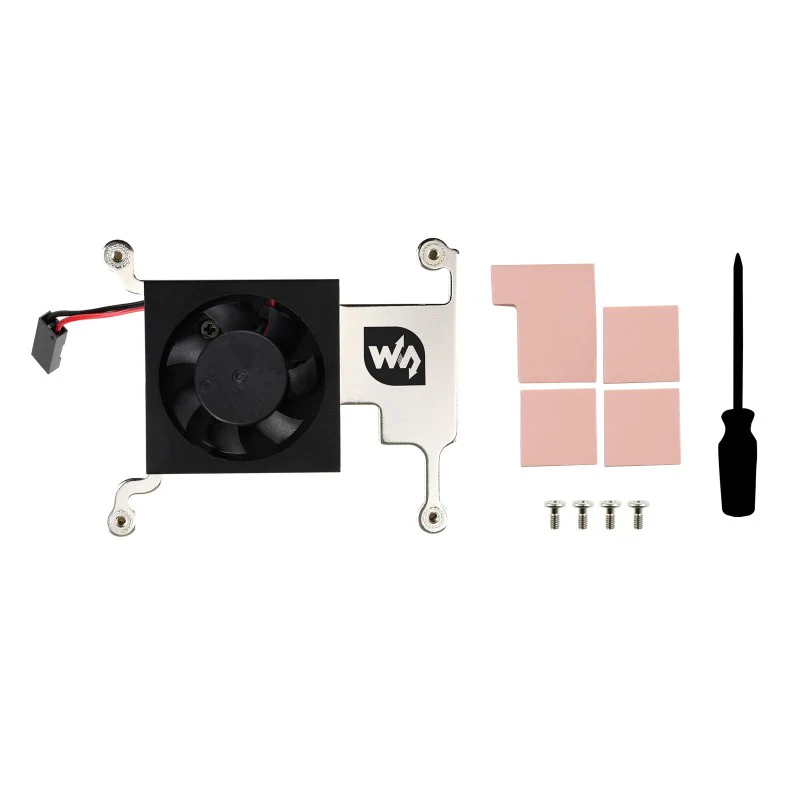

Package Content

PI-FAN-3007-B x1
Silicone thermal tape x4
Screw x4
Screwdriver x1
