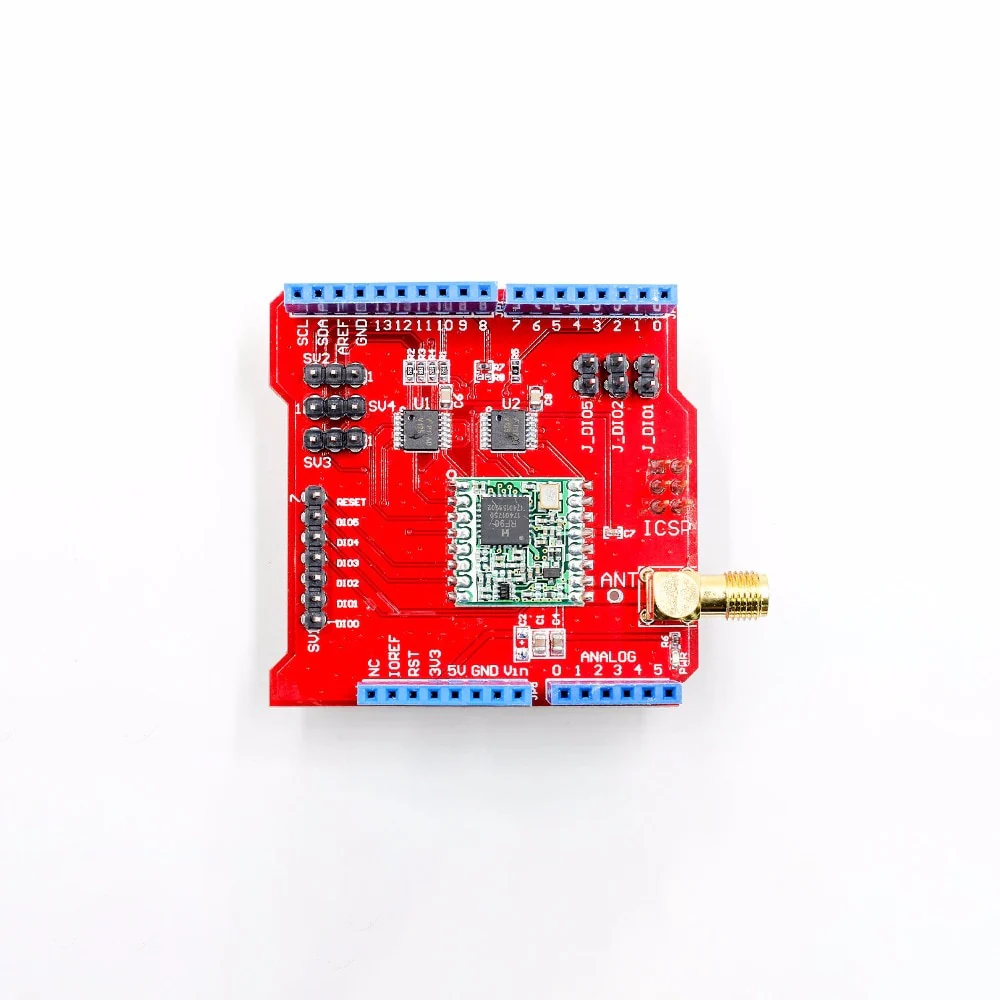

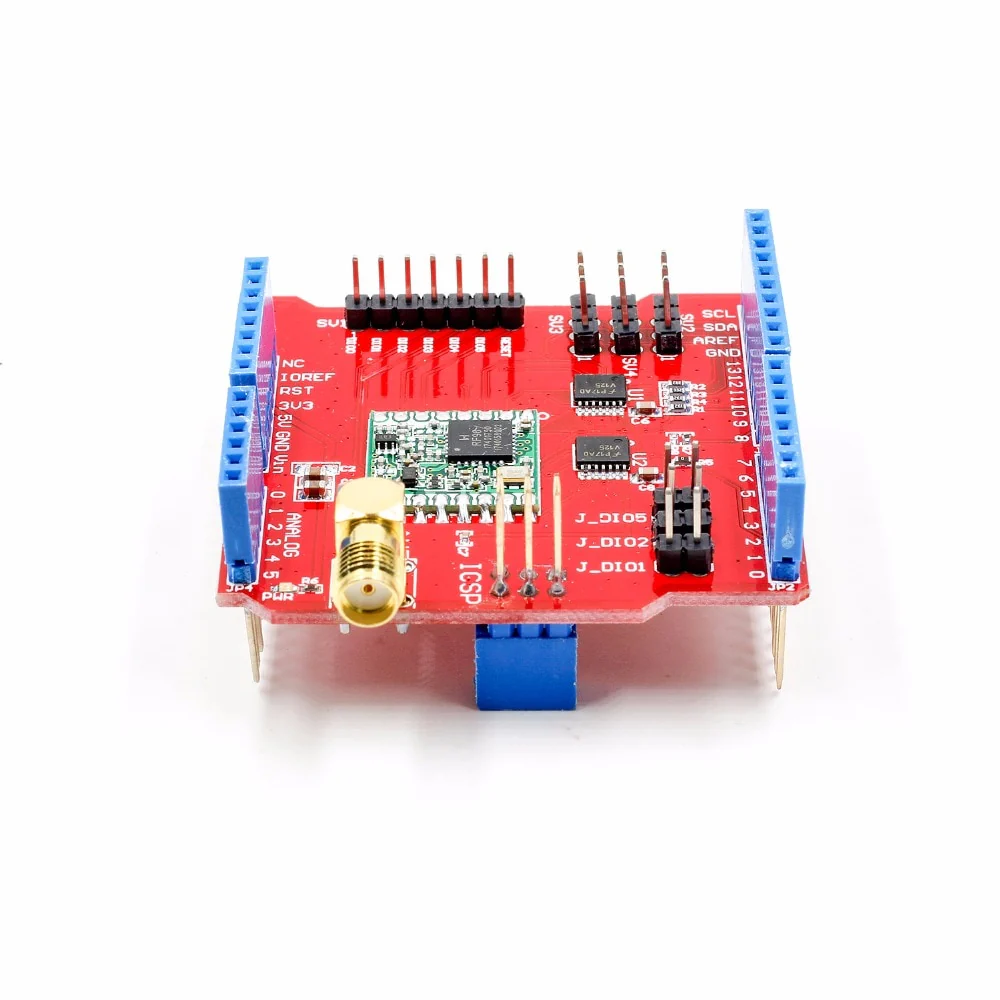

Long distance Wireless Lora Shield v96 (868MHz)
Compatible with the Arduino line of products. Trademark registrations throughout the world for ARDUINO or Arduino® are owned by: Arduino AG and Arduino SA.
The Arduino LoRa Transceiver Shield is a long range Arduino LoRa shield, based on an open-source library. LoRa Shielding allows the user to send data and reach very long distances at very low data rates. It offers ultra-long range spectrum communication with high interference immunity while minimizing current consumption.
RFM95W-based LoRa Shield targets professional wireless sensor network applications such as irrigation systems, smart meters, smart cities, smartphone detection, building automation, and so on.
Features:
- Compatible with 3.3v or 5v I/O Arduino Board.
- Frequency Band: 433MHz / 868 MHZ or 915 MHZ (Pre-configure in factory)
- Low power consumption
- Compatible with Arduino Leonardo, Uno, Mega, DUE
- External Antenna via SMA Jack
- SX1276 LoRa Chip
Specifications for RFM96:
- 168 dB maximum link budget.
- +20 dBm - 100 mW constant RF output vs.
- +14 dBm high efficiency PA.
- Programmable bit rate up to 300 kbps.
- High sensitivity: down to -148 dBm.
- Bullet-proof front end: IIP3 = -12.5 dBm.
- Excellent blocking immunity.
- Low RX current of 10.3 mA, 200 nA register retention.
- Fully integrated synthesizer with a resolution of 61 Hz.
- FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
- Built-in bit synchronizer for clock recovery.
- Preamble detection.
- 127 dB Dynamic Range RSSI.
- Automatic RF Sense and CAD with ultra-fast AFC.
- Packet engine up to 256 bytes with CRC.
- Built-in temperature sensor and low battery indicator.
Original: $30.69
-70%$30.69
$9.21
Description
Compatible with the Arduino line of products. Trademark registrations throughout the world for ARDUINO or Arduino® are owned by: Arduino AG and Arduino SA.
The Arduino LoRa Transceiver Shield is a long range Arduino LoRa shield, based on an open-source library. LoRa Shielding allows the user to send data and reach very long distances at very low data rates. It offers ultra-long range spectrum communication with high interference immunity while minimizing current consumption.
RFM95W-based LoRa Shield targets professional wireless sensor network applications such as irrigation systems, smart meters, smart cities, smartphone detection, building automation, and so on.
Features:
- Compatible with 3.3v or 5v I/O Arduino Board.
- Frequency Band: 433MHz / 868 MHZ or 915 MHZ (Pre-configure in factory)
- Low power consumption
- Compatible with Arduino Leonardo, Uno, Mega, DUE
- External Antenna via SMA Jack
- SX1276 LoRa Chip
Specifications for RFM96:
- 168 dB maximum link budget.
- +20 dBm - 100 mW constant RF output vs.
- +14 dBm high efficiency PA.
- Programmable bit rate up to 300 kbps.
- High sensitivity: down to -148 dBm.
- Bullet-proof front end: IIP3 = -12.5 dBm.
- Excellent blocking immunity.
- Low RX current of 10.3 mA, 200 nA register retention.
- Fully integrated synthesizer with a resolution of 61 Hz.
- FSK, GFSK, MSK, GMSK, LoRaTM and OOK modulation.
- Built-in bit synchronizer for clock recovery.
- Preamble detection.
- 127 dB Dynamic Range RSSI.
- Automatic RF Sense and CAD with ultra-fast AFC.
- Packet engine up to 256 bytes with CRC.
- Built-in temperature sensor and low battery indicator.
