JETCORE-FC, Jetcore Flight Controller Board
JETCORE-FC || Jetcore Flight Controller Board
The JetCore Flight Control Board is an advanced, all-in-one solution that combines the capabilities of the JetCore Carrier Board with the Cube Flight Controller. Designed for high-performance robotics, drones, and AI edge computing applications, this integrated board offers robust connectivity, real-time processing, and precise flight control in a compact form factor. Its rugged design ensures reliability in industrial and outdoor environments.
Built around NVIDIA Jetson, JETCORE-FC powers our own drones that fly without GPS, without radio, and without compromise. Now available to developers, researchers, and system integrators, JETCORE-FC delivers the same field-tested reliability and performance trusted in defense, robotics, and intelligent UAV applications.
Why Choose JETCORE-FC?
- Trusted by VECROS drones in real-world GPS-denied operations
- Enables cutting-edge autonomy and AI workloads at the edge
- Designed for defense, research, industrial robotics, and next-gen UAVs
- Rugged, reliable, and future-ready
Applications
- Autonomous drones (GPS-denied navigation)
- Defense-grade UGVs and robotic systems
- Industrial inspection & AI-enabled automation
- Research & development in AI robotics
Key Features
| Feature | Details |
|---|---|
| Integrated Design | Combines JetCore Carrier Board and Cube Flight Controller for streamlined performance |
| AI-Ready | Optimized for NVIDIA Jetson Xavier NX, Orin NX, and Jetson Nano modules, supporting JetPack 4.x and 5.x (LTS) |
| Comprehensive Connectivity | 1 × USB 3.0 (FPC Type), 6 × USB 2.0 (FPC Type), 1 × USB 2.0 (Micro USB for Debugging), 1 × Gigabit Ethernet (RJ45), 1 × Micro HDMI 2.0 (up to 3840 × 2160), 12-lane CSI-MIPI (via Daughterboard Connector), 2 × SPI, 1 × CAN, 1 × I2C, 1 × UART (JST GH), GPIO and PWM support |
| Storage Expansion | M.2 Key M interface for NVMe SSD and SD card slot |
| Environmental Monitoring | Integrated dual BMI088 IMUs for temperature and motion sensing |
| Security | Built-in Crypto Auth IC for enhanced data protection |
| Power Supply | Supports 5V–25V DC input |
| Durability | Operates efficiently in extreme temperatures (-40°C to +85°C) |
| Software Compatibility | Compatible with QGroundControl (QGC), Mission Planner, ArduPilot, and PX4 |
Technical Specifications
| Specification | JetCore Flight Control Board |
|---|---|
| Jetson Module Support | NVIDIA Jetson Xavier NX, Orin NX, Orin Nano |
| Power Input | XT30 Connector, up to 6S LiPo (25.2V max) |
| USB Ports | 1 × USB 3.0 (FPC), 6 × USB 2.0 (FPC), 1 × Micro-USB (Debug) |
| Ethernet | 1 × Gigabit Ethernet (RJ45) |
| HDMI Output | 1 × Micro HDMI 2.0 (up to 4K) |
| Camera Interface | 12-lane MIPI CSI (via FFC) |
| Storage Expansion | 1 × M.2 Key-M slot for NVMe SSD |
| Peripheral Interfaces | 2 × SPI, 1 × CAN, 1 × I2C, 1 × UART, GPIO, PWM |
| IMUs | Triple redundant IMUs with vibration isolation |
| Barometer | Dual redundant barometers |
| Compass | External compass via GPS or expansion port |
| PWM Outputs | 8 × PWM outputs for ESCs/servos |
| Flight Firmware Support | PX4 and ArduPilot compatible |
| Telemetry & GPS Ports | Available via JST-GH connectors |
| Companion Computer Interface | UART and CAN routed to Jetson internally |
| Failsafe Systems | IMU failover, barometer redundancy, vibration detection |
| Cooling | Supports passive and active cooling |
| Form Factor | Integrated design for aerial and ground robotics |

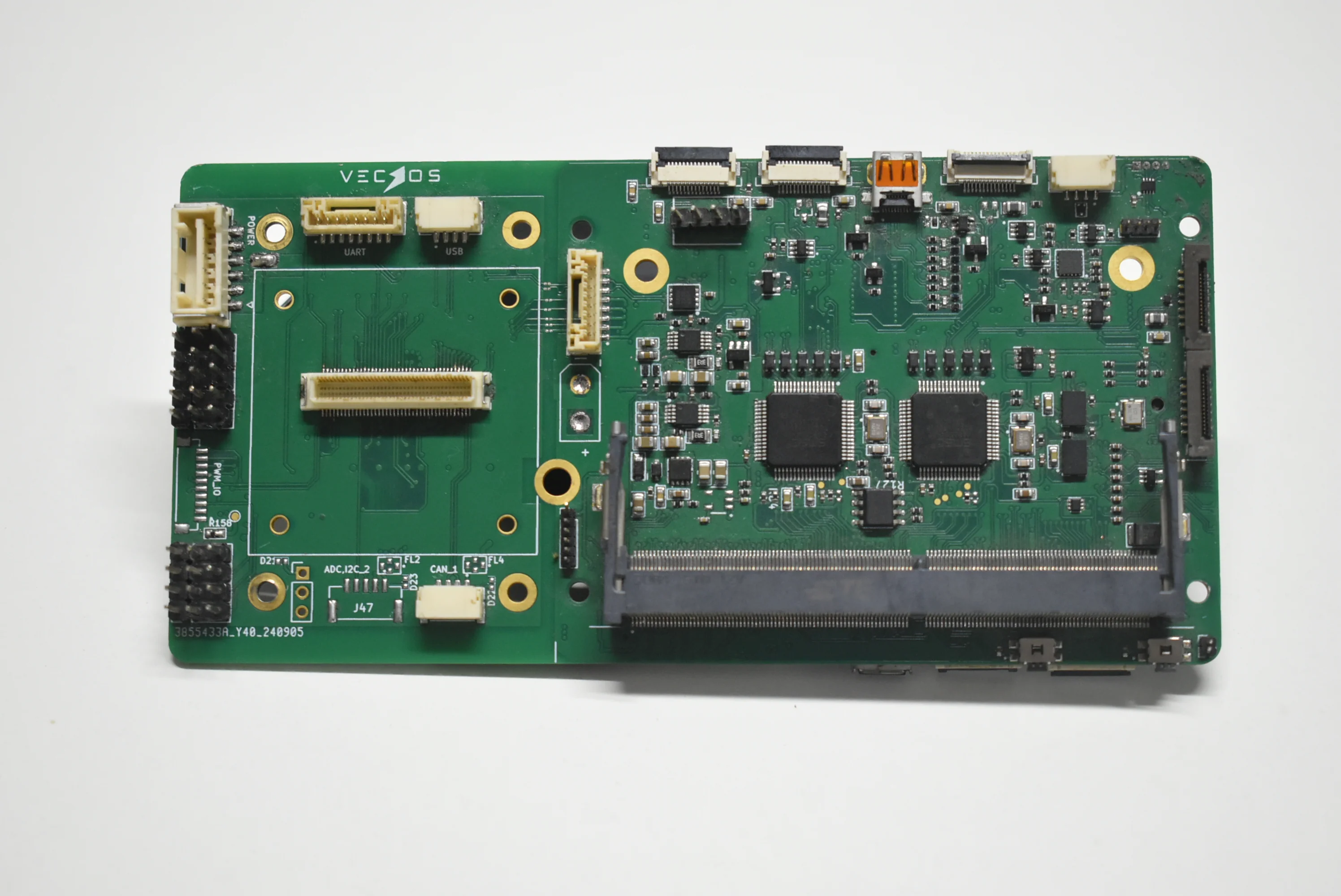

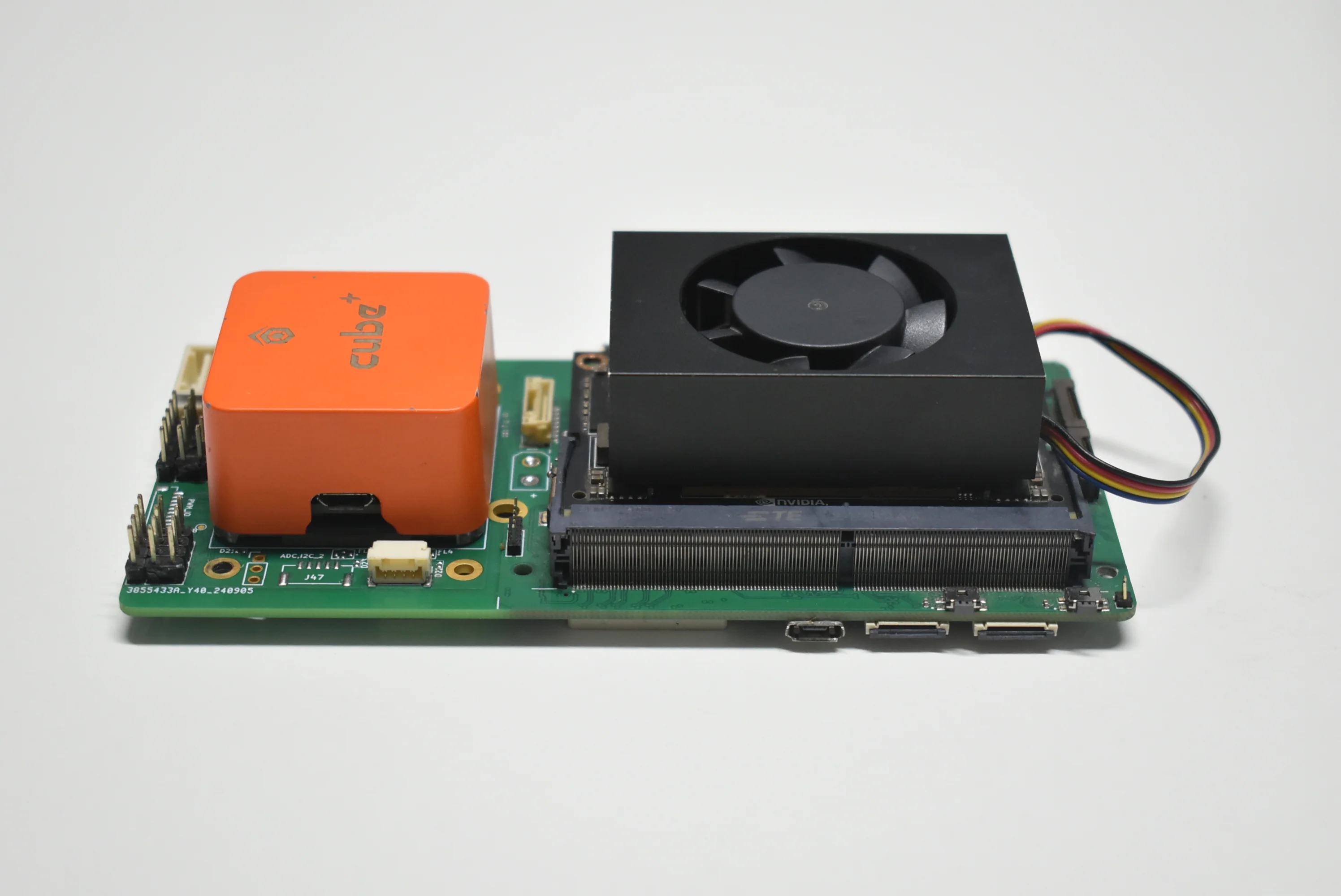

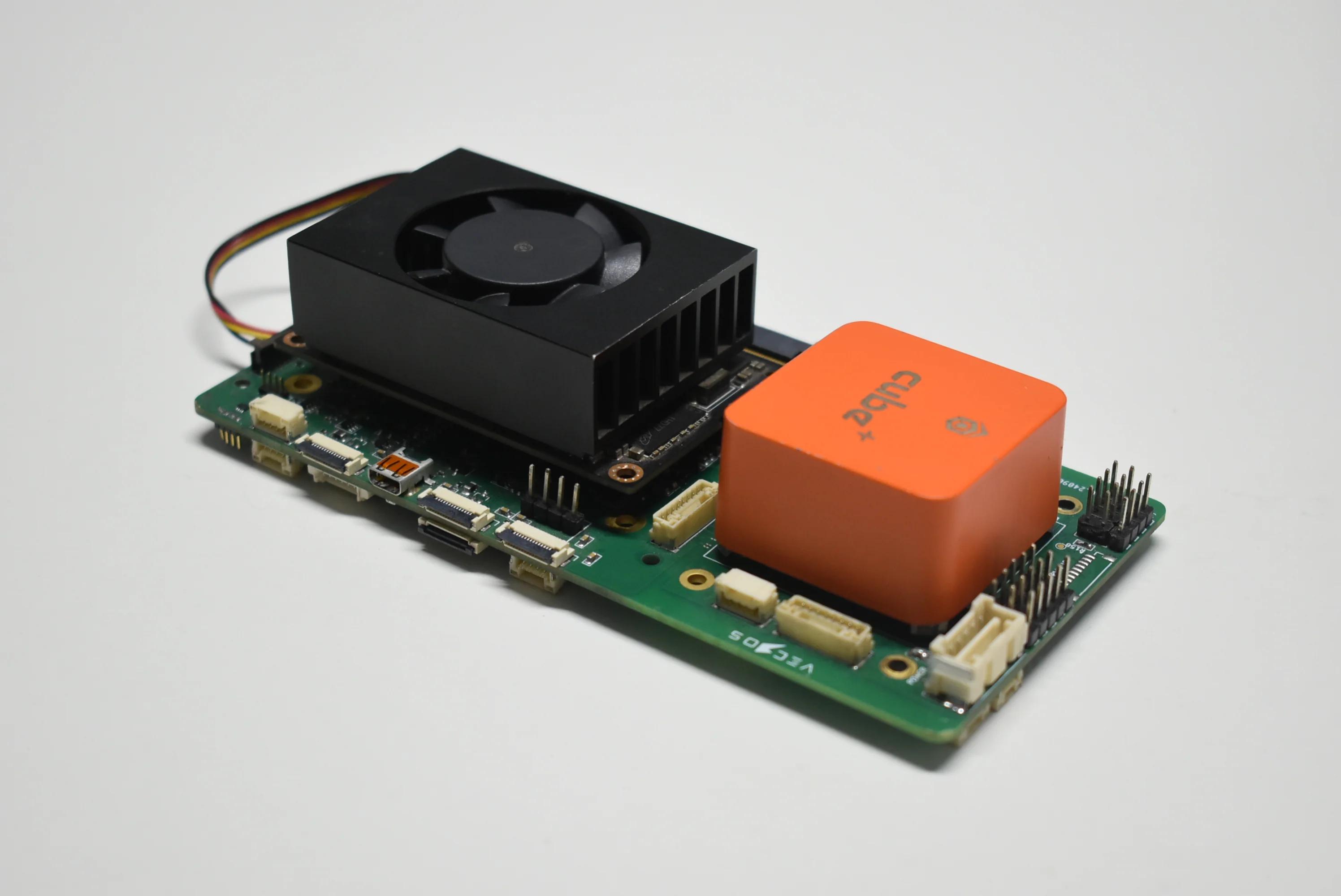

Product Diagrams
Video
Package Includes
1 x JetCore Flight Control Board
1 x Power Cable
Description
JETCORE-FC || Jetcore Flight Controller Board
The JetCore Flight Control Board is an advanced, all-in-one solution that combines the capabilities of the JetCore Carrier Board with the Cube Flight Controller. Designed for high-performance robotics, drones, and AI edge computing applications, this integrated board offers robust connectivity, real-time processing, and precise flight control in a compact form factor. Its rugged design ensures reliability in industrial and outdoor environments.
Built around NVIDIA Jetson, JETCORE-FC powers our own drones that fly without GPS, without radio, and without compromise. Now available to developers, researchers, and system integrators, JETCORE-FC delivers the same field-tested reliability and performance trusted in defense, robotics, and intelligent UAV applications.
Why Choose JETCORE-FC?
- Trusted by VECROS drones in real-world GPS-denied operations
- Enables cutting-edge autonomy and AI workloads at the edge
- Designed for defense, research, industrial robotics, and next-gen UAVs
- Rugged, reliable, and future-ready
Applications
- Autonomous drones (GPS-denied navigation)
- Defense-grade UGVs and robotic systems
- Industrial inspection & AI-enabled automation
- Research & development in AI robotics
Key Features
| Feature | Details |
|---|---|
| Integrated Design | Combines JetCore Carrier Board and Cube Flight Controller for streamlined performance |
| AI-Ready | Optimized for NVIDIA Jetson Xavier NX, Orin NX, and Jetson Nano modules, supporting JetPack 4.x and 5.x (LTS) |
| Comprehensive Connectivity | 1 × USB 3.0 (FPC Type), 6 × USB 2.0 (FPC Type), 1 × USB 2.0 (Micro USB for Debugging), 1 × Gigabit Ethernet (RJ45), 1 × Micro HDMI 2.0 (up to 3840 × 2160), 12-lane CSI-MIPI (via Daughterboard Connector), 2 × SPI, 1 × CAN, 1 × I2C, 1 × UART (JST GH), GPIO and PWM support |
| Storage Expansion | M.2 Key M interface for NVMe SSD and SD card slot |
| Environmental Monitoring | Integrated dual BMI088 IMUs for temperature and motion sensing |
| Security | Built-in Crypto Auth IC for enhanced data protection |
| Power Supply | Supports 5V–25V DC input |
| Durability | Operates efficiently in extreme temperatures (-40°C to +85°C) |
| Software Compatibility | Compatible with QGroundControl (QGC), Mission Planner, ArduPilot, and PX4 |
Technical Specifications
| Specification | JetCore Flight Control Board |
|---|---|
| Jetson Module Support | NVIDIA Jetson Xavier NX, Orin NX, Orin Nano |
| Power Input | XT30 Connector, up to 6S LiPo (25.2V max) |
| USB Ports | 1 × USB 3.0 (FPC), 6 × USB 2.0 (FPC), 1 × Micro-USB (Debug) |
| Ethernet | 1 × Gigabit Ethernet (RJ45) |
| HDMI Output | 1 × Micro HDMI 2.0 (up to 4K) |
| Camera Interface | 12-lane MIPI CSI (via FFC) |
| Storage Expansion | 1 × M.2 Key-M slot for NVMe SSD |
| Peripheral Interfaces | 2 × SPI, 1 × CAN, 1 × I2C, 1 × UART, GPIO, PWM |
| IMUs | Triple redundant IMUs with vibration isolation |
| Barometer | Dual redundant barometers |
| Compass | External compass via GPS or expansion port |
| PWM Outputs | 8 × PWM outputs for ESCs/servos |
| Flight Firmware Support | PX4 and ArduPilot compatible |
| Telemetry & GPS Ports | Available via JST-GH connectors |
| Companion Computer Interface | UART and CAN routed to Jetson internally |
| Failsafe Systems | IMU failover, barometer redundancy, vibration detection |
| Cooling | Supports passive and active cooling |
| Form Factor | Integrated design for aerial and ground robotics |
Product Diagrams
Video
Package Includes
1 x JetCore Flight Control Board
1 x Power Cable
