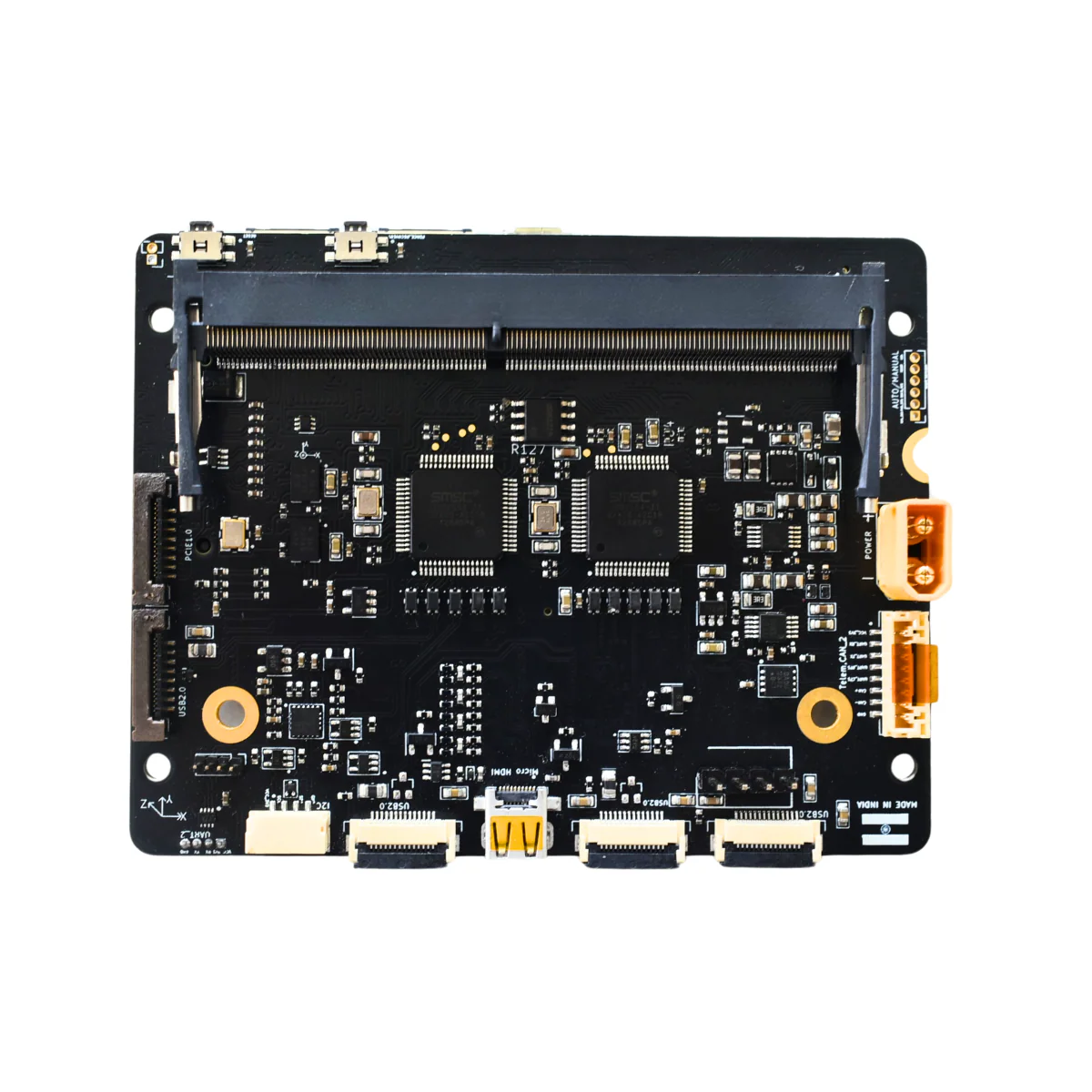

JETCORE CARRIER BOARD - Designed specifically for NVIDIA Jetson modules
JETCORE || Carrier Board for Nvidia Jetson Orin Nano/ NX, Jetson Xavier NX, Jetson TX2 NX
The JETCORE is an ultra-compact, lightweight carrier board designed for NVIDIA Jetson Nano, Xavier NX, Orin Nano, Orin NX, TX2 NX modules delivering exceptional AI processing power in the smallest possible footprint. Engineered specifically for Drones, Robotics, and Industrial edge computing, JETCORE combines mission-critical reliability with purpose-built features that reduce integration time and development costs.
With industrial-grade temperature tolerance, built-in motion sensing, enhanced security features, and native compatibility with leading drone software platforms, JETCORE excels where standard carrier boards fall short. Its comprehensive connectivity options through vibration-resistant connectors ensure stable performance in dynamic environments, while supporting the latest JetPack versions for maximum flexibility.
JETCORE represents the ideal solution for projects demanding high performance computing in space and weight-constrained applications.
TECHNICAL SPECIFICATIONS
| Feature | Description |
|---|---|
| NVIDIA Jetson Compatibility | Supports NVIDIA Jetson Xavier NX, Orin Nano, Orin NX, Nano & TX2 NX Modules. |
| USB Ports | 6 x USB 2.0 and 1 x USB 3.0 (FPC Type) |
| Networking | 1 x Gigabit Ethernet (8 PIN Molex connector) |
| Video Output | 1 x Micro HDMI port (Resolution: 1920 x 1080 FHD) |
| Storage Expansion | 1 x M.2 Key M interface for NVMe SSD |
| Environmental Monitoring | Integrated Temperature & IMU for motion sensing |
| Security Features | Built-in Crypto Auth IC for enhanced data protection |
| Power Supply | Supports 12-18V DC input |
| Module Compatibility | NVIDIA Jetson Xavier NX (8GB/16GB), Jetson Orin Nano/NX, Jetson Nano |
| Dimensions | 88 mm x 71 mm |
| Operating Temperature | -40°C to 85°C |
| Weight | 40g |
PERIPHERAL INTERFACES
| Interface Type | Details |
|---|---|
| Graphics Interface | Micro HDMI 2.0 (Resolution: 1920 x 1080 FHD) |
| USB Ports | 7 x USB 2.0 (FPC Type), 1 x USB 2.0 (Micro USB for Debugging) |
| Networking | 1 x Gigabit Ethernet (12 PIN JST GH connector) |
| Additional Interfaces | 12-lane CSI-MIPI (via Daughterboard Connector) 2 x SPI 1 x CAN 1 x I2C 1 x UART (all JST GH connectors) GPIO and PWM support |
KEY ADVANTAGES
| Advantage | Description |
|---|---|
| Performance | Optimized for NVIDIA's Xavier NX platform, offering cutting-edge AI and edge processing capabilities. |
| Connectivity | Multiple interface options ensure seamless integration into existing systems. |
| Security | Robust security features designed for mission-critical applications. |
| Durability | Operates efficiently in extreme temperatures. |
| Ultra-Lightweight Design | At just 40g, JETCORE is up to 50% lighter than competing carrier boards, maximizing payload capacity for drone applications and reducing overall system weight. |
| Compact Form Factor | The 88mm x 71mm footprint (30% smaller than typical alternatives) enables integration in space constrained environments while maintaining comprehensive connectivity. |
| Industrial Temperature Range | Operates reliably from -40°C to +85°C, supporting outdoor deployments, high-altitude operations, and industrial environments where standard boards fail. |
| Enhanced Security | Built-in Crypto Auth IC provides hardware-level security for sensitive data and applications, essential for commercial and industrial deployments. |
| Drone Software Compatibility | Native support for QGC Mission Planner, Ardupilot, and PX4 eliminates complex integration work, reducing development time and costs. |
| Vibration Resistance | JST GH connectors ensure reliable connections in high-vibration environments, preventing disconnections during operation in dynamic applications. |
| Integrated Motion Sensing | Onboard IMU eliminates the need for additional components, reducing system complexity, weight, and integration challenges. |
| Multi-Generation Compatibility | Support for Multiple Jetson Modules which provides flexibility and future proofing for evolving project requirements. |
SOFTWARE & COMPATIBILITY
| Details | Software Support |
|---|---|
| Software Support | Compatible with QGC Mission Planner, Ardupilot, PX4. |
| JetPack Versions | Supports JetPack 4.x and 5.x (LTS). |
BOX INCLUDES
WHAT's ON BOARD
DOCUMENTS
| JETCORE User Manual | Download >> |
| JETCORE Warranty Terms and Conditions | Download >> |
| JETCORE Spec Sheet | Download >> |
