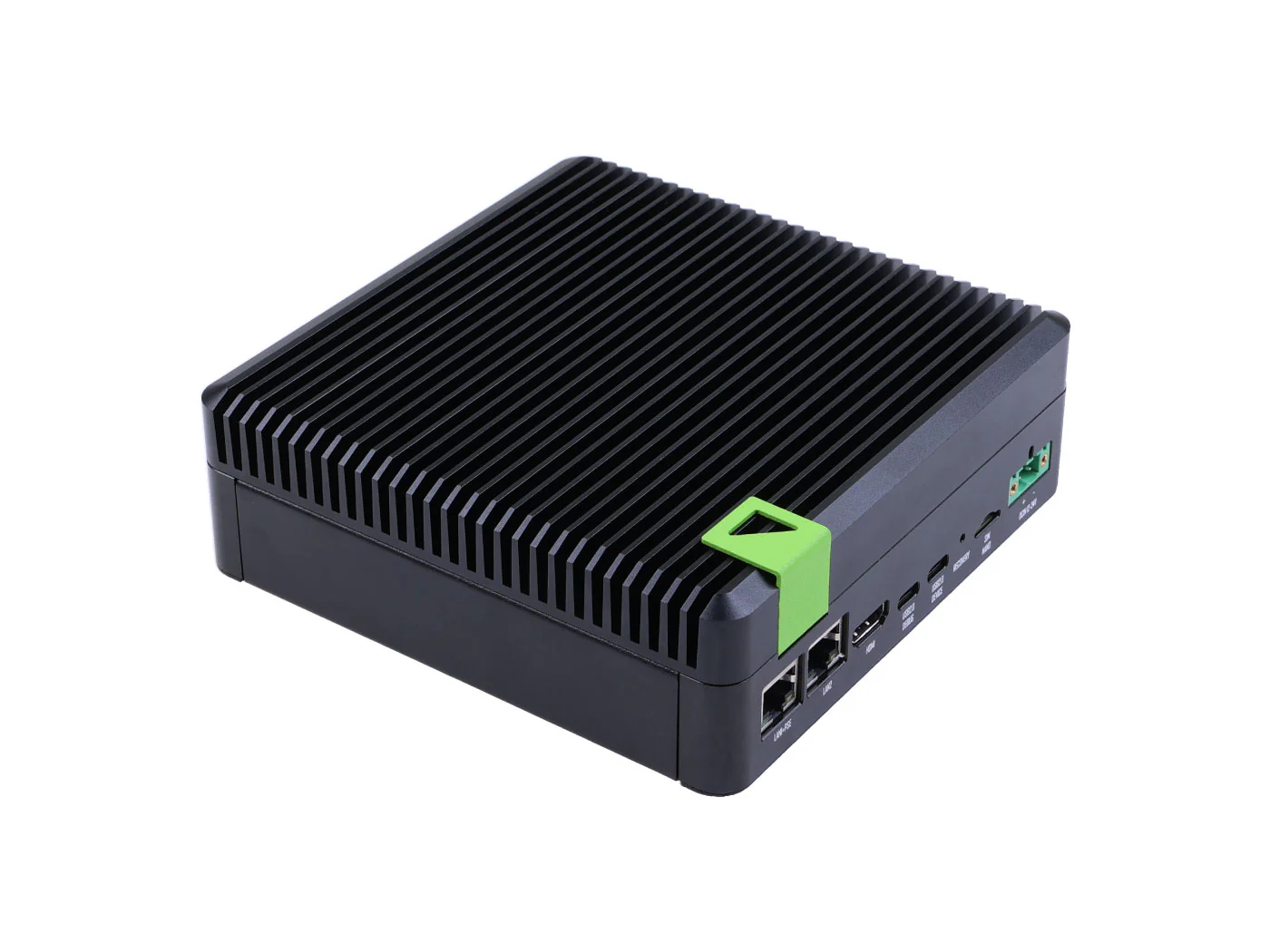

reComputer Industrial J4012- Fanless Edge AI Device with Jetson Orin NX 16GB
reComputer Industrial J4012 features NVIDIA Jetson Orin™ NX 16GB module for 100 TOPS AI performance and supports hybrid connectivities including 2 RJ-45 Ethernet ports, 1 RS232/422/485 & CAN port, etc. Fanless with versatile mounting options allows deployment for more harsh environments and heavier loads.
Specification
Jetson Orin NX System on Module |
|||
|
AI Performance |
reComputer Industrial J4012 - Orin NX 16GB, 100 TOPS |
reComputer Industrial J4011- Orin NX 8GB, 70 TOPS |
|
|
GPU |
1024-core NVIDIA Ampere architecture GPU with 32 Tensor Cores |
||
|
CPU |
8-core Arm® Cortex®-A78AE v8.2 64-bit CPU (Orin NX 16GB) |
6-core Arm® Cortex®-A78AE(Orin NX 8GB) |
|
|
Memory |
16GB 128-bit LPDDR5 (Orin NX 16GB) |
8GB 128-bit LPDDR5 (Orin NX 8GB) |
|
|
Video Decode |
1x 8K30 (H.265) 2x 4K60 (H.265) 4x 4K30 (H.265) 9x 1080p60 (H.265) 18x 1080p30 (H.265) |
||
|
Video Encode |
1x 4K60 (H.265) 3x 4K30 (H.265) 6x 1080p60 (H.265) 12x 1080p30 (H.265) |
||
|
DL Accelerator |
2x NVDLA v2 |
||
|
Carrier Board |
|||
|
Storage |
1x M.2 Key M PCIe Gen4.0 SSD (M.2 NVMe 2280 SSD 128G included) |
||
|
Networking |
Ethernet |
1x LAN1 RJ45 GbE PoE(PSE 802.3 af 15 W) |
|
|
Wi-Fi |
Support SMD Wi-Fi/Bluetooth (Module optional) |
||
|
M.2 Key B |
1x M.2 Key B support 4G/5G (Module optional) |
||
|
I/O |
USB |
3x USB3.2 Gen1, 1x USB2.0 Type C(Device mode), 1x USB2.0 Type C For Debug UART & RP2040 |
|
|
DI/DO |
4x DI,4x DO, 3x GND_DI, 2x GND_DO, 1x GND_ISO,1x CAN |
||
|
COM |
1x DB9 (RS232/RS422/RS485) |
||
|
Display |
1x HDMI 2.0 Type A |
||
|
SIM |
1x Nano SIM card slot |
||
|
Fan |
Fanless, passive heatsink; 1x Fan connectors(5V PWM) |
||
|
TPM |
1x TPM 2.0 connector (Module optional) |
||
|
RTC |
1x RTC socket (CR1220 included), 1x RTC 2-pin |
||
|
Camera |
2x CSI (2-lane 15pin) |
||
|
Power |
Power Supply |
DC 12V-24V Terminal block 2 pin |
|
|
Power Adapter |
19V Power Adapter(without power cord) |
||
|

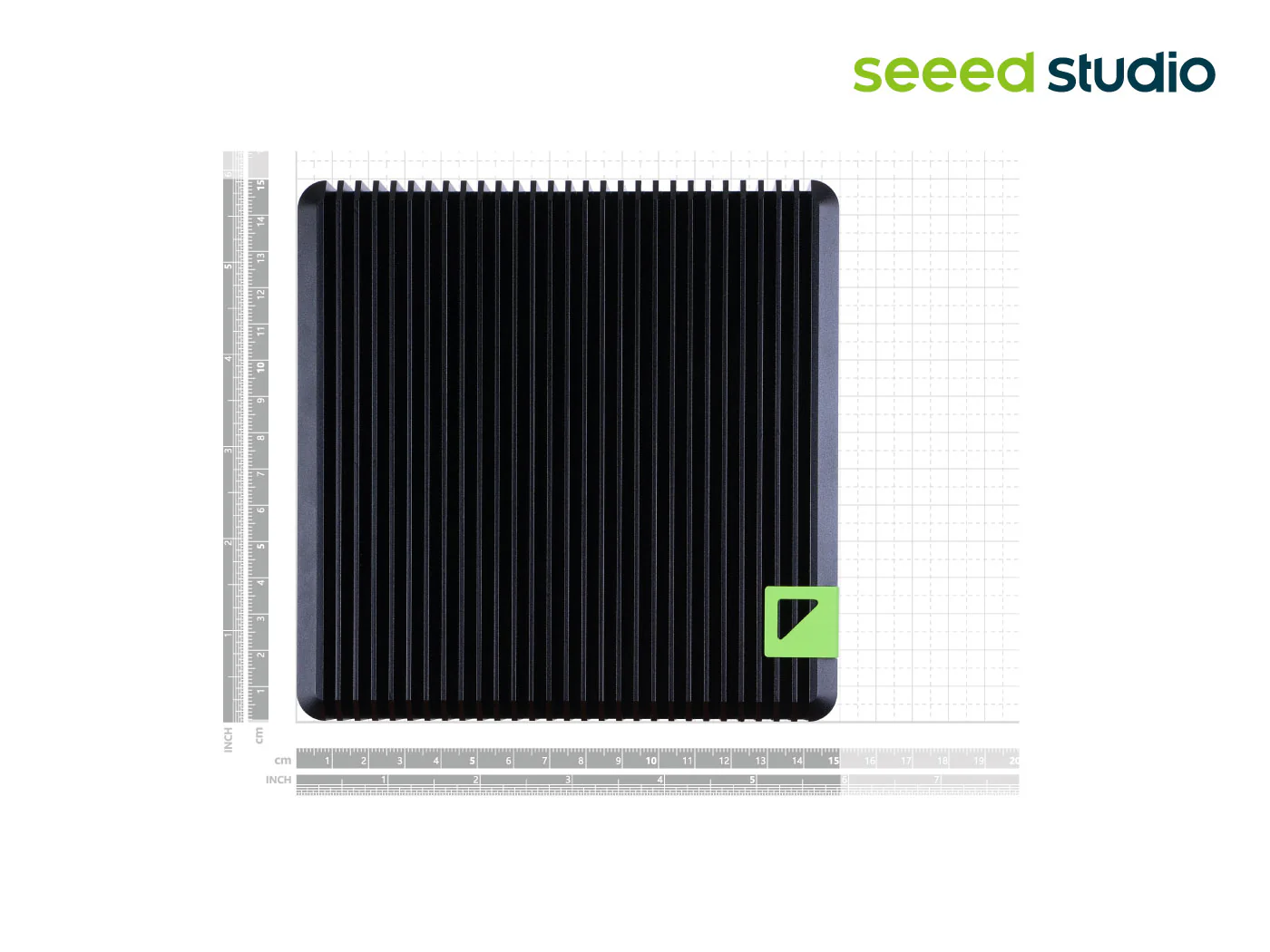

Mechanical |
Dimensions (W x D x H) |
159mm x 155mm x 57mm |
|
|
Weight |
1.57kg |
||
|
Installation |
Desk, DIN rail, wall-mounting, VESA |
||
|
Environment |
Operating Temperature |
-20 ~ 60°C with 0.7m/s airflow |
|
|
Operating Humidity |
95% @ 40 °C (non-condensing) |
||
|
Vibration |
3 Grms @ 5 ~ 500 Hz, random, 1 hr/axis |
||
|
Shock |
50G peak acceleration (11 msec) |
||
|
Warranty |
2 Years |
||
Hardware Overview

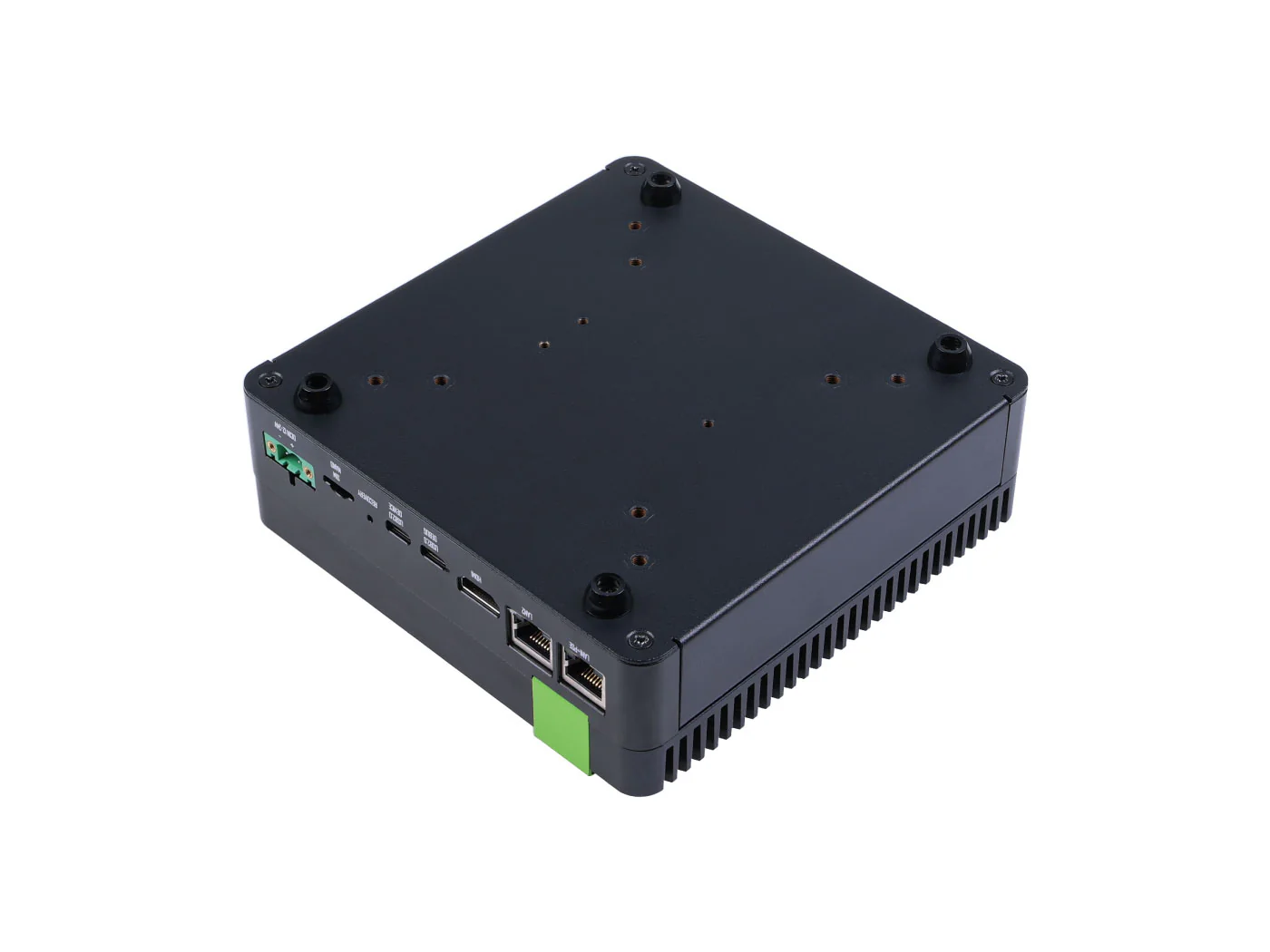

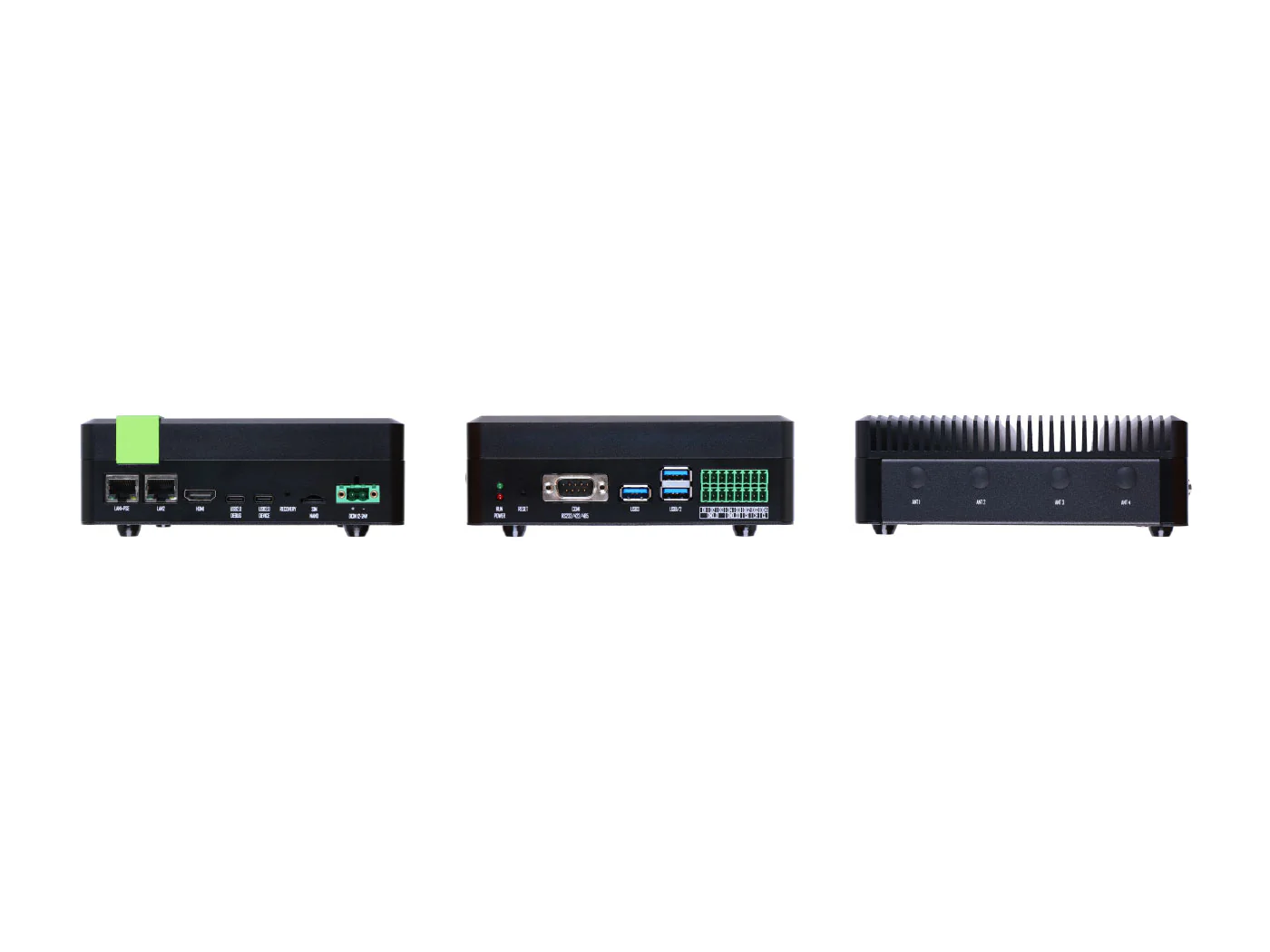

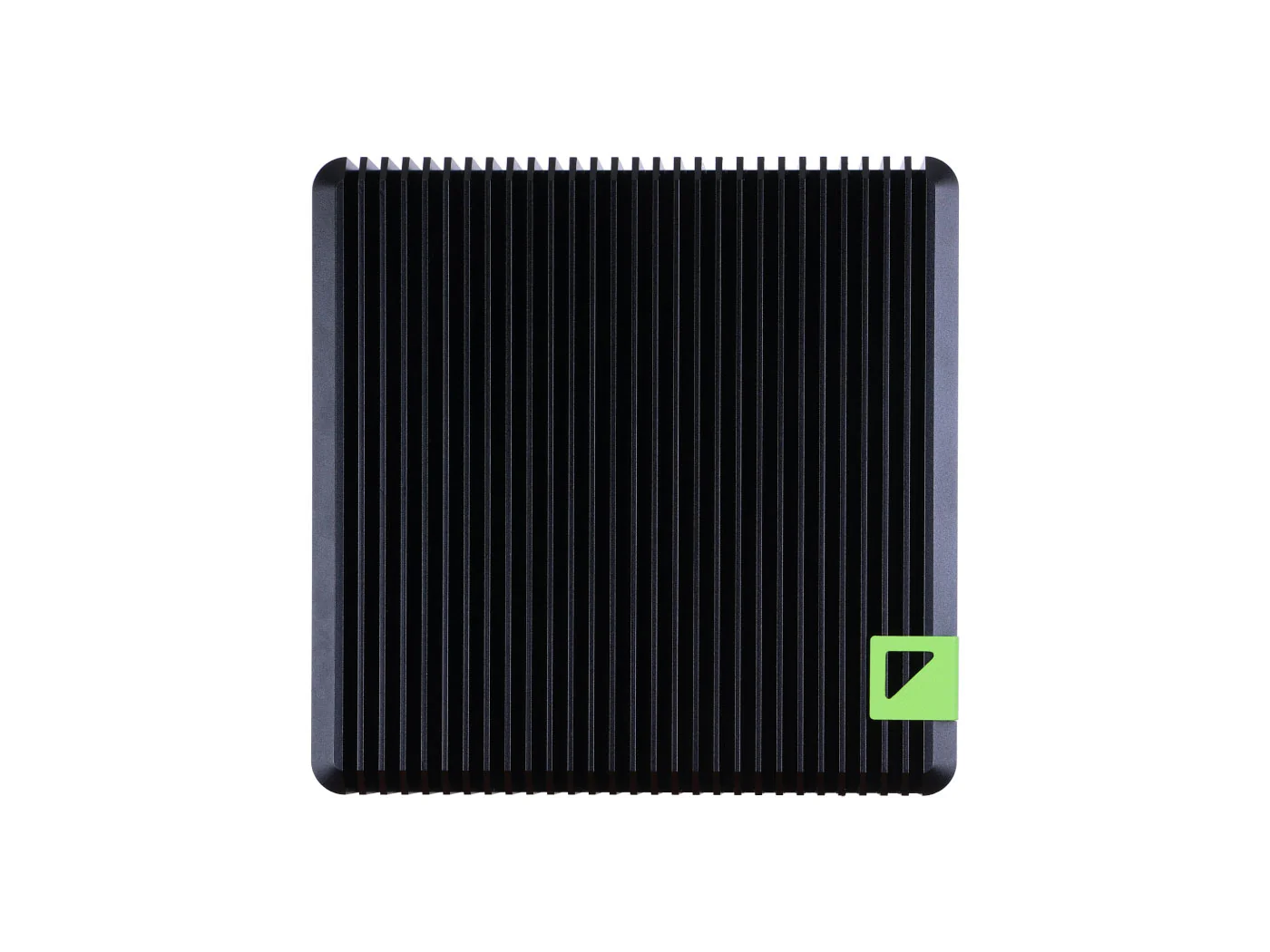

Full System
Carrier Board

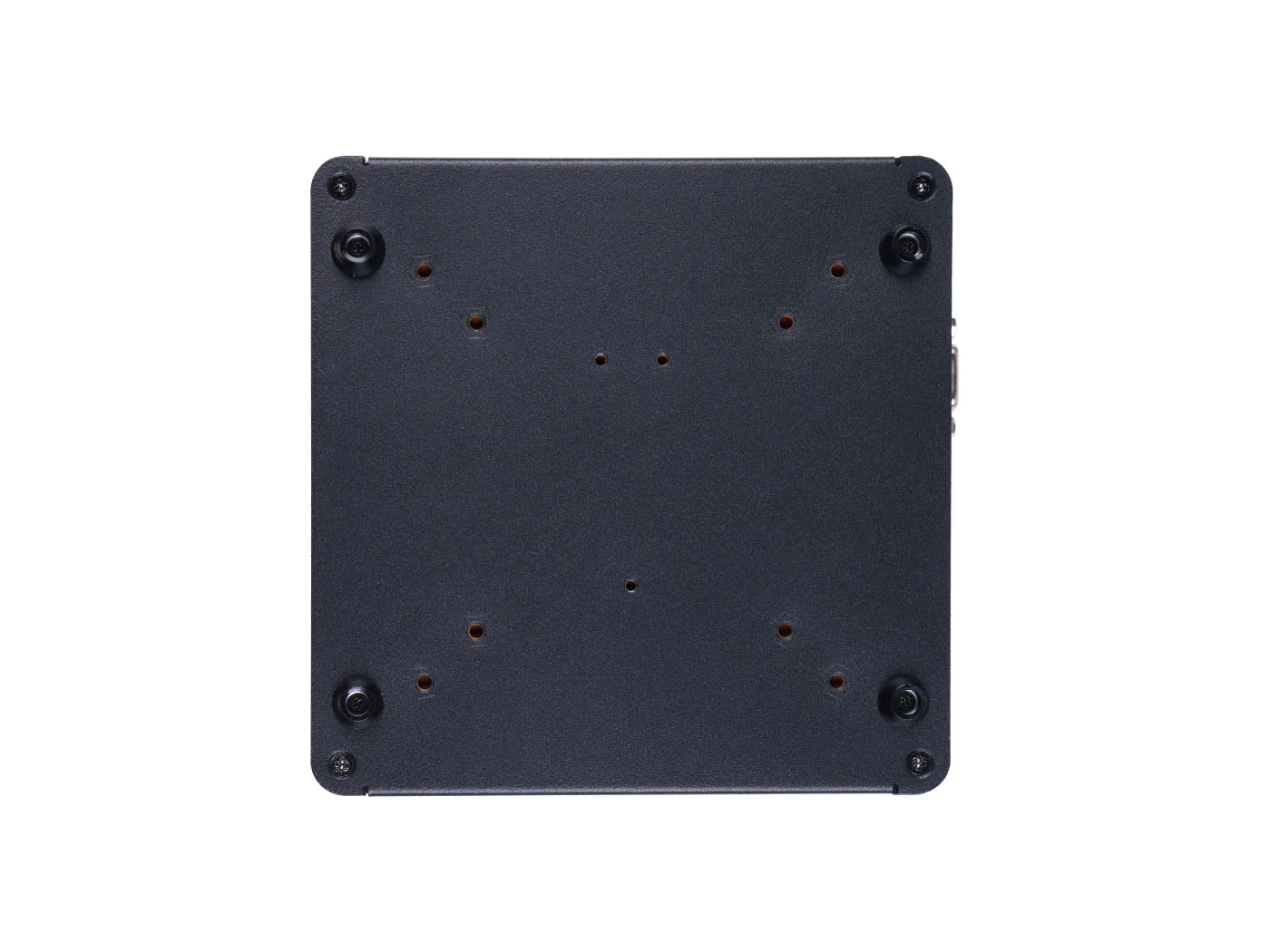

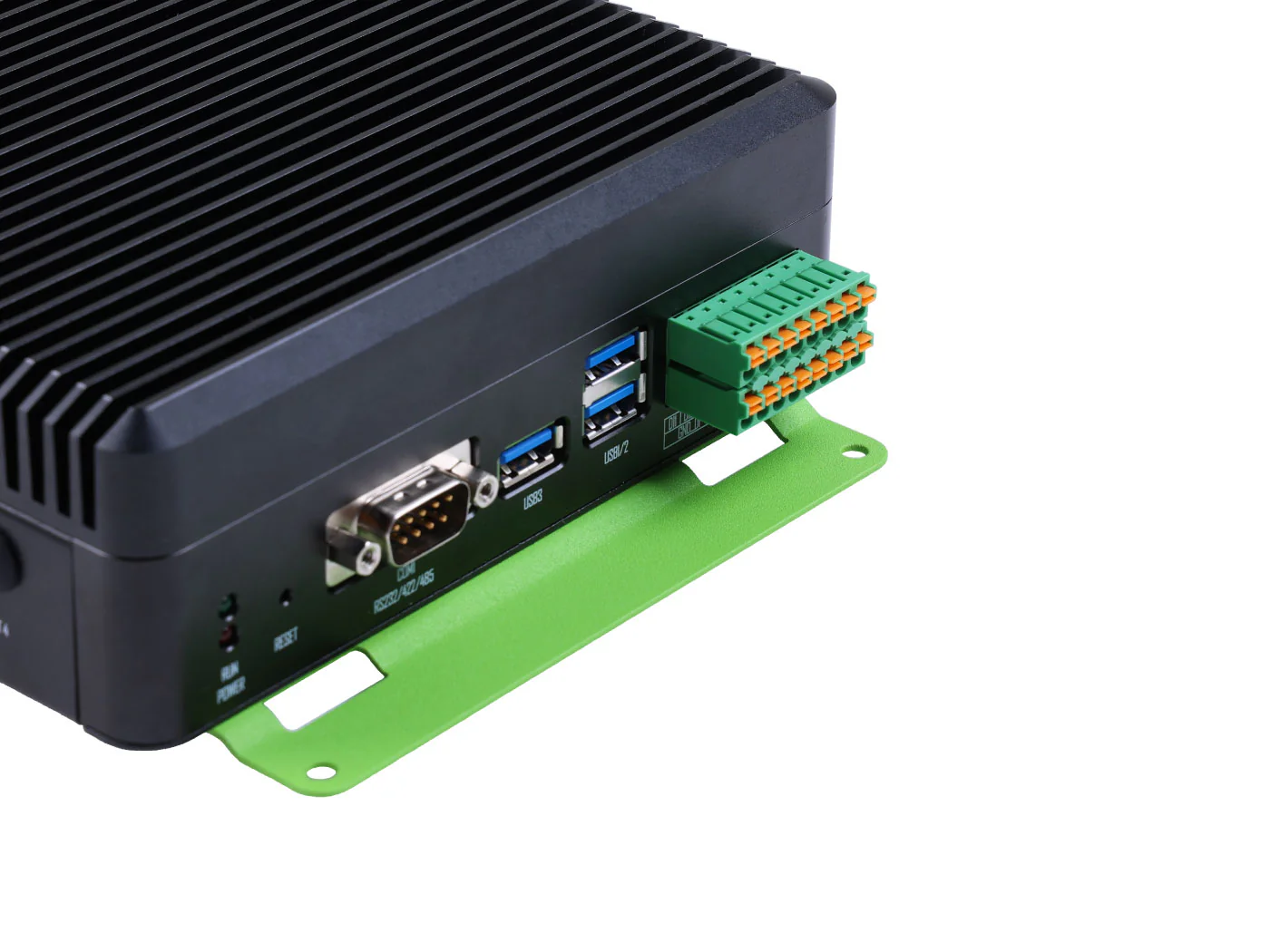

Desktop, Wall Mount, DIN Rail, VESA mount to fit in anywhere
Application Fields:
- AI Video Analytics
- Machine Vision
- Autonomous Mobile Robot (AMR)
- Generative AI
Application
Capable of Bringing Generative AI to the Edge
Now you can build AI agents capable of processing large amounts of live or archived videos and images with Vision-Language Models (VLM) such as LLaVA, this new AI agents help nearly every industry summarize, search, and extract actionable insights from video using natural language.
Build Multi-streams AI Video Analytics
For building video analytics, Jetson Orin NX incorporates the NVIDIA Multi-Standard Video Decoder. This video decoder accelerates video decode, supporting low resolution mobile content, Standard Definition (SD), High Definition (HD) and UltraHD (8K, 4K, etc.) .
Fastest Way to Deploy Generative AI and Computer Vision Models
We have jetson-example prepared for you! It offers one-line deploy projects edge AI applications of generative AI including Ollama, Llama3; computer vision including YOLOv8, and others. We have configured all environment for you to provides single command deployment of projects.

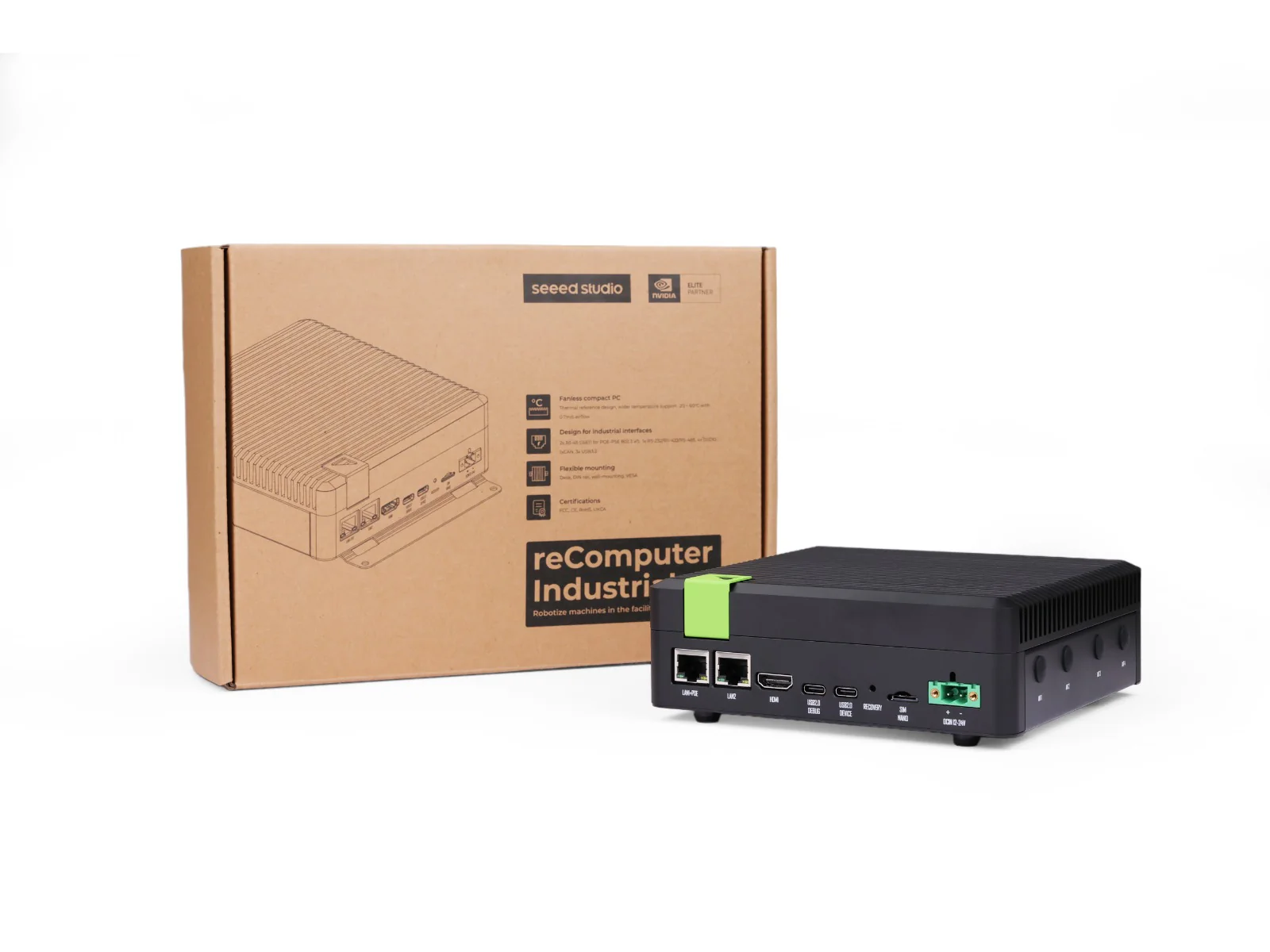

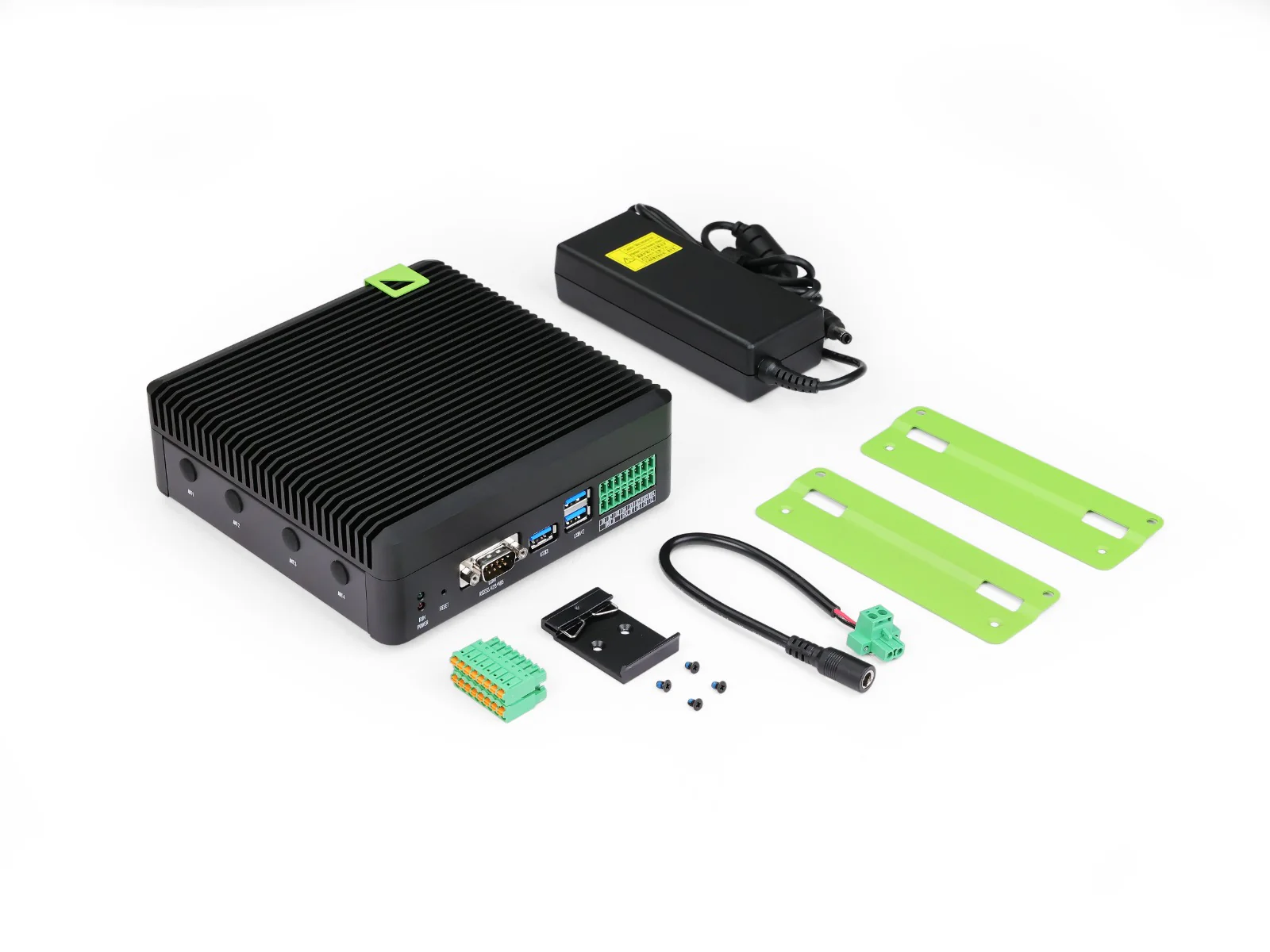

Part List
|
reComputer Industrial J4012 (System Installed) |
x1 |
|
Mounting bracket |
x2 |
|
DIN rail bracket |
x1 |
|
Bracket screw |
x4 |
|
16-Pin Terminal Block for DIO |
x1 |
|
19V Power adapter (power cord sold separately) |
x1 |
|
2-Pin Terminal block power connector |
x1 |
Documents
- reComputer Industrial Datasheet
- reComputer Industrial 3D File
- reComputer Inudstrial open-source file
- reComputer Industrial Reference Guide
- NVIDIA Jetson Devices and Carrier Boards Comparison
- reComputer Industrial Assembly Guide
- reComputer Industrial MTBF TEST REPORT
