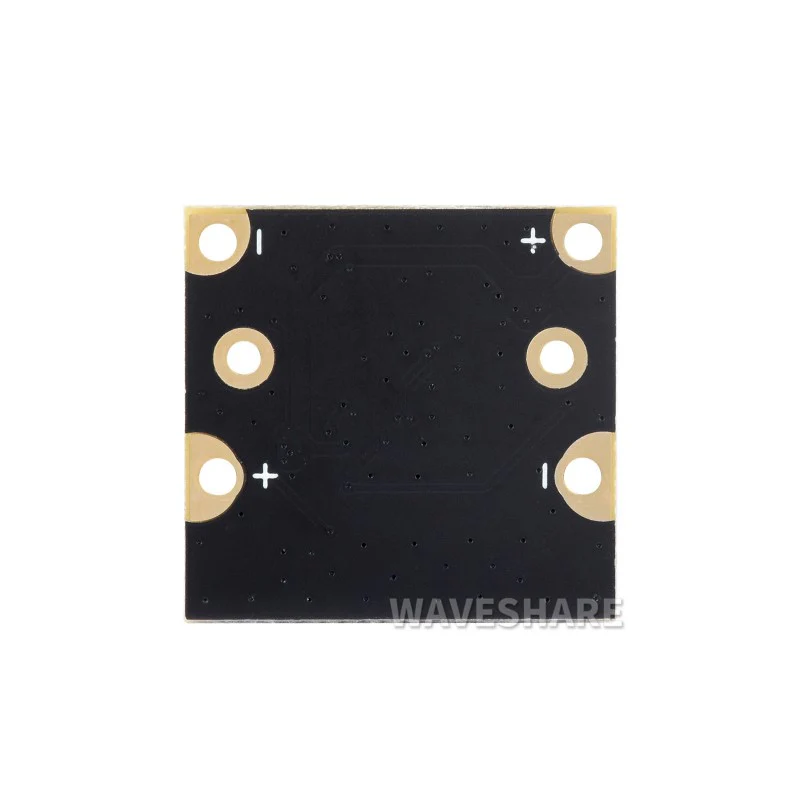

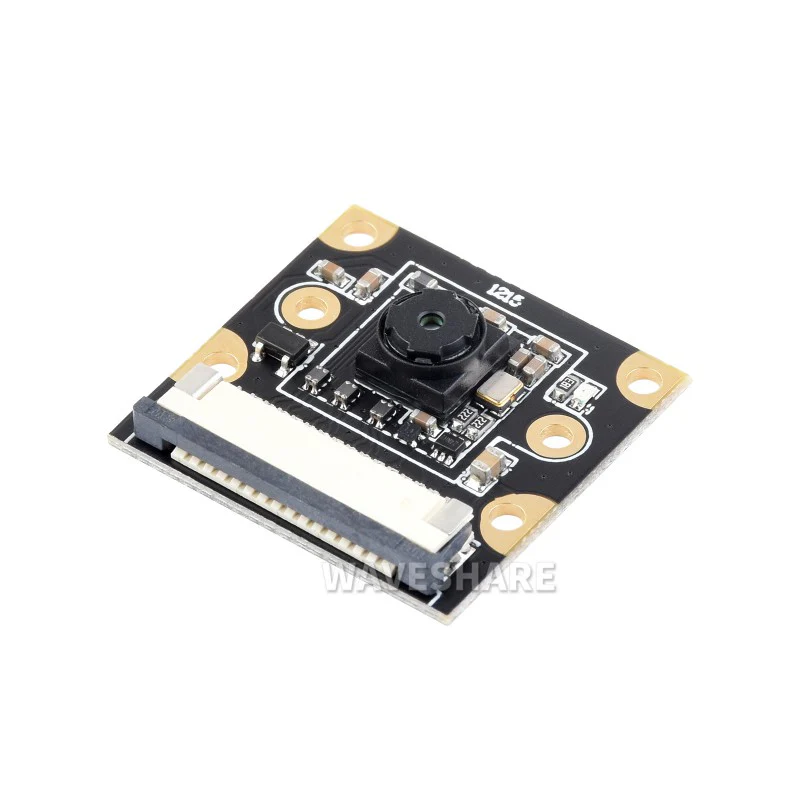

IMX219 Camera Module For Raspberry Pi 5
8MP Camera Module For Raspberry Pi 5
IMX219 Sensor, MIPI-CSI Interface, Options For 79.3° / 120° FOV
Version Options
Pi5-IMX219-77 |
Pi5-IMX219-120 |
Specifications
| MODEL | Pi5-IMX219-77 | Pi5-IMX219-120 |
|---|---|---|
| PIXELS | 8MP | |
| SENSOR | IMX219 | |
| RESOLUTION | 3280×2464 | |
| CMOS SIZE | 1/4 inch | |
| APERTURE (F) | 2.0 | |
| FOCAL LENGTH | 2.85mm | 1.79mm |
| FIELD OF VIEW | 79.3° | 120° |
| DISTORTION | <1% | <13.6% |
| LENS DIMENSIONS | 6.5×6.5mm | |
| SCREW HOLES | 4 × screw holes, used for attachment, provides 3.3V power output | |
| DIMENSION | 25×24mm | |

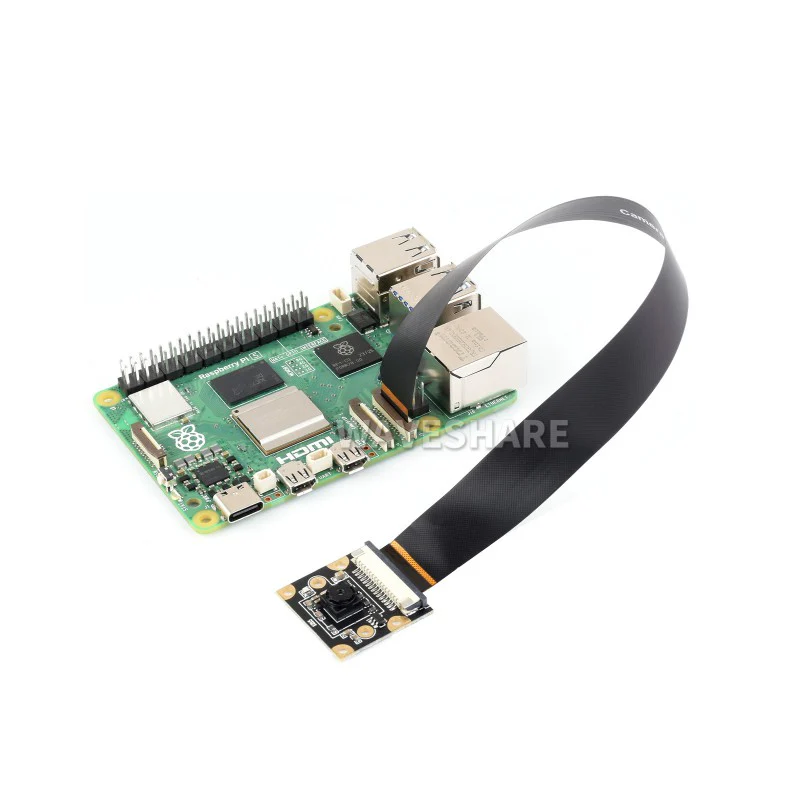

Working With Raspberry Pi 5
Comes With CSI Flexible Cable 200mm, Easy To Use With Raspberry Pi 5
for reference only, the Raspberry Pi 5 is NOT included
Outline Dimensions
Resources
Wiki: www.waveshare.com/wiki/Pi5-IMX219
Package Contents:
Weight: 0.012 kgPi5-IMX219 (with Pi5-Camera-Cable-200mm) x1
Select Field of View
From $5.40
Original: $17.99
-70%IMX219 Camera Module For Raspberry Pi 5—
$17.99
$5.40
Description
8MP Camera Module For Raspberry Pi 5
IMX219 Sensor, MIPI-CSI Interface, Options For 79.3° / 120° FOV
Version Options
|
Pi5-IMX219-77 |
Pi5-IMX219-120 |
Specifications
| MODEL | Pi5-IMX219-77 | Pi5-IMX219-120 |
|---|---|---|
| PIXELS | 8MP | |
| SENSOR | IMX219 | |
| RESOLUTION | 3280×2464 | |
| CMOS SIZE | 1/4 inch | |
| APERTURE (F) | 2.0 | |
| FOCAL LENGTH | 2.85mm | 1.79mm |
| FIELD OF VIEW | 79.3° | 120° |
| DISTORTION | <1% | <13.6% |
| LENS DIMENSIONS | 6.5×6.5mm | |
| SCREW HOLES | 4 × screw holes, used for attachment, provides 3.3V power output | |
| DIMENSION | 25×24mm | |
Working With Raspberry Pi 5
Comes With CSI Flexible Cable 200mm, Easy To Use With Raspberry Pi 5
for reference only, the Raspberry Pi 5 is NOT included
Outline Dimensions
Resources
Wiki: www.waveshare.com/wiki/Pi5-IMX219
Package Contents:
Weight: 0.012 kgPi5-IMX219 (with Pi5-Camera-Cable-200mm) x1
