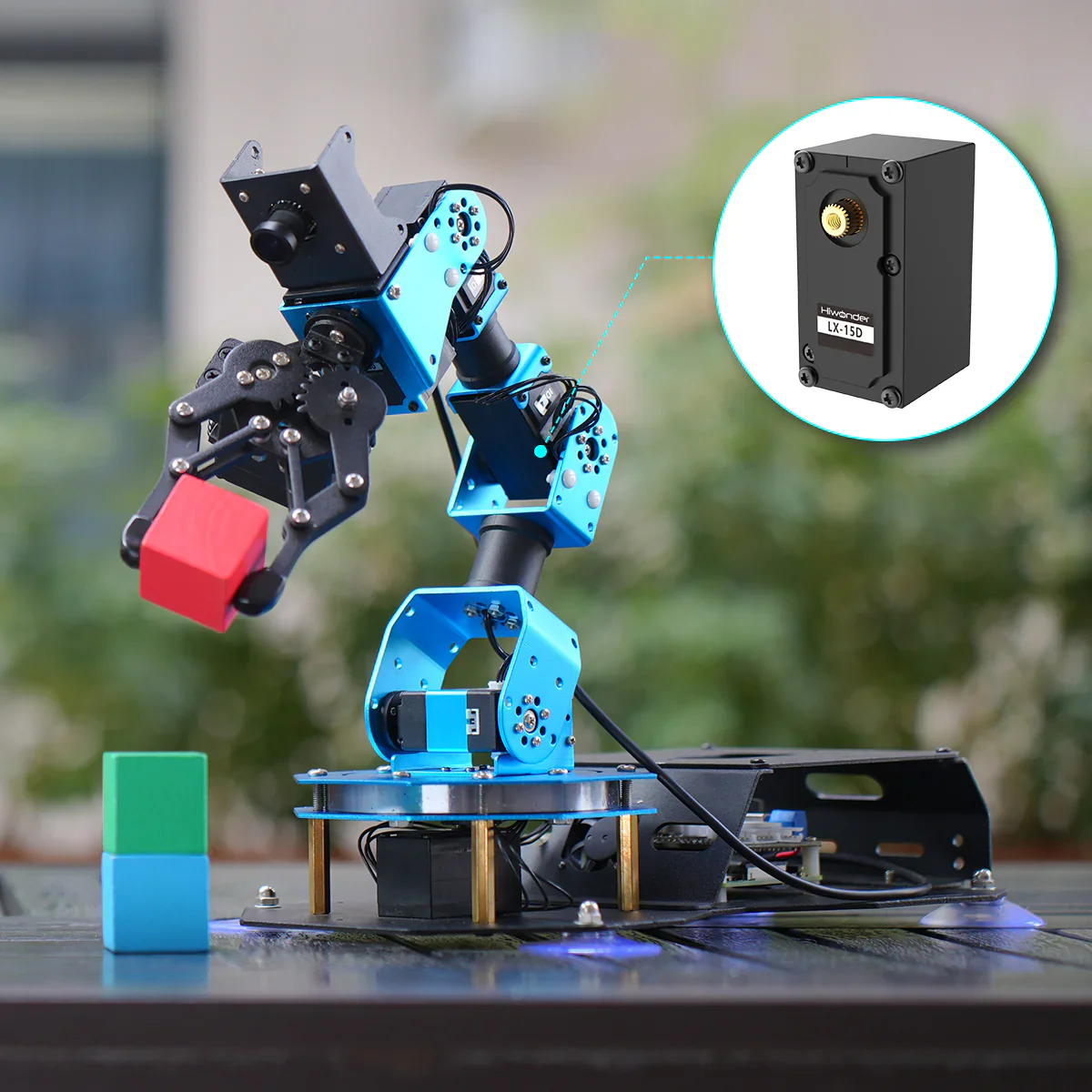

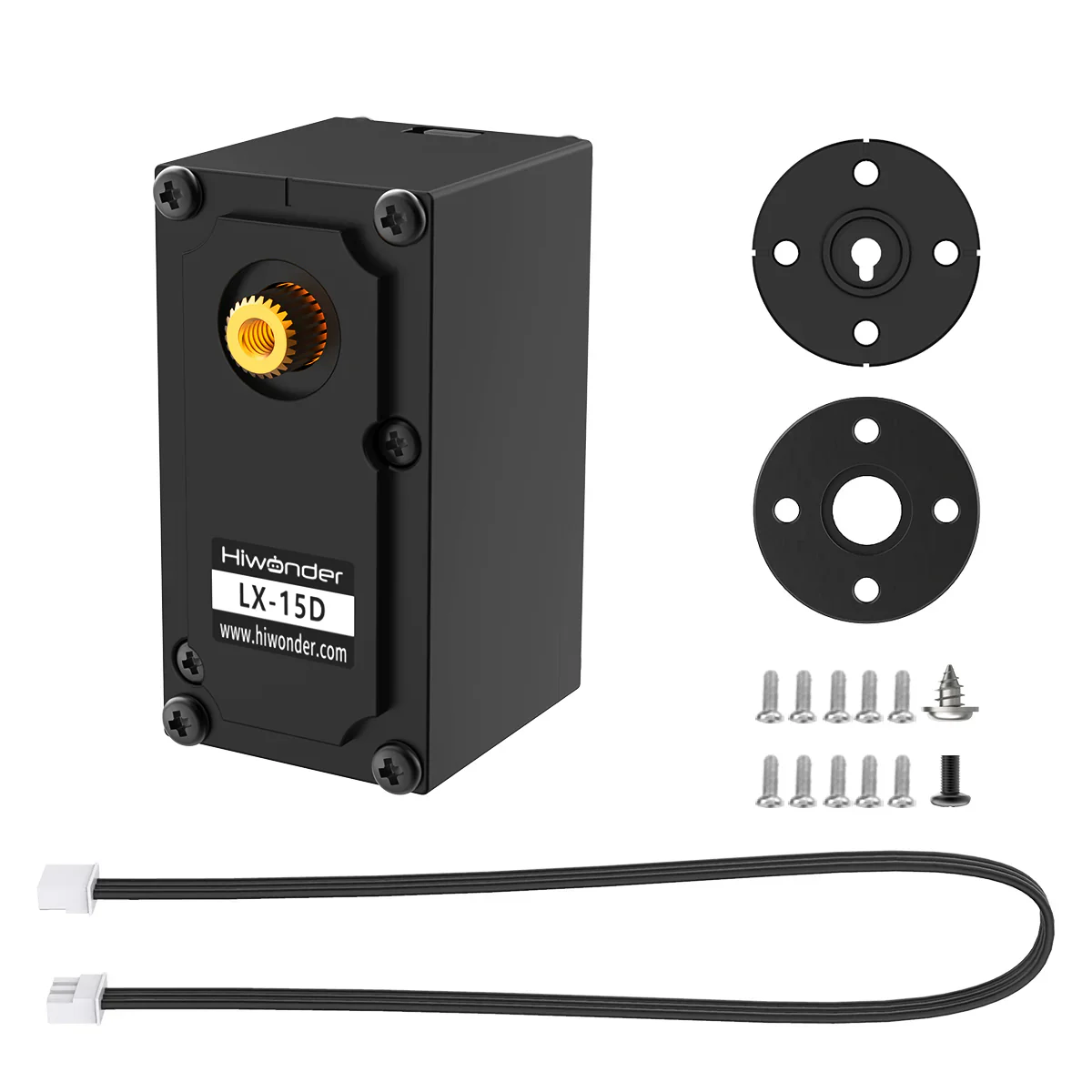

Hiwonder LX-15D Intelligent Serial Bus Servo with RGB Indicator for Displaying Robot Status

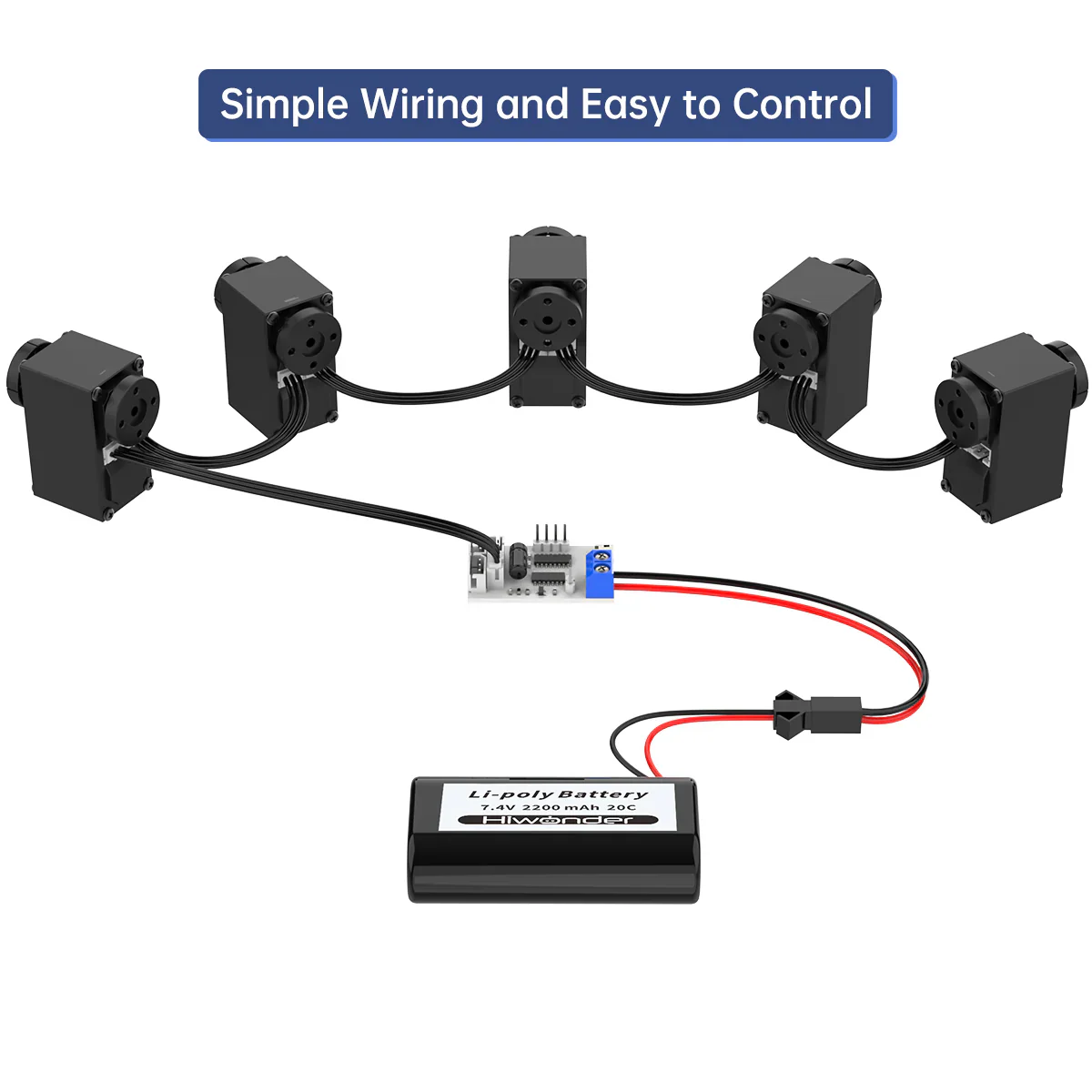

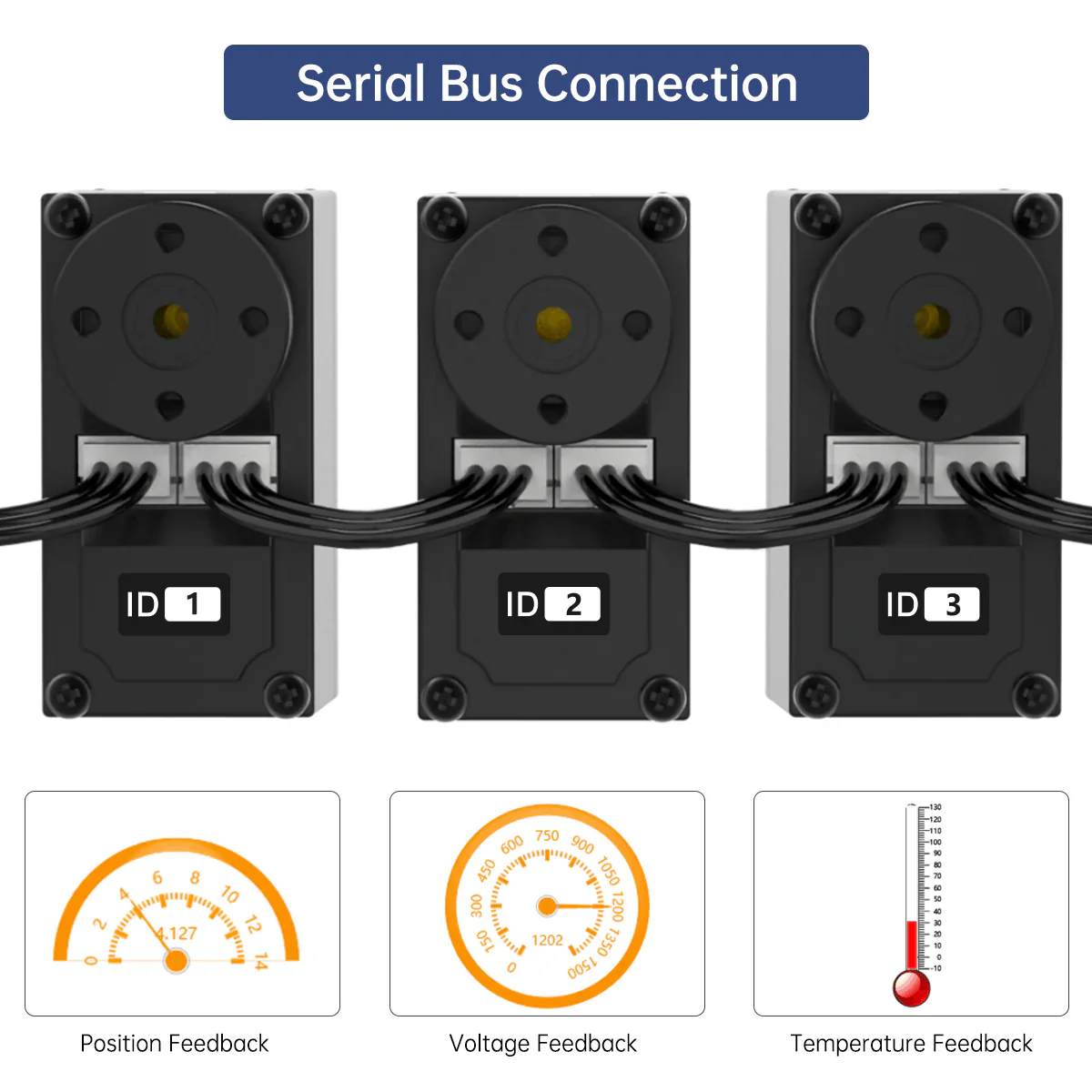

Bus Servo Communication

The user can set and assign an ID number to each servo and use the controller to issue instructions to make the servo perform actions according to the instructions.

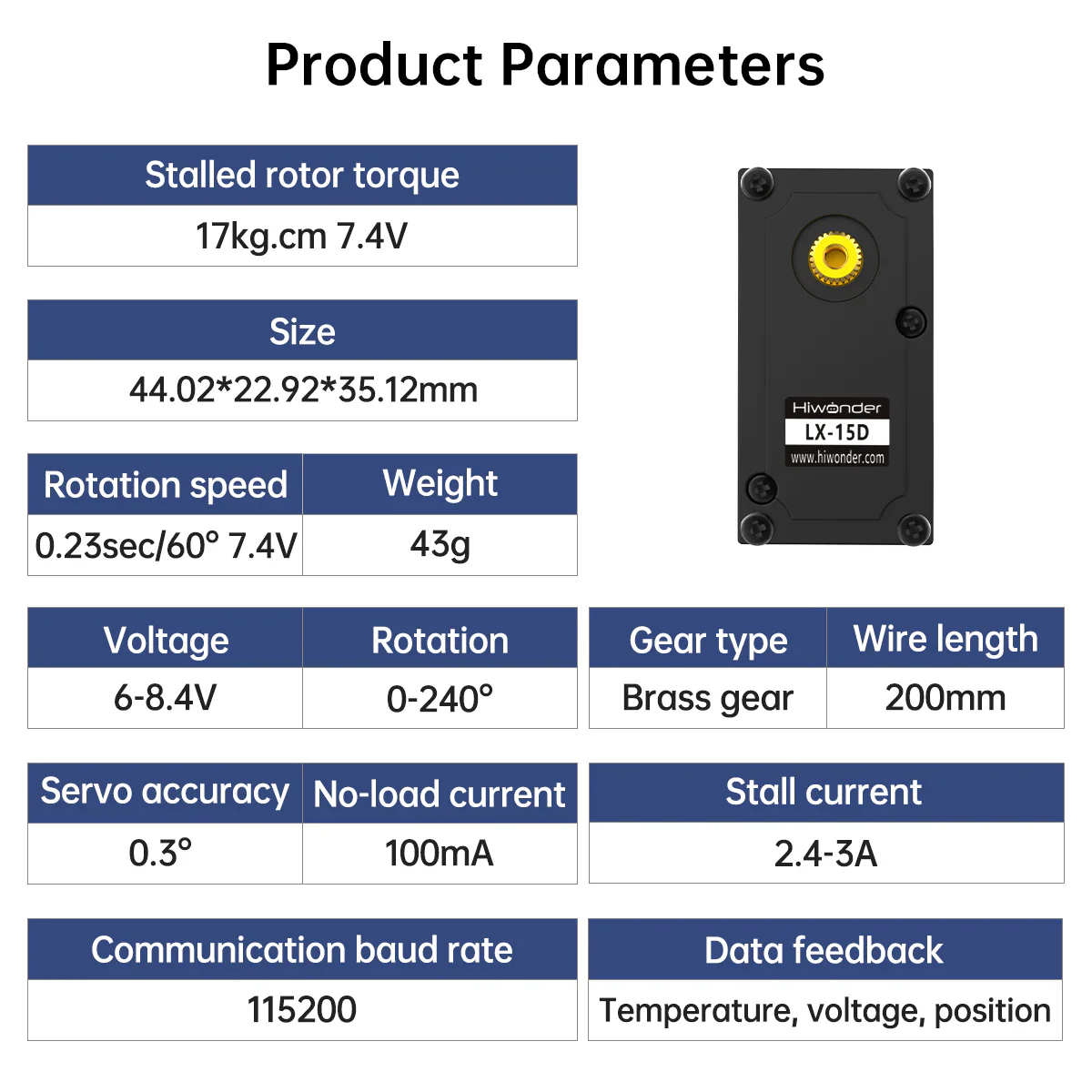

High Torque and Strong Power

The servo has a maximum torque of 17kg.cm 7.4V, which is powerful and gives your robot plenty of power.

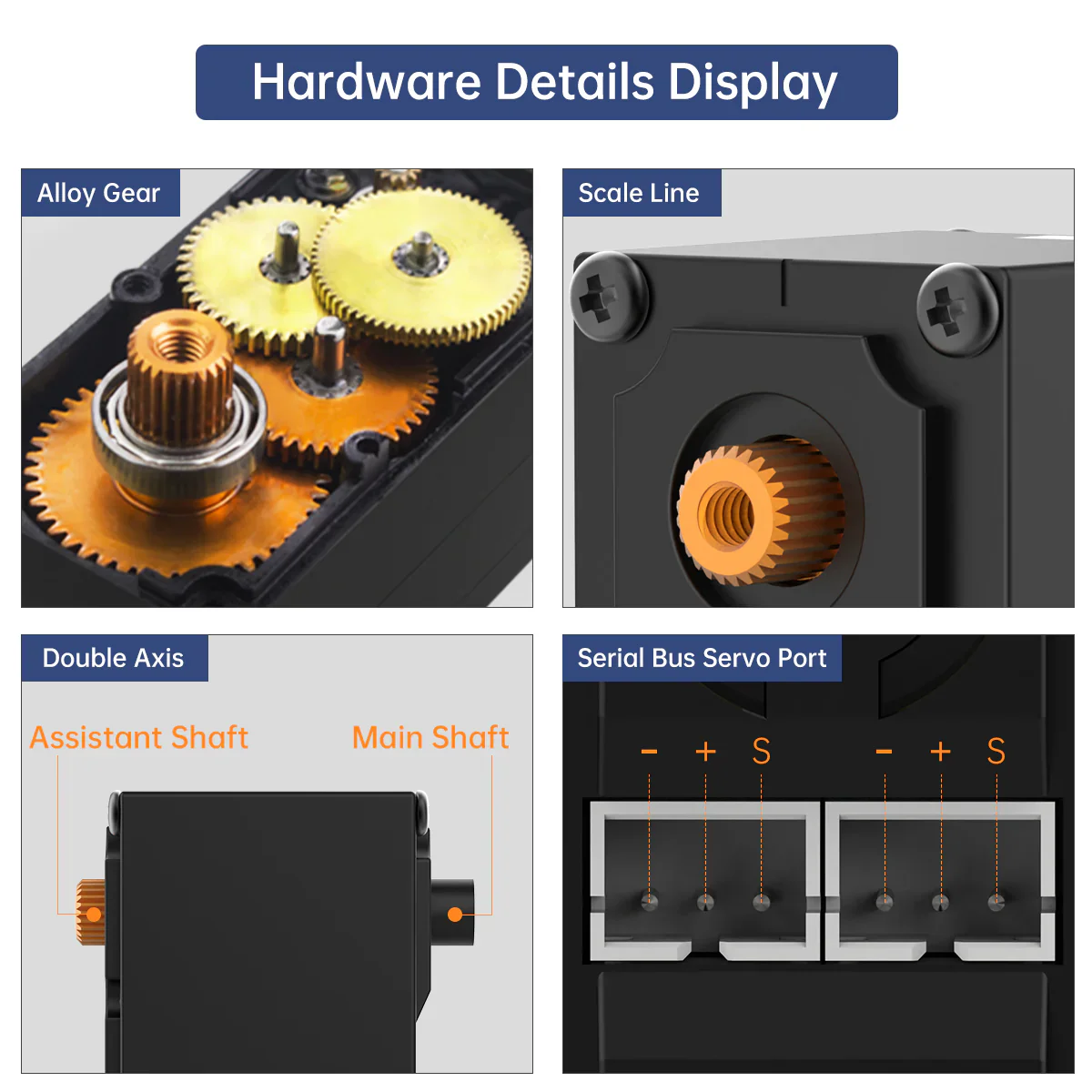

High Quality Potentiometer

The servo adopts a high-precision potentiometer, which improves the accuracy and linearity, makes the operation more stable and prolongs the service life.

Intelligent Feedback and Two Working Modes

The servo supports servo mode and reduction motor mode, and has position, temperature and voltage feedback to protect the normal operation of the servo.

Servo Debugging System

The debugging system allows you to control the servo's rotation for testing purposes, and monitor real-time servo data, including its position, voltage, and temperature.

Adjustable Parameters

In Debugging system, you can set ID number, working mode, rotation speed, position deviation, LED light, temperature alarm, stalling alarm and voltage alarm for servos.

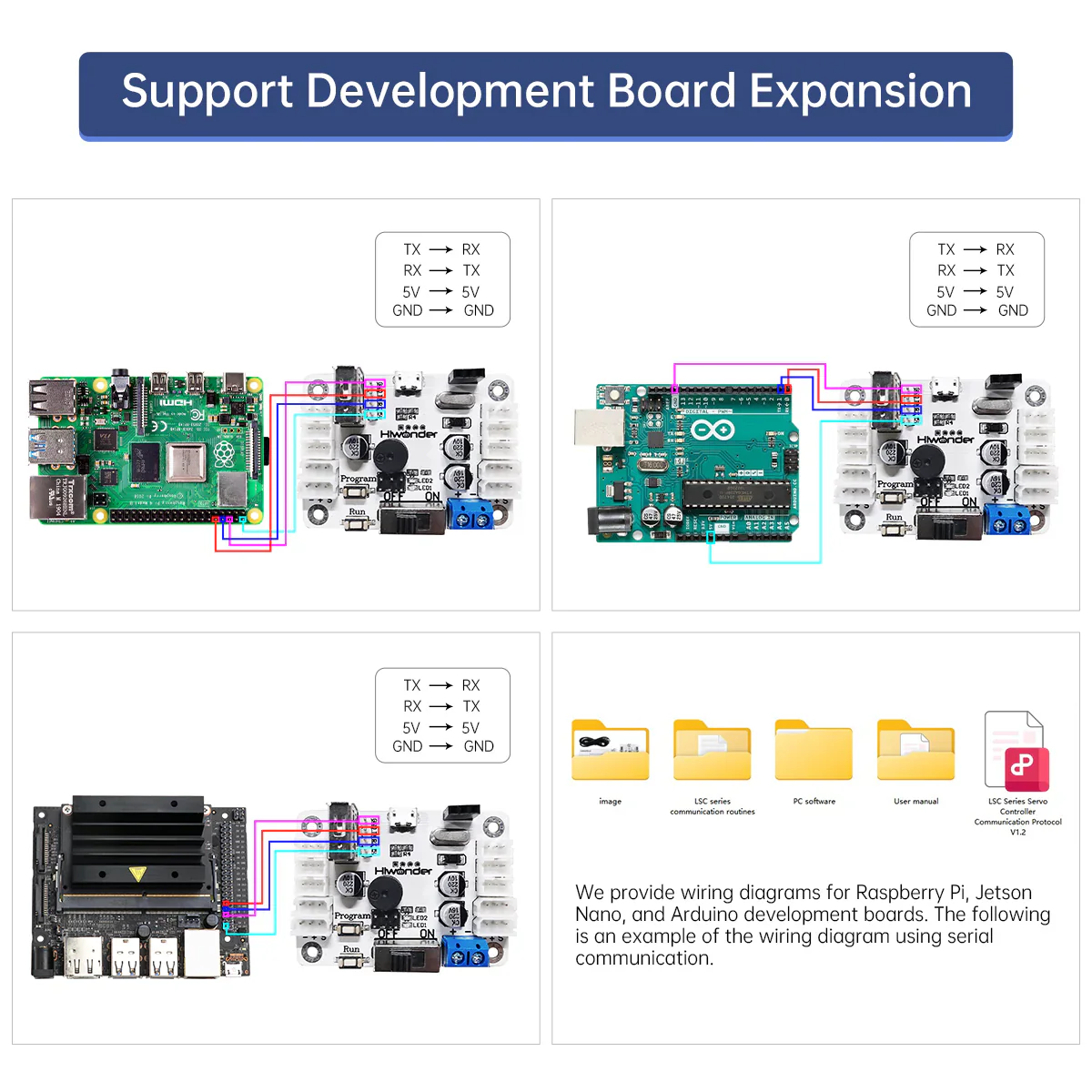

About Servo Controller Wiring

This serial bus servo controller involves 10 bus servo connection ports, which can control 40 servos in total.Pay attention this controller is only for serial bus servo.

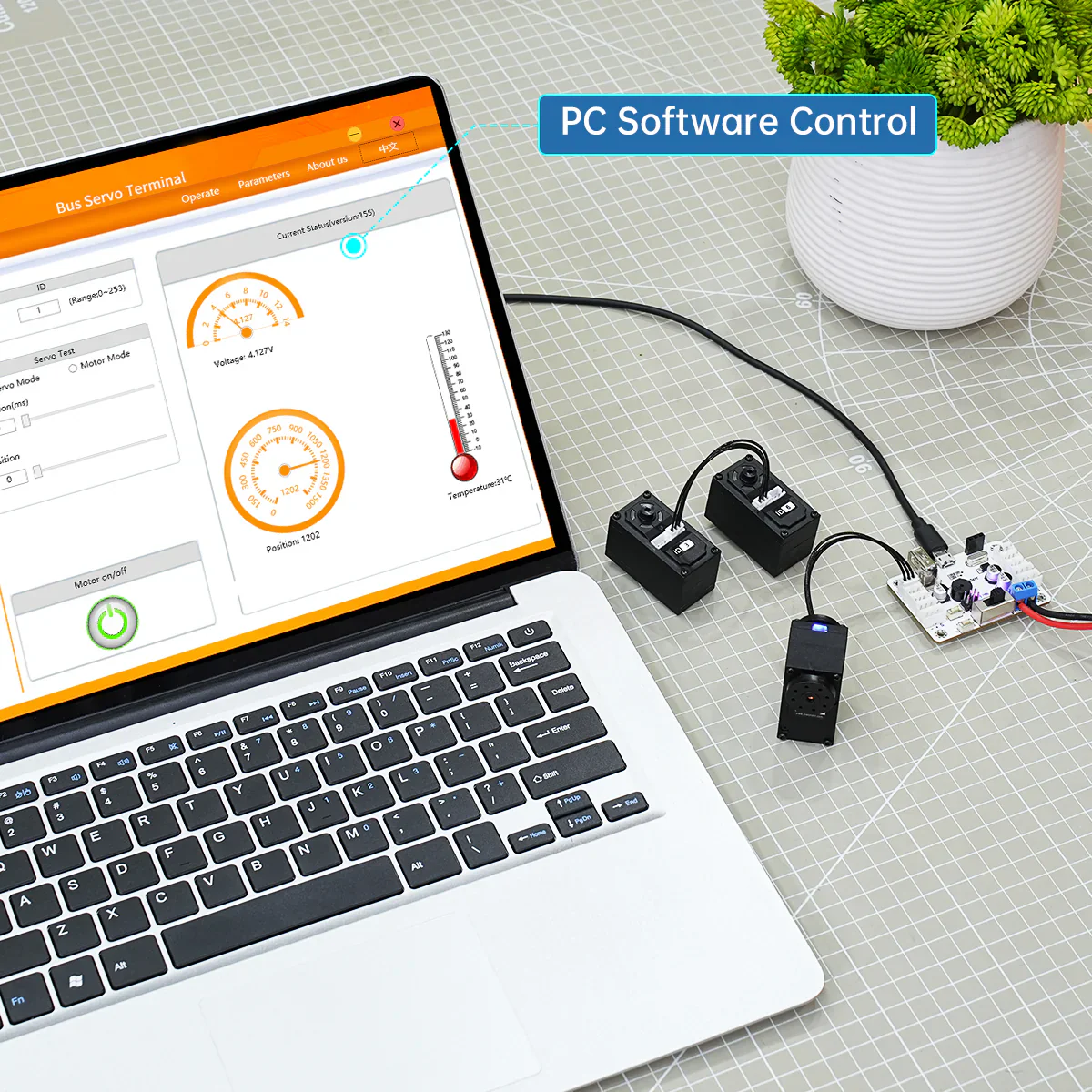

PC Software Interface

We have added an angle readback function to the host computer interface. By manually adjusting the angle of the servo, angle reading and program entry can be performed, which can quickly realize robot programming.
