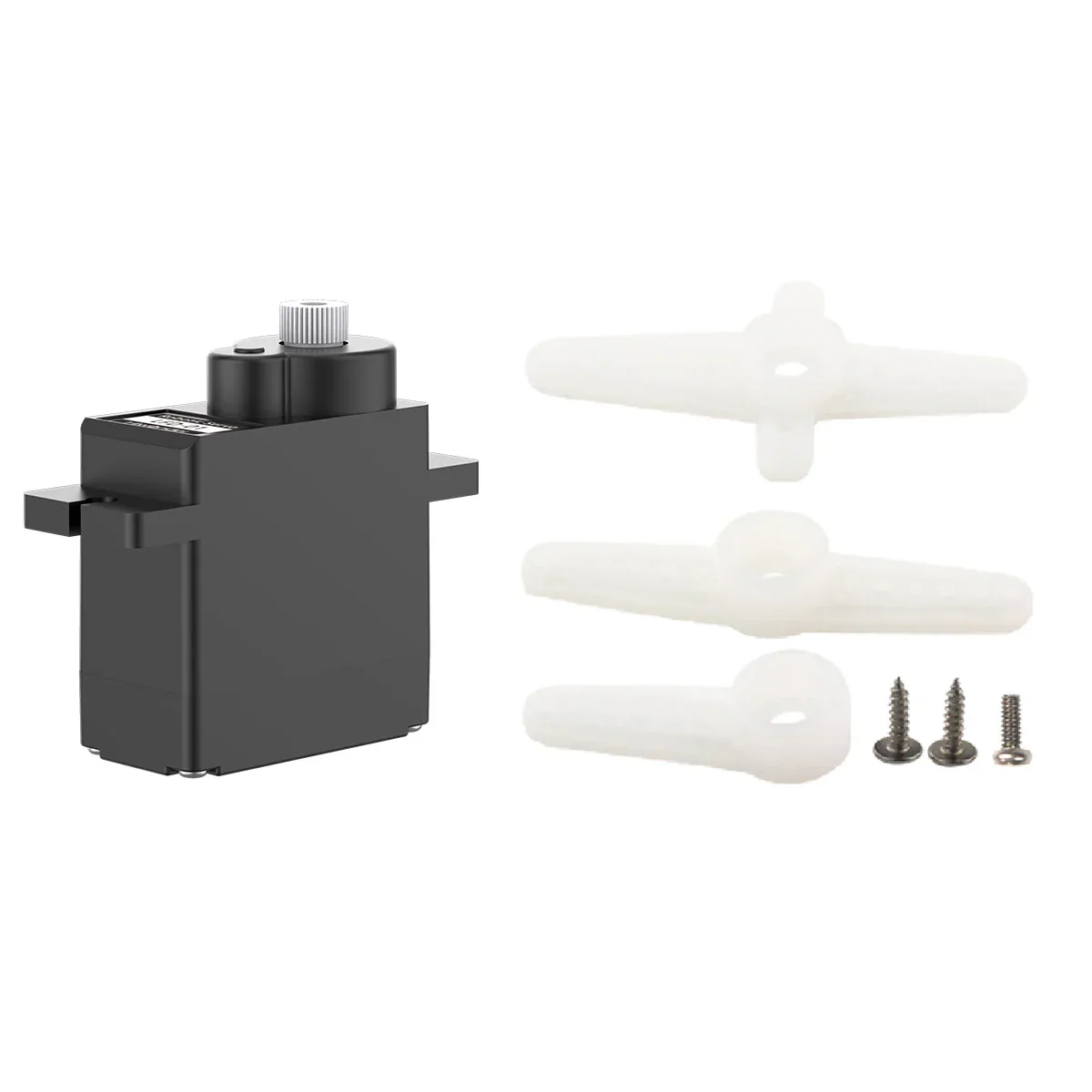

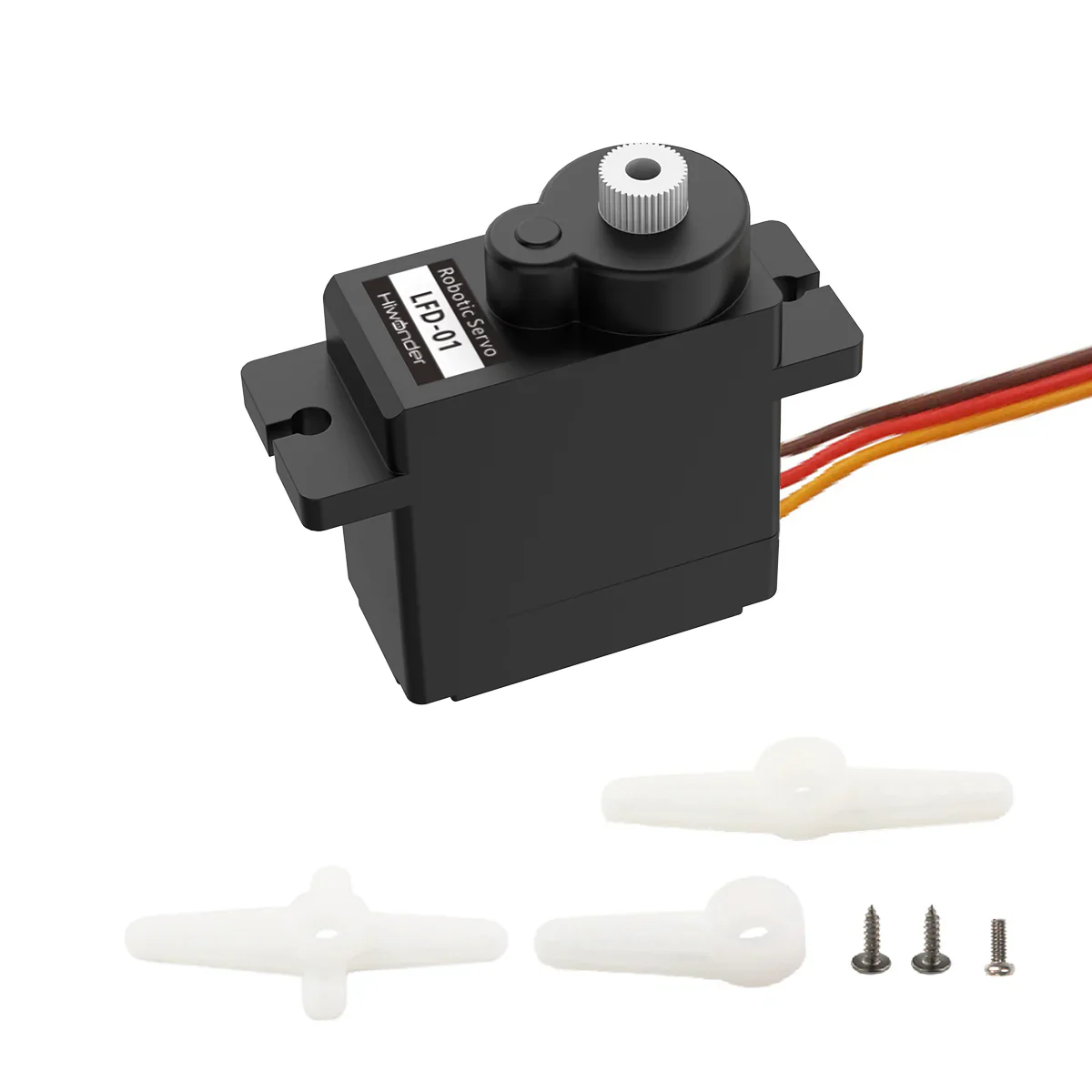

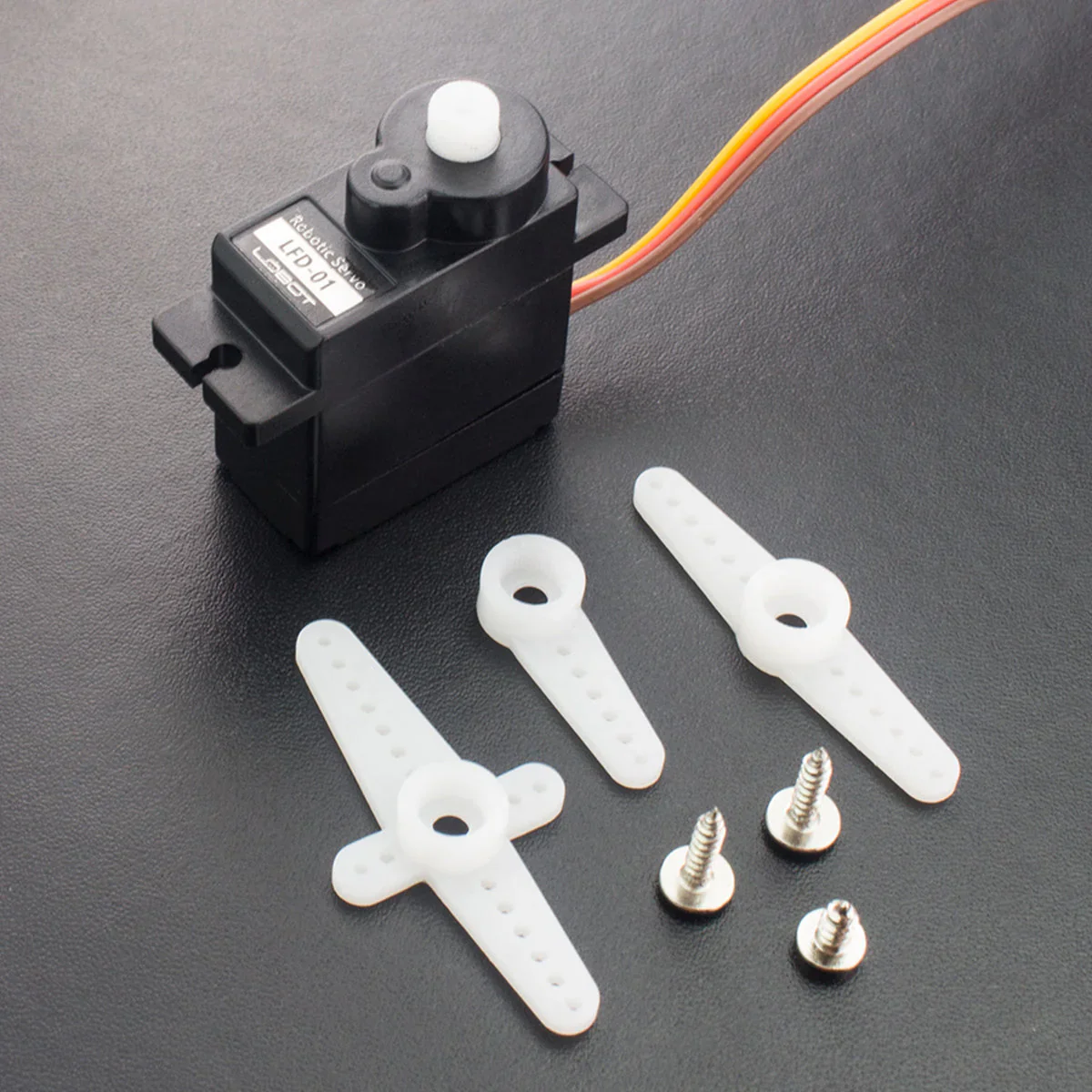

Hiwonder LFD-01 Robot Servo 6V Micro Servo Anti-blocking with Plastic Gear
Hiwonder LFD-01 Robot Servo 6V Micro Servo Anti-blocking
Feature
1. Working voltage is 4.8-6V
2. Built-in anti-blocking algorithm is more durable.
3. Optimize the design of gears to make the operation smoother.
4. Using the high-quality material for better performance.
5. Provide 51, Arduino, STM32 servo control program.

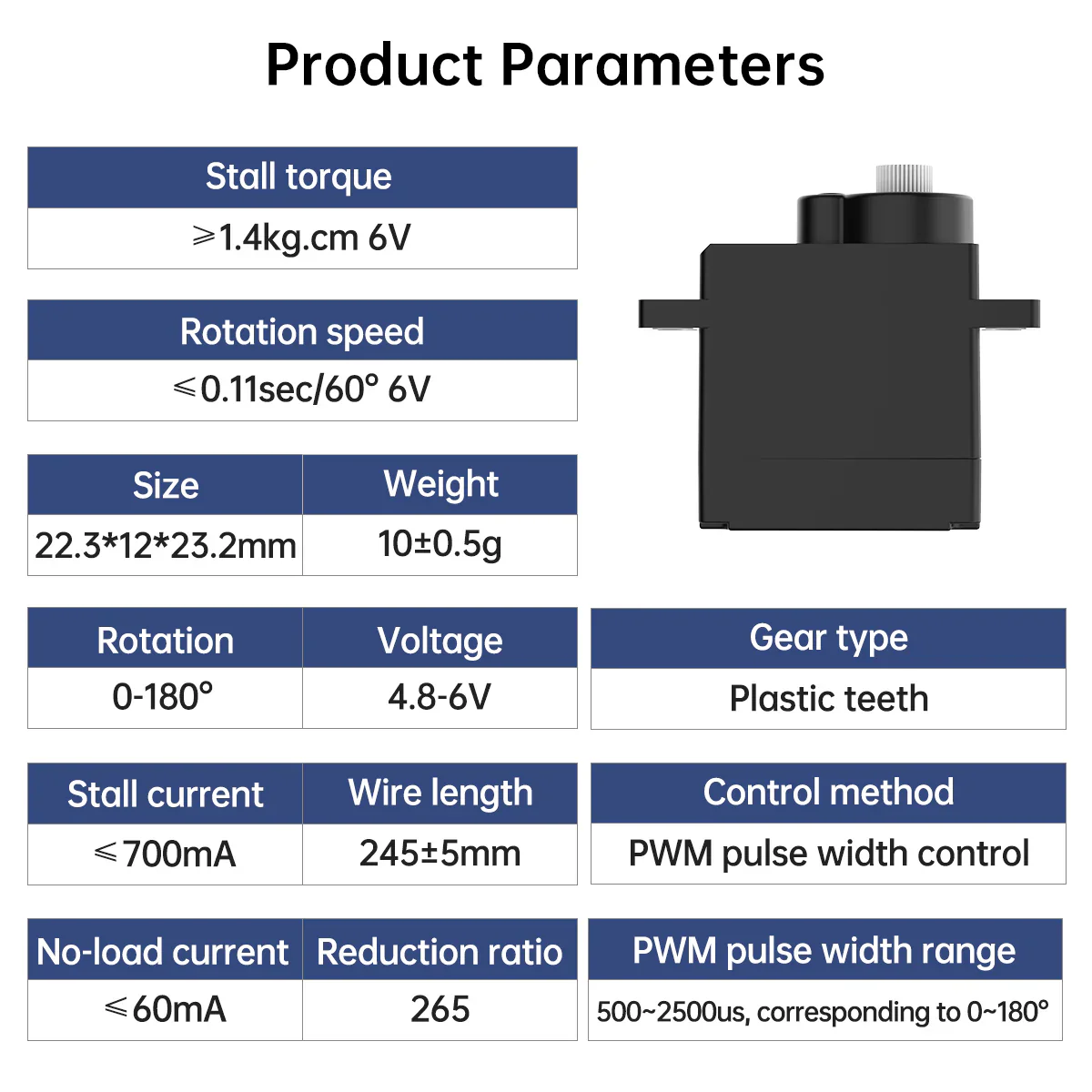

Product Parameters
| Item | Specification |
|---|---|
| Product weight | 10g |

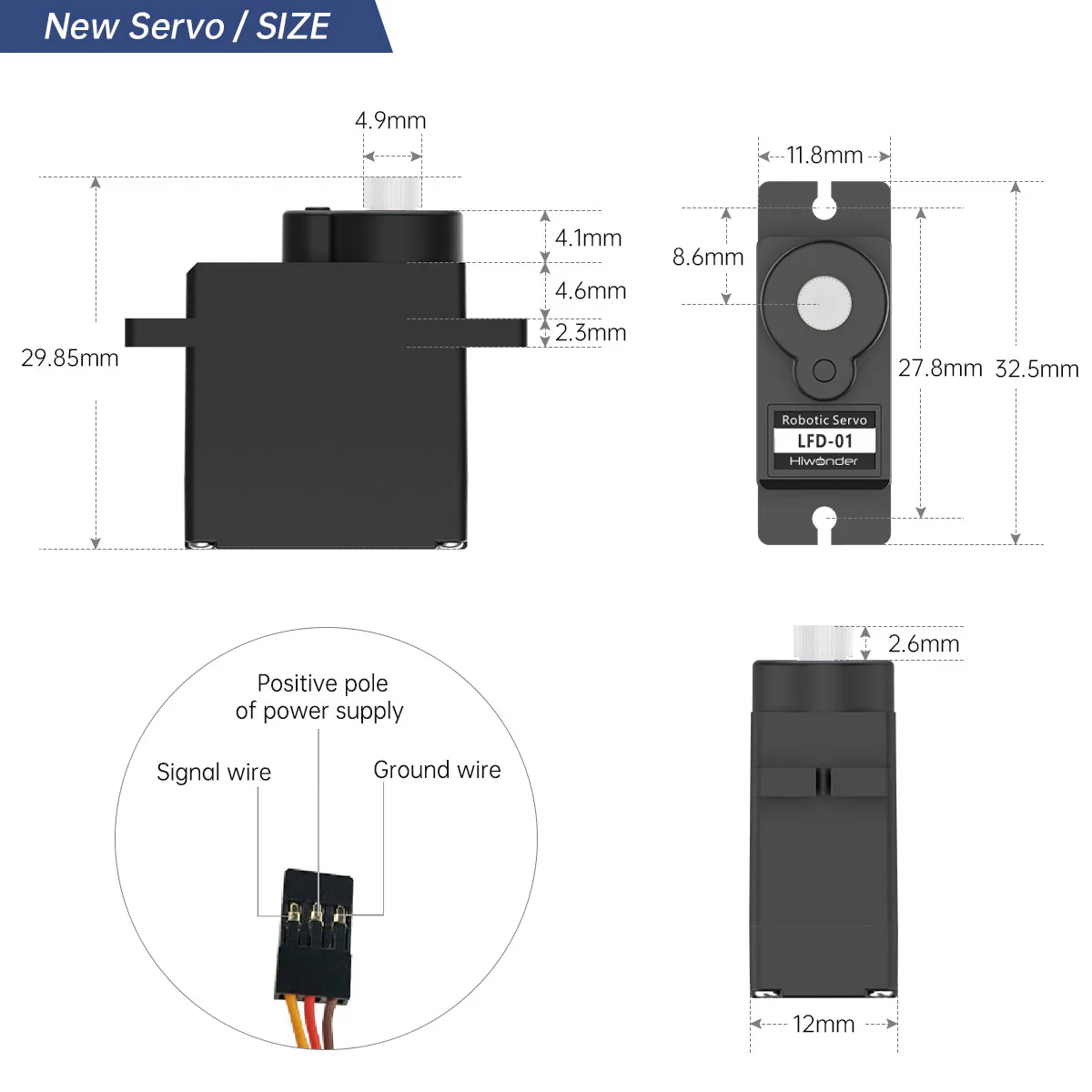

| Product size | 22.3*12*23.2mm |
| Working voltage | 4.8-6V |
| Rotation speed | ≤0.11sec/60° 6V |
| Stalled rotor torque | ≥1.4kg.cm 6V |
| Rotation range | 0~180° |
| No-load current | ≤60mA |
| Locked rotor current | 700mA |
| Control method | PWM pulse width control |
| PWM pulse width range | 500~2500us, corresponding to 0~180° |
| Gear type | plastic teeth |
| Product line length | 245±5mm (Exposed without plug) |
| Applicable to | various types of bionic robot joints |
 Anti-blocking Servo Equipped with built-in stall protection algorithm, ensuring the servo won't burn out due to blockage or collision, significantly extending its lifespan. |
 Precise and Durable Gear Hiwonder excels in gearbox design, ensuring precision and delicacy in every gear. Our optimization techniques guarantee smooth operation, significantly reducing the risk of chipping. |
 High Quality Materials LFD-01 servo is made of high-quality materials, and recycled materials are not utilized in its production. |

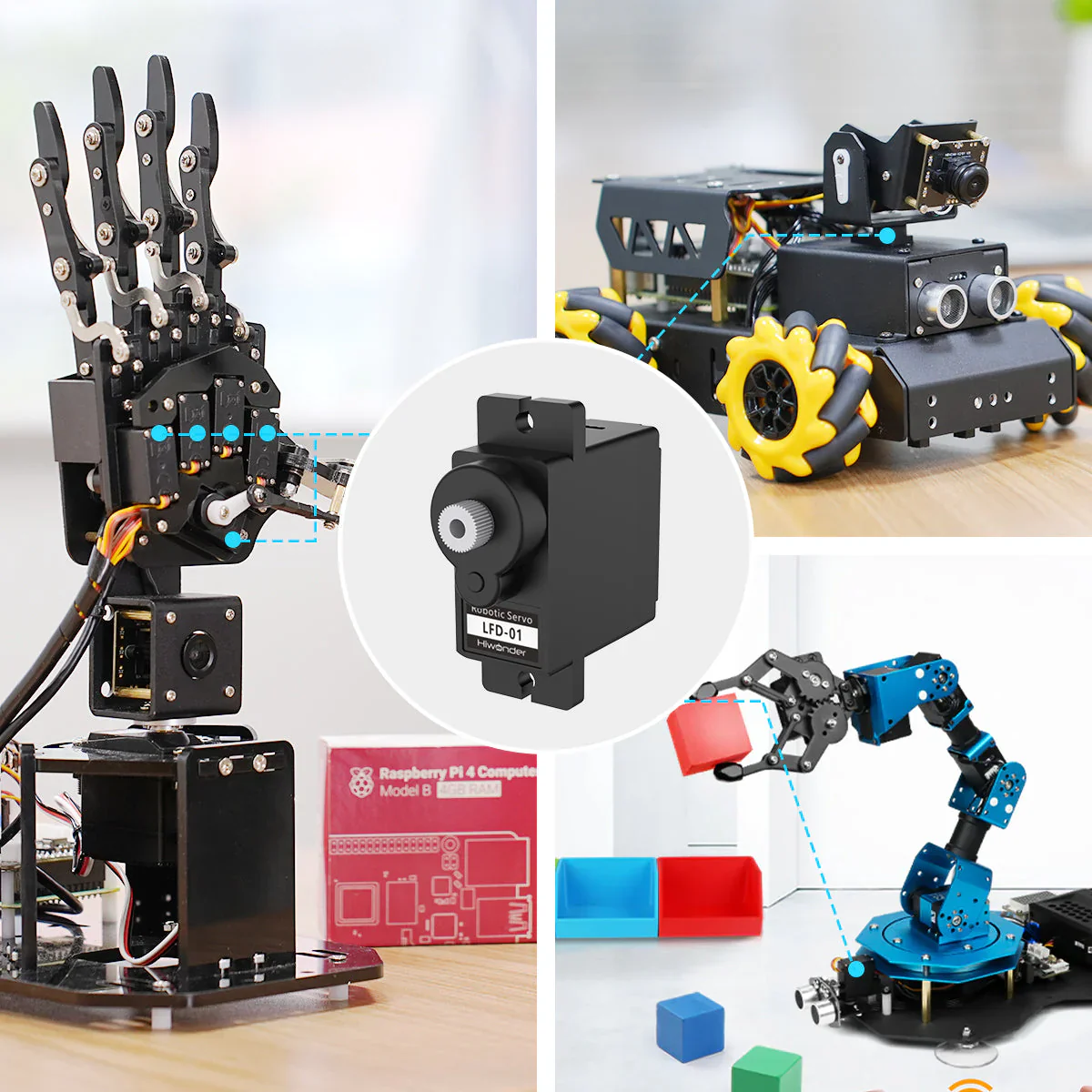

Various Application Scenarios
